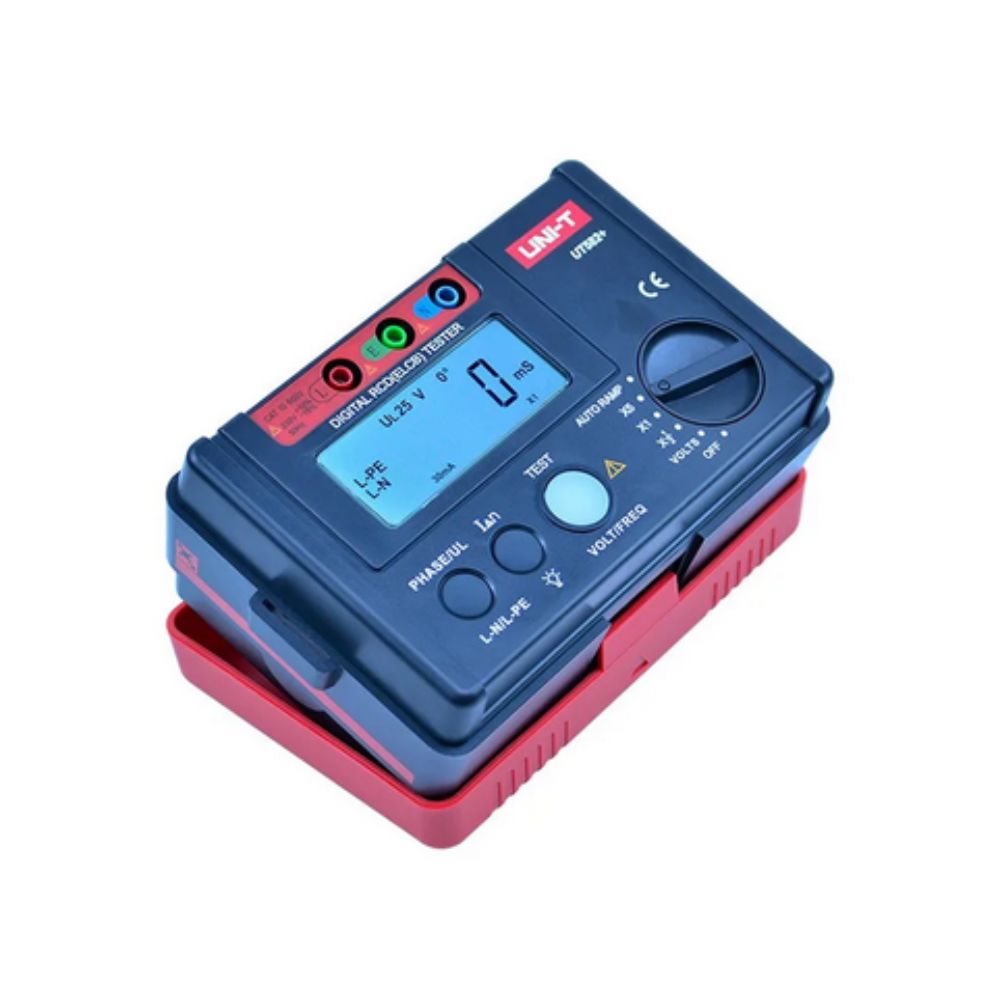

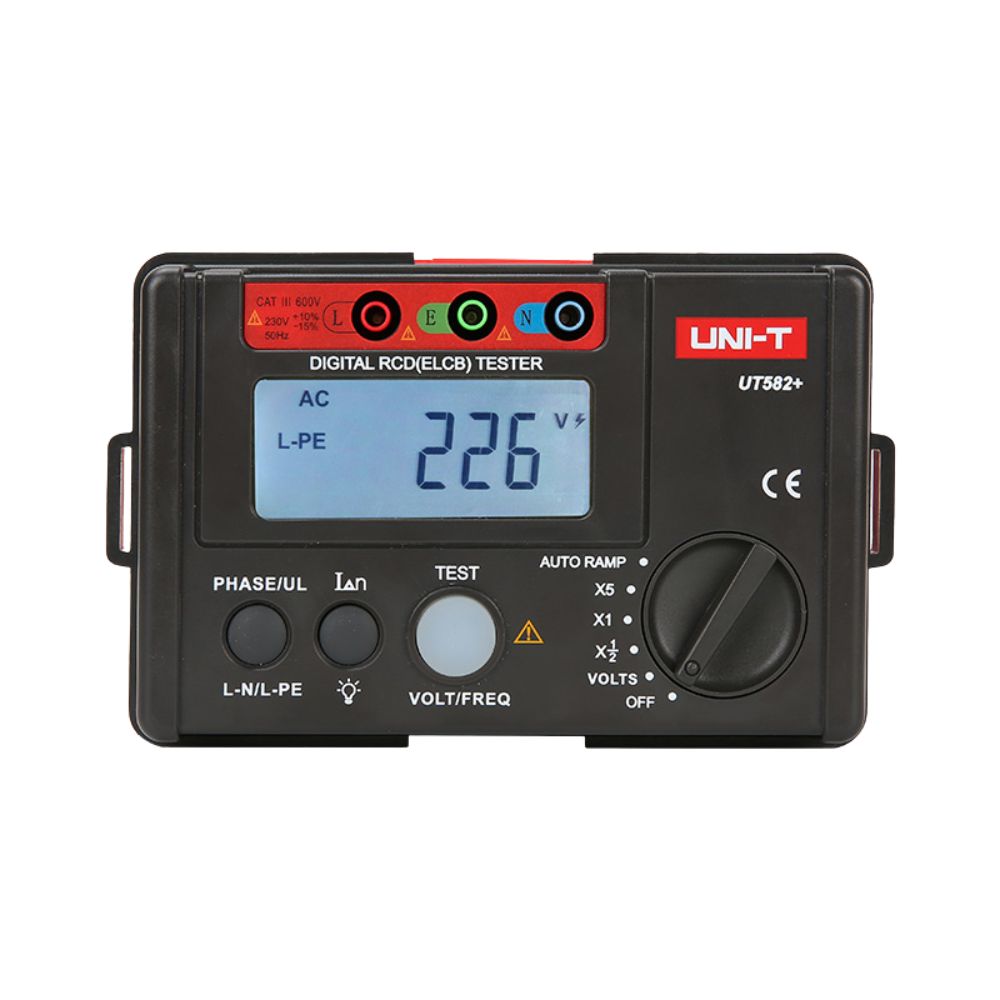

UNI-T UT582+ Digital RCD (ELCB) Tester

UNI-T UT582+ Single Phase RCD Tester in Sri Lanka

Compact 230V RCD Tester for Trip Time and Trip Current Checks

The UNI-T UT582+ Digital RCD (ELCB) Tester is a compact single phase RCD tester that checks whether a residual current device (also called an ELCB or RCCB) trips when it should. It measures trip time at ×½, ×1 and ×5 test currents, and its Auto Ramp mode shows trip current and trip time together. It suits Sri Lanka's 230V/50Hz single-phase supply. Browse our full range of RCD Testers in Sri Lanka.

Select a rated current of 10, 20, 30, 100, 300 or 500 mA to match the label on the RCD, so it works as a 30 mA RCD tester for typical residential protection as well as higher ratings. You can start the test at 0° or 180°, and the LCD wiring check warns you about missing power, poor earthing, a disconnected neutral or reversed live and neutral before you test. Every unit ships with the manufacturer's calibration certificate, batteries included and a one-year warranty.

Technical Specifications

Supply Voltage

Single-phase 230V/50Hz | Operating range: 195V~253V | Not suitable for three-phase circuits

Rated Operating Current (IΔn)

×½: 10/20/30/100/300/500 mA | ×1: 10/20/30/100/300/500 mA | ×5: 10/20/30 mA | Auto Ramp: 10/20/30/100/300/500 mA

Maximum Trip Time

×½ (non-tripping): 2000 ms | ×1: 1000 ms (500 mA: 300 ms) | ×5: 40 ms | Auto Ramp: 300 ms

Test Current Accuracy

×½: -10%~0% | ×1 and ×5: 0%~+10% | Auto Ramp: -10%~+10%

Trip Time Accuracy

±(2%+2)

Phase Angle Selection

0° and 180°

Voltage Measurement

30~600V | 45~65Hz | Resolution: 1V | Accuracy: ±(3%+3)

Contact Voltage Limit

UL25V or UL50V selectable | Test stops and a warning shows on the LCD if the limit is exceeded

Display

71 × 34 mm LCD | 1000 counts | Backlight | Over-range indication | Data hold

Battery

6 × 1.5V AA (LR6) | Low battery indication below 7.2V | Auto power off after 5 minutes

Safety and Standards

CAT III 600V | IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007, IEC 61557-6:2007, EN 61326-1, EN 61326-2-2 | CE, UKCA

Operating | Storage Conditions

0°C~40°C (up to 80%RH, up to 2000 m) | -20°C~60°C (up to 75%RH)

Size and Weight

160 × 100 × 71 mm | 400 g

Calibration and Warranty

Manufacturer's calibration certificate included | 1-year warranty

Key Features

Trip Time and Trip Current Together

Auto Ramp mode raises the test current in steps and shows the current at which the RCD trips and the trip time

×½, ×1 and ×5 Tests

Checks that the RCD does not trip at half rated current, trips at rated current and trips fast at five times rated current (10/20/30 mA)

LCD Wiring Check

L-PE, L-N and N-PE indicators show whether wiring is correct before the test starts

0° / 180° Phase Selection

Test from the positive or negative half-cycle and compare results

Contact Voltage Protection

Stops the test and warns you if contact voltage exceeds the selected UL25V or UL50V limit

Data Hold and Over-Range Display

Keeps the result on screen after the test and shows when the trip time or current is out of range

Built-In Voltage Measurement

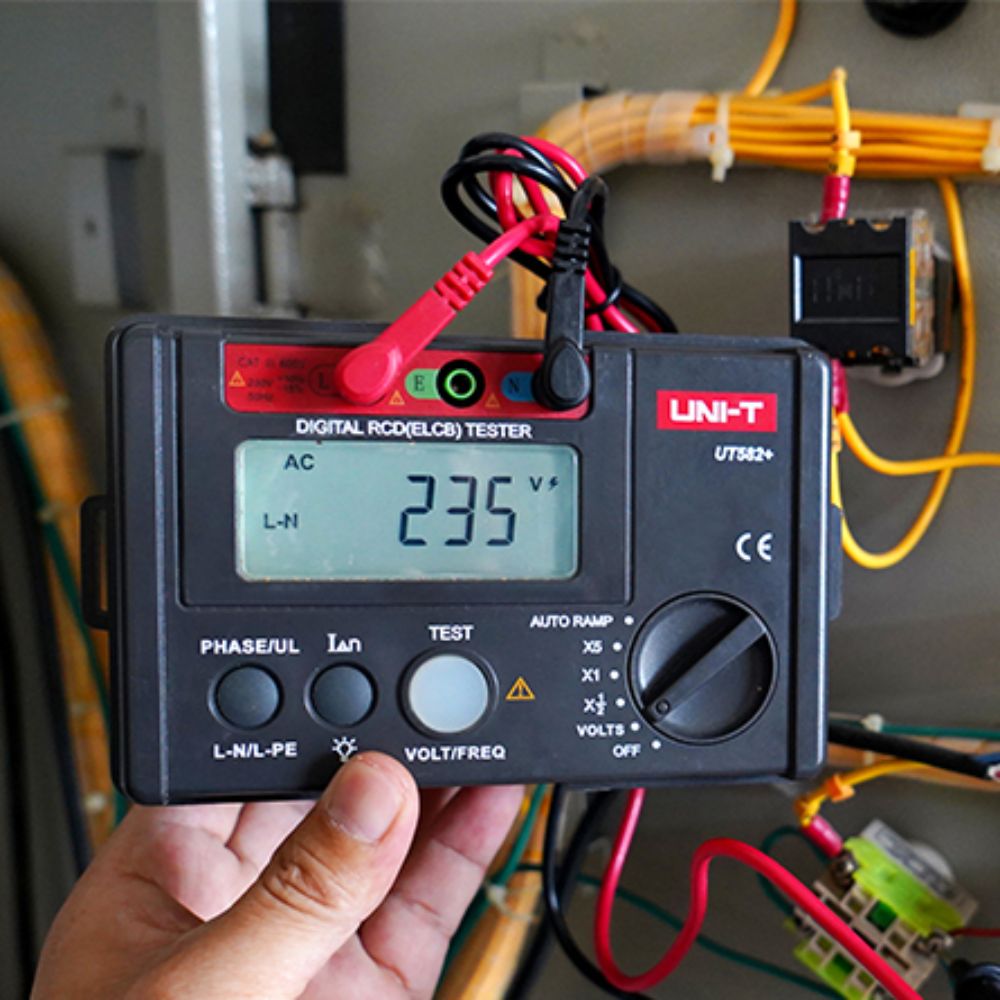

Reads voltage and frequency (30~600V) with the L-N/L-PE key and VOLT/FREQ key

Protected and Backlit

Fuse-protected inputs and a backlit LCD for dim locations

Applications

• Routine RCD checks in homes, offices and shops

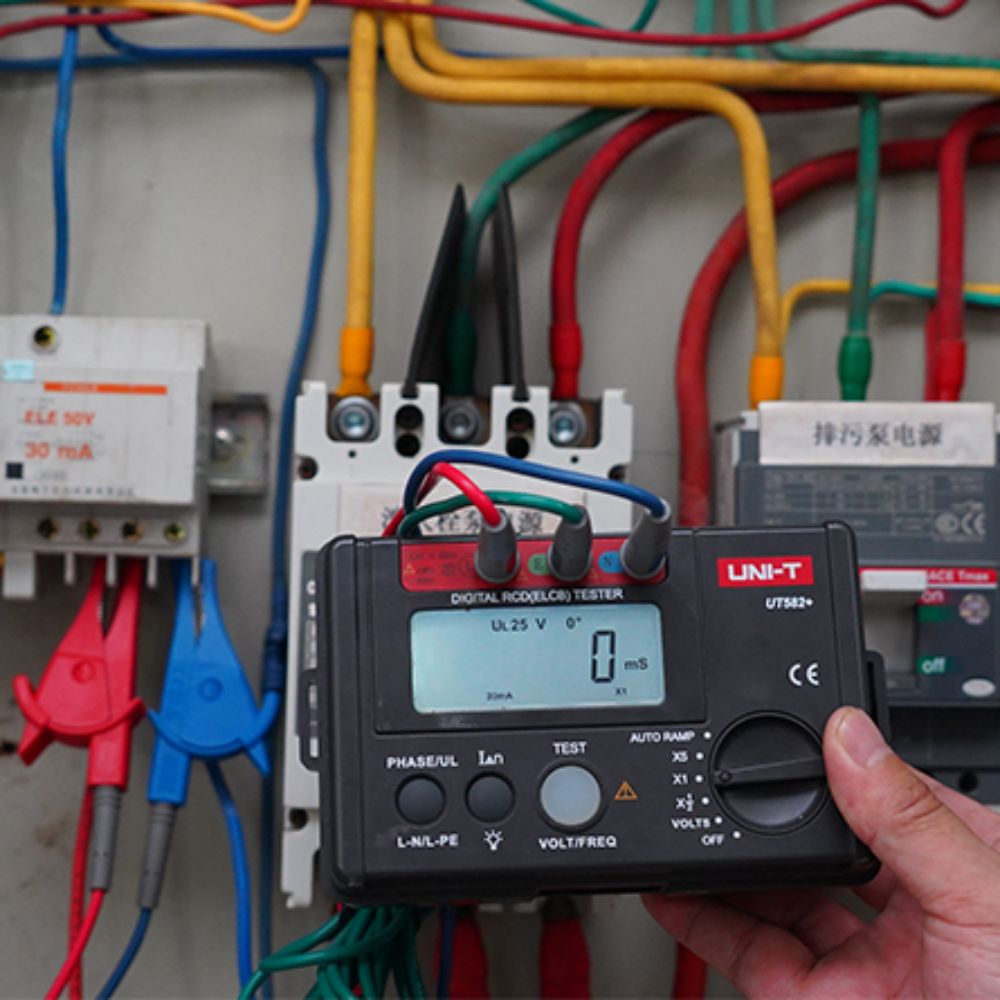

• Electrician installation and maintenance work on 230V single-phase circuits

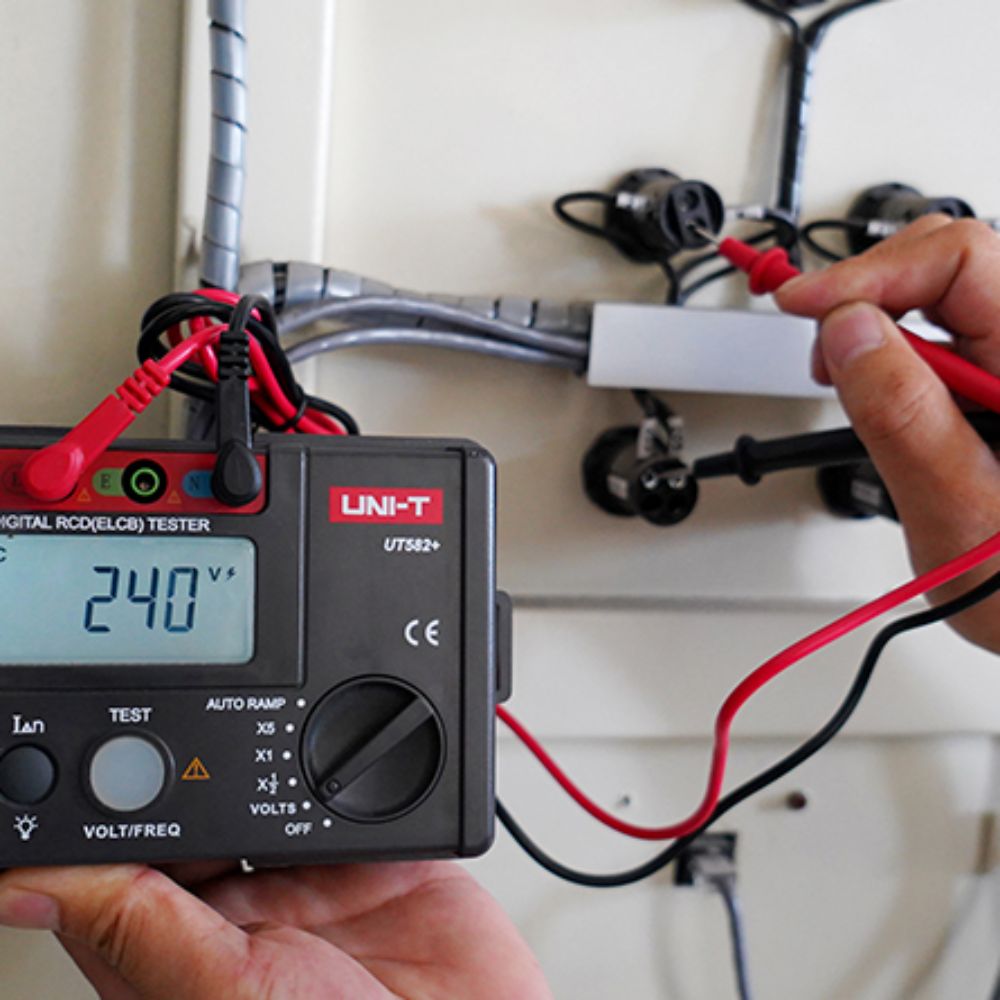

• Periodic safety checks of socket outlets protected by an RCD
• Training and demonstration of RCD operation

Which RCD Tester Should You Choose?

The UT582+ is designed for single-phase 195~253V circuits only. For three-phase systems, choose the UNI-T UT586+ 3 phase RCD tester. If you also need loop impedance, insulation and continuity tests, see the UNI-T UT595 multifunction installation tester. The listed specifications do not cover Type B (DC-sensitive) RCDs. Check that the plug on the supplied test lead suits your sockets before ordering.

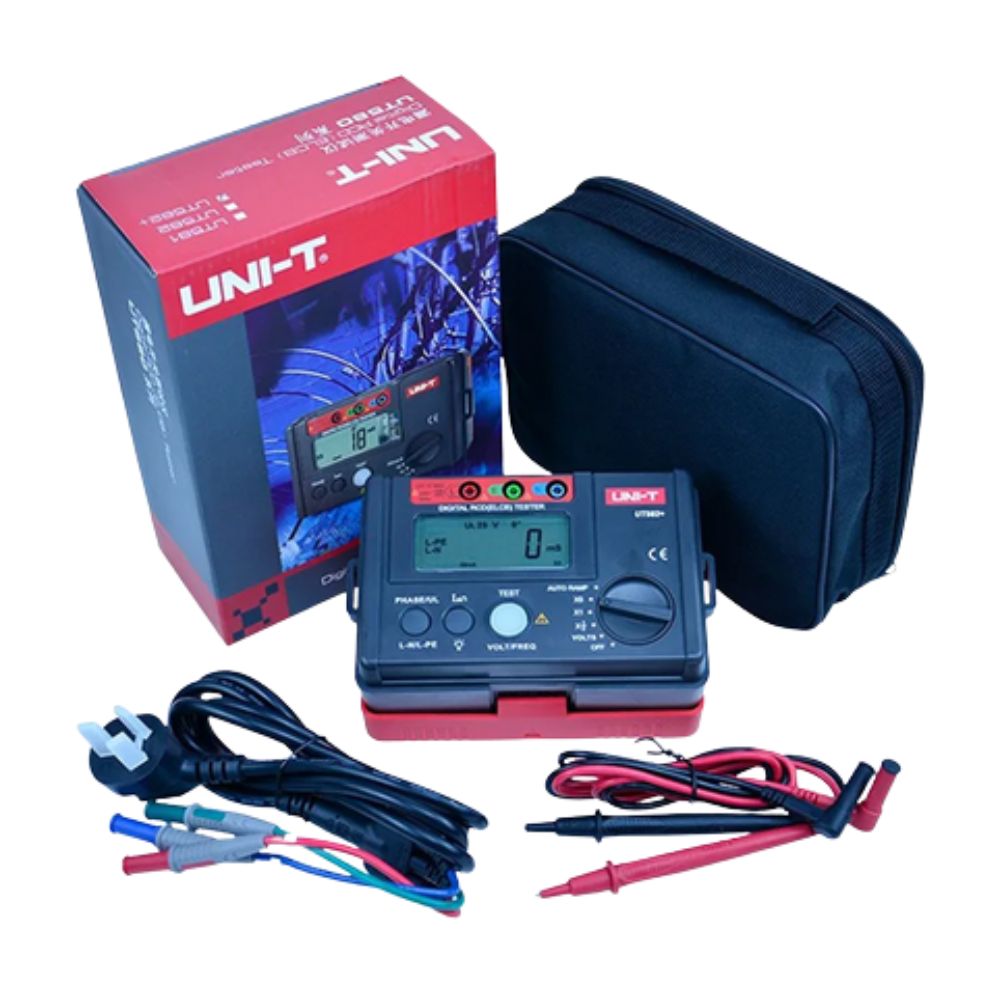

Package Includes

• 1 x UNI-T UT582+ Digital RCD (ELCB) Tester
• 6 x 1.5V AA batteries
• 1 x Test lead set
• 1 x Elastic strap
• 1 x Carrying bag
• 1 x Manufacturer's calibration certificate
• 1 x User manual (English)
