UNI-T UT595 Multifunction Installation Tester

Name: UNI-T UT595 Multifunction Installation Tester
Brand: UNI-T
Price: 268500.0 LKR
Availability: InStock

Rs 268,500.00 LKR

Sale Sold out

Tax included. Shipping calculated at checkout.

Get a Quote via WhatsApp

HOT LINE 077-8620567 NANO ZONE TRADING

UNI-T UT595 Multifunction Installation Tester | Electrical Safety & Compliance Tester

Professional Electrical Installation Testing for Contractors, Maintenance & Compliance in Sri Lanka

The UNI-T UT595 is a high-precision multifunction installation tester designed for comprehensive electrical safety testing including insulation resistance, loop/line impedance, RCD functionality, earth continuity, and phase sequence in industrial, commercial, and residential installations. With a 9999-count LCD display featuring an analogue bar graph and white backlight, the UT595 ensures clear readings during verification of wiring systems, circuit protection devices, and grounding in Sri Lanka's construction and maintenance environments.

Supporting tests from 250V~1000V insulation resistance up to 26kA prospective fault current (PFC/PSC), variable RCD trip currents (10mA~500mA), and AC/DC voltage detection, the UT595 meets rigorous compliance standards with ±(5%+5) accuracy on key measurements. Advanced features like lock test, ramp RCD testing, half/full wave modes, 30s countdown, and 0°/180° phase options make it ideal for detecting faults, verifying RCD trip times, and ensuring electrical safety in HVAC, manufacturing, and building services.

Key Features of the UNI-T UT595 Multifunction Tester

Insulation Resistance Testing: 250V/500V/1000V DC output tests up to 1000MΩ with <2mA short-circuit current and ±(5%+5) accuracy.
Earth Continuity & Low Resistance: 200mA test current for 0.00Ω~199Ω continuity with ±(2%+5) accuracy.
Loop/Line Impedance & PFC/PSC: 0.01Ω~2000Ω range at 20A/15mA test currents up to 26kA fault current, 195V~440V operation.
RCD Trip Time & Trigger Current: ×1/2, ×1, ×2, ×5 I△n tests (10mA~500mA) with ramp, half-wave, countdown modes, and phase angle selection.
Phase Sequence & Voltage Testing: Detects L1-L2-L3 rotation or reverse/missing phases; AC 0~440V ±(5%+2), auto DC/AC detection.

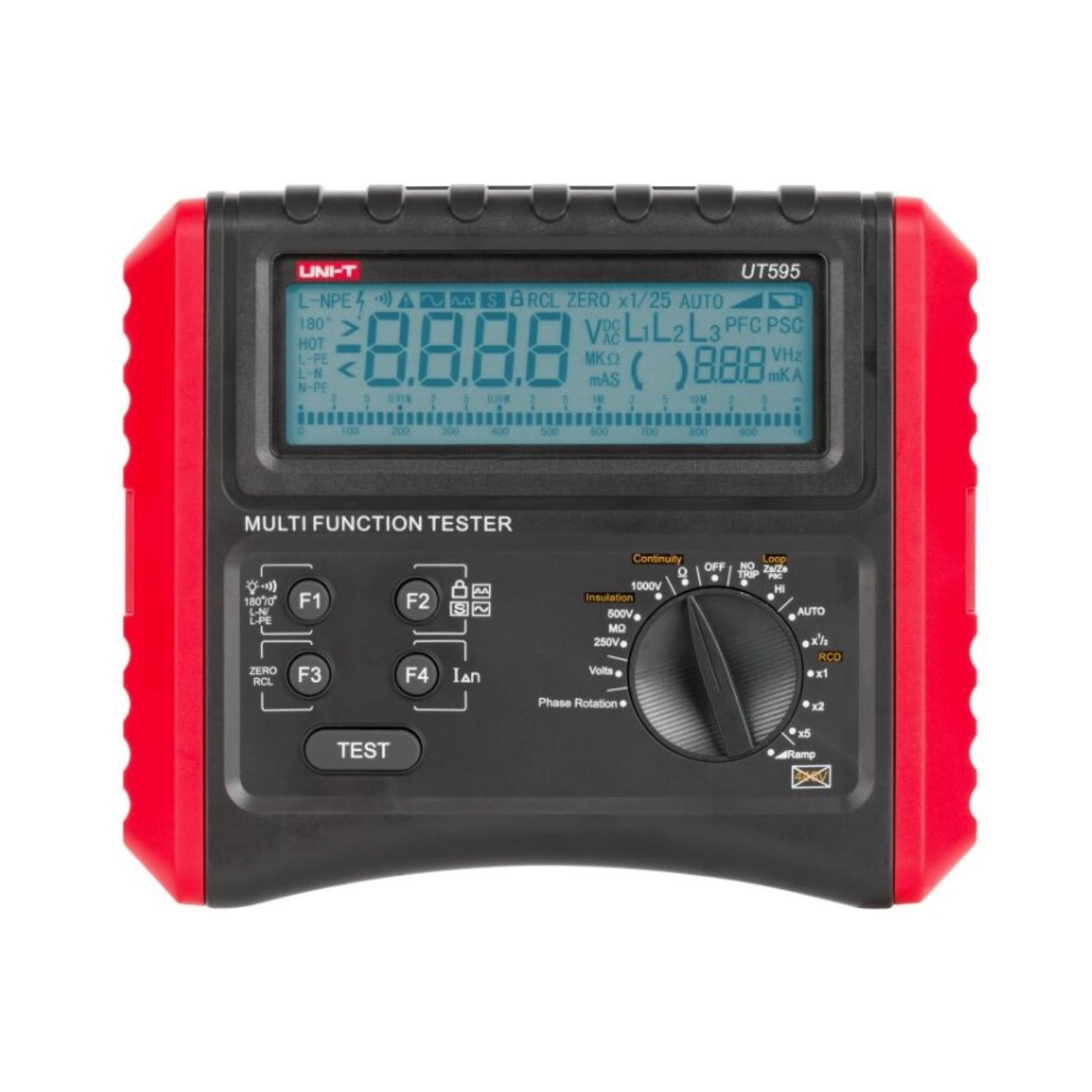

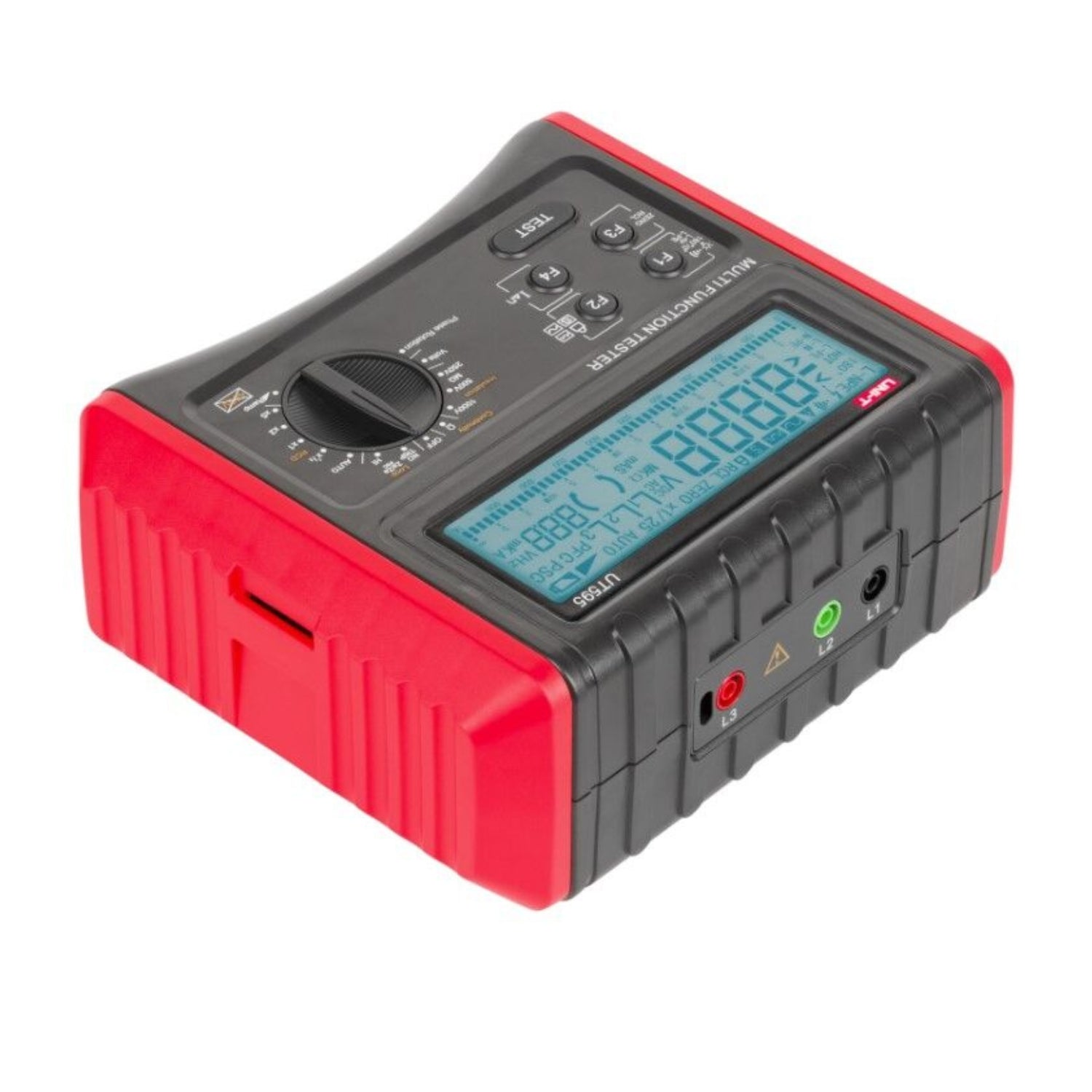

High-Contrast Backlit Display: 9999-count FSTN LCD with analogue bar, backlight, auto power-off, and data storage for field use.

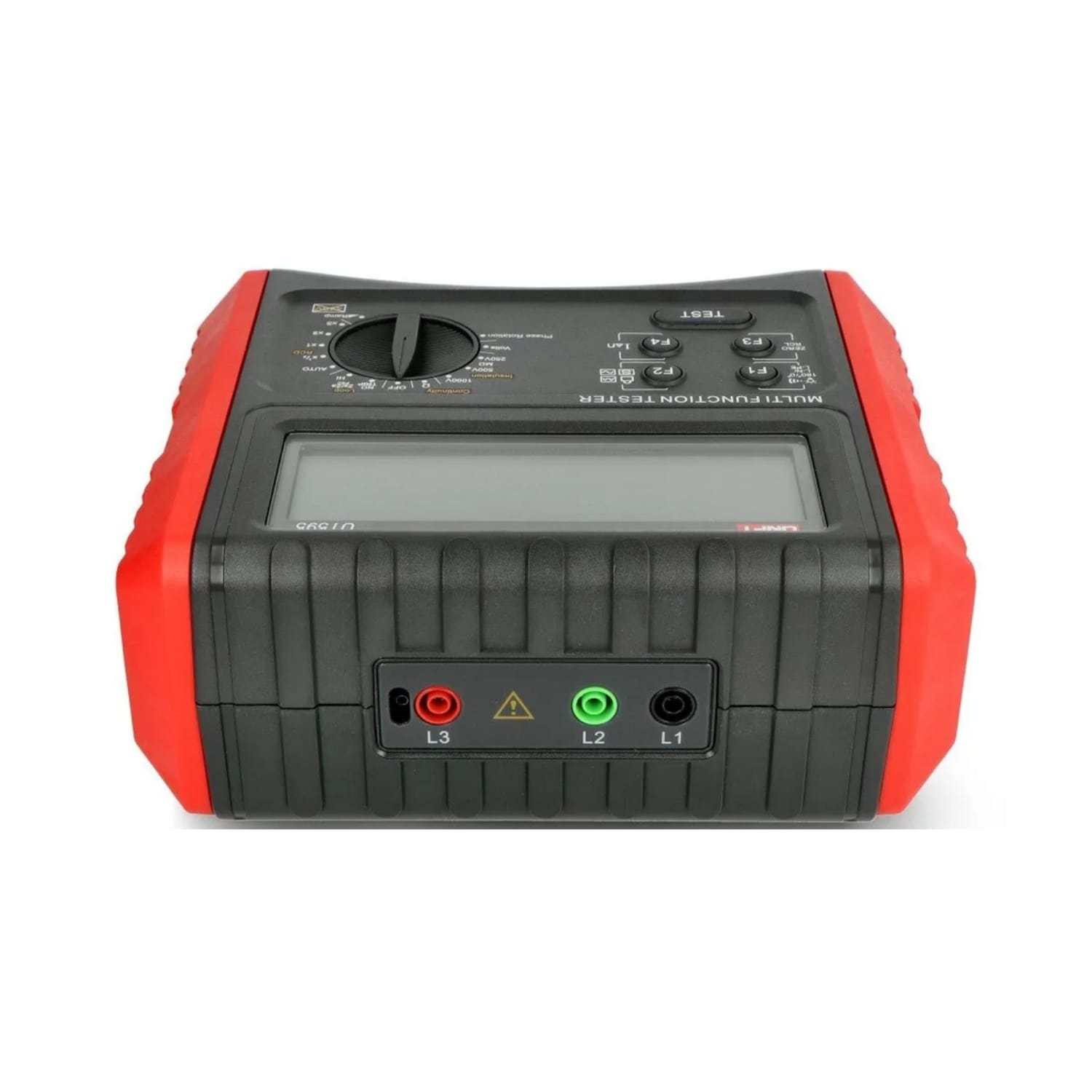

Rugged & User-Friendly Design: 1kg portable unit with connection status display, low battery indication, and CAT III 300V safety rating.

Common Applications for UNI-T UT595

This multifunction tester is essential for:

Electrical Installation Verification: Testing insulation, continuity, and impedance for new wiring, panels, and distribution boards compliance.
RCD & Protection Device Testing: Validating trip times, currents, and ramp tests for residual current devices in safety inspections.
Maintenance & Troubleshooting: Loop impedance, earth resistance, phase sequence checks in industrial plants, HVAC, and building services.

Technical Specifications of the UNI-T UT595

Insulation Resistance Ranges: 250V: 0.05~250MΩ; 500V: 0.05~500MΩ; 1000V: 0.05~1000MΩ (±5%+5), <2mA short-circuit.
Loop/Line Impedance Ranges: 0.01~2000Ω (±5%+5), 195~253V/440V (45~65Hz), 20A/15mA test, PFC/PSC 0~26kA.
RCD Trip Time Ranges: ×1/2 I△n: 0~2000ms; ×1: 0~300/500ms; ×2: 0~150/200ms; ×5: 0~40ms (±5%+5).
Continuity Test: 0.00~199Ω (±2%+5), >200mA at 0~2Ω.
AC Voltage & Phase Sequence: 0~440V (±5%+2), 45~60Hz; 100~440V phase test with rotation display.
Display & Power: 9999-count LCD (125x37mm) with backlight/bar graph; 6x1.5V AA batteries, auto-off.
General Specs: Size: 210x175x90mm, 1000g; 0~50°C operation; drop-resistant housing.
