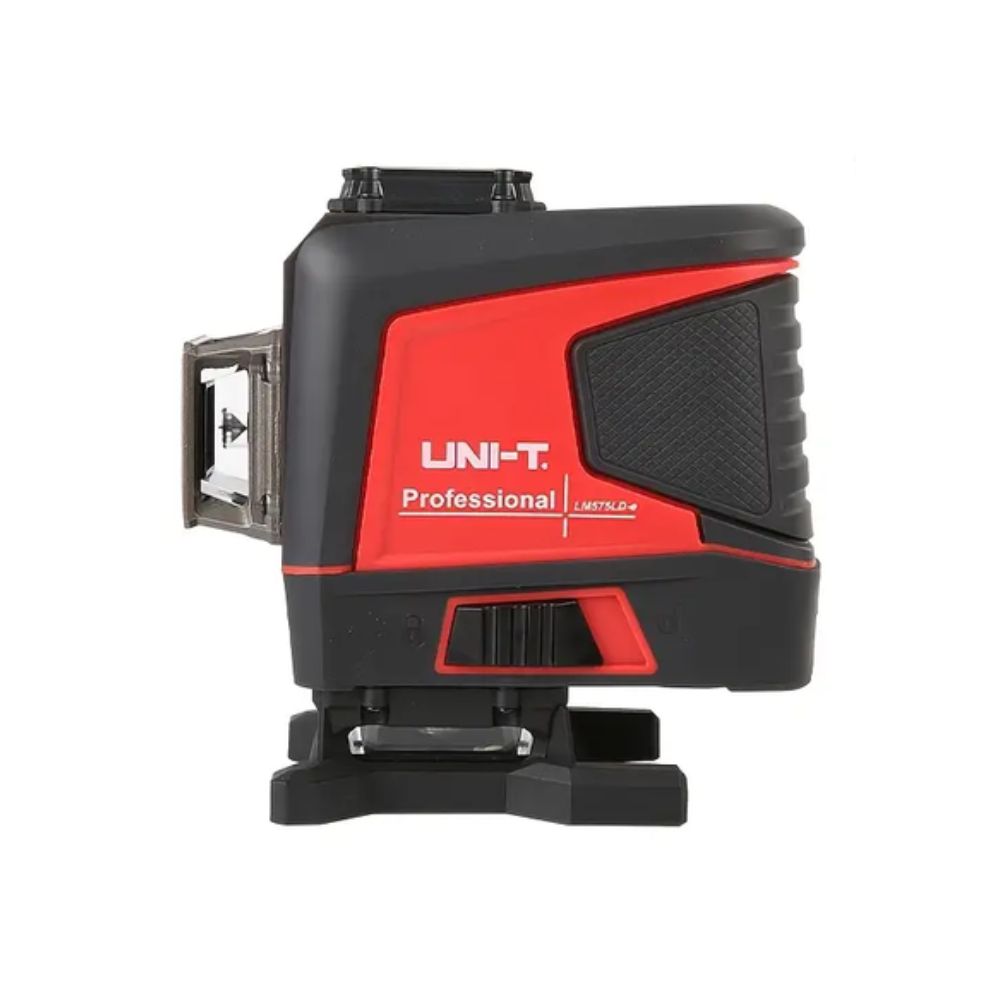

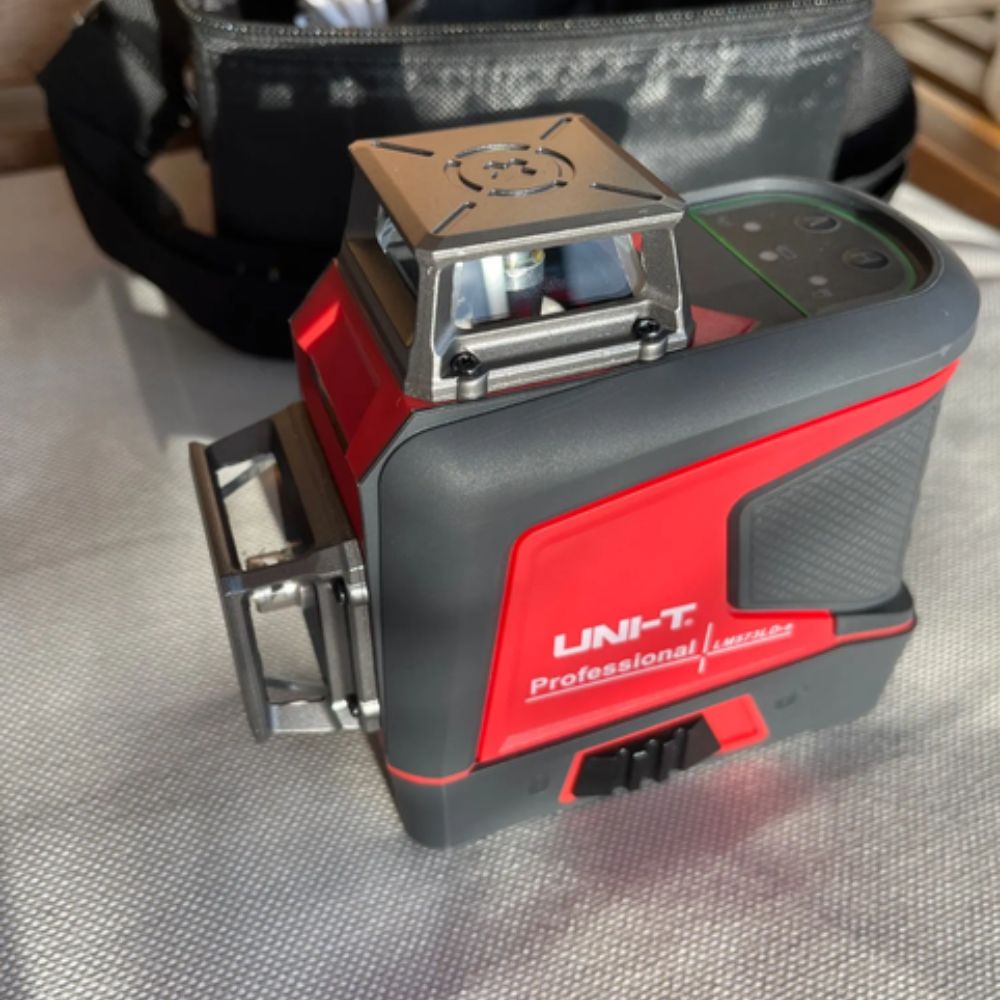

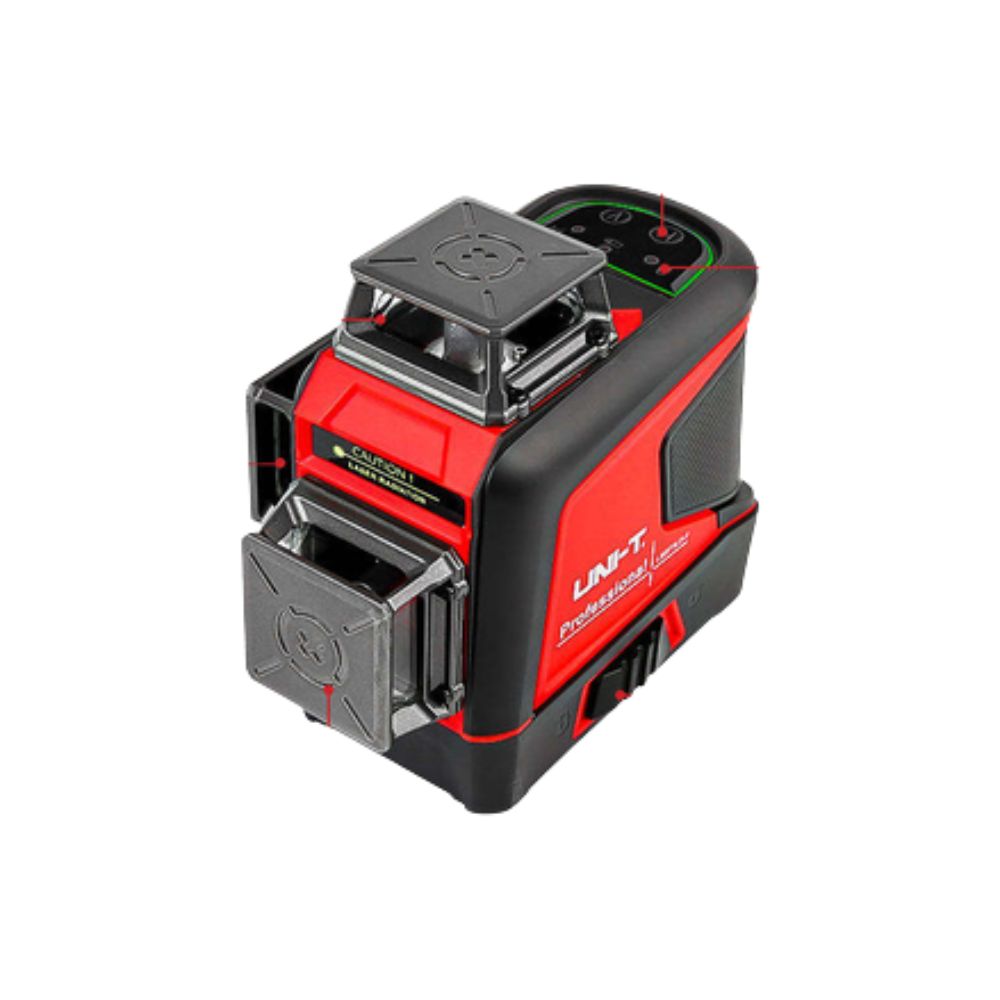

UNI-T LM575LD-e 12-Line 3D Laser Level with Remote Control

UNI-T LM575LD-e 12-Line 3D Laser Level with Remote Control in Sri Lanka

Self-Leveling Laser Level for Solo and Elevated Layout Work

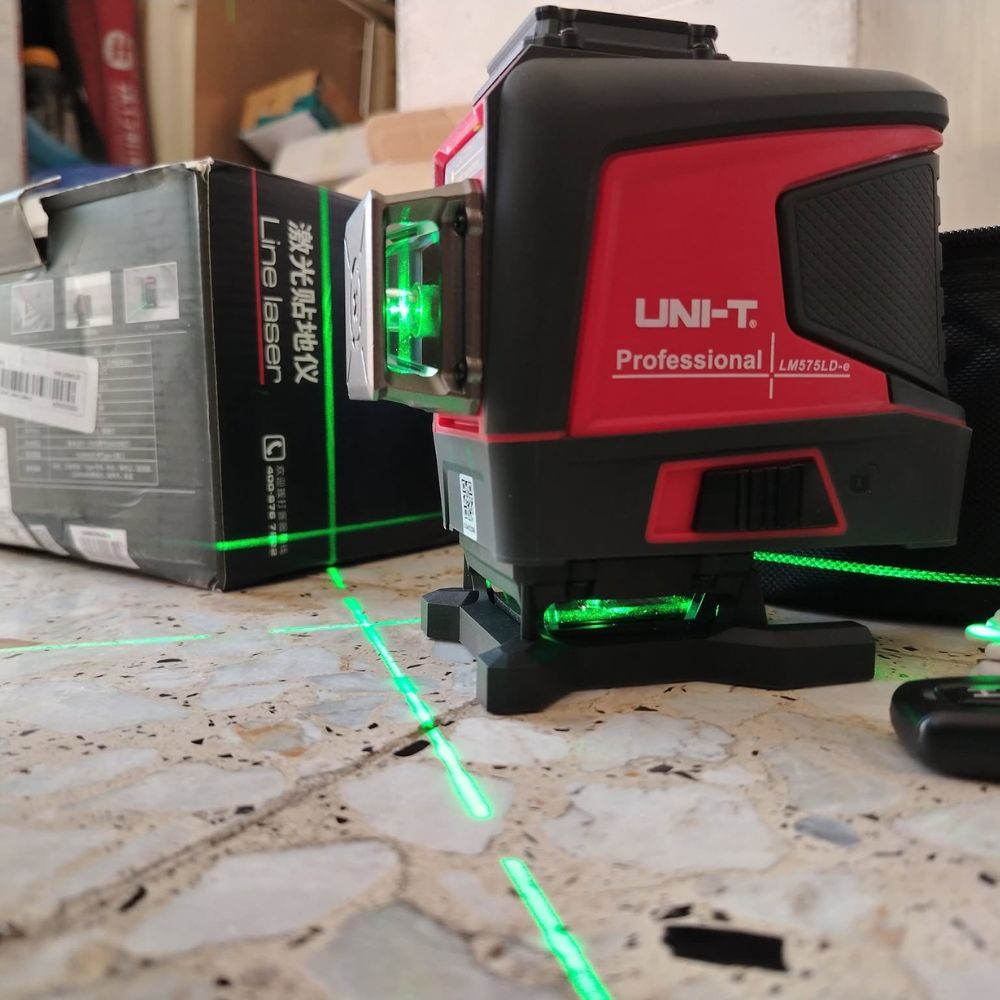

The UNI-T LM575LD-e 12-Line 3D Laser Level has the same 360° horizontal and dual vertical line layout as the LM573LD-e, and adds a wireless remote. One person can switch lines and modes from a ladder, a scaffold or across the room. It suits maintenance engineers, electricians and installers in Sri Lanka working on larger or elevated areas. See more 3D and cross-line laser levels in our range.

It combines remote line switching, magnetic-damping self-leveling and an outdoor pulse mode for use with a laser receiver. This reduces trips back to the unit during repetitive ceiling, wall and floor marking.

Technical Specifications

Laser Lines

12 lines, 3D layout (1 × 360° horizontal + 2 × 360° vertical)

Laser Type

Osram green LD | 520 nm ±5 nm | Class 2

Accuracy

±3 mm/10 m (±60″), horizontal and vertical

Operating Distance

40 m standard; up to 50 m in pulse (5:5) mode with a receiver

Self-Leveling

Range ±3° | Time under 3 seconds

Power

3.7 V 5200 mAh Li-ion pack, Type-C charging, over 6 hours runtime

Size and Weight

138 × 89 × 147 mm | About 694 g

Key Features

Remote Control

Switch lines and modes without touching the unit, so it stays undisturbed after leveling

Leveling Modes

Automatic self-leveling, plus a manual mode for angled lines

Outdoor Pulse Mode

Works with a laser receiver (sold separately) in bright light

Rechargeable

Type-C charging with over 6 hours runtime

Applications

• Solo leveling on scaffolding, ladders and elevated ceiling work
• Room-wide tiling and flooring layout with frequent line changes
• Cabinet, partition and fixture alignment in larger areas

Buying Guide

Choose the LM575LD-e if you work alone or at height. If you do not need a remote, the UNI-T LM573LD-e 12-line laser level has the same line layout and accuracy. For simultaneous lines on more walls, see the UNI-T LM576LD-e 16-line laser level.

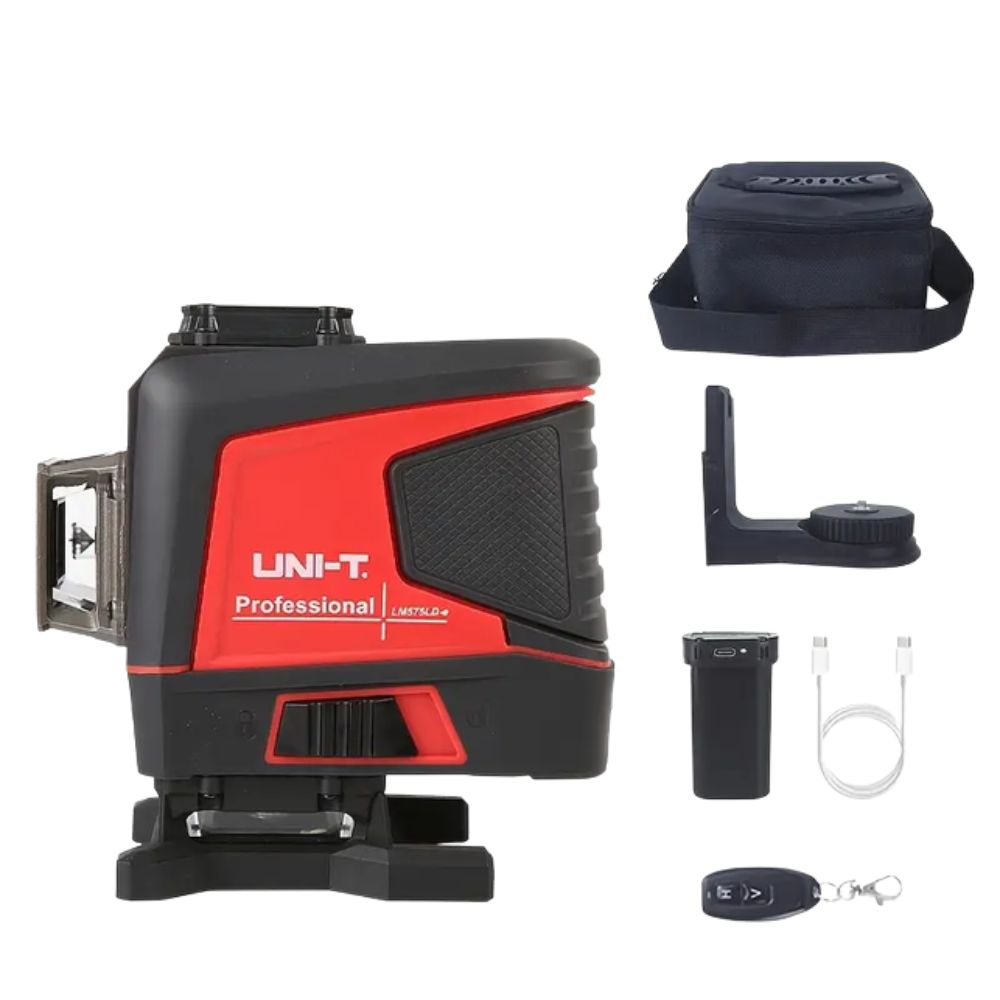

Package Includes

• 1 × UNI-T LM575LD-e laser level main unit
• Wireless remote control
• 3.7 V 5200 mAh Li-ion battery pack (installed)
• Type-C charging cable
• Target plate
• Carrying case
• English user manual

Downloads

Download UNI-T LM575LD-e User Manual
