UNI-T LM573LD-e 12-Line 3D Green Laser Level

UNI-T LM573LD-e 12-Line 3D Green Laser Level in Sri Lanka

Compact Self-Leveling Laser Level for Everyday Layout Work

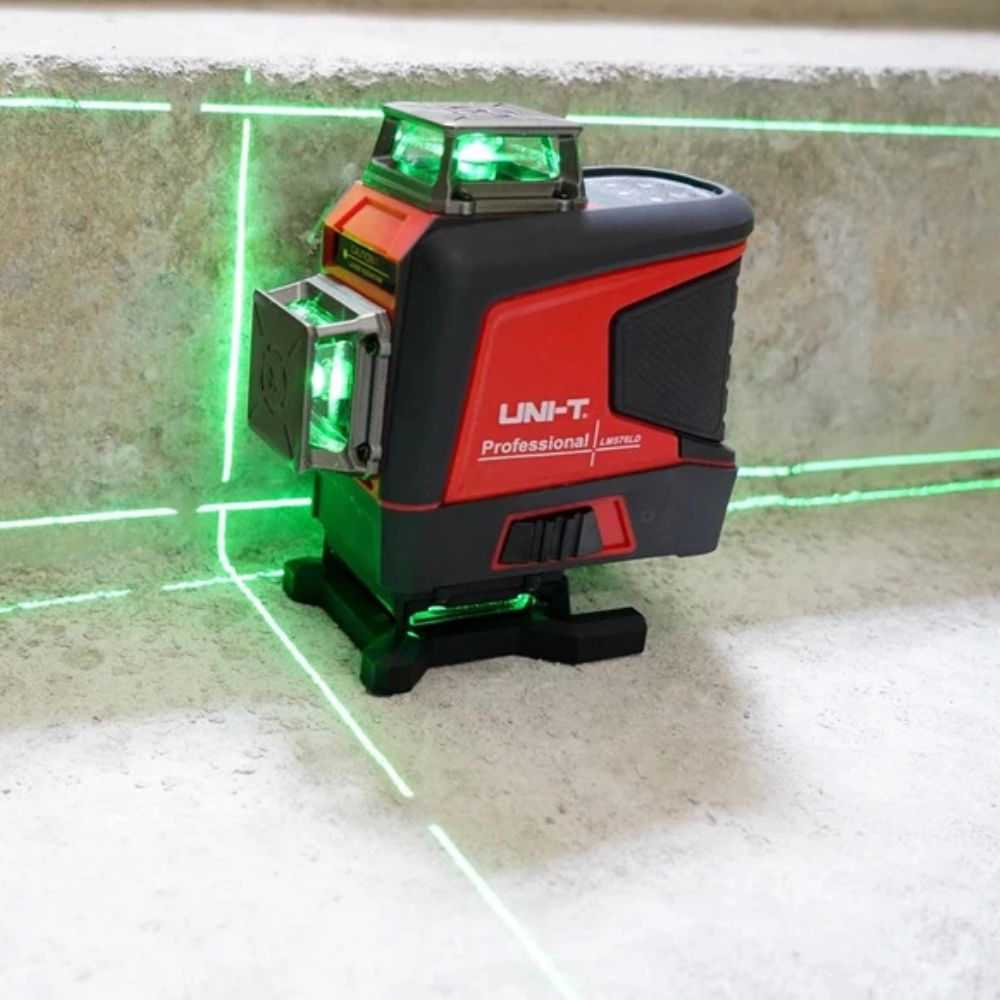

The UNI-T LM573LD-e 12-Line 3D Laser Level projects one 360° horizontal line and two 360° vertical lines, covering walls, floors and ceilings from a single setup. It helps builders, electricians and DIY users in Sri Lanka mark accurate lines for tiling, shelving, partition walls and cabinet fitting. Compare it with other self-leveling and cross-line laser levels in our range.

It uses a bright 520 nm green laser, automatic magnetic-damping self-leveling and an outdoor pulse mode for use with a laser receiver. It has no remote control, so choose a remote model if you often work alone on ladders.

Technical Specifications

Laser Lines

12 lines, 3D layout (1 × 360° horizontal + 2 × 360° vertical)

Laser Type

Osram green LD | 520 nm ±5 nm | Class 2

Accuracy

±3 mm/10 m (±60″), horizontal and vertical

Operating Distance

40 m standard; up to 50 m in pulse (5:5) mode with a receiver

Self-Leveling

Range ±3° | Time under 3 seconds

Power

3.7 V 5200 mAh Li-ion pack, Type-C charging, over 6 hours runtime

Operating Temperature

-10°C to 50°C

Size and Weight

119 × 89 × 138 mm | About 694 g

Key Features

Leveling Modes

Automatic self-leveling, plus a manual mode for angled or sloped lines

Green Laser

Green beams are easier to see than red in bright indoor light

Outdoor Pulse Mode

Works with a laser receiver (sold separately) when the lines are hard to see in sunlight

Rechargeable

Type-C charging, so no disposable batteries are needed

Applications

• Marking level lines for tiling and flooring
• Aligning shelving, cabinets and wall fixtures
• Setting out partition walls and ceiling grids

Buying Guide

Choose the LM573LD-e for everyday indoor layout. Green lasers are visible over short and medium indoor distances, but in direct sunlight you will need a receiver. If you want to switch lines from a distance, see the UNI-T LM575LD-e laser level with remote control.

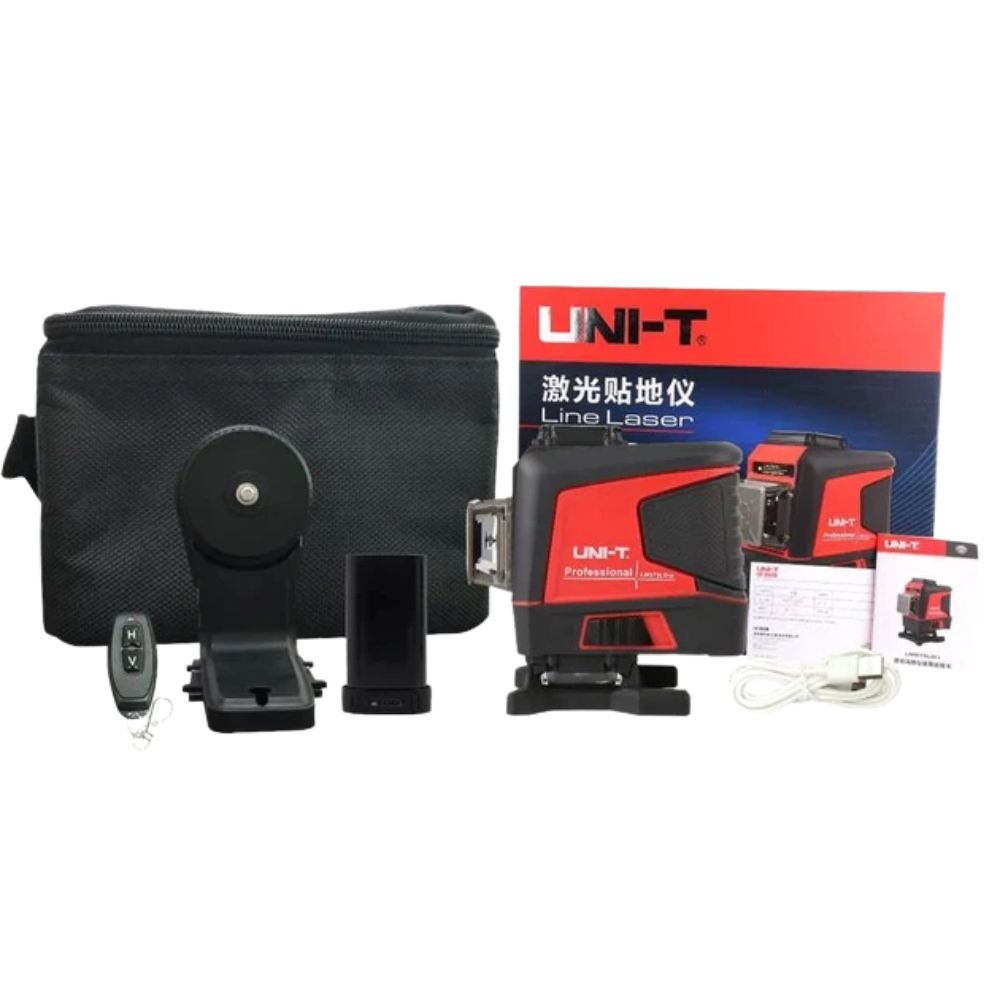

Package Includes

• 1 × UNI-T LM573LD-e laser level main unit
• 3.7 V 5200 mAh Li-ion battery pack (installed)
• Type-C charging cable
• Target plate
• Carrying case
• English user manual

Downloads

📄 Download UNI-T LM573LD-e User Manual
