UNI-T LM576LD-e 16-Line 3D Laser Level

UNI-T LM576LD-e 16-Line 3D Laser Level in Sri Lanka

Full-Room Self-Leveling Laser Level for Professional Layout Work

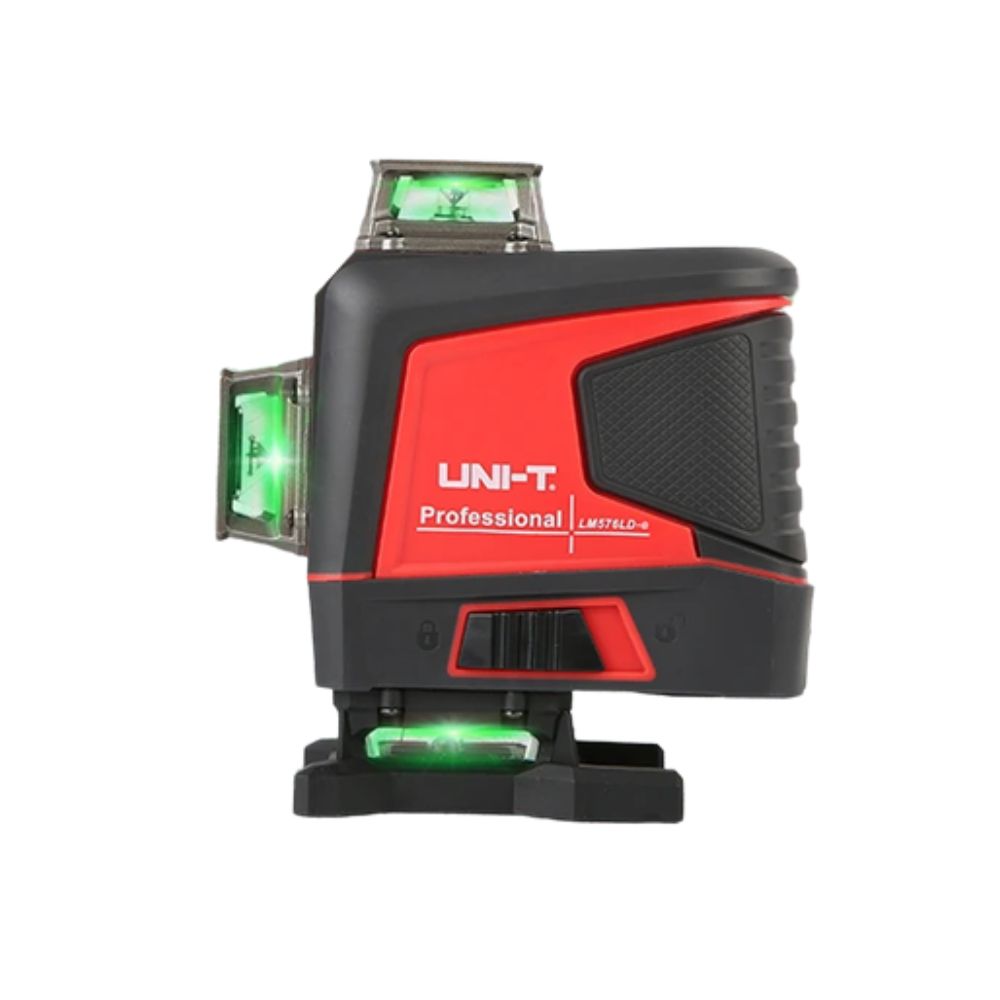

The UNI-T LM576LD-e 16-Line 3D Laser Level projects a complete 3D grid of horizontal and vertical lines for full floor-to-ceiling and wall-to-wall coverage in a single setup. It is designed to assist professional installers, contractors, and site engineers in Sri Lanka with complex layout tasks that need multiple simultaneous reference lines, such as full-room tiling, cabinet runs, and multi-wall partition work.

Discover our complete selection of Laser Levelers - self-leveling, cross-line and 3D laser levels in Sri Lanka!

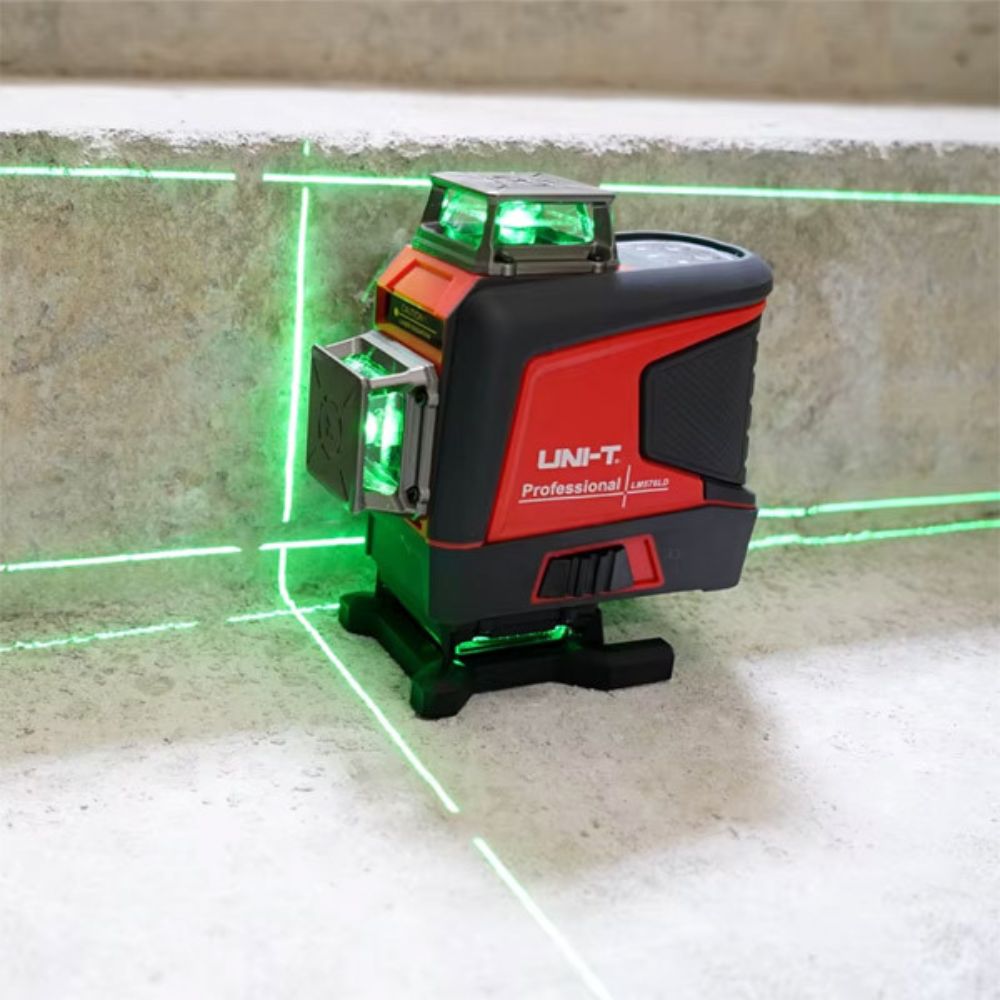

Featuring 16 bright green laser lines, wireless remote control, and outdoor pulse mode compatibility, this instrument eliminates the need to reposition the unit between walls, speeding up large-area layout and reducing cumulative measurement drift.

Technical Specifications

Laser Lines: 16 lines - full 3D layout for simultaneous multi-wall and ceiling coverage

Laser Type: Osram Green LD | Wavelength: 520nm +/-5nm | Laser Class: 2

Accuracy: +/-3mm/10m horizontal and vertical

Operating Distance: 30m standard; up to 50m in pulse mode with receiver

Self-Leveling Range: +/-3 degrees | Self-Leveling Time: less than 3 seconds

Key Features

Remote Control: Wireless remote for line switching and mode changes across large work areas

Mounting Options: Integrated wall, ceiling, and ground attachment with pendulum protection lock for transport

Outdoor Pulse Mode: Compatible with laser receivers for bright, sunlit job sites

Power: 3.7V 5200mAh detachable Li-ion battery with Type-C fast charging, over 4 hours runtime with all lines on

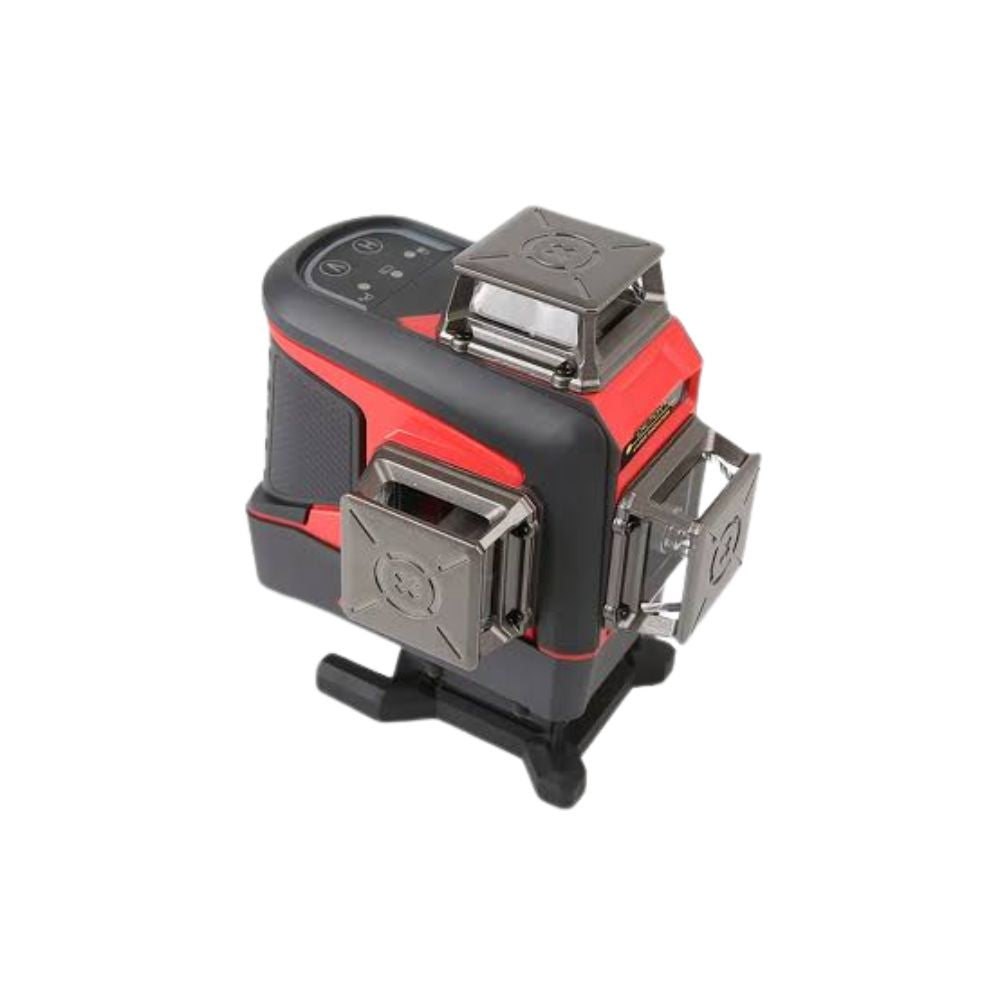

Build: 138mm x 89mm x 147mm housing at approximately 653g with reinforced multi-window laser housing (H1, V1, H2, V2)

Applications

Full-room tiling and flooring layout with simultaneous wall and floor lines

Multi-wall cabinet runs and kitchen fitting requiring continuous reference lines

Large commercial partition layout and ceiling grid installation

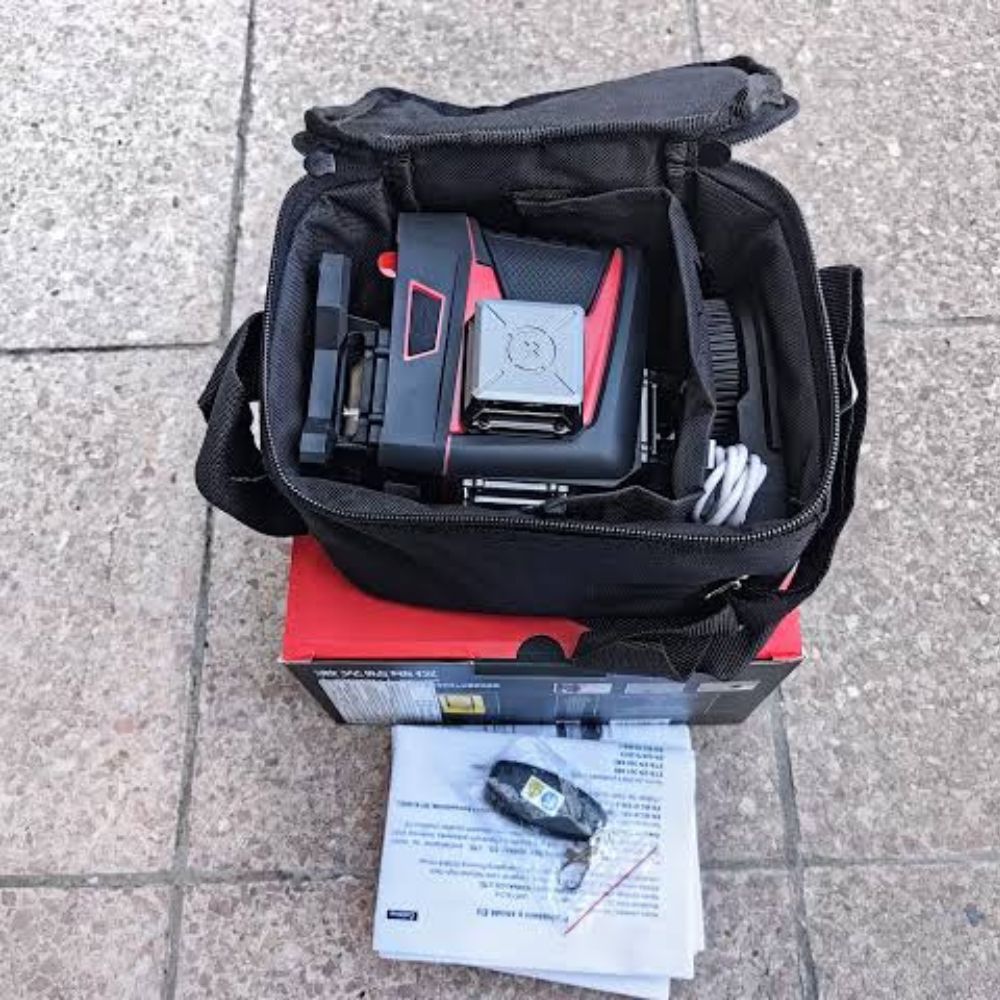

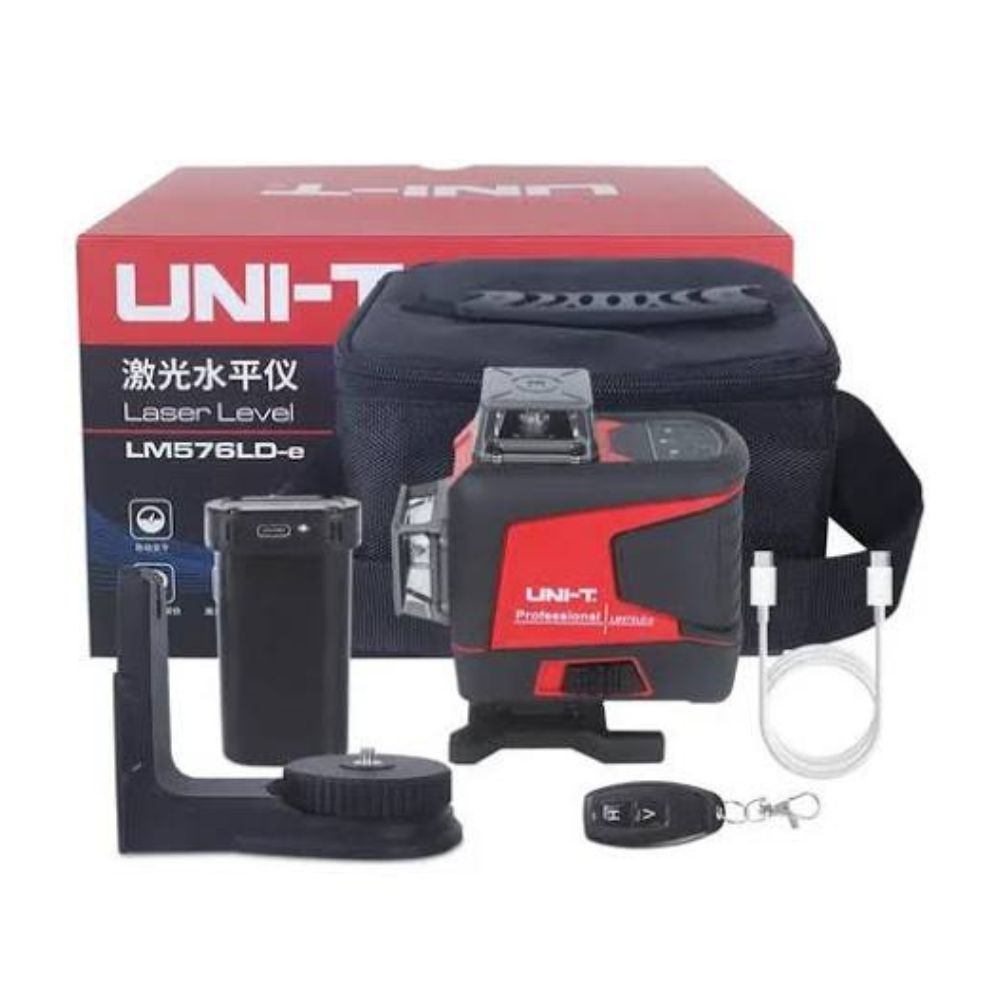

Package Includes

1 x UNI-T LM576LD-e Laser Level main unit

Wireless remote control

3.7V 5200mAh detachable Li-ion battery

Type-C charging cable

Target plate

Rugged carrying case

English user manual

For everyday leveling tasks that don't require full 16-line coverage, our UNI-T LM573LD-e 12-Line 3D Laser Level offers the same accuracy in a lighter, more compact body.

Downloads

Download UNI-T LM576LD-e User Manual
