SHAHE 5110-300 IP54 Digital Caliper 0–300mm

SHAHE 5110-300 IP54 Waterproof Digital Caliper 0–300mm Sri Lanka

12-Inch Long-Range Stainless Steel Electronic Caliper for Heavy-Duty Industrial Measurement

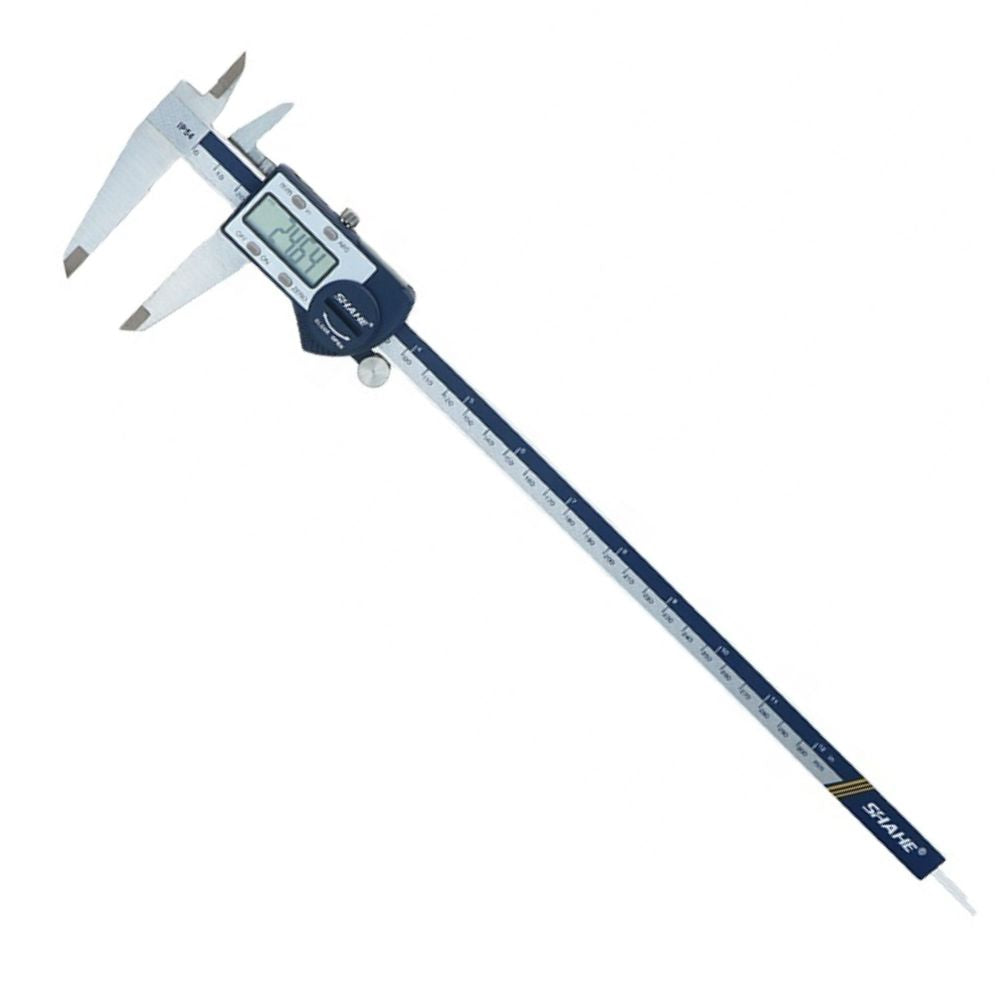

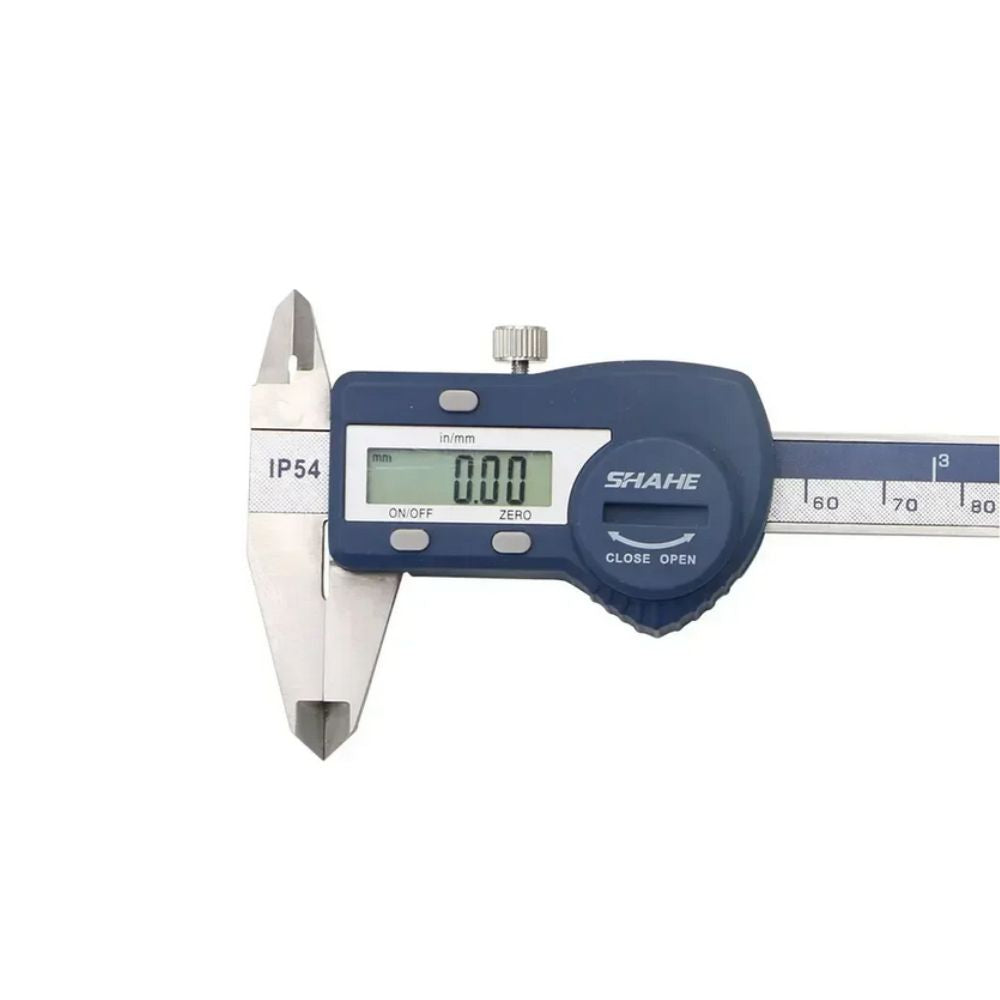

The SHAHE 5110-300 IP54 Digital Caliper provides a full 0–300mm (0–12 inch) measurement capacity, making it the most versatile instrument in the SHAHE 5110 waterproof series. With an accuracy of ±0.04mm and a resolution of 0.01mm / 0.0005", this IP54 electronic caliper is purpose-built for large-component dimensional inspection in heavy engineering, structural fabrication, and precision manufacturing environments across Sri Lanka.

Explore our complete selection of Digital Calipers — full IP54 waterproof range from 150mm to 300mm available in Sri Lanka!

Its 60mm deep jaw profile and 390mm overall length deliver the reach and stability needed to measure large-diameter shafts, flanges, plates, and housing bores reliably. The integrated USB data output port and hardened stainless steel construction ensure this instrument meets the demands of both shop-floor production measurement and formal quality assurance documentation workflows.

Technical Specifications

Model: SHAHE 5110-300

Measurement Range: 0–300mm / 0–12"

Accuracy: ±0.04mm

Resolution: 0.01mm / 0.0005"

Jaw Depth (a): 60mm

Jaw Width (b): 26mm

Caliper Height (c): 21.5mm

Total Length (L): 390mm

Waterproof Rating: IP54

Battery: 3V CR2032 environmental lithium battery

Material: Hardened stainless steel body and jaws

Data Output: USB interface

Key Features

Maximum Range in Series: 300mm / 12-inch capacity with 60mm deep jaws for stable gripping of large-diameter workpieces

IP54 Sealed Construction: Full protection against dust ingress and directional coolant or water jet splash for reliable operation in wet machining and fabrication environments

Hardened Stainless Steel: Heat-treated body, jaws, and depth blade ensure jaw parallelism is maintained through repeated heavy-duty industrial use

USB SPC Data Output: Direct interface to statistical process control software, enabling automated dimensional data capture for ISO and quality system compliance

Instant Metric/Imperial Switching: Single-button mm/inch conversion supports multi-standard engineering documentation and international drawing requirements

Zero at Any Position: One-touch zeroing for relative and comparative gauging applications common in production machining

Metal Locking Screw: Holds jaw position securely for transfer measurements and layout operations on large workpieces

Glass Fixed Grid Encoder: High-precision optical sensing grid for consistent, repeatable digital readout accuracy across the full 300mm range

Measurement Functions

External dimension measurement: shaft diameters, flange widths, plate thickness, block dimensions

Internal bore measurement: housing bores, pipe ID, groove widths via upper jaws

Depth measurement: recess depth, pocket depth, shoulder height via integrated depth blade

Step measurement: height differences between parallel surfaces

Applications

Large-diameter shaft and flange inspection in heavy engineering and power generation maintenance

Structural steel and plate dimension verification in fabrication workshops

Pipe, tube, and vessel component inspection in petroleum and process industries

Quality inspection of large castings, forgings, and weldments

Gearbox, coupling, and large bearing dimensional checks in industrial maintenance

Construction and civil engineering component verification

Package Includes

1 × SHAHE 5110-300 IP54 Digital Caliper (0–300mm)

3V CR2032 lithium battery (pre-installed)

Protective plastic storage case

USB data output cable

English user manual

For smaller component ranges, the SHAHE 5110-150 (0–150mm) is ideal for bench and prototype work, while the SHAHE 5110-200 (0–200mm) suits mid-range machine shop measurement.
