SHAHE 5110-150 IP54 Digital Caliper 0–150mm

SHAHE 5110-150 IP54 Waterproof Digital Caliper 0–150mm Sri Lanka

Compact Stainless Steel Electronic Caliper with USB Data Output

The SHAHE 5110-150 IP54 Digital Caliper is a hardened stainless steel precision measuring instrument delivering an accuracy of ±0.02mm across a 0–150mm (0–6 inch) measurement range. Engineered for demanding workshop and quality control environments, this IP54-rated waterproof electronic caliper resists coolant splash, cutting fluid mist, and fine dust ingress — protecting measurement integrity where standard calipers fail.

Explore our complete selection of Digital Calipers — all IP54 and stainless steel models available in Sri Lanka!

Equipped with a USB data output interface, a large LCD display, and a smooth metal sliding roller, the SHAHE 5110-150 integrates seamlessly into SPC and quality documentation workflows. Its 3V CR2032 lithium battery provides extended operational life, and the automatic power on/off feature prevents unnecessary battery drain between measurements.

Technical Specifications

Model: SHAHE 5110-150

Measurement Range: 0–150mm / 0–6"

Accuracy: ±0.02mm

Resolution: 0.01mm / 0.0005"

Jaw Depth (a): 40mm

Jaw Width (b): 20mm

Caliper Height (c): 15.5mm

Total Length (L): 235mm

Waterproof Rating: IP54

Battery: 3V CR2032 environmental lithium battery

Material: Hardened stainless steel body and jaws

Data Output: USB interface

Key Features

Waterproofing: IP54-rated protection against coolant spray, dust, and fine particle ingress in workshop environments

Construction: Hardened stainless steel main body, external jaws, internal jaws, and depth measuring blade for long-term durability

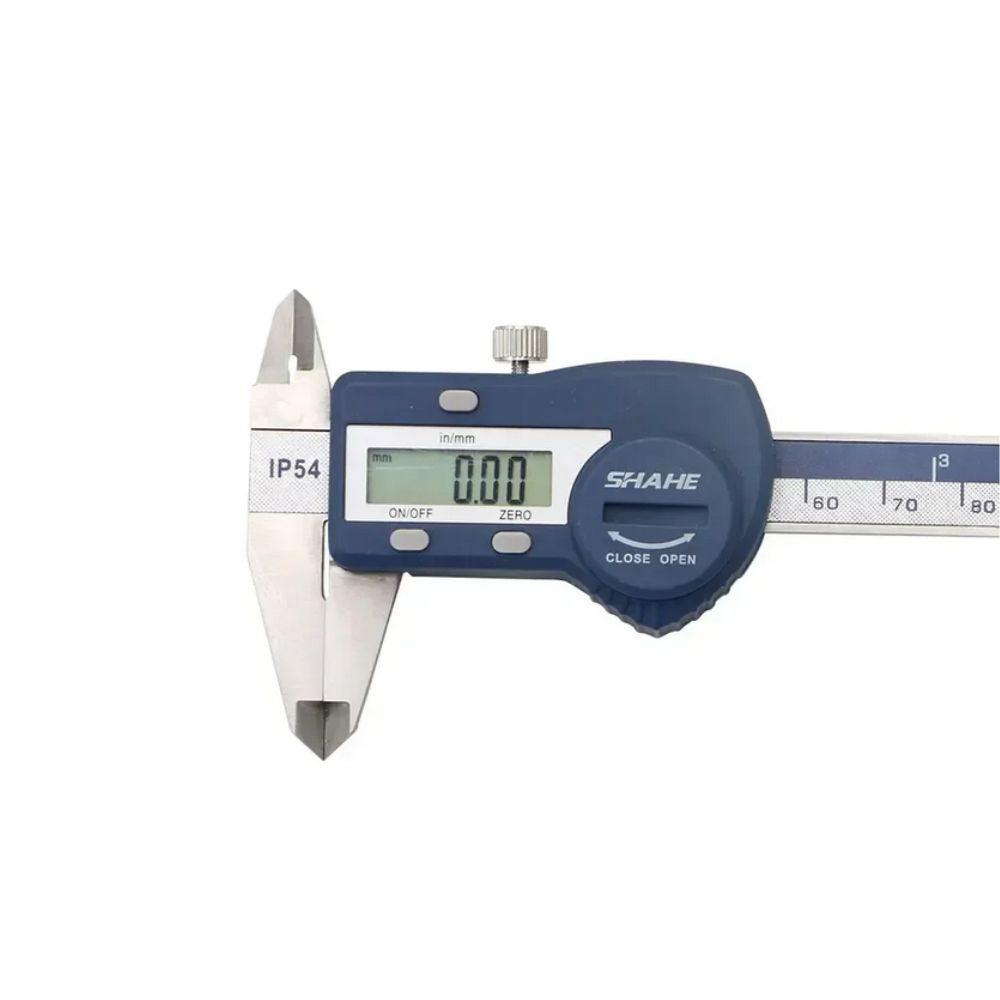

Display: Large, high-contrast LCD screen for clear reading in variable workshop lighting conditions

Data Output: Built-in USB data output interface for direct connection to SPC software and quality control systems

Controls: Silicon push buttons for On/Off, Zero reset, and mm/inch unit conversion

Sliding Mechanism: Precision metal sliding roller for smooth, consistent jaw travel with minimal play

Locking: Metal locking screw to hold jaw position during transfer measurements

Power Management: Automatic power on/off to extend battery life between uses

Grid: Glass fixed grid encoder for reliable, high-resolution position sensing

Measurement Functions

External (outside) diameter and width measurement via lower jaws

Internal (inside) diameter and bore measurement via upper jaws

Depth measurement via integrated stainless steel depth measuring blade

Step measurement capability

Applications

Dimensional inspection and incoming quality control in manufacturing facilities

Mechanical workshop measurements for turned, milled, and fabricated components

Bore and shaft measurement for bearing and coupling installation

Tool and die making, jig and fixture verification

3D printing part verification and prototype inspection

Educational and laboratory use in technical colleges and engineering departments

Package Includes

1 × SHAHE 5110-150 IP54 Digital Caliper (0–150mm)

3V CR2032 lithium battery (pre-installed)

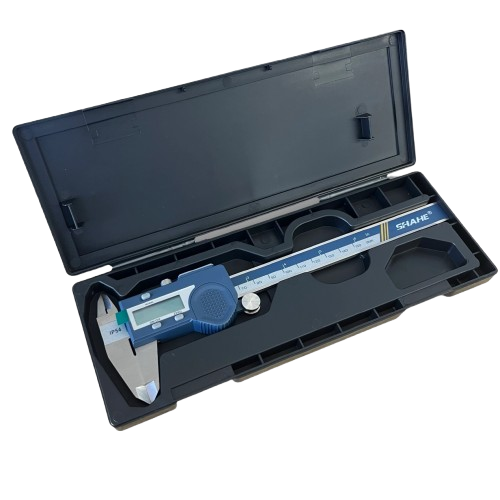

Protective plastic storage case

USB data output cable

English user manual

If you require a longer measurement range for larger components, consider the SHAHE 5110-200 IP54 Digital Caliper (0–200mm) or the SHAHE 5110-300 IP54 Digital Caliper (0–300mm) for shaft and structural dimension work.

Downloads

📄 Download SHAHE 5110 Series Data Sheet
