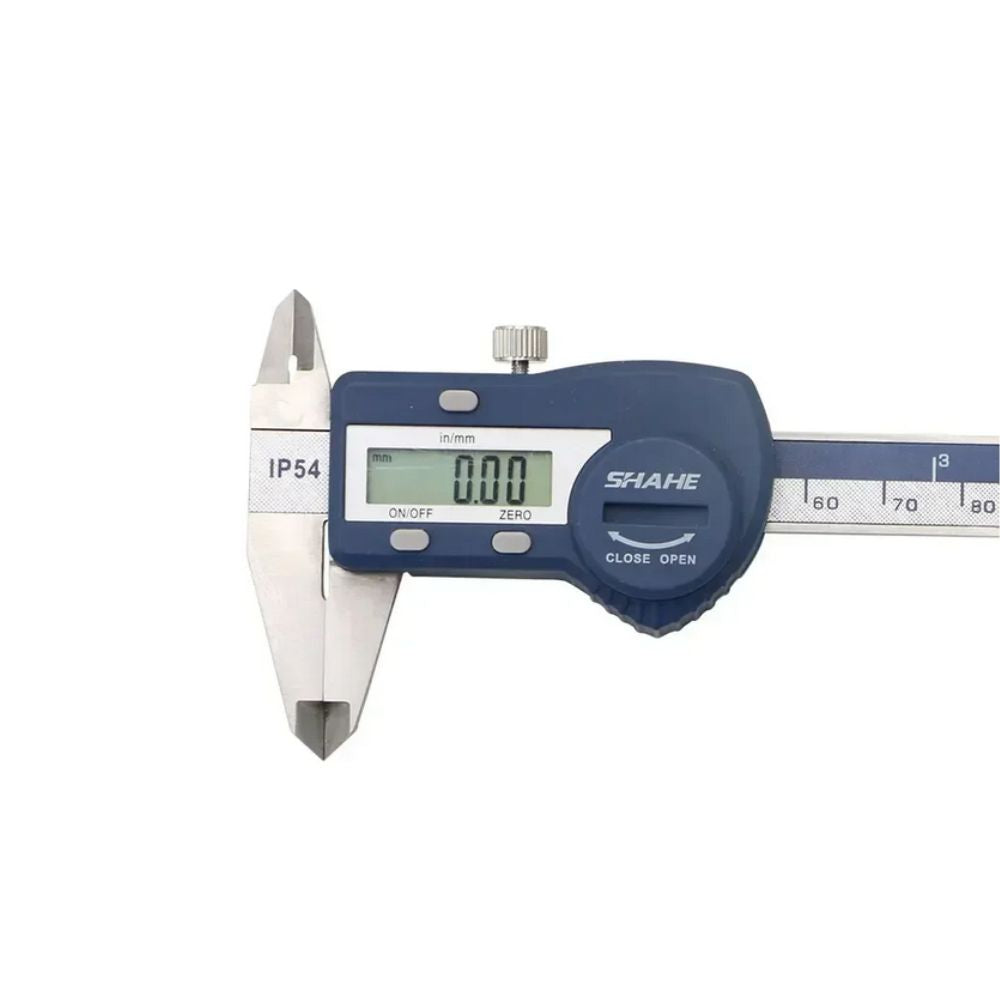

SHAHE 5110-200 IP54 Digital Caliper 0–200mm

SHAHE 5110-200 IP54 Waterproof Digital Caliper 0–200mm Sri Lanka

8-Inch Electronic Stainless Steel Caliper for Machine Shop and Industrial Inspection

The SHAHE 5110-200 IP54 Digital Caliper offers a 0–200mm (0–8 inch) measurement range with an accuracy of ±0.03mm, making it the ideal instrument for mid-range dimensional inspection tasks in machine shops, quality control labs, and industrial maintenance departments. Its IP54-rated splash and dust resistance ensures reliable performance around coolant systems and cutting fluid environments where lesser instruments fail.

Explore our complete selection of Digital Calipers — waterproof IP54 models for every measurement range in Sri Lanka!

The 5110-200 features an extended 50mm jaw depth and a 24mm jaw width, providing greater grip stability on larger-diameter workpieces compared to the 150mm variant. Combined with a USB data output interface and hardened stainless steel construction throughout, this caliper delivers professional-grade dimensional verification for components up to 200mm.

Technical Specifications

Model: SHAHE 5110-200

Measurement Range: 0–200mm / 0–8"

Accuracy: ±0.03mm

Resolution: 0.01mm / 0.0005"

Jaw Depth (a): 50mm

Jaw Width (b): 24mm

Caliper Height (c): 19.5mm

Total Length (L): 287mm

Waterproof Rating: IP54

Battery: 3V CR2032 environmental lithium battery

Material: Hardened stainless steel body and jaws

Data Output: USB interface

Key Features

Extended Range: 0–200mm capacity with wider 50mm deep jaws for larger component measurement with greater stability

IP54 Protection: Sealed against dust and multi-directional coolant/water splash in machine tool and workshop environments

Stainless Steel Construction: Hardened body, external and internal jaws, and depth blade resist corrosion and maintain long-term jaw parallelism

USB Data Output: Connects to SPC and quality management software for automated dimensional data recording and traceability

Mm/Inch Conversion: Instant unit switching supports engineers working across metric and imperial drawing standards

Zero Reset: One-button zeroing at any position for comparative and incremental measurements

Metal Locking Screw: Secures jaw position during layout, transfer, and reference measurements

Auto Power Off: Conserves CR2032 battery life with automatic shutdown during idle periods

Measurement Functions

External diameter, width, and thickness measurement

Internal bore and groove width measurement via upper jaws

Depth and shoulder height measurement via depth blade

Step height measurement

Applications

Shaft, bushing, and sleeve diameter measurement in mechanical engineering workshops

Cylinder bore and housing inspection in pump and valve assembly

Dimensional verification of castings, forgings, and fabricated steel components

Quality control incoming inspection for medium-sized machined parts

Maintenance measurement for gearbox and transmission components

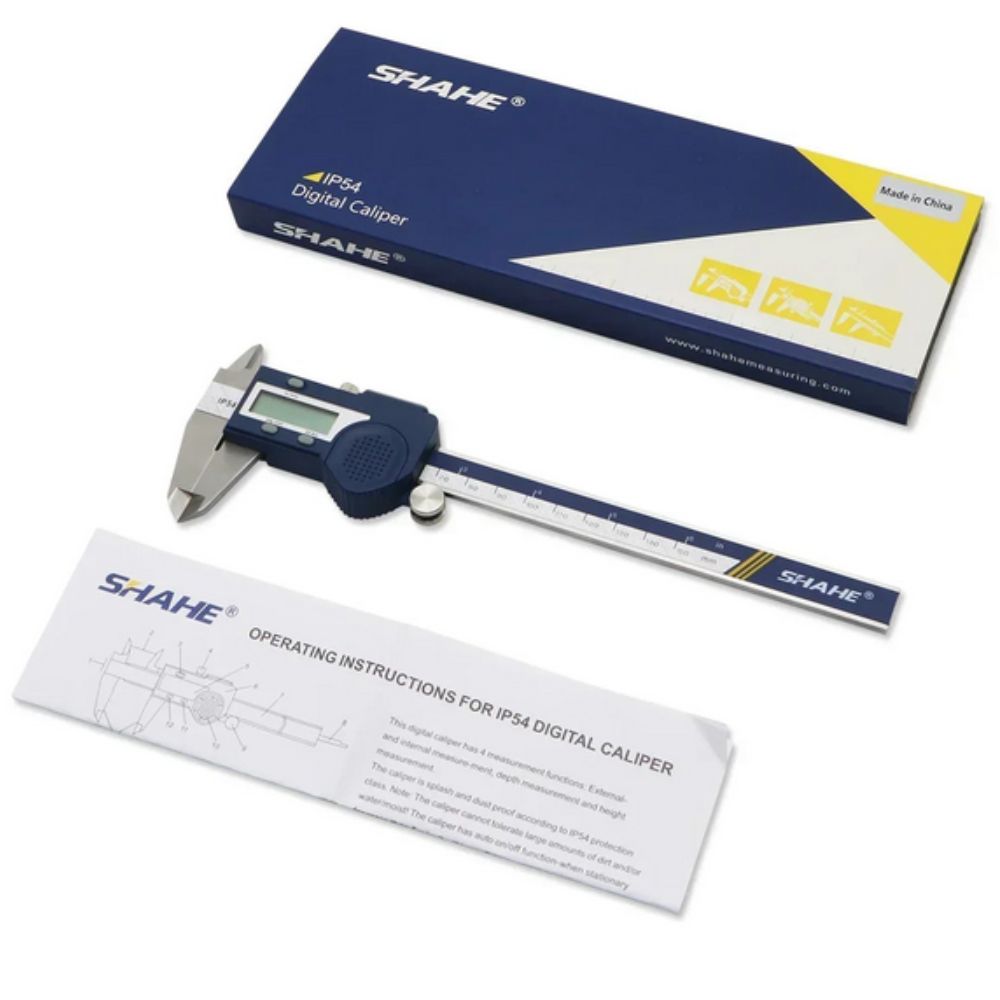

Package Includes

1 × SHAHE 5110-200 IP54 Digital Caliper (0–200mm)

3V CR2032 lithium battery (pre-installed)

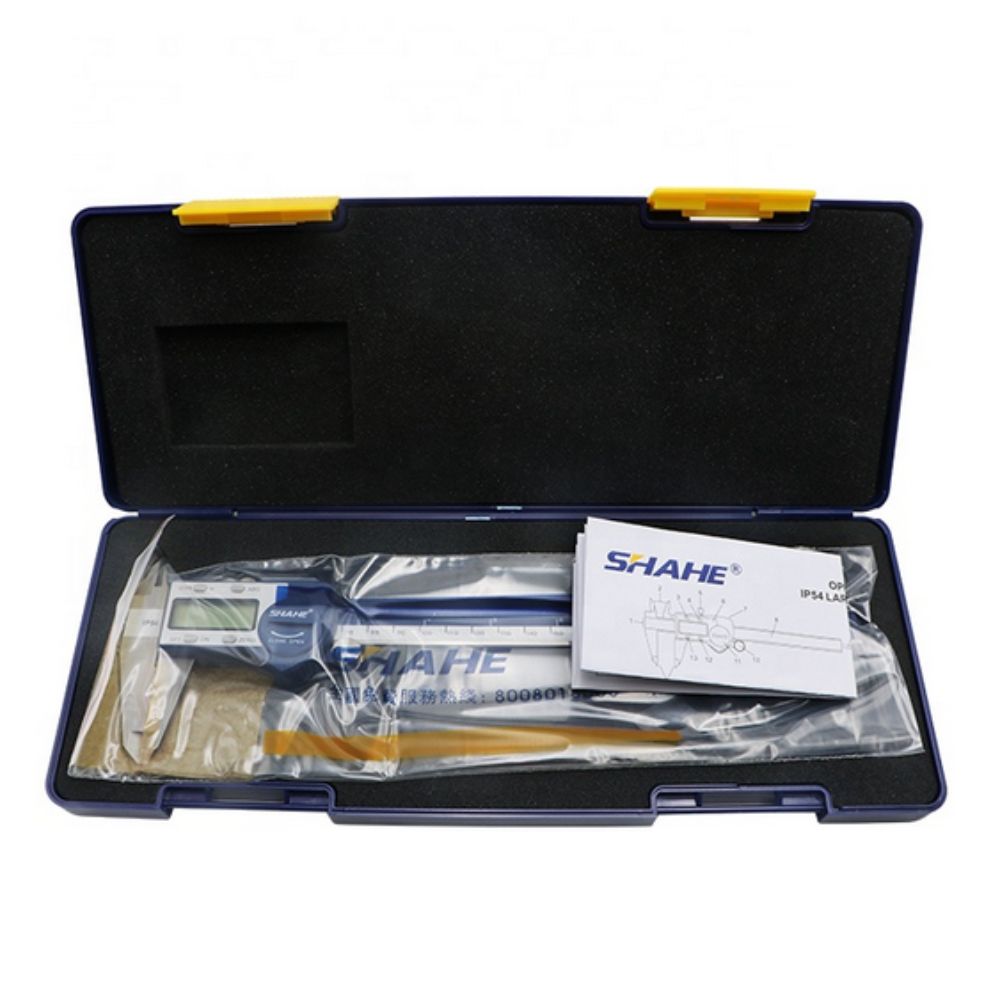

Protective plastic storage case

USB data output cable

English user manual

For smaller bench and prototype inspection tasks, see the SHAHE 5110-150 IP54 Digital Caliper (0–150mm). For large structural components requiring up to 300mm capacity, consider the SHAHE 5110-300 IP54 Digital Caliper (0–300mm).
