UNI-T UTD2102CEX 100Mhz 2-Channel Digital Oscilloscope

UNI-T UTD2102CEX 100MHz 2 Channel Digital Oscilloscope in Sri Lanka

Affordable Professional 1GSa/s Benchtop Oscilloscope

The UNI-T UTD2102CEX 100MHz 2 Channel Digital Oscilloscope offers excellent value with 100MHz bandwidth, 1GSa/s sample rate, and 25Mpts memory depth at an accessible price point. Designed for electronics technicians, automotive repair shops, and educational institutions, it provides reliable waveform capture with 10,000 wfms/s rate and built-in FFT analysis. This oscilloscope delivers professional features for everyday troubleshooting without premium pricing.

Looking for unbeatable deals? Discover our Digital Oscilloscopes – specs, features & best rates in Sri Lanka!

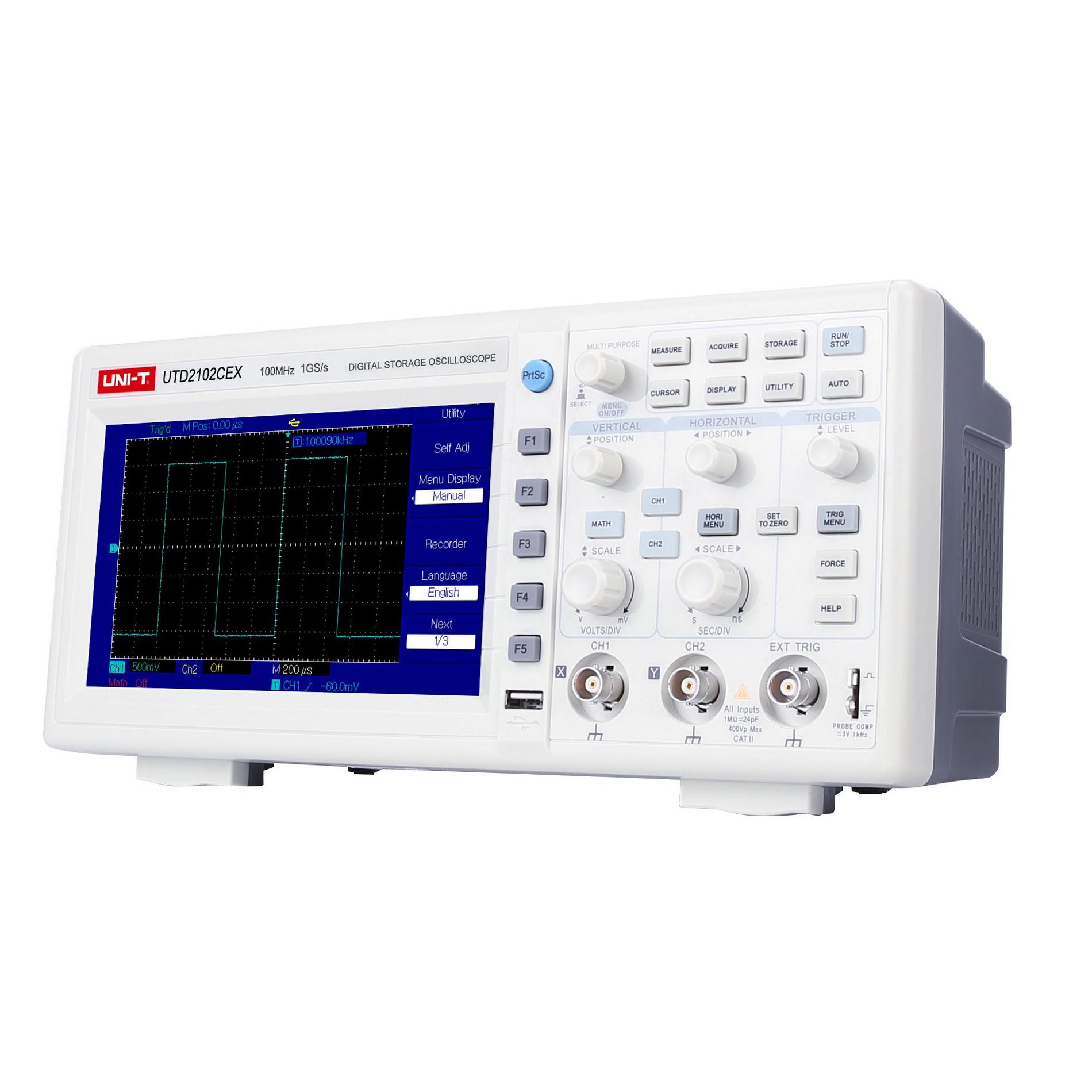

Featuring a 7-inch color TFT LCD (800x480 resolution) and intuitive interface, the UTD2102CEX supports cursor measurements, automatic setup, and 32 hardware trigger types. USB host connectivity enables easy data export to PC while the compact design suits both benchtop and portable applications across Sri Lanka's electronics service sector.

Key Features

100MHz bandwidth, 2 channels + external trigger

1GSa/s real-time sample rate, 25GSa/s equivalent

25Mpts memory depth for detailed waveform analysis

10,000 wfms/s capture rate for efficient debugging

7-inch color TFT LCD (800x480 resolution)

32 hardware trigger types including edge, pulse, video, slope

Built-in FFT analysis and 28 auto measurements

Cursor measurement for precise voltage/time analysis

USB host/device for data storage and PC connectivity

Pass/Fail test function with visual/audio alarm

Technical Specifications

Model

UNI-T UTD2102CEX

Bandwidth

100 MHz (-3dB)

Channels

2 + EXT

Sample Rate

1 GSa/s (real-time), 25 GSa/s (equivalent)

Memory Depth

25 Mpts

Capture Rate

10,000 wfms/s

Display

7" TFT LCD, 800×480 pixels

Vertical Resolution

8 bits

Vertical Scale

2 mV/div - 10 V/div

Time Base Range

5 ns/div - 50 s/div

Trigger Types

32 types: Edge, Pulse, Video, Slope, Runt, Window, Overtime

Measurements

28 automatic parameters + cursor measurement

Math Functions

FFT, Addition, Subtraction, Multiplication

Interfaces

USB Host/Device, Pass/Fail, LAN (optional)

Power Supply

AC 100-240V, 50/60Hz

Dimensions

301 × 155 × 138 mm

Weight

Approx. 2.65 kg

Applications

Cost-effective electronics repair and circuit troubleshooting

Reliable automotive sensor and control signal analysis

Excellent for vocational training and technical education

Practical production line testing and quality control

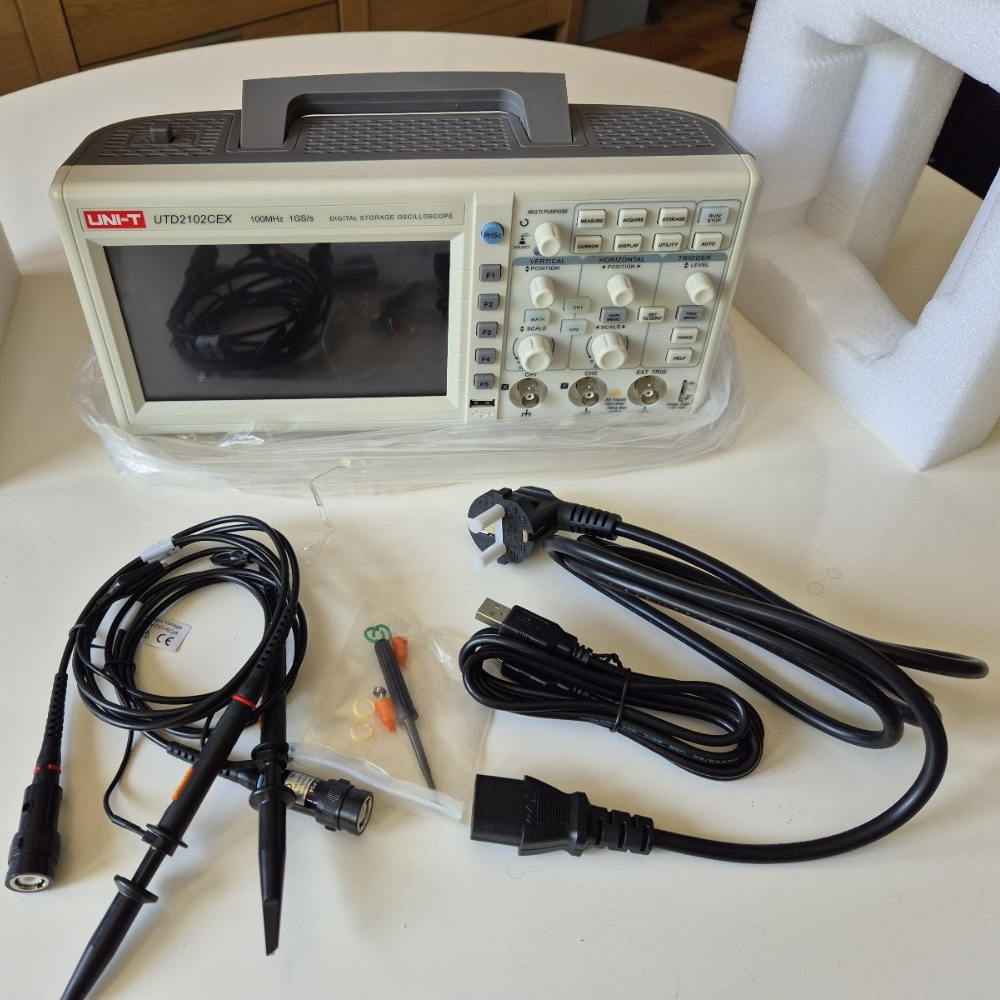

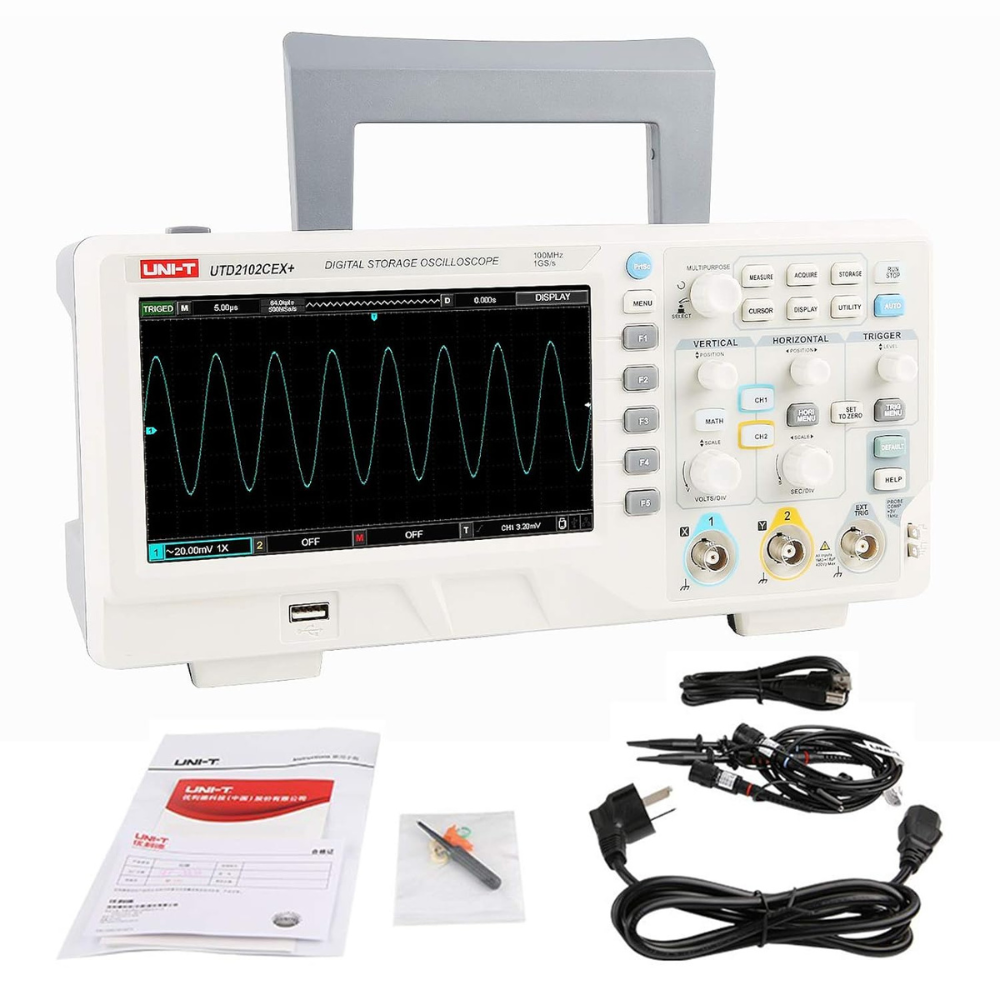

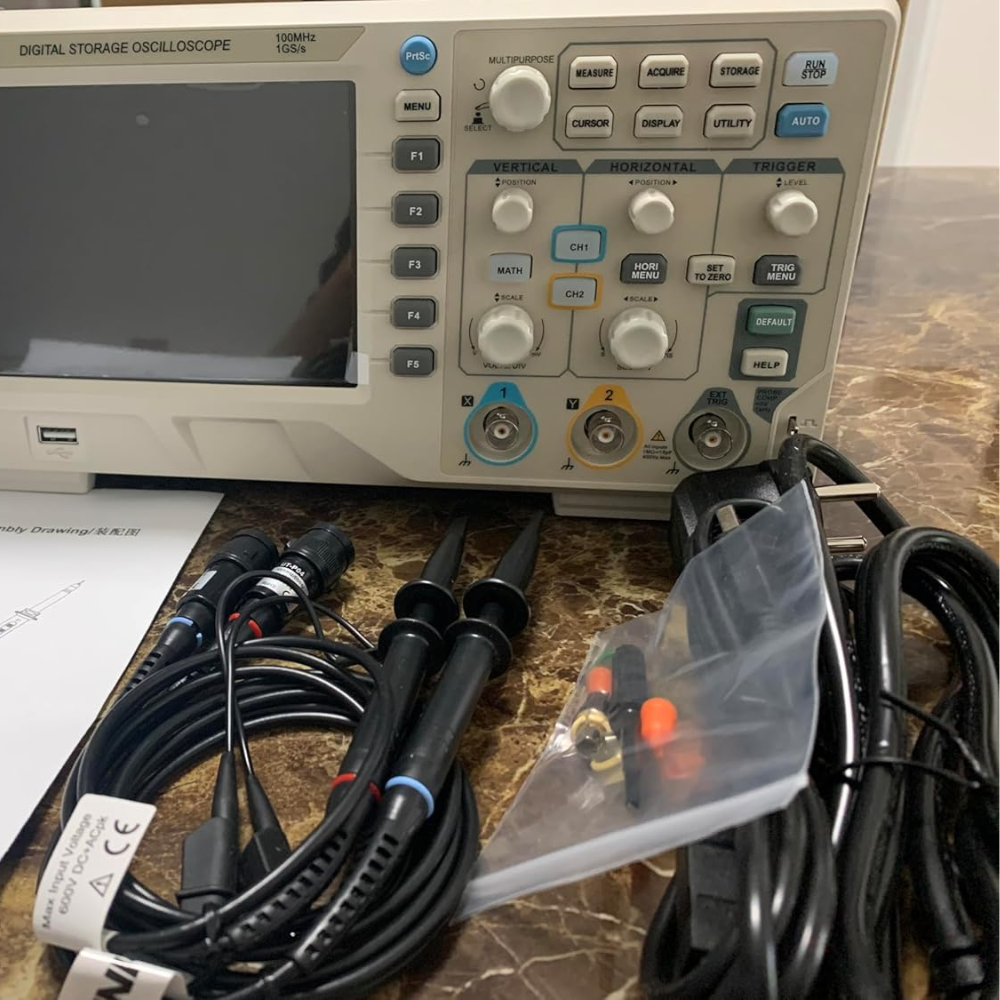

Package Includes

1 x UNI-T UTD2102CEX 100MHz 2 Channel Digital Oscilloscope

2 x 100MHz Oscilloscope Probes

1 x Power Cord

1 x USB Cable

1 x User Manual

1 x Quality Test Report

The UNI-T UTD2102CEX 100MHz 2-channel digital oscilloscope provides excellent value with automatic measurements and 1GSa/s sampling for entry-level professional use, but for superior signal fidelity, deeper memory and advanced analysis capabilities, upgrade to the RIGOL DS1102Z-E Digital Oscilloscope, featuring UltraVision technology, 24Mpts record length and extensive protocol decoding for demanding engineering, research and production testing.

UTD2102CEX digital oscilloscope handles electrical signal analysis effectively, but to detect magnetic field interference from transformers, motors or speakers that can affect your circuits, add a Gauss Meter – crucial for verifying EMI shielding, magnet strength in sensors, and residual magnetism in workshop tools and components.

Downloads

📄 Download UNI-T UTD2102CEX Data Sheet
📄 Download UNI-T UTD2102CEX User Manual
