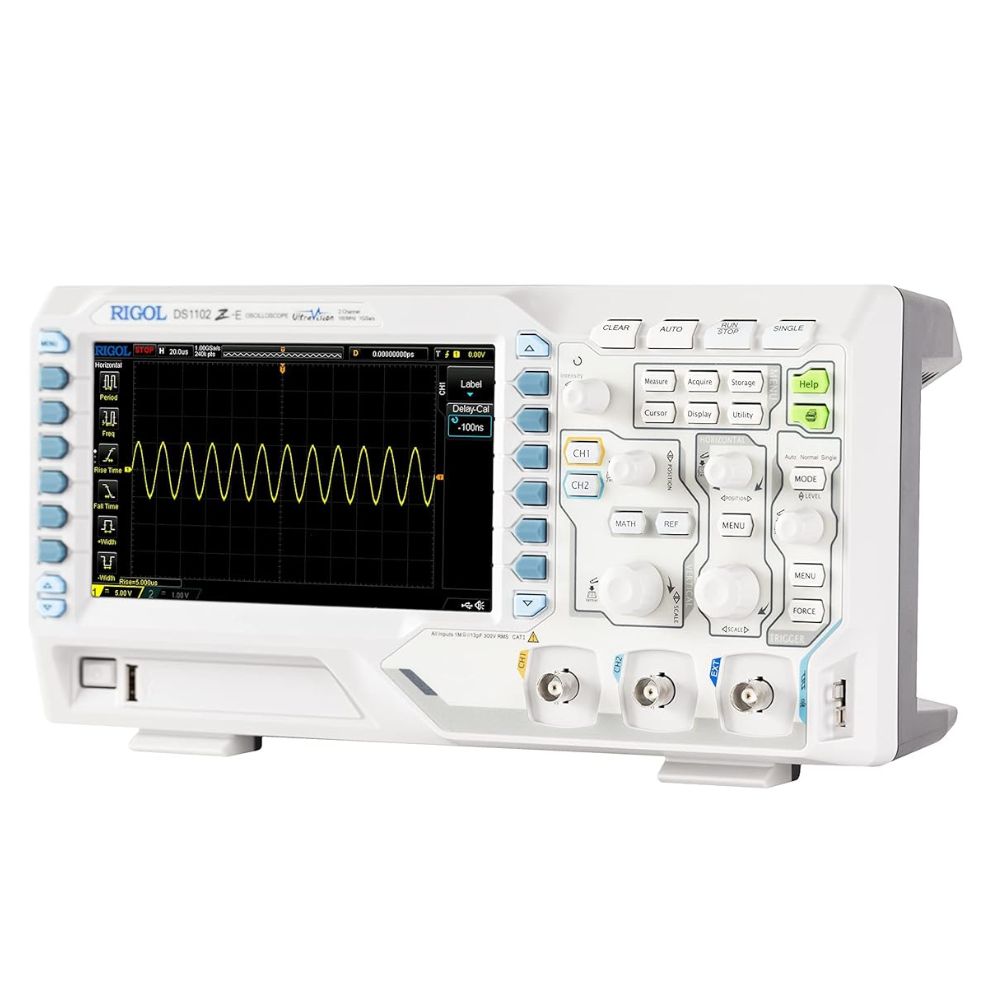

RIGOL DS1102Z-E 100MHz 2-Channel Digital Oscilloscope

RIGOL DS1102Z-E 100MHz 2 Channel Digital Oscilloscope in Sri Lanka

Professional 1GSa/s Benchtop Oscilloscope for Engineering

The RIGOL DS1102Z-E 100MHz 2 Channel Digital Oscilloscope offers professional performance with 100MHz bandwidth, 1GSa/s real-time sample rate, and 24Mpts deep memory across 2 channels. Ideal for electronics repair technicians, automotive diagnosticians, and engineering professionals, this oscilloscope captures complex waveforms with exceptional clarity. Its UltraVision technology delivers superior signal analysis for precise troubleshooting in demanding applications.

Looking for unbeatable deals? Discover our Digital Oscilloscopes – specs, features & best rates in Sri Lanka!

Engineered for professional use, the DS1102Z-E features a 7-inch high-resolution color TFT LCD (800x480) with hardware real-time digital triggers. Advanced serial bus decoding (I2C, SPI, RS232, CAN, LIN) and built-in FFT spectrum analysis make it perfect for modern electronics and automotive diagnostics across Sri Lanka.

Key Features

100MHz bandwidth, 2 channels + 1 EXT trigger channel

1GSa/s real-time sample rate (10GSa/s equivalent-time)

24Mpts/channel memory depth for extended signal capture

1M wfms/s capture rate in normal mode for fast debugging

7-inch WVGA color LCD (800x480) with 60% brighter display

Advanced hardware triggers: Runt, Window, Nth Edge, Setup/Hold

Serial protocol decode: I²C, SPI, RS232/UART, CAN, LIN

Built-in 1M-point FFT for frequency domain analysis

USB/LAN connectivity with SCPI remote control

38 auto measurements with statistics and waveform histogram

Technical Specifications

Model

RIGOL DS1102Z-E

Bandwidth

100 MHz

Channels

2 + EXT

Sample Rate

1 GSa/s (real-time), 10 GSa/s (ET)

Memory Depth

24 Mpts

Capture Rate

1 million wfms/s

Display

7" TFT LCD, 800×480 pixels

Vertical Resolution

8 bits

Input Impedance

1 MΩ ±2% ‖ 18 pF ±2 pF

Time Base Range

2 ns/div - 40 s/div

Trigger Types

Edge, Pulse, Video, Slope, Runt, Window, Nth Edge, Setup/Hold, Delay

Math Functions

+, -, ×, FFT, Invert, Digital Filter

Interfaces

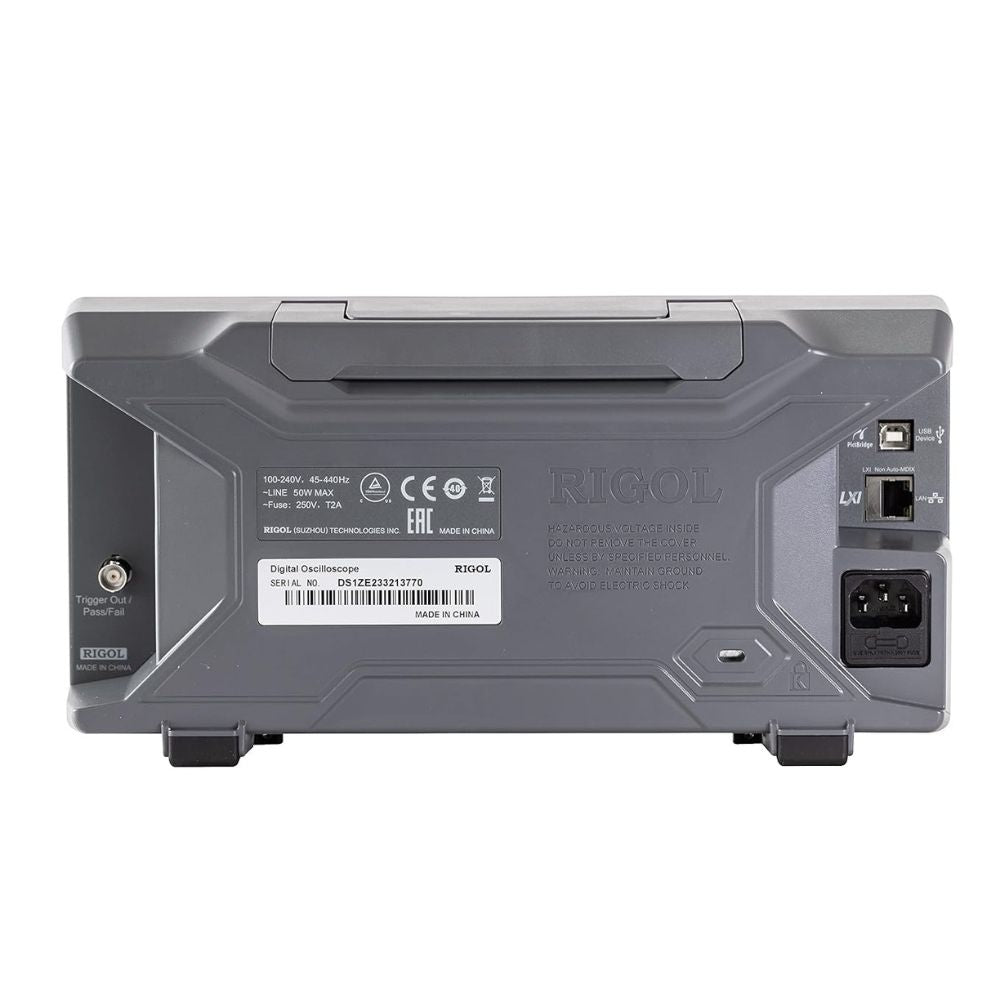

USB Host/Device, LAN, Pass/Fail, Trigger Out, Probe Comp

Power

AC 100-240V, 50/60Hz

Dimensions

332.5 × 160.4 × 122.2 mm

Weight

2.95 kg

Applications

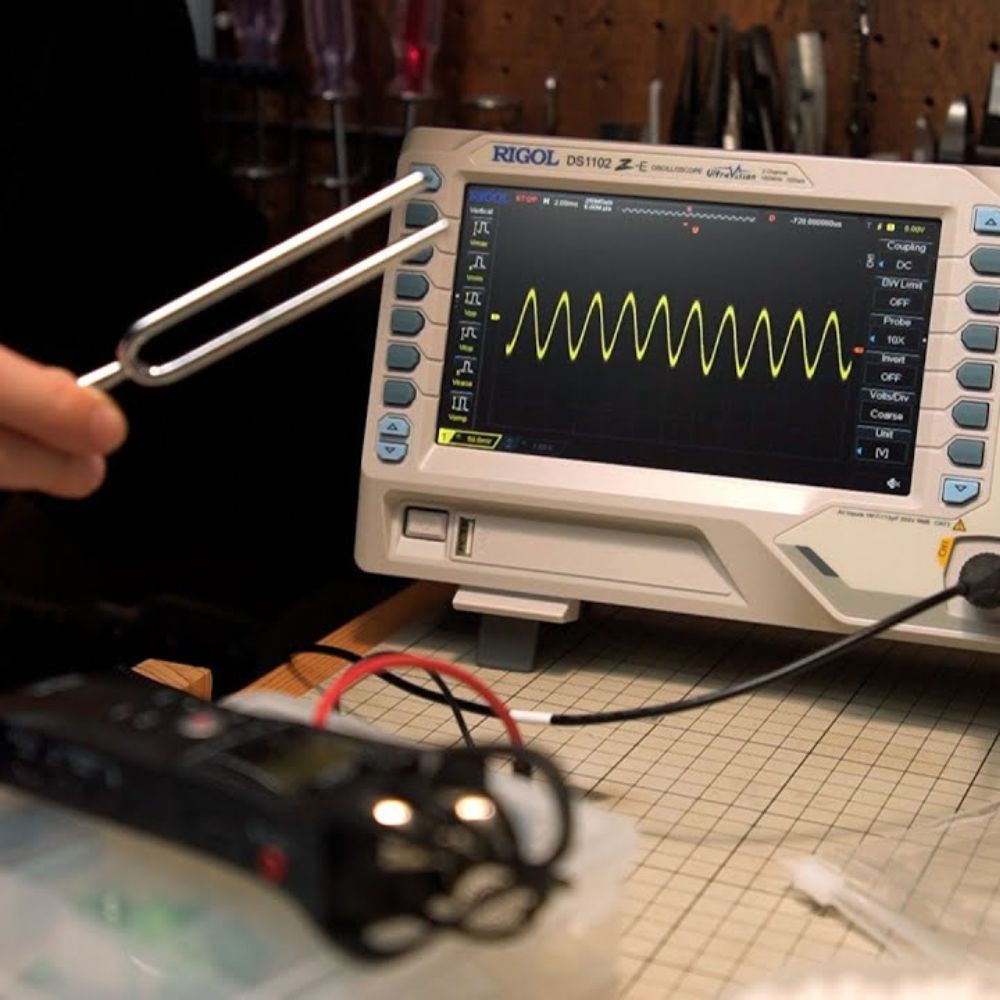

Essential for electronics service centers troubleshooting PCBs and components

Perfect for automotive workshops analyzing ECU, sensors, CAN/LIN bus signals

Critical for technical colleges and universities electronics education

Ideal for industrial automation PLC and control system diagnostics

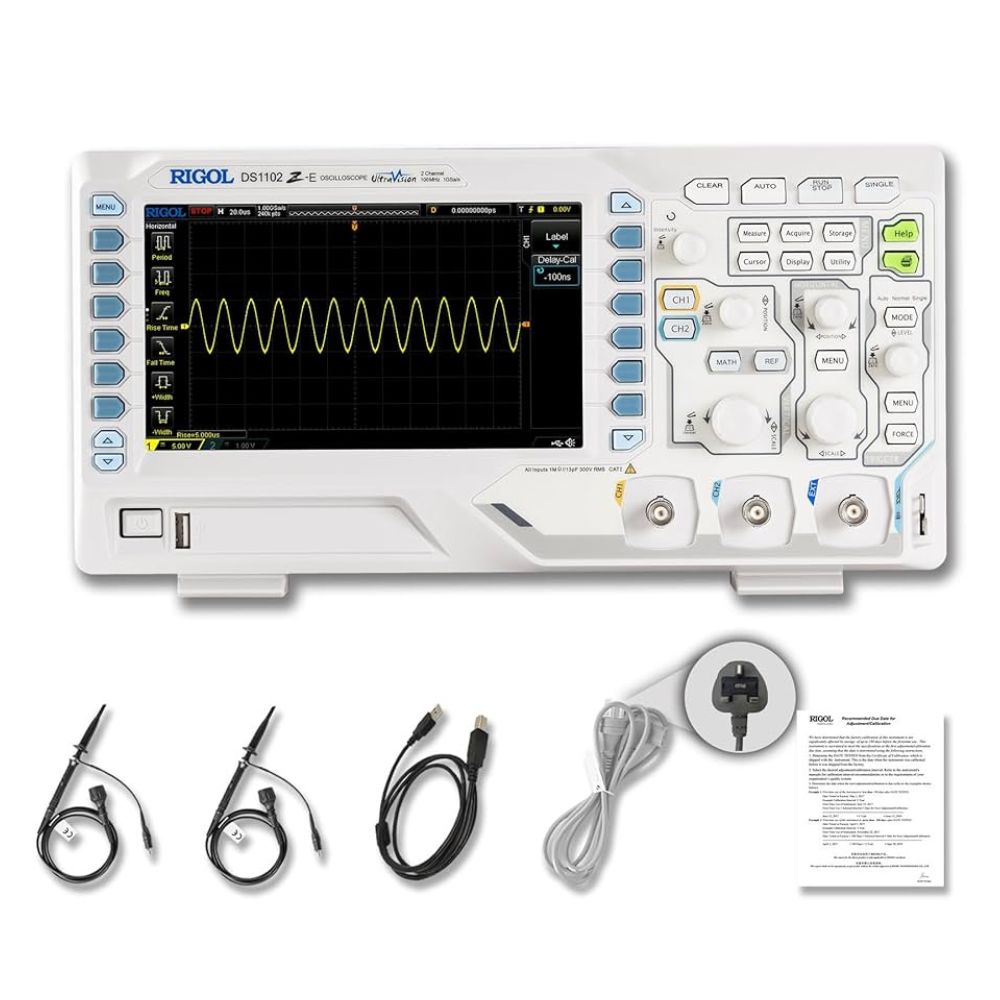

Package Includes

1 x RIGOL DS1102Z-E 100MHz 2 Channel Digital Oscilloscope

2 x 100MHz Passive Probes (PTP1000B)

1 x Power Cord

1 x USB Cable (AB type)

1 x User Guide

1 x Quality Certification

The RIGOL DS1102Z-E digital oscilloscope delivers professional performance with 1GSa/s sampling and 24Mpts memory for demanding applications, but for higher bandwidth needs like digital communications, power electronics or RF troubleshooting, upgrade to the RIGOL DS1202Z-E Digital Oscilloscope, offering double the bandwidth with identical UltraVision features for advanced engineering and production testing.

DS1102Z-E provides precise waveform analysis for electronics development, but to validate and generate the analog signals you're measuring – like 4-20 mA loops, temperature sensors and voltage standards – pair it with our Process Calibrators - featuring portable multifunction units for comprehensive industrial instrumentation testing.

Downloads

📄 Download RIGOL DS1102Z-E Data Sheet
📄 Download RIGOL DS1102Z-E User Manual
