RIGOL DS1202Z-E 200MHz 2-Channel Digital Oscilloscope

RIGOL DS1202Z-E 200MHz 2 Channel Digital Oscilloscope in Sri Lanka

Premium 2GSa/s High-Performance Benchtop Oscilloscope

The RIGOL DS1202Z-E 200MHz 2 Channel Digital Oscilloscope delivers premium performance with true 200MHz bandwidth, 2GSa/s sample rate, and 24Mpts memory depth for capturing high-frequency signals in demanding applications. Engineered for RF engineers, advanced automotive diagnostics, and research laboratories, it features 400,000 wfms/s capture rate and superior noise performance. This oscilloscope excels at jitter analysis, eye diagram measurements, and high-speed digital protocol debugging.

Looking for more options? Explore our full range of digital oscilloscope models to compare specifications and prices.

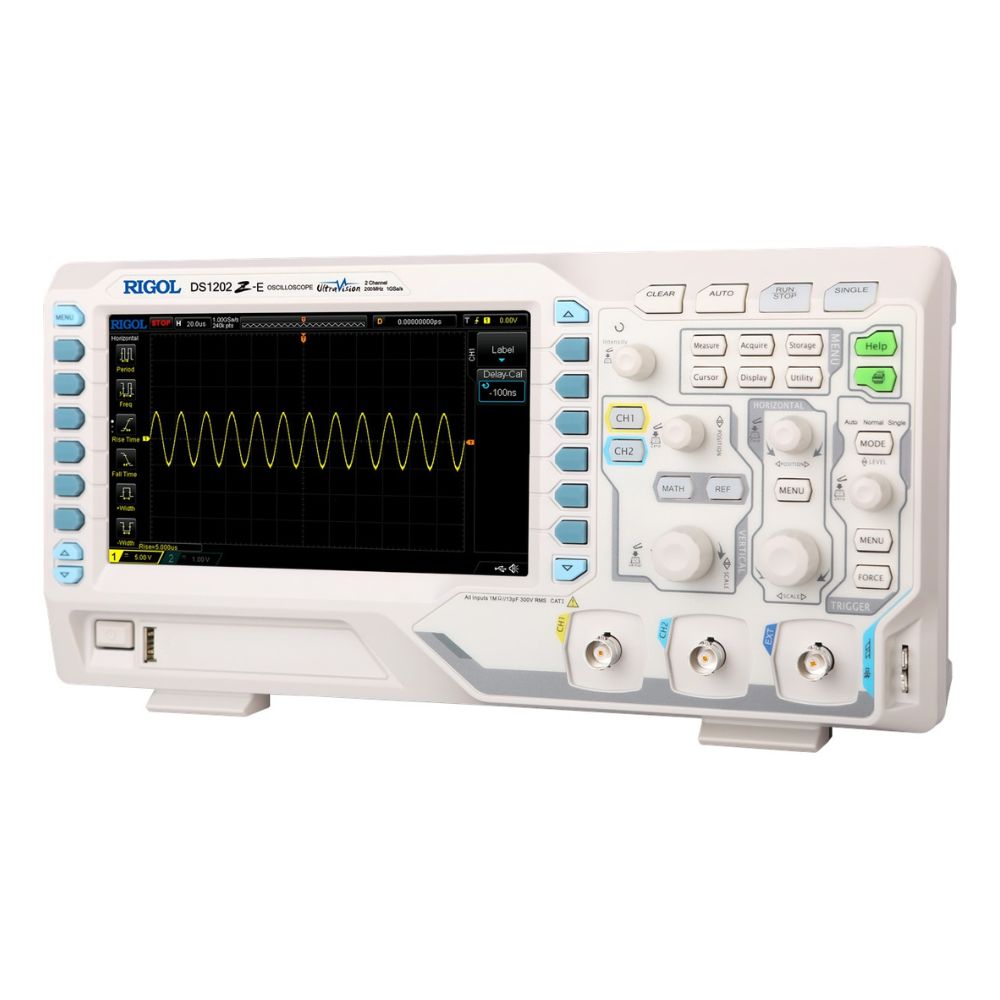

Featuring a 7-inch high-resolution color TFT LCD with industry-leading trigger sensitivity, the DS1202Z-E supports advanced serial decoding for high-speed protocols and comprehensive power analysis. Its low-noise front-end design and precision timebase ensure accurate measurements from DC to 200MHz, making it ideal for telecommunications, power electronics, and automotive radar development in Sri Lanka.

Key Features

True 200MHz bandwidth, 2 channels + EXT trigger

2GSa/s real-time sample rate (25GSa/s equivalent-time)

24Mpts/channel memory depth for extended high-resolution capture

400,000 wfms/s capture rate for rare event detection

7-inch WVGA LCD (800x480) with 256-level grayscale

Precision digital triggers with 1/8 div sensitivity

High-speed serial bus decode: I²C, SPI, CAN FD, FlexRay, MIL-STD-1553

Advanced FFT engine with 1M points and multiple windows

LAN/USB 2.0 with LXI compliance and SCPI programming

Mask testing and power analysis toolkit included

Technical Specifications

Model

RIGOL DS1202Z-E

Bandwidth

200 MHz (-3dB)

Channels

2 + EXT

Sample Rate

2 GSa/s max (real-time), 25 GSa/s (ET)

Memory Depth

24 Mpts (standard)

Capture Rate

400,000 wfms/s (normal mode)

Display

7" TFT LCD, 800×480 pixels, 256 grayscale

Vertical Resolution

8 bits (up to 16 bits with averaging)

Input Sensitivity

500 µV/div - 10 V/div

Rise Time

<1.75 ns

Time Base Accuracy

±1 ppm (standard timebase)

Trigger Jitter

<1.5 ns RMS

Trigger Types

Edge, Pulse, Runt, Window, Interval, Dropout, Pattern, Video, Qualified

Standard Decode

I²C, SPI, RS232/UART, CAN, LIN

Interfaces

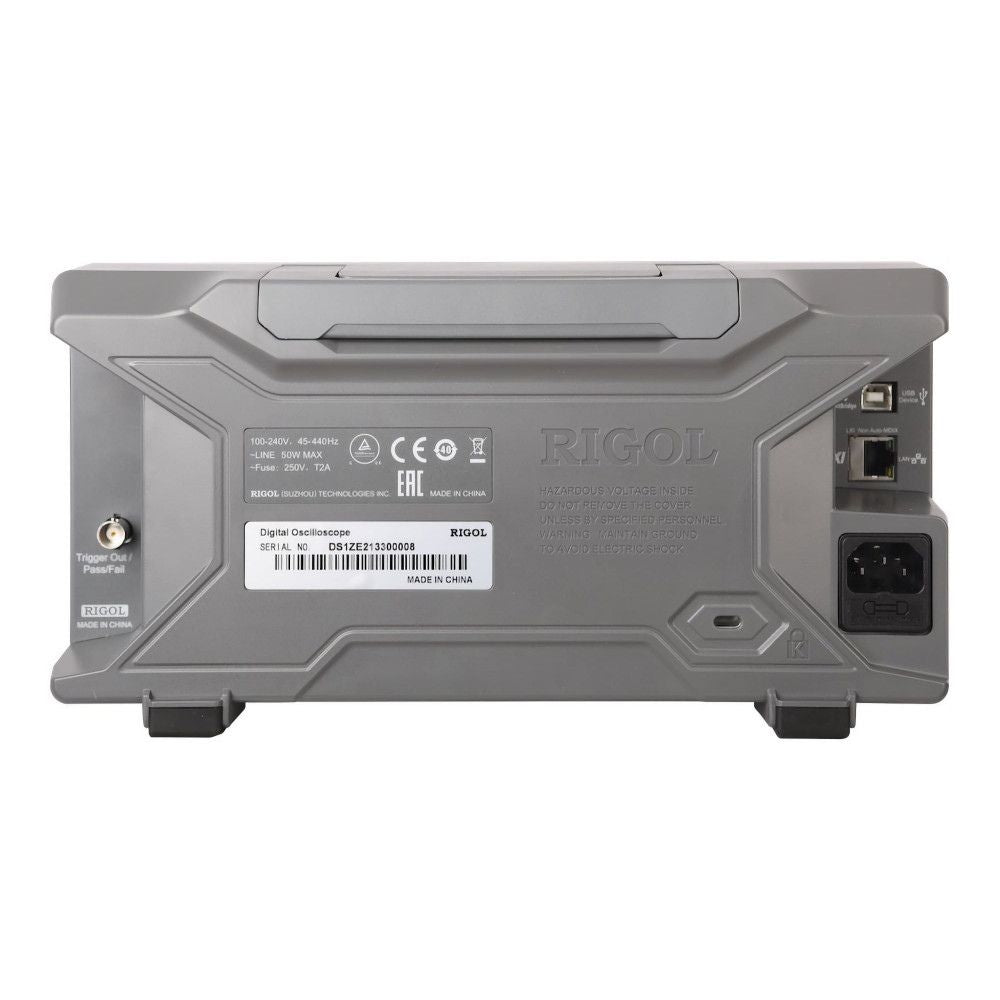

USB 2.0 Host/Device, LAN (LXI Class C), HDMI, Trigger I/O

Power Quality

50 Ω input impedance option

Dimensions

332 × 160 × 122 mm

Weight

3.2 kg

Applications

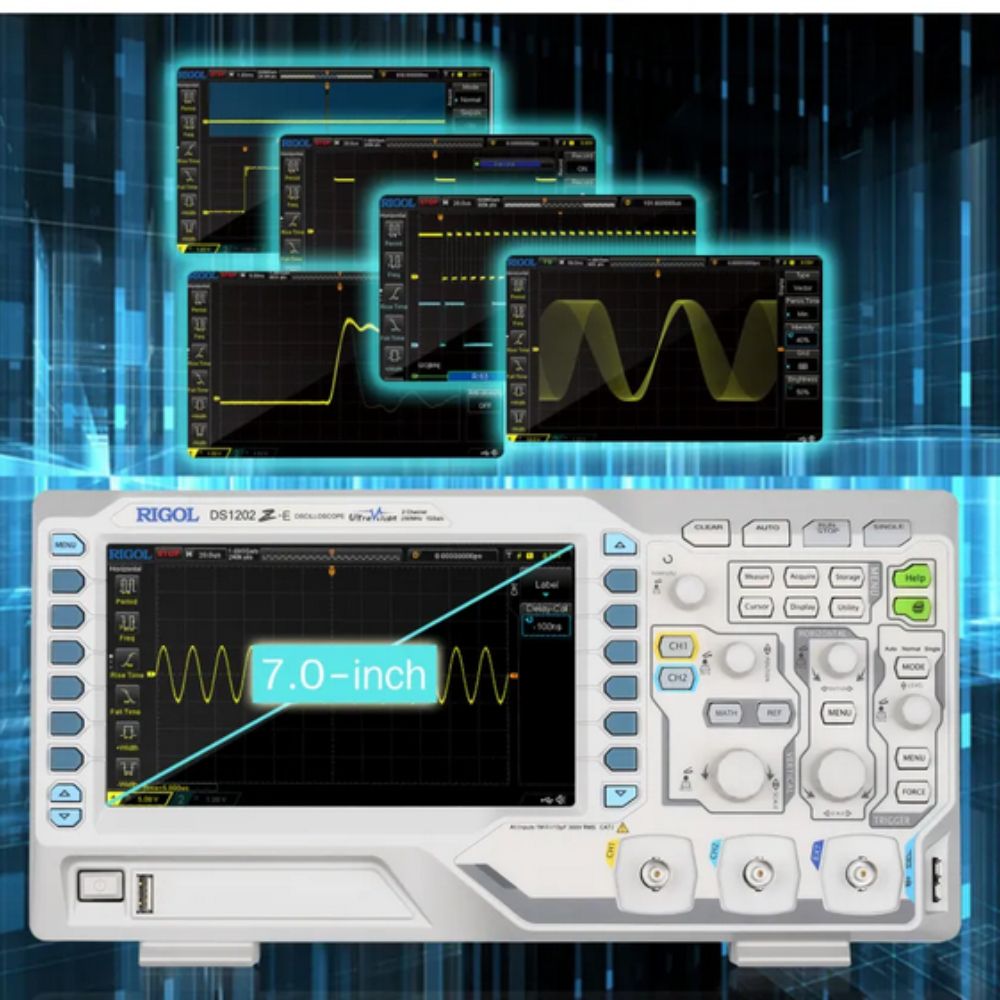

High-speed RF and wireless communications testing

Advanced automotive radar and ADAS signal analysis

Precision power electronics and motor drive characterization

Research signal integrity and eye diagram measurements

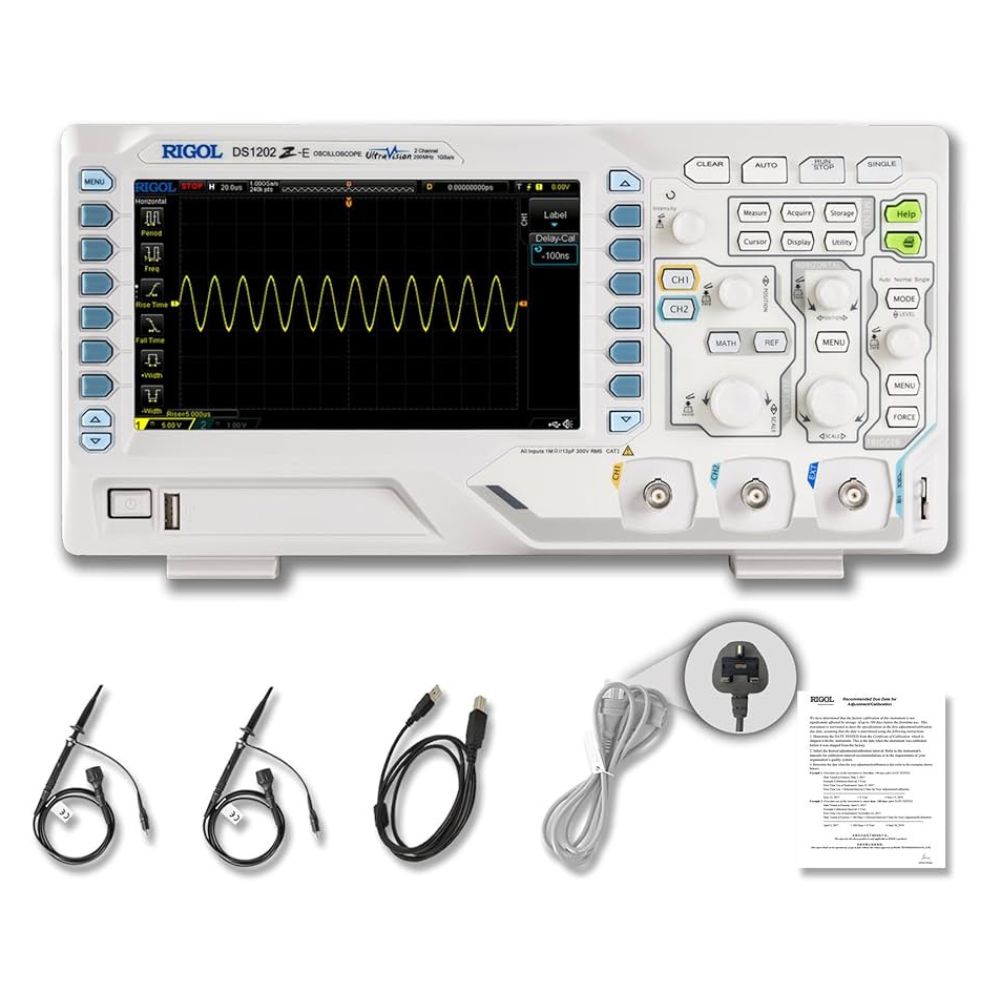

Package Includes

1 x RIGOL DS1202Z-E 200MHz 2 Channel Digital Oscilloscope

2 x 200MHz Passive Probes (P2200B)

1 x Power Cable

1 x USB Cable (A-B)

1 x LAN Cable

1 x Quick Start Guide

1 x Calibration Report
