SIGLENT SDS1202X-E 200MHz 2-Channel Digital Oscilloscope

SIGLENT SDS1202X-E 200MHz 2-Channel Digital Oscilloscope in Sri Lanka

Super Phosphor High-Performance Benchtop Oscilloscope

The Siglent SDS1202X-E 200MHz 2 Channel Digital Oscilloscope provides exceptional performance with 200MHz bandwidth, 1 GSa/s real-time sample rate, and 14 Mpts memory depth for detailed signal analysis in professional applications. Designed for electronics engineers, automotive diagnostics, and embedded systems development, it offers a waveform capture rate up to 400,000 wfms/s in sequence mode and low-noise Super Phosphor Oscilloscope (SPO) technology. This model is perfect for serial protocol decoding, FFT analysis, and precise measurements in telecommunications and power electronics.

Looking for more options? Explore our full range of digital oscilloscope models to compare specifications and prices.

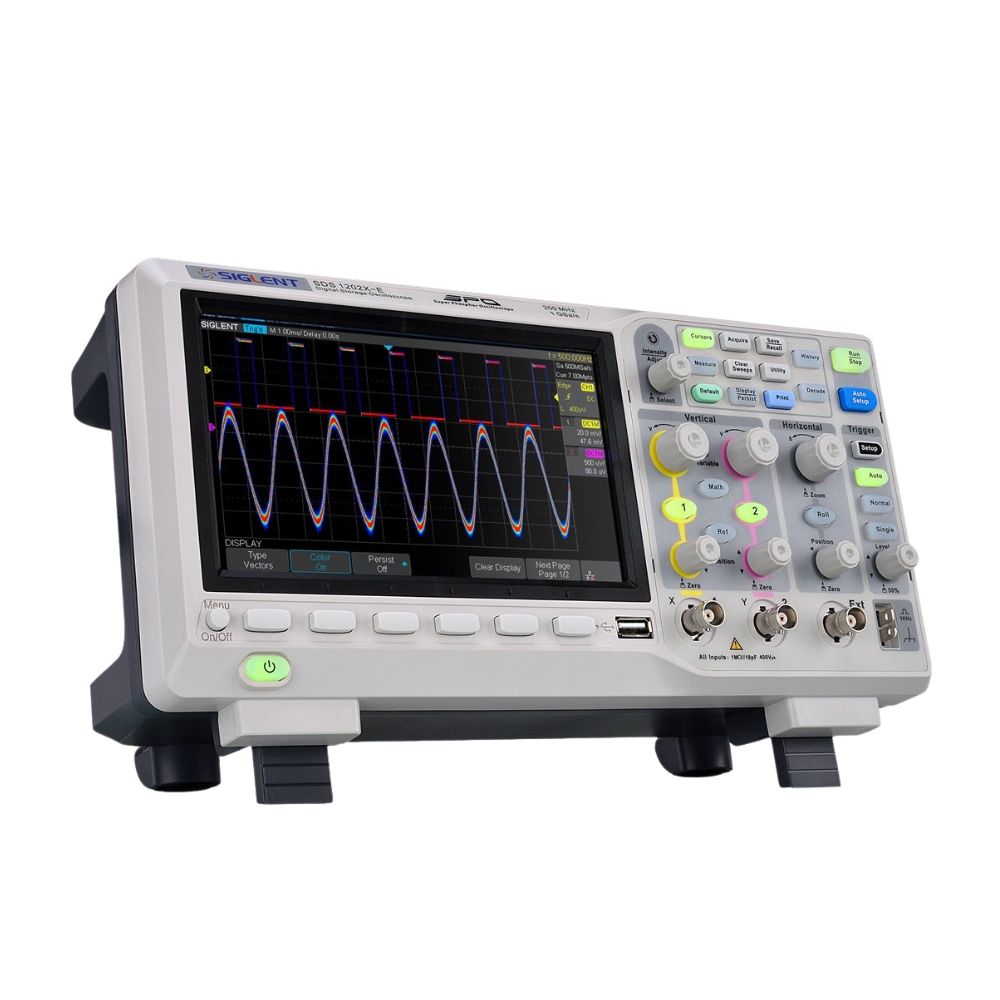

Equipped with a 7-inch TFT-LCD color display (800x480 resolution) and innovative digital trigger system, the SDS1202X-E supports serial decoding for I²C, SPI, UART/RS232, CAN, and LIN protocols as standard. Its hardware-based Pass/Fail testing, 38-parameter measurements, and 1M-point FFT make it suitable for signal integrity checks, video triggering including HDTV, and advanced debugging in Sri Lanka's engineering sector.

Key Features

200MHz bandwidth, 2+EXT channels

1 GSa/s real-time sample rate (500 MSa/s dual channel)

14 Mpts memory depth (single channel), 7 Mpts/ch (dual)

400,000 wfms/s capture rate (sequence mode)

7-inch TFT-LCD (800x480), 256-level intensity grading

Digital triggers: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video

Standard serial decode: I²C, SPI, UART/RS232, CAN, LIN

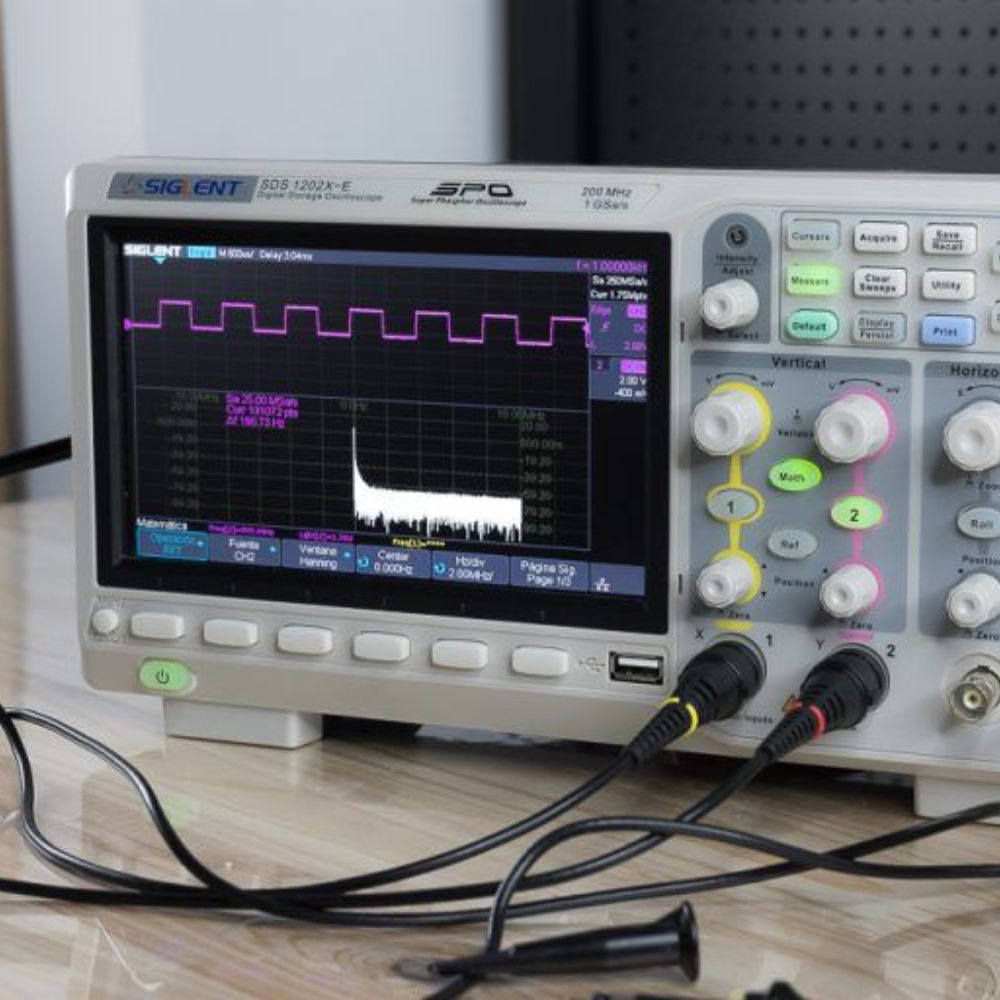

1M-point FFT with multiple math functions

USB/LAN interfaces, SCPI support, Pass/Fail testing

Auto measurements on 38 parameters, history/sequence modes

Technical Specifications

Model

Siglent SDS1202X-E

Bandwidth

200 MHz

Channels

2 + EXT

Sample Rate

1 GSa/s max (real-time, single), 500 MSa/s (dual)

Memory Depth

14 Mpts (single ch), 7 Mpts/ch (dual)

Capture Rate

400,000 wfms/s (sequence), 100,000 wfms/s (normal)

Display

7-inch TFT-LCD, 800×480 pixels

Vertical Resolution

8 bits

Input Sensitivity

500 µV/div - 10 V/div

Time Base Accuracy

±25 ppm

Trigger Types

Edge, Slope, Pulse Width, Window, Runt, Interval, Timeout, Pattern, Video

Standard Decode

I²C, SPI, UART/RS232, CAN, LIN

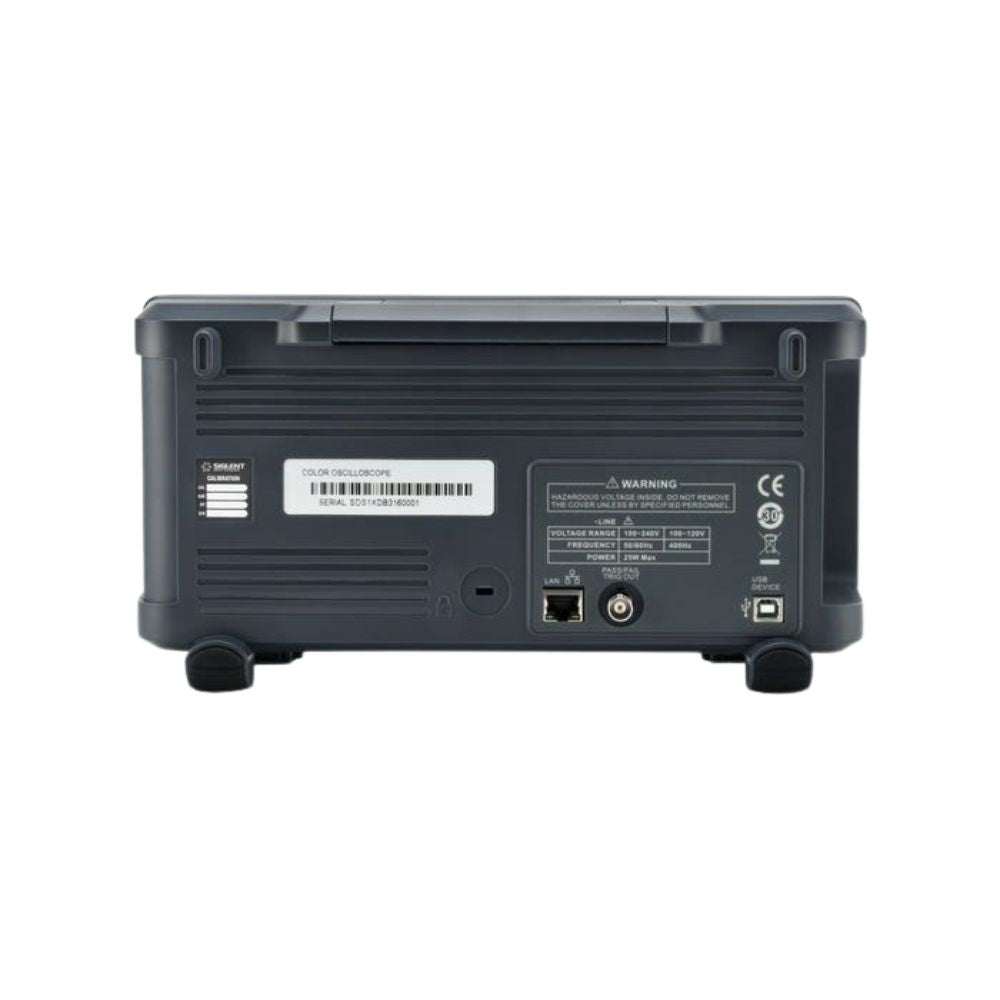

Interfaces

USB Host/Device (USB-TMC), LAN (VXI-11), Trigger Out, Pass/Fail

Dimensions

332 × 160 × 122 mm

Weight

3.2 kg

Applications

Embedded systems and serial protocol debugging

Automotive electronics CAN/LIN analysis

Power supply and signal integrity testing

Video and RF signal verification

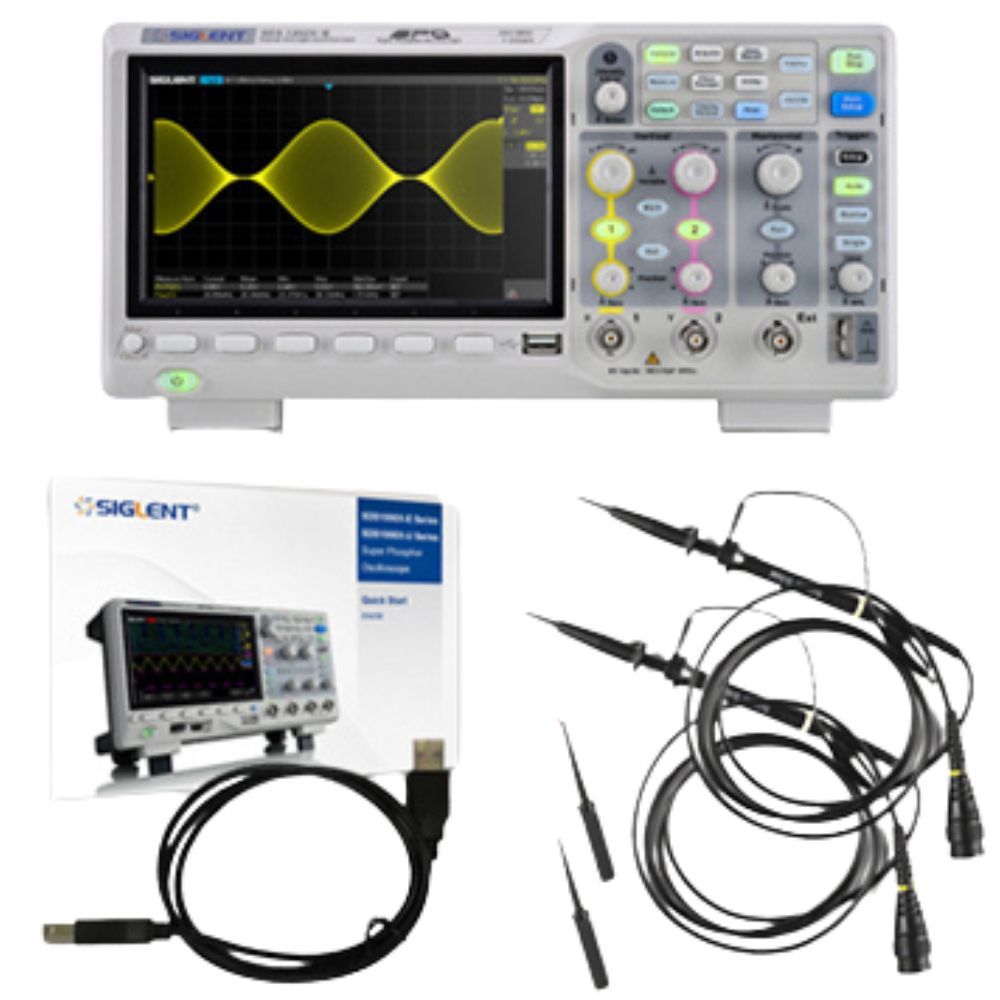

Package Includes

1 x Siglent SDS1202X-E 200MHz 2 Channel Digital Oscilloscope

2 x Probes (PP215, 200MHz passive)

1 x Power Cable

1 x USB Cable

1 x Quick Start Guide

1 x Guarantee/Certification Card

Downloads

📄 Download Siglent SDS1202X-E Data Sheet
📄 Download Siglent SDS1202X-E User Manual
