UNI-T UT685B KIT TDR Cable Tester

UNI-T UT685B KIT TDR Cable Tester in Sri Lanka

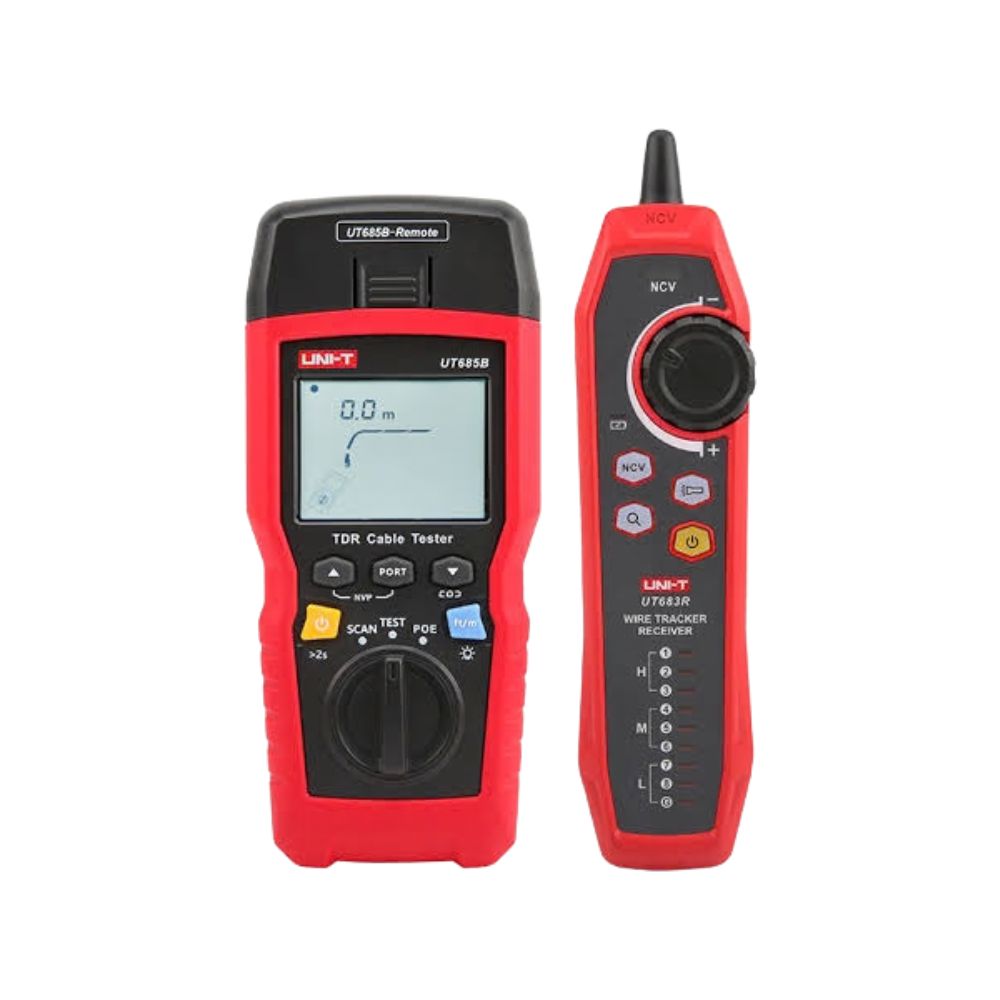

Cable Length, Wiremap, PoE and Coax Tester with UT683R Tracer Receiver

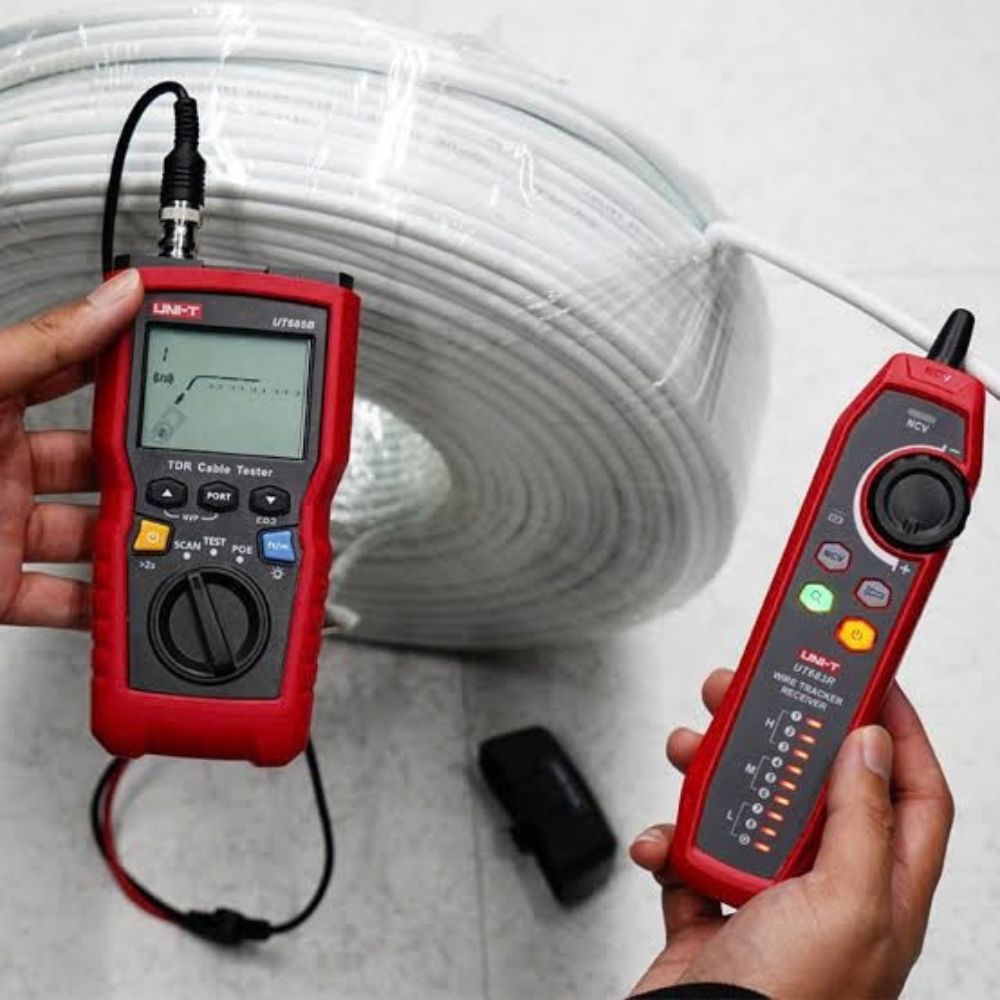

The UNI-T UT685B KIT TDR Cable Tester measures cable length, shows the distance to opens and shorts, maps wiring faults and detects PoE on twisted pair and coaxial cables. Using time domain reflectometry (TDR), this network cable length tester reads up to 500 m with 0.33 m resolution, and you don't need a far-end adapter for length measurement. Built-in RJ45/RJ11 and F-connector ports let you test network, telephone and coax cabling without extra adapters. The kit includes the UT683R receiver for tone tracing. Browse our full range of cable testers and tracers in Sri Lanka.

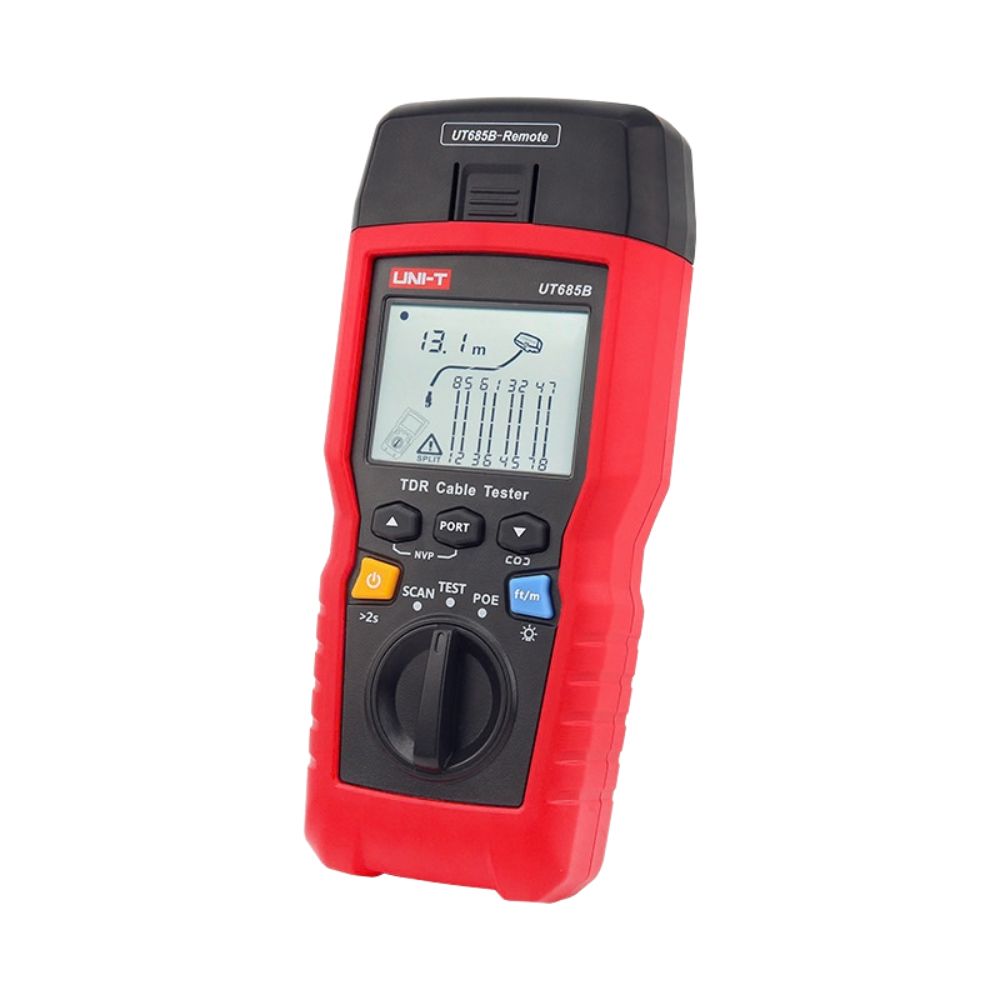

The 2.8" backlit LCD shows the wiremap, cable length and faults at the same time.

• Wiring faults: With the docking wiremap adapter at the far end, the tester reveals opens, shorts, crossed wires, crossed pairs and split pairs.
• PoE and live lines: As a PoE tester, it identifies Ethernet ports and PoE switches and recognises 802.3af/at standards (the user manual also lists 802.3bt). It warns when cable voltage is 10V or more and has 70V DC input protection.
• Coax: The coax cable tester mode supports 50 Ω, 75 Ω and 93 Ω cable.

This is a verification and troubleshooting tool, not a cable certifier. It does not measure network speed, bandwidth or coax RF signal level, and it cannot measure length past a telephone bridge tap. If you only need to trace and identify cables, the UNI-T UT683KIT wire tracer is a more affordable choice. Every unit ships with the manufacturer's calibration certificate, batteries included and a one-year warranty.

Technical Specifications

Cable Length Test (TDR)

Range: 500 m | Resolution: 0.33 m | Accuracy: ±4% or 0.6 m | Units: m and ft

Supported Cables

Twisted pair: UTP, FTP, SSTP (Cat5e, Cat6, Cat6A, Cat8) | Coaxial: 50 Ω, 75 Ω, 93 Ω

Wiremap and Fault Detection

Open, short, crossed wires, crossed pairs and split pairs | Distance to open or short per wire pair

PoE Detection

PoE power detection on pairs 1,2-3,6 and 4,5-7,8 | IEEE 802.3af and 802.3at (802.3bt also listed in the user manual)

Network Detection

Ethernet port detection | Hub/port blink in tone mode

Voltage Warning | Input Protection

Warning icon when cable voltage is 10V or more | 70V DC

Tone Mode

125 kHz digital modulation signal (10 Vpp) for tracing with the UT683R receiver

UT683R Receiver

Wire tracking, NCV (AC voltage over 40V), flashlight, sensitivity knob, headset jack, RJ45 jack and wiremap LEDs

Length Calibration

Adjustable NVP for RJ45 and coax ports

Display

2.8" LCD with backlight

Power

Tester: 3 × 1.5V AA alkaline batteries | Receiver: built-in rechargeable battery with Micro USB charging

Auto Power Off

After approx. 10 minutes of inactivity (60 minutes in wire tracking mode)

Operating | Storage Conditions

0°C~45°C, 20~75% RH | -20°C~60°C, 10~90% RH (non-condensing)

Altitude

Up to 2000 m

Size and Weight

Tester: 181 × 80 × 39 mm, approx. 360 g | Receiver: 197 × 48 × 34 mm, approx. 127 g

Certification

CE, UKCA | EN 61326-1:2013, EN 61326-2-2:2013

Calibration and Warranty

Manufacturer's calibration certificate included | 1-year warranty

Key Features

TDR Cable Length Measurement

Measures length up to 500 m with 0.33 m resolution, without a far-end adapter

Distance to Fault

Detail screens show how far the open or short is from the tester for each wire pair

Complete Wiremap

Detects opens, shorts, crossed wires, crossed pairs and split pairs

PoE Identification

Confirms PoE power and identifies the PoE standard in POE mode

Twisted Pair and Coax in One Tester

RJ45/RJ11 modular jack and F-connector port for network, telephone and coax cabling

Tone Tracing with UT683R

Traces twisted pair and coaxial cables, with port blink to confirm active switch ports

Easy-to-Read Display

Backlit 2.8" LCD shows wiremap, length and faults at the same time

Applications

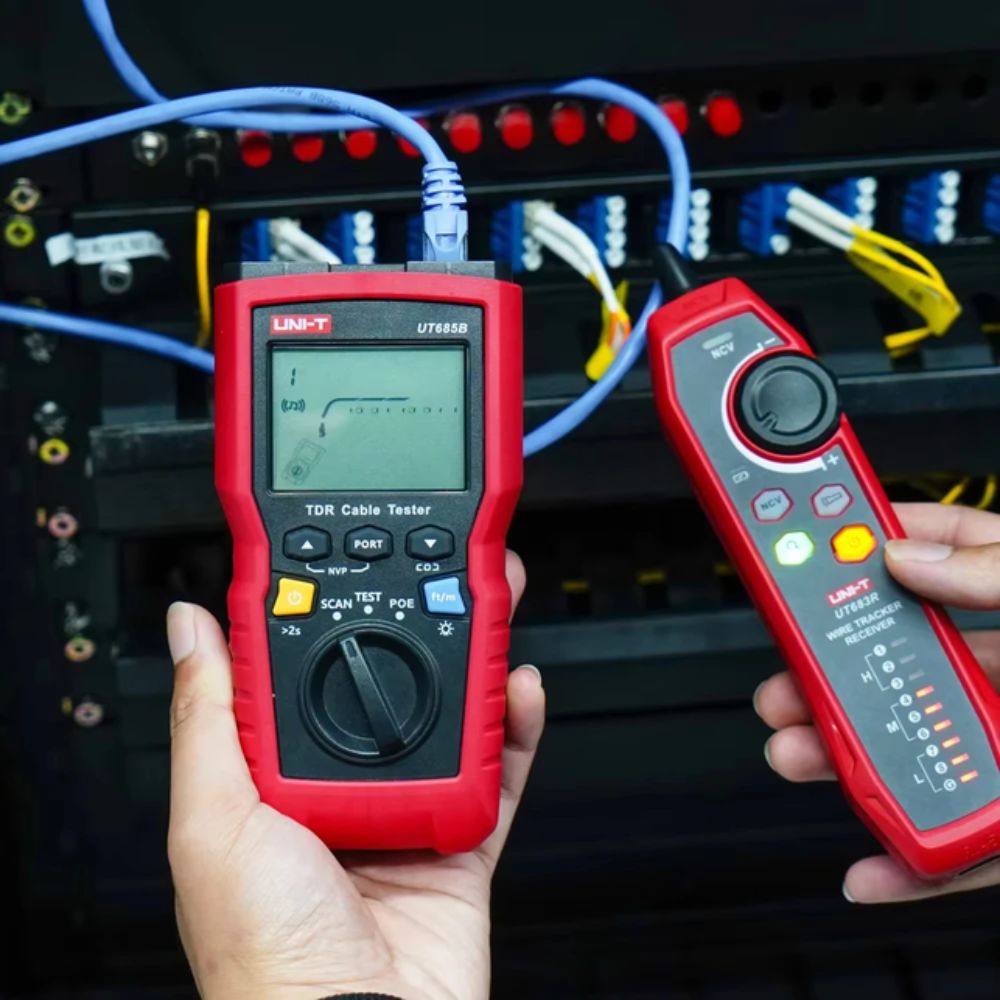

• Network installation, verification and troubleshooting
• Locating cable breaks and shorts without opening walls or trunking
• Checking PoE ports for IP cameras, access points and VoIP phones
• CCTV and CATV coaxial cable testing
• Telephone cabling in star and bus topologies

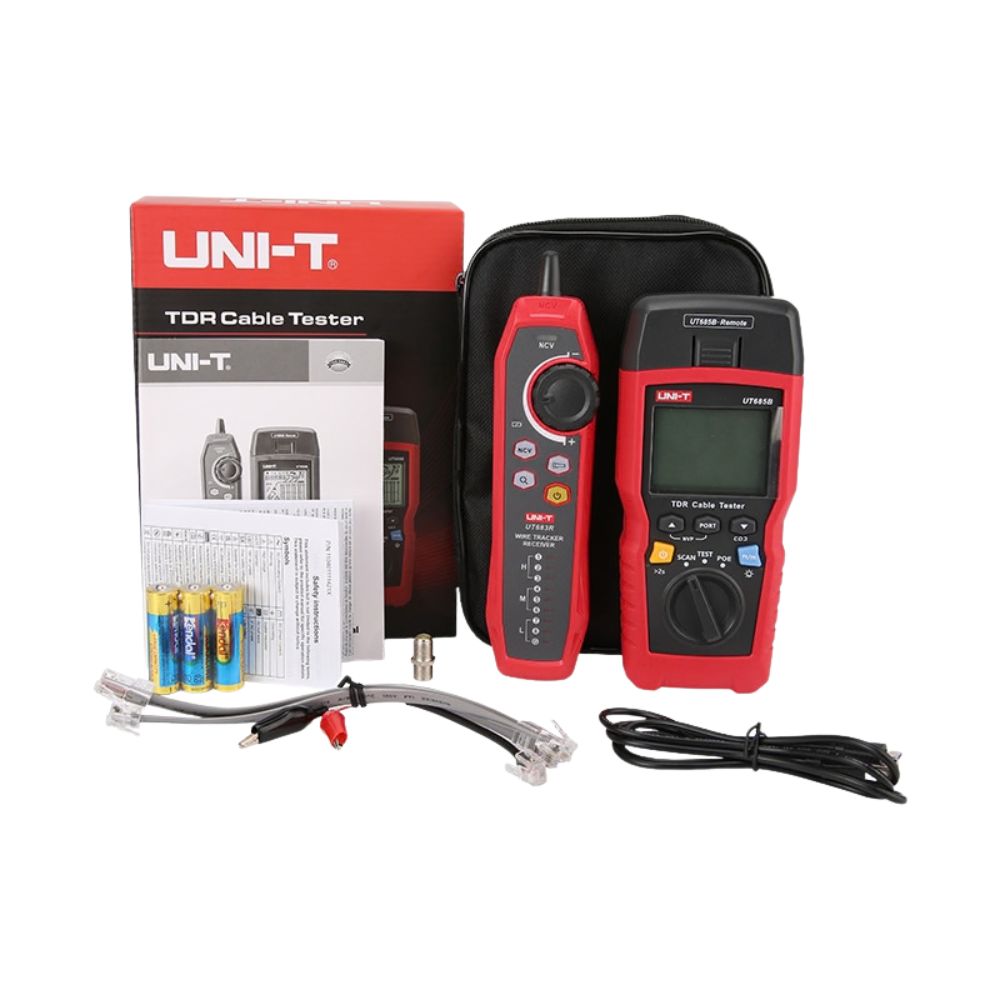

Package Includes

• 1 x UNI-T UT685B TDR cable tester with docking wiremap adapter
• 1 x UNI-T UT683R receiver
• 3 x 1.5V AA alkaline batteries
• 1 x RJ45 adapting cable
• 1 x RJ11 adapting cable
• 1 x RJ11 alligator clip adapting cable
• 1 x F-connector to F-connector plug
• 1 x Micro USB charging cable
• 1 x Carrying bag
• 1 x Manufacturer's calibration certificate
• 1 x User manual
