UNI-T UT25CL Cable Locator

UNI-T UT25CL Cable Locator in Sri Lanka

Transmitter-Receiver Kit for Wall and Underground Wire Tracing

The UNI-T UT25CL Cable Locator is a powerful transmitter-and-receiver kit built for tracing cables inside walls and underground with confidence. It helps electricians and technicians in Sri Lanka detect conductor interruptions, locate short circuits, and trace underground cable paths without invasive digging or drilling [web:1].

Discover our complete selection of Cable Locators – specifications, features, and wire tracing tools in Sri Lanka!

With energized wire detection up to 480V AC/DC, support for up to 8 transmitters, and adjustable sensitivity, this instrument streamlines fault-finding routes and helps prevent accidental cable damage during renovation or installation work.

Technical Specifications

Output Signal: 33KHz

Energized Wire Voltage Range: AC/DC 8~480V; AC 50/60Hz

Tracing Depth (Unipolar Mode): Around 0~2.5m

Tracing Depth (Bipolar Mode): Around 0~0.5m

NCV Voltage Range: 80V~1000V, 50/60Hz

Voltage Detection Depth: Around 0~0.4m

Sensitivity Levels: Receiver 3 levels; Transmitter 9 levels

Overvoltage Category: CAT III 480V | IP Rating: IP54

Key Features

Multi-Transmitter Support: One receiver supports up to 8 transmitters for multi-cable job sites

Energized Wire Detection: Detects live wires up to 480V AC/DC for added safety

Display: Segment code LCD with backlight for visibility in low light

Flashlight Function: Built-in flashlight for on-site convenience

Automatic Shutdown: Conserves battery during idle periods

Indicators: LED and buzzer alerts for clear signal feedback

Applications

Tracing electrical wiring routes inside walls before drilling or renovation

Locating underground cable paths for utility and maintenance work

Identifying short circuits and open circuits in underfloor metal heating systems

Tracing metal water pipes and metal heating pipelines

Locating fuses and associated circuit devices in residential and commercial buildings

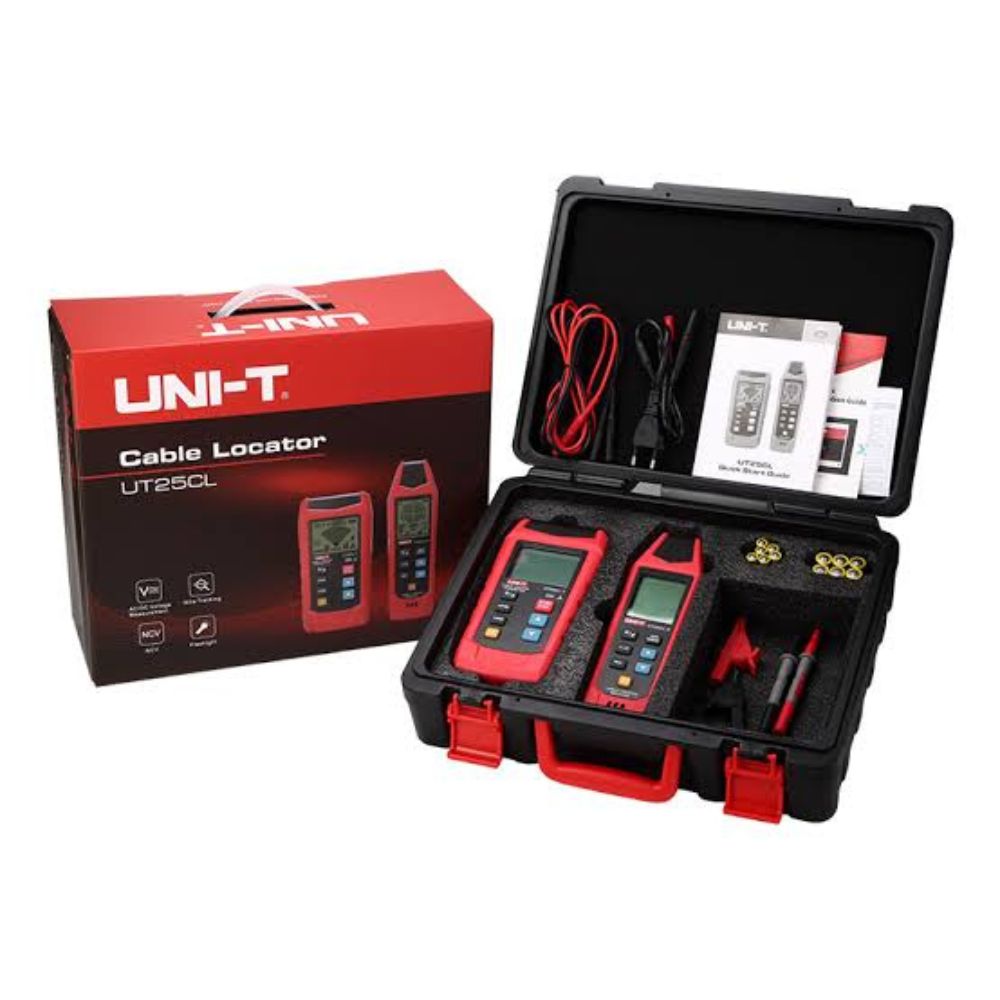

Package Includes

1 x UNI-T UT25CL Receiver

1 x UNI-T UT25CL Transmitter

Test leads and probes

Carrying case

User manual

Downloads

📄 Download UNI-T UT25CL Data Sheet
📄 Download UNI-T UT25CL User Manual
