UNI-T UT07B-EU RCD Socket Tester with Leakage Test

UNI-T UT07B-EU RCD Socket Tester in Sri Lanka

EU-Format 230V Wiring Checker with Leakage-Test Function

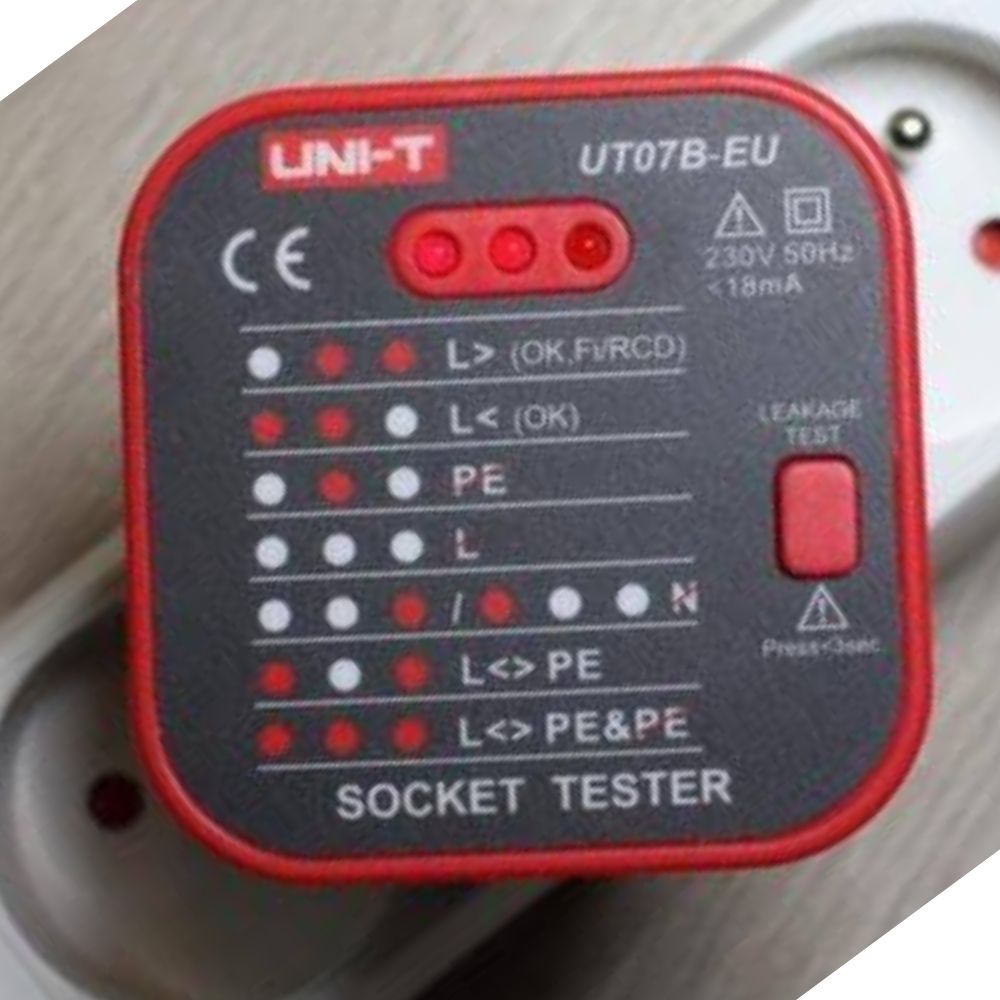

The UNI-T UT07B-EU RCD Socket Tester checks compatible EU-format 230V socket wiring and adds a leakage-test function for checking the response of an RCD or circuit breaker. The instrument indicates conditions including OK, ground missing, live missing, neutral missing, live/ground inversion, and live/ground inversion with ground missing.

Discover our complete selection of Socket Testers – 230V outlet wiring checkers and RCD test instruments in Sri Lanka.

When the leakage-test function is used correctly, the tester applies an approximately 30mA test condition to check whether the relevant protective device responds. This makes the UT07B-EU suitable for preliminary combined socket-wiring and RCD-response checks in compatible installations. It is not a replacement for a multifunction installation tester or a qualified electrical inspection.

Technical Specifications

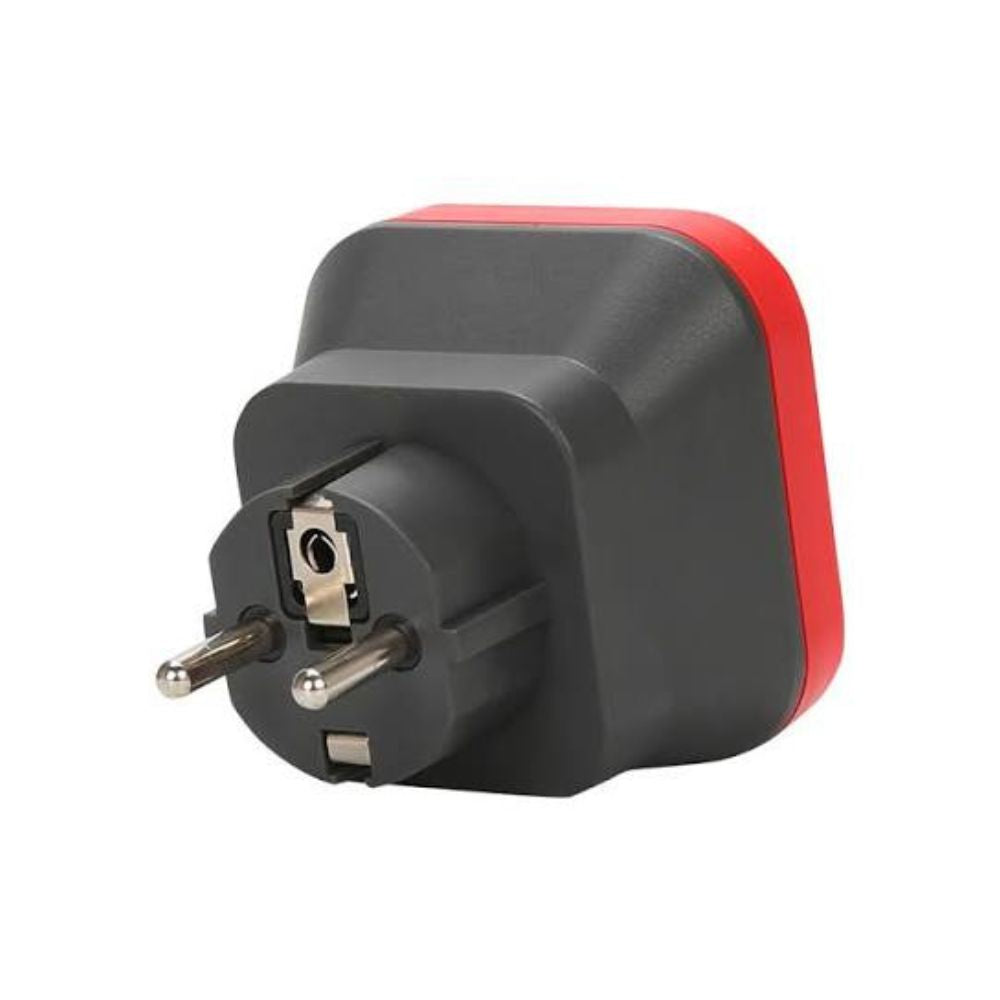

Compatible Outlet: EU-format 2-pin socket, compatible plug design required

Operating Voltage: 230V

Operating Current: <18mA

RCD Leakage Test: Approximately 30mA test current according to the manufacturer specification

Working Frequency: 50Hz~60Hz

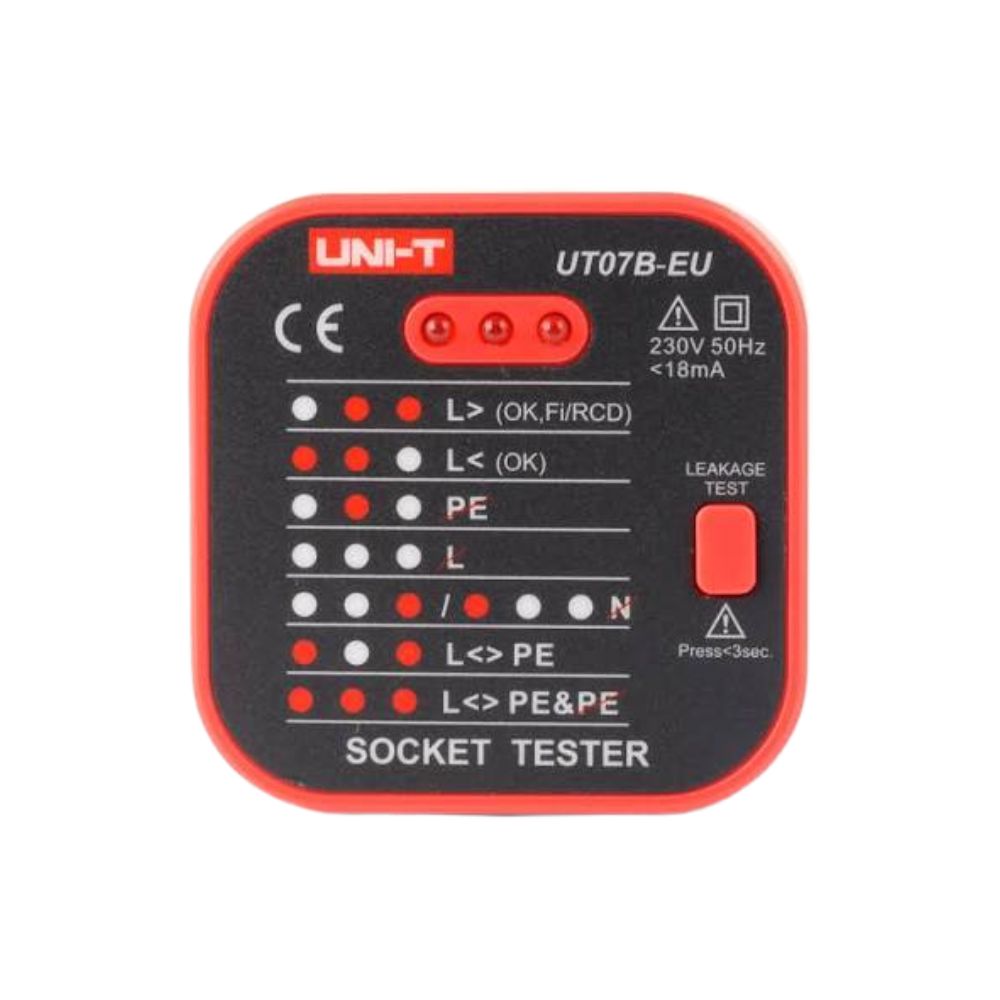

Indication Statuses: OK/leakage test passed, OK, ground missing, live missing, neutral missing, live/ground inverted, live/ground inverted with ground missing

Certificates: CE, UKCA

Product Size: 65 x 65 x 61mm

Net Weight: 80.5g

Key Features

RCD Response Check: Leakage-test function helps verify whether a compatible circuit protective device trips

Socket Wiring Indication: Displays several common live, neutral, ground, and polarity conditions

Simple Plug-In Design: Combines outlet wiring indication and protective-device checking in one compact instrument

Portable Build: Lightweight 80.5g format for electricians and maintenance technicians

230V Application: Intended for compatible 230V EU-format socket installations

Applications

Preliminary RCD response checks on compatible EU-format circuits

Combined socket-wiring and protective-device checks

Maintenance inspections in commercial buildings and workshops

Initial fault identification before detailed electrical testing

Package Includes

1 x UNI-T UT07B-EU RCD Socket Tester

Blister packaging

English user manual

Important Safety Information

The leakage test may operate the connected RCD or circuit breaker and can interrupt power to the circuit. Before testing, understand which equipment may lose power and follow the supplied manual. Use only with a compatible 230V outlet. Do not rely on the tester alone to prove that an installation is safe, and refer repairs, diagnosis, or certification work to a qualified electrician.

For basic EU-format wiring checks without the leakage-test function, see the UNI-T UT07A-EU Socket Tester. For UK 13A sockets, see the UNI-T UT07A-UK 13A Socket Tester.
