UNI-T UT07A-UK 13A Socket Tester

UNI-T UT07A-UK 13A Socket Tester in Sri Lanka

UK Plug Wiring Checker for 230V BS 1363 Outlets

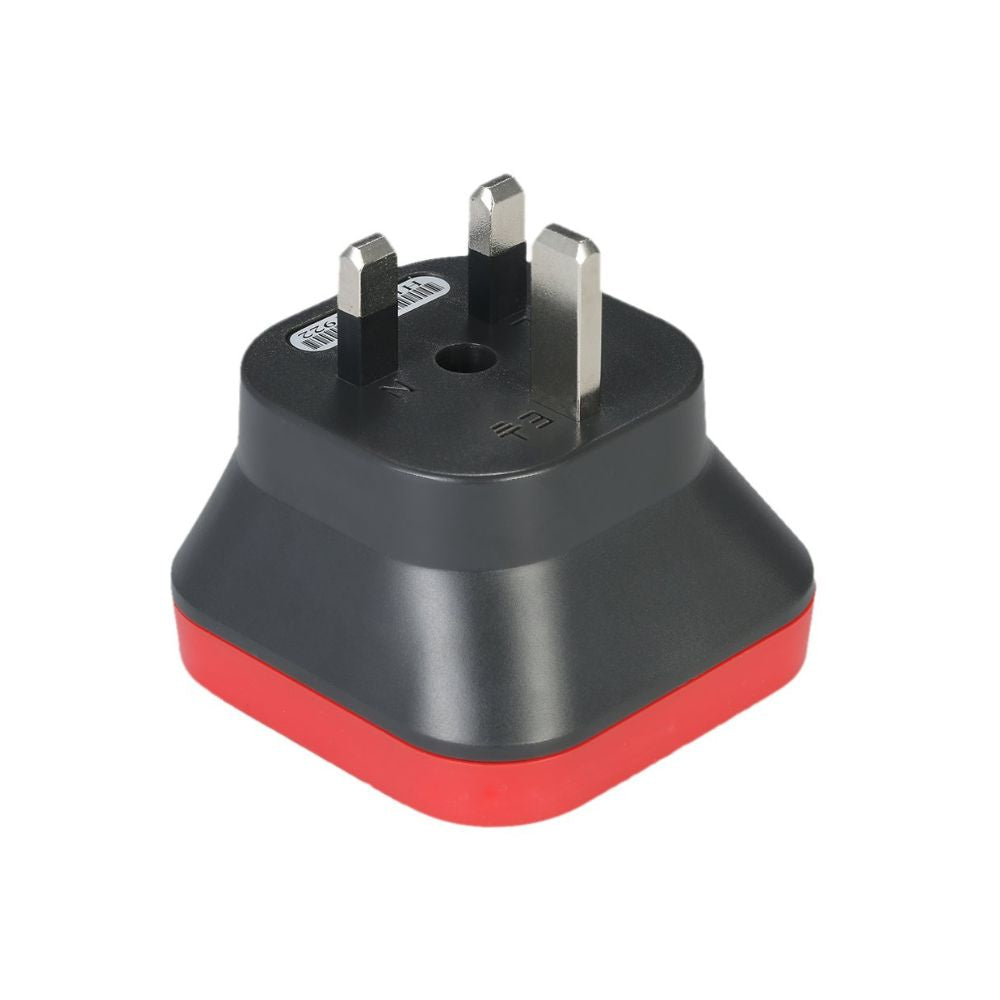

The UNI-T UT07A-UK 13A Socket Tester is a compact plug-in instrument for checking the wiring condition of compatible UK-style 3-pin BS 1363 outlets. It provides a quick indication of common wiring conditions, including correct connection, missing ground, missing neutral, and reversed live/ground or live/neutral connections.

Discover our complete selection of Socket Testers – 230V outlet wiring checkers for homes, businesses, and electricians in Sri Lanka.

With a lightweight housing and simple LED indication system, the UT07A-UK is suitable for preliminary socket checks during installation, maintenance, property inspection, and troubleshooting. It is a wiring indicator, not a substitute for electrical repair, isolation procedures, or certified testing by a qualified professional.

Technical Specifications

Compatible Outlet: UK 3-pin BS 1363, 13A format

Operating Voltage: 230V

Operating Current: <18mA

Working Frequency: 50Hz~60Hz

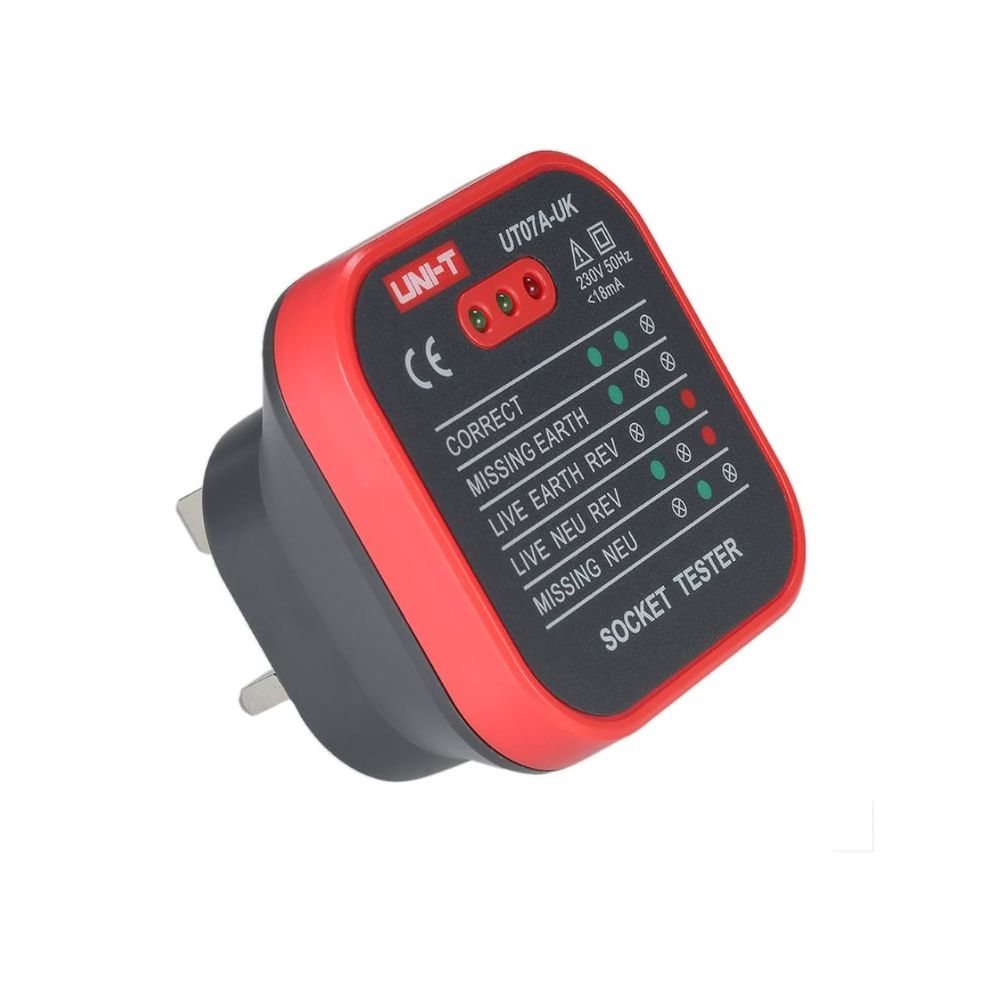

Indication Statuses: Correct, ground missing, live/ground inverted, live/neutral inverted, neutral missing

Certificates: CE, UKCA

Product Size: 65 x 65 x 40mm

Net Weight: 64g

Key Features

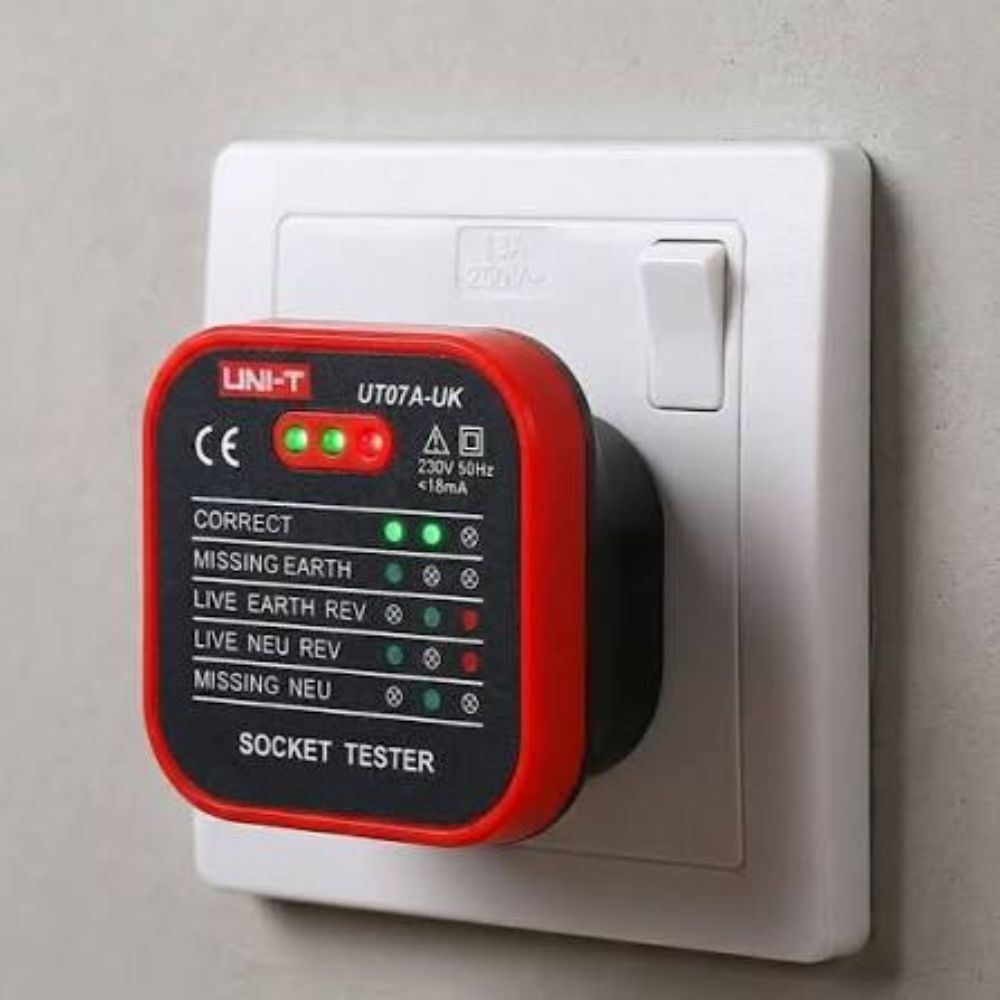

Quick Socket Check: Plug-in operation provides an immediate LED-based wiring indication

Fault Indication: Identifies several common live, neutral, and ground connection conditions

Compact Design: Small 65 x 65 x 40mm body for convenient storage and field use

Low Consumption: Operating current below 18mA according to the manufacturer specification

RCD Function: This UT07A-UK model is a wiring tester and does not include the UT07B-EU leakage-test function

Applications

Preliminary checks of 13A wall sockets in homes and offices

Post-installation wiring checks by electricians

Maintenance inspections in shops, workshops, and commercial buildings

Initial fault identification before detailed electrical testing

Package Includes

1 x UNI-T UT07A-UK 13A Socket Tester

Blister packaging

English user manual

Important Safety Information

Use only with a compatible 230V socket. Inspect the tester before use and do not use it if the housing is damaged. Do not rely on the indicator alone to confirm that an installation is safe. Follow the supplied user manual, observe electrical safety procedures, and refer repairs or certification work to a qualified electrician.

For EU-format sockets, see the UNI-T UT07A-EU Socket Tester. For EU-format sockets requiring an RCD leakage test, see the UNI-T UT07B-EU RCD Socket Tester.

Downloads

📄 Download UNI-T UT07A-UK Data Sheet
📄 Download UNI-T UT07A-UK User Manual
