HANTEK DSO2D15 Digital Oscilloscope

Hantek DSO2D15 Oscilloscope in Sri Lanka

Professional 2-Channel Digital Storage Oscilloscope with Function Generator

The Hantek DSO2D15 is a high-performance 2-channel digital storage oscilloscope that offers professional features at an affordable price. With an impressive 150 MHz bandwidth, a 1 GSa/s real-time sampling rate, and a deep 8 Mpts memory depth, this oscilloscope ensures highly precise waveform capture and detailed signal analysis, making it an essential tool for engineers, educators, and hobbyists.

Equipped with an integrated 25 MHz function generator and advanced serial bus decoding (I2C, SPI, UART/RS232, CAN), the DSO2D15 provides an all-in-one solution for electronics testing and debugging. A key advantage is its fanless design, which allows for silent operation, making it perfect for noise-sensitive environments like R&D labs and classrooms. The large 7-inch color display and USB connectivity further enhance its usability.

Combining powerful performance with user-friendly features, the DSO2D15 is ideal for a wide range of applications, including embedded systems design, automotive diagnostics, electronics repair, and educational training. It delivers exceptional value for any professional seeking a reliable and versatile testing instrument.

Key Features

Oscilloscope Channels

2 Channel Oscilloscope + 1 Channel Function Generator

Bandwidth & Sampling Rate

150 MHz bandwidth with 1 GSa/s (single-channel) / 500 MSa/s (dual-channel) sampling

Deep Memory

8 Mpts (single-channel) / 4 Mpts (dual-channel) for capturing complex waveforms

Built-in Function Generator

25 MHz single-channel generator (Sine, Square, Ramp, Noise, DC, Arbitrary)

Serial Protocol Decoding

Standard hardware-based decoding and triggering for I2C, SPI, UART/RS232, and CAN

Fanless Design

Silent operation, ideal for quiet work environments

Display

Large 7-inch color TFT display (800×480) for clear signal viewing

Math & Measurement

Includes +, –, ×, ÷, FFT functions and a wide range of auto-measurements

Connectivity

USB Host for data storage and USB Device for PC remote control

Safety Rating

CAT II 300V for safe operation in various environments

Technical Specifications

Bandwidth

150 MHz

Channels

2CH OSC + 1CH AWG

Sample Rate

1 GSa/s (Single), 500 MSa/s (Dual)

Memory Depth

8 Mpts (Single), 4 Mpts (Dual)

Vertical Resolution

8-bit

Vertical Sensitivity

2 mV/div – 10 V/div

Horizontal Scale

2 ns/div – 100 s/div

Rise Time

≤2.4 ns

Max Input Voltage

300 VRMS (CAT II)

Trigger & Decoding

I2C, SPI, UART/RS232, CAN

Function Generator Frequency

Up to 25 MHz

Function Generator Waveforms

Sine, Square, Ramp, Exponential, Noise, DC, Arbitrary

Display

7-inch TFT LCD (800 × 480)

Interfaces

USB Host, USB Device

Weight

Approx. 1.9 kg

Applications

Electronics R&D

Circuit design, debugging, and advanced testing

Embedded Systems

Serial bus decoding for firmware and hardware validation

Educational Labs

A powerful, affordable tool for teaching electronics concepts

Repair & Maintenance

Troubleshooting consumer electronics, automotive, and industrial equipment

Hobbyist & Maker Projects

Feature-rich capabilities for complex DIY electronics

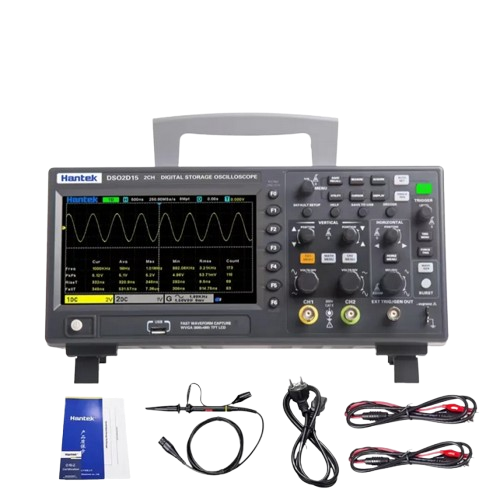

Package Includes

Hantek DSO2D15 Oscilloscope

Passive Probe

BNC to Alligator Clip Cables (2 pcs)

Power Cord

USB Cable

User Manual

Downloads

📄 HANTEK DSO2D15 User Manual
