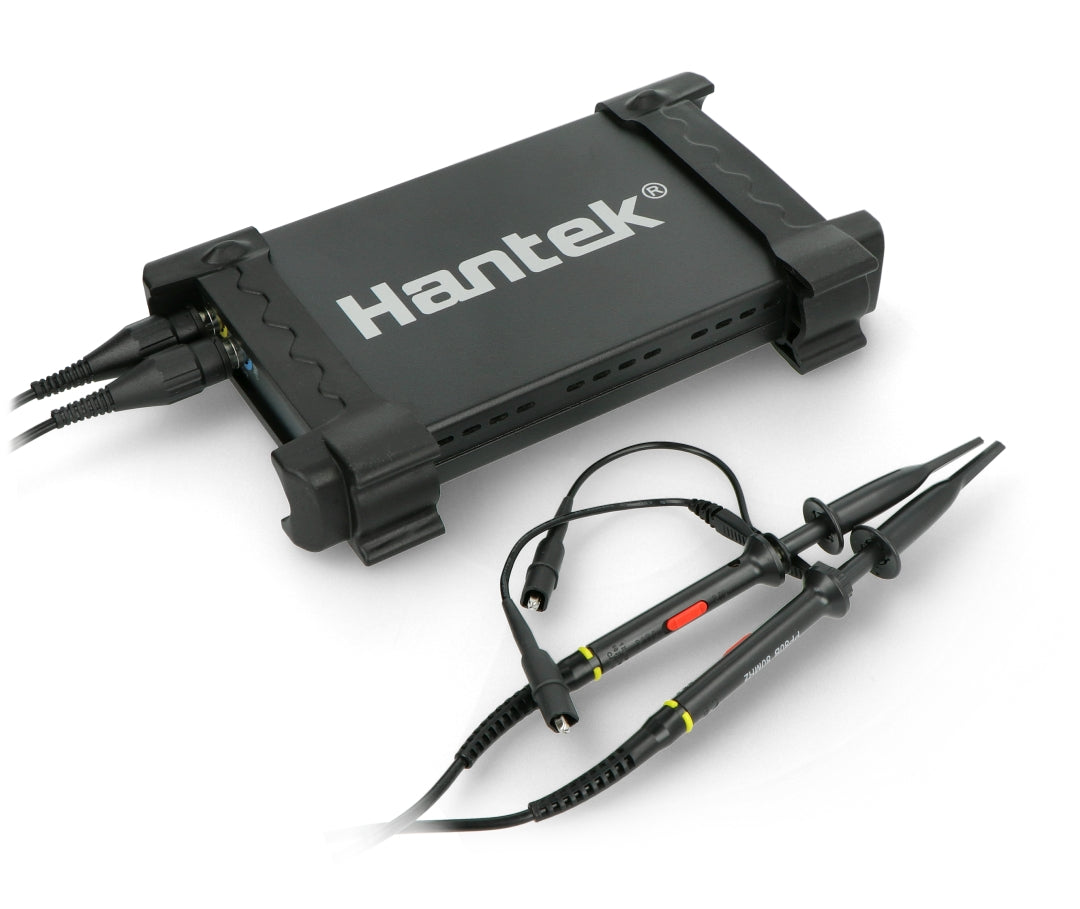

The Hantek 6022BE is a compact, high-performance PC-based USB digital oscilloscope designed for engineers, technicians, and electronics enthusiasts who demand precision signal measurement at an affordable price. Featuring a 20 MHz bandwidth, a real-time sampling rate of up to 48 MSa/s, and dual-channel capability, this oscilloscope is ideal for circuit testing, product line maintenance, education, and portable field applications.

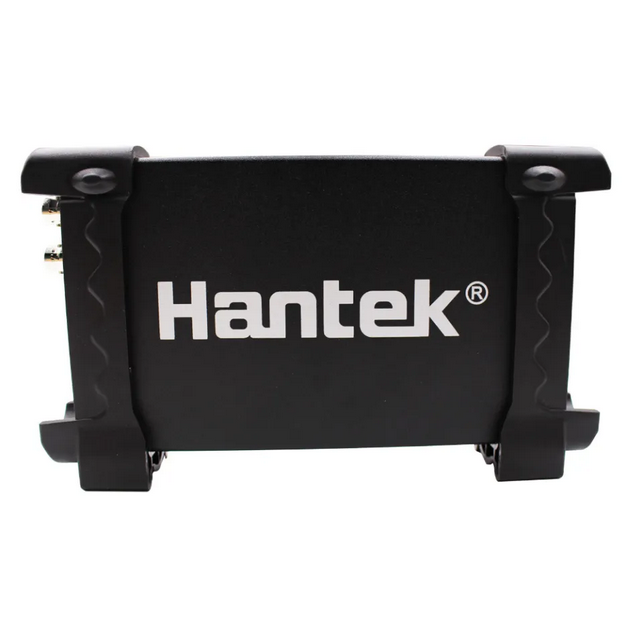

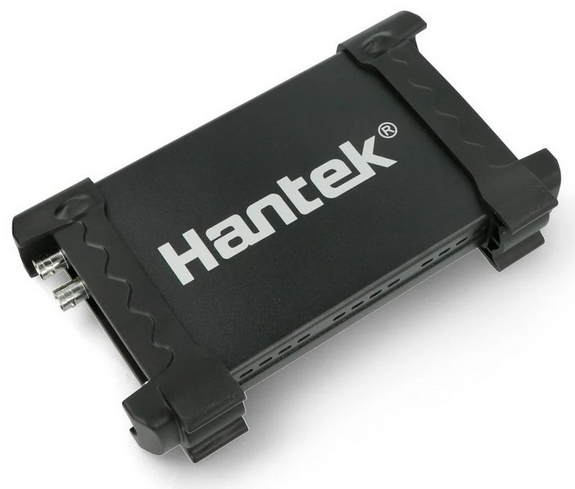

Its anodized aluminum alloy casing not only delivers a professional appearance but also provides enhanced surface hardness, heat resistance, and durability. The USB 2.0 interface ensures fast connectivity without requiring an external power supply, making it perfectly suited for use with laptops and desktop PCs.
Key Features
Professional Build Quality – Premium anodized aluminum casing for durability, heat resistance, and wear protection.
USB 2.0 Interface – Plug-and-play design with no external power required.
Dual-Channel Input – Supports CH1 & CH2 with 1MΩ 25pF input impedance.
Wide Compatibility – Works seamlessly with Windows XP, Vista, 7, 8, and 10 operating systems.
Comprehensive Measurement Functions – 23 built-in measurement modes, PASS/FAIL check, FFT, waveform averaging, persistence, intensity, and math functions (addition, subtraction, multiplication, division).
Data Storage & Export – Save captured wave forms as text, JPG/BMP images, or export to MS Excel/Word files.
Lightweight & Portable – Compact dimensions (205 × 120 × 35 mm) make it easy to carry and ideal for field service.
Multi-Device Expansion – Connect multiple DSO units to a single computer for extended channel capability.
Technical Specifications
| Specifications | Details |
|---|---|
| Channels | 2 |
| Bandwidth | 20 MHz |
| Max. Sample Rate | 48 MSa/s |
| Input Impedance | 1 MΩ, 25 pF |
| Vertical Resolution | 8-bit |
| Gain Range | 20 mV – 5 V |
| DC Accuracy | ±3% |
| Coupling Modes | DC |
| Timebase Range | 4 ns – 5 ks |
| Buffer Size | 1 M |
| Trigger Modes | Auto, Normal, Single |
| Trigger Source | CH1, CH2 |
| Trigger Type | Rising/Falling Edge |
| Math Functions | FFT, +, −, ×, ÷ |
| Cursor Measurement | Frequency, Voltage |
| Display Options | Point/Line, Average, Persistence, Intensity |
| Dimensions | 205 × 120 × 35 mm |
| Power Supply | USB 2.0 (no external power required) |
| Supported OS | Windows XP/Vista/7/8/10 |
| Product Color | Silver/Aluminum Alloy |
| Certifications | CE, RoHS |
Standard Accessories
Probes (2pcs)

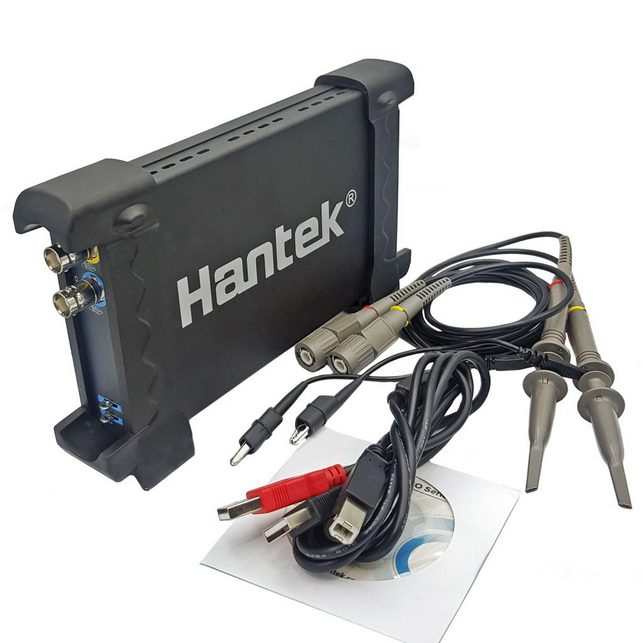

USB Cable
User Manual
Software CD
Applications
The Hantek 6022BE is an essential instrument for precision signal analysis in multiple fields:
Education & Training – Electronics labs and student projects.
Product Development – Circuit debugging and waveform verification.
Maintenance & Repair – Testing and troubleshooting of electrical/electronic systems.
Industrial Use – Production line inspection and field diagnostics.
