HANTEK 1008C 60MHz 8-Channel PC USB Digital Oscilloscope

HANTEK 1008C 60MHz 8-Channel PC USB Digital Oscilloscope in Sri Lanka

Portable 8-Channel Automotive Diagnostic Oscilloscope/DAQ

The HANTEK 1008C 60MHz 8-Channel PC USB Digital Oscilloscope is a compact, powerful diagnostic tool designed specifically for automotive testing with 8 simultaneous channels and 2.4MSa/s real-time sampling. Perfect for ignition systems, sensor analysis, bus diagnostics, starter/charging circuits, and performance testing, this USB-powered oscilloscope connects directly to your PC without external power requirements. Ideal for Sri Lankan automotive technicians needing multi-channel signal analysis in a portable package.

Looking for more options? Explore our full range of digital oscilloscope models to compare specifications and prices.

Featuring over 80 automotive diagnostic functions and video help tutorials, the Hantek 1008C includes a built-in high-pressure ignition probe and 8-channel programmable signal generator for crankshaft/camshaft simulation. With 12-bit resolution, FFT spectrum analysis, and one-key diagnostic reporting, it's perfect for professional vehicle diagnostics, electronics troubleshooting, and educational applications across Sri Lanka.

Key Features

8 simultaneous channels for multi-signal automotive testing

2.4MSa/s real-time sampling, 12-bit high resolution

Over 80 automotive presets (Ignition, Sensors, Bus, Performer)

Video help function with online diagnostic tutorials

One-key reporting - print, screenshot, or save diagnostics

Built-in ignition probe for high-voltage testing

8CH programmable generator (0-250kHz LVTTL)

USB 2.0 powered - no external power supply needed

FFT analysis with multiple window functions

Long recording capability for extended analysis

Technical Specifications

Model

HANTEK 1008C

Channels

8 Analog Channels

Bandwidth

60 MHz

Sample Rate

2.4MSa/s (Real-time)

Resolution

12 bits

Memory Depth

4K points

Input Sensitivity

10mV/div - 5V/div

Input Impedance

1MΩ

Max Input Voltage

400V (DC+AC Peak)

Time Base Range

1ns/div - 20000s/div

Trigger Types

Edge trigger (CH1-CH8)

Measurements

20+ parameters (Vpp, Vrms, Frequency, Rise Time, etc.)

Cursors

Horizontal, Vertical, Track, Auto modes

Math Functions

+, -, ×, ÷, FFT, Invert

FFT Windows

Rectangular, Hanning, Hamming, Blackman

Interfaces

USB 2.0 (Full Speed)

Power

USB Powered

Dimensions

190 × 167 × 35 mm

Weight

0.63 kg

Applications

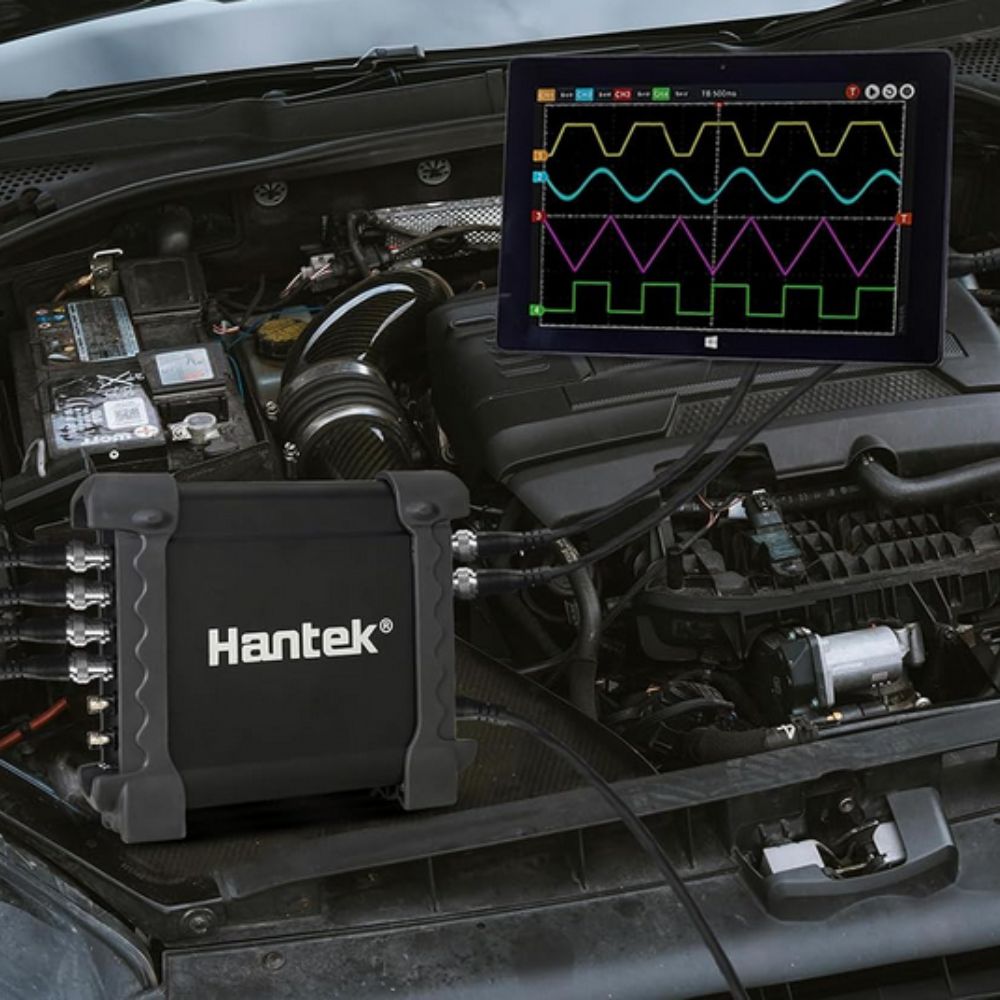

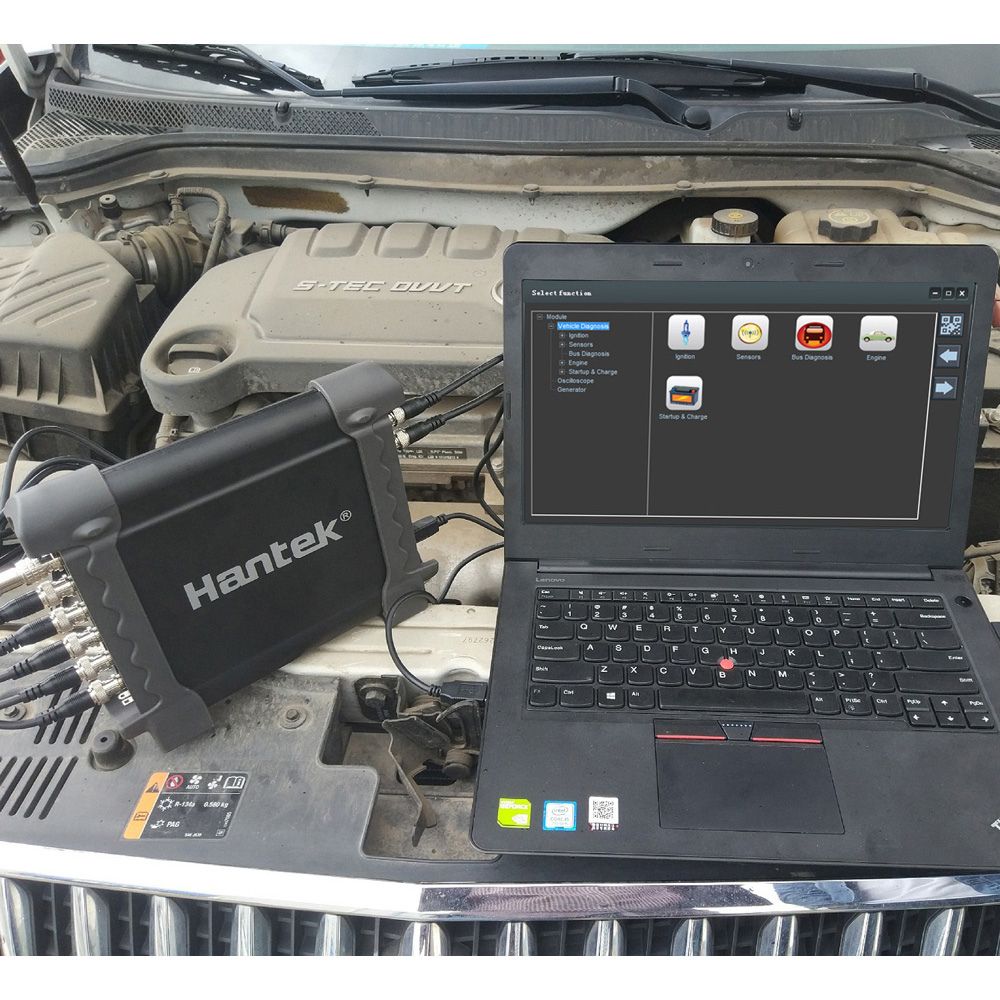

Automotive ignition system analysis & waveform testing

Sensor diagnostics (Camshaft, Crankshaft, Oxygen sensors)

CAN/LIN bus signal monitoring & analysis

Starter & charging system performance testing

Electronics prototyping & multi-channel monitoring

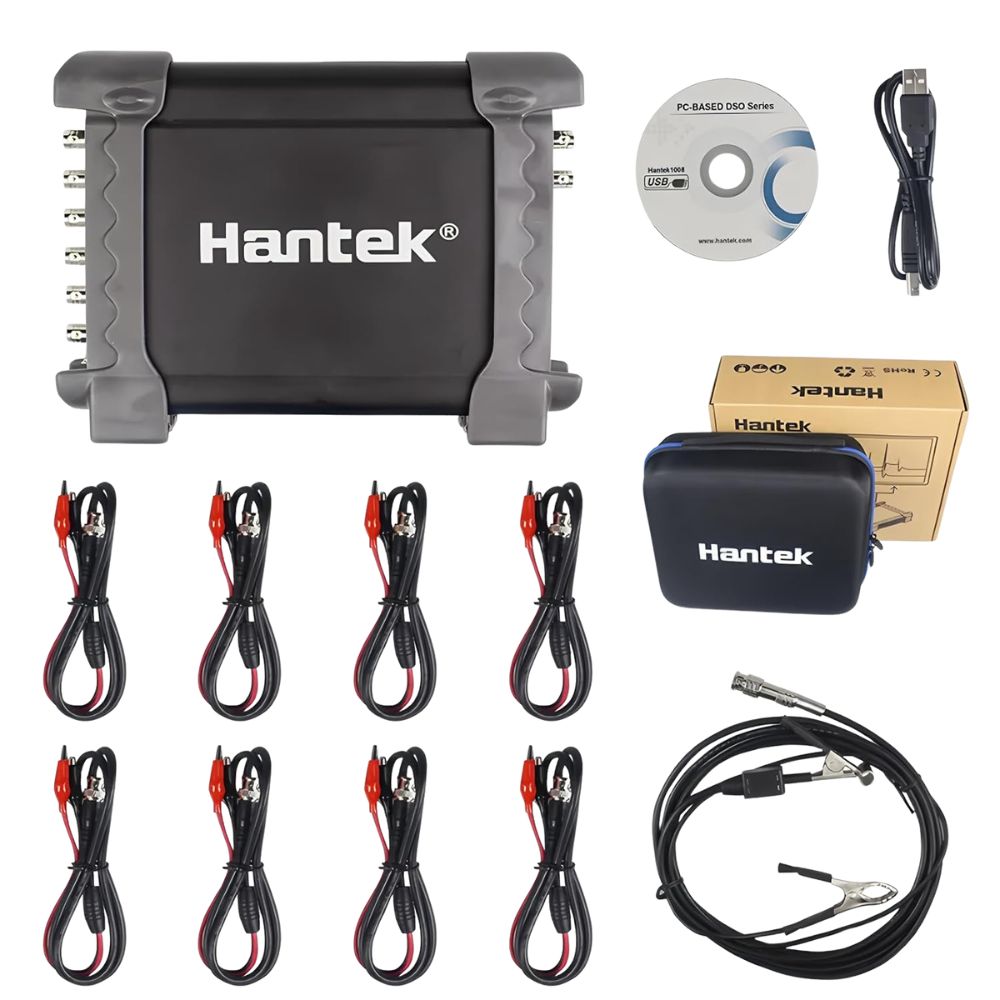

Package Includes

1 x HANTEK 1008C 8-Channel PC USB Oscilloscope

1 x High Pressure Ignition Probe

1 x USB 2.0 Cable

8 x BNC Test Leads

1 x Software CD

1 x Quick Start Guide
