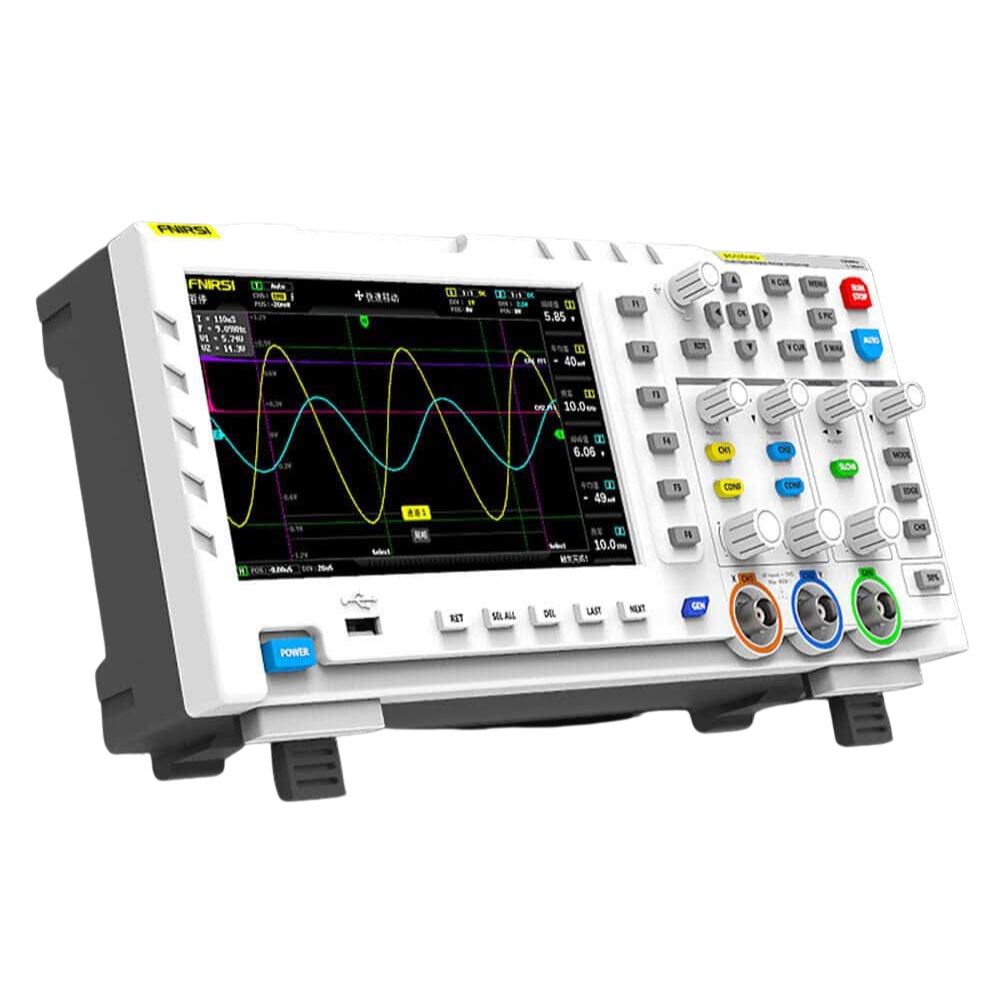

FNIRSI 1014D 100MHz 2-Channel Digital Oscilloscope

FNIRSI 1014D 100MHz 2-Channel Digital Oscilloscope in Sri Lanka

Handheld 2-Channel Digital Oscilloscope with Signal Generator

The FNIRSI 1014D 100MHz 2-Channel Digital Oscilloscope is a compact, versatile handheld scope that combines 100MHz bandwidth, dual-channel measurement, and an integrated signal generator for field and bench diagnostics. Designed for electronics hobbyists, repair technicians, and educational labs, it offers real-time waveform visualization, fast sampling, and convenient USB connectivity in a portable form factor. This model is ideal for general electronics troubleshooting, waveform observation, and basic development work across Sri Lanka.

Looking for more options? Explore our full range of digital oscilloscope models to compare specifications and prices.

Featuring a bright 7-inch color LCD display, intuitive touch-style operation keys, and support for waveform storage, the FNIRSI 1014D simplifies capturing, reviewing, and analyzing signals. With built-in function generator output, multiple trigger modes, and automatic measurements, it provides a cost-effective solution for labs, workshops, and on-site service engineers.

Key Features

100MHz bandwidth, 2 independent input channels

High sample rate for clear and stable waveform capture

Built-in signal/function generator output for basic stimulus testing

7-inch color LCD display for clear waveform viewing

Multiple trigger modes for stable waveform capture

Automatic measurements for common voltage, time, and frequency parameters

Waveform storage and recall for offline analysis

USB connectivity for charging and data transfer

Handheld design suitable for field and bench use

Over-voltage protection on input channels for safer measurements

Technical Specifications

Model

FNIRSI 1014D

Bandwidth

100 MHz

Channels

2 Analog Channels

Sample Rate

High real-time sample rate (single channel)

Display

7-inch color LCD

Vertical Resolution

8 bits

Input Coupling

DC / AC selectable

Input Range

Multiple V/div ranges from low-level signals to higher voltages

Time Base Range

Wide time base range from fast to slow signals

Trigger Modes

Auto, Normal, Single

Trigger Types

Edge trigger (rising/falling)

Function Generator

Built-in signal generator for basic waveform outputs

Math Functions

Basic math operations and cursor measurements

Storage

Internal waveform storage and recall capability

Interfaces

USB port for charging/data

Power

Rechargeable internal battery

Dimensions

Compact handheld enclosure

Weight

Lightweight, portable design

Applications

Electronics repair and circuit troubleshooting

Hobby projects and DIY electronics measurement

Education and training in basic oscilloscope usage

Embedded development and microcontroller signal observation

Field diagnostics for maintenance and service work

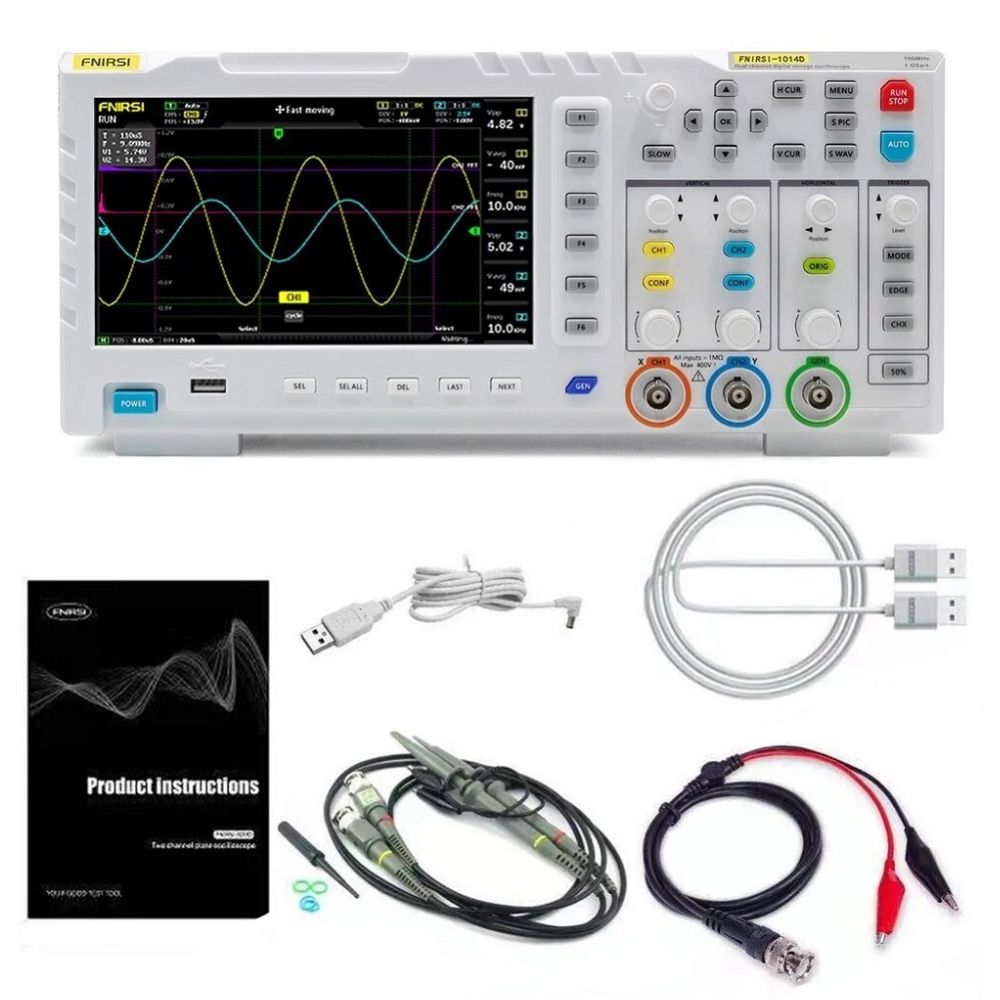

Package Includes

1 x FNIRSI 1014D 100MHz 2-Channel Digital Oscilloscope

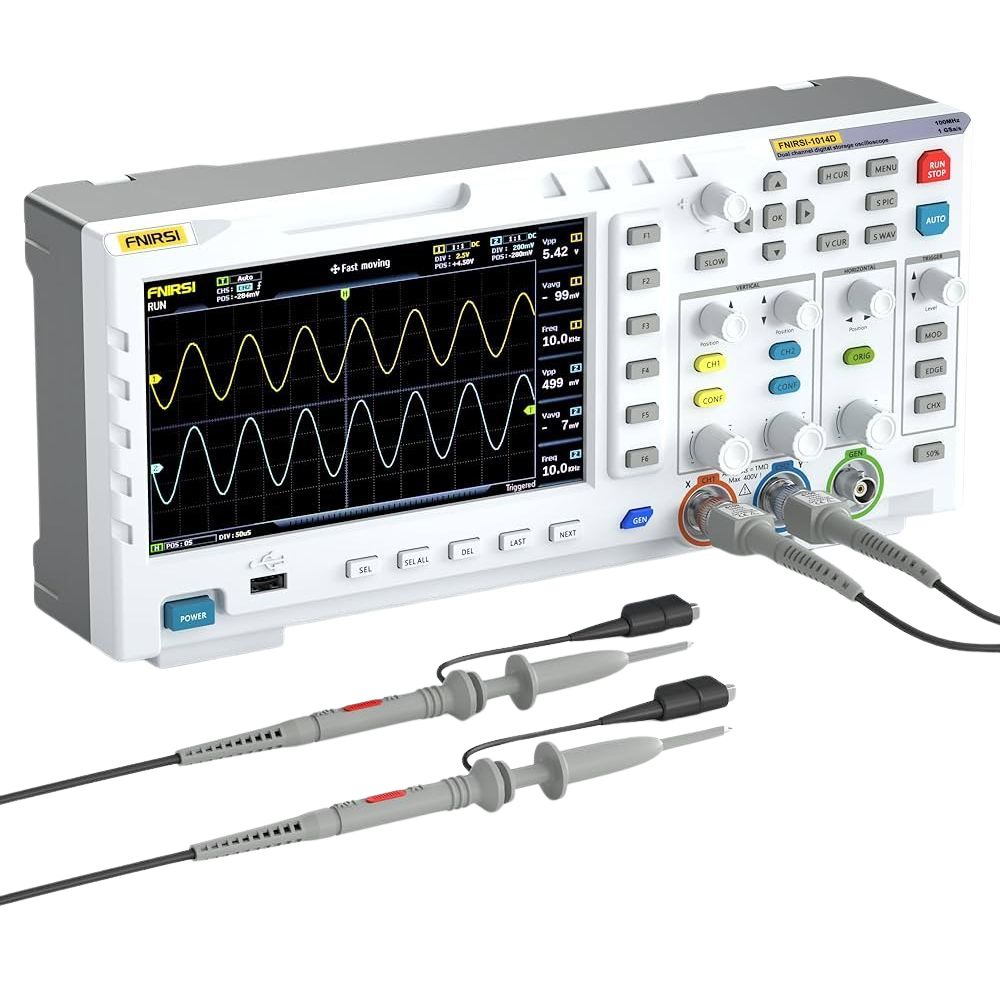

2 x Passive Oscilloscope Probes

1 x USB Cable

1 x Power Adapter or Charging Cable (depending on bundle)

1 x User Manual

1 x Carrying Case or Protective Cover

Downloads

📄 Download FNIRSI 1014D Data Sheet
📄 Download FNIRSI 1014D User Manual
