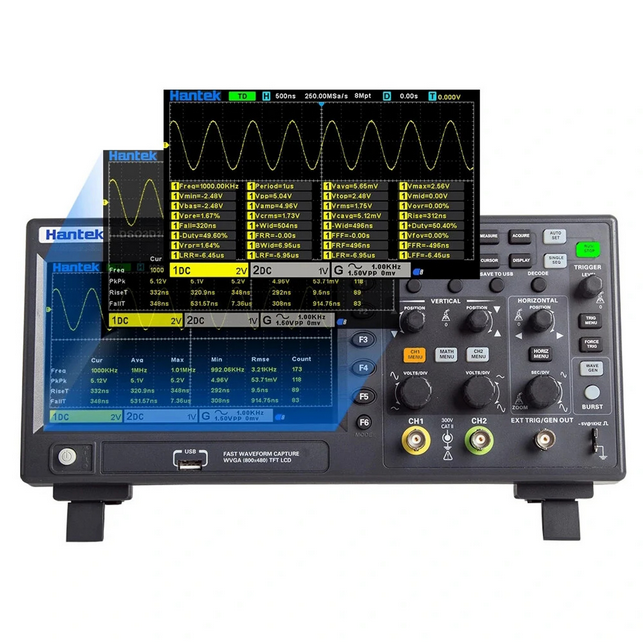

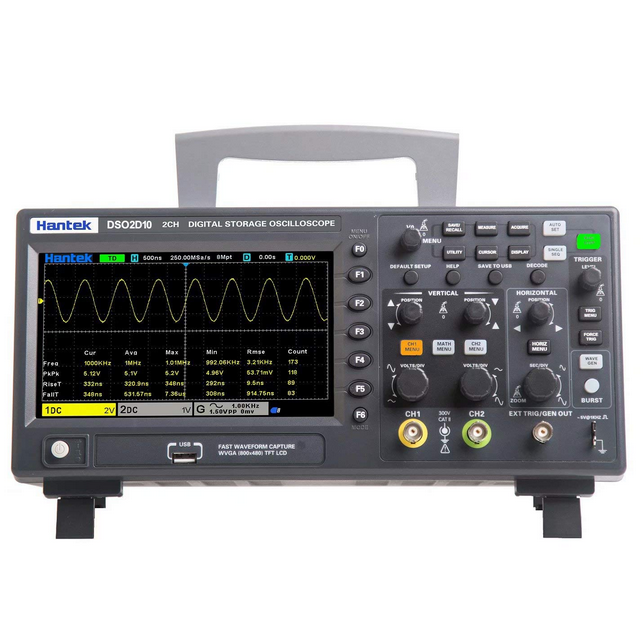

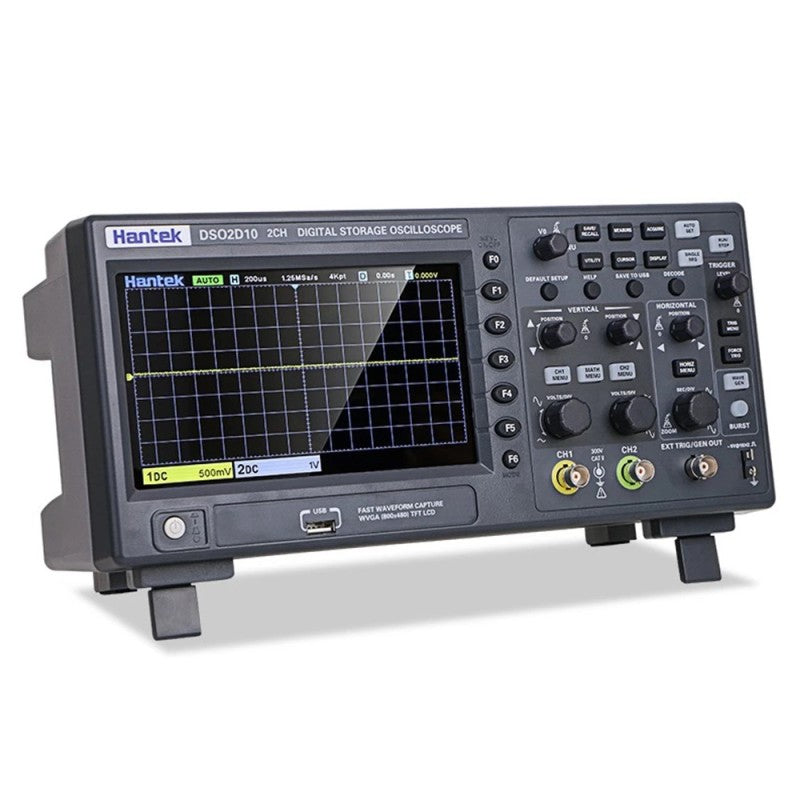

HANTEK DSO2D10 Digital Oscilloscope
HANTEK DSO2D10 Digital Oscilloscope
HOT LINE - 077 862 0567
Couldn't load pickup availability
The Hantek DSO2D10 is a versatile 2-channel digital storage oscilloscope designed to deliver powerful performance at an affordable price. With a bandwidth of 100 MHz, a maximum real-time sampling rate of 1 GSa/s, and deep memory depth up to 8 Mpts, this oscilloscope provides precise waveform capture and analysis for both professional engineers and hobbyists.
Equipped with advanced serial bus decoding (I2C, SPI, UART/RS232, and CAN) and flexible triggering functions, the DSO2D10 ensures accurate signal testing across a wide range of applications. Unlike many other oscilloscopes in its class, it features a fanless design—offering nearly silent operation, making it ideal for laboratories, classrooms, and quiet work environments.
Additionally, the integrated 25 MHz function generator expands its utility by producing multiple signal types, including sine, square, ramp, noise, and arbitrary waveforms. With USB connectivity for data export, a built-in voltmeter, and a large 7-inch color display, the DSO2D10 is a feature-rich solution for electronics testing and troubleshooting.
Key Features
Bandwidth & Sampling: 100 MHz bandwidth, 1 GSa/s (single channel) or 500 MSa/s (dual channel) sampling rate
Memory Depth: 8 Mpts (single channel) or 4 Mpts (dual channel) for detailed waveform storage
Built-in Function Generator: 25 MHz single-channel generator with multiple waveforms (sine, square, ramp, noise, DC, arbitrary)
Serial Protocol Decoding: Supports I2C, SPI, UART/RS232, and CAN decoding & trigger functions
User-Friendly Display: 7-inch 800×480 high-resolution screen for clear waveform visualization
Fanless Design: Quiet operation with no distracting noise
Math Operations: Add, subtract, multiply, divide, and FFT for signal analysis
Connectivity: USB Host and USB Device ports for PC communication and data storage
Safety & Measurement Range: Handles up to 300 VRMS (CAT II 300V) safely
Compact & Lightweight: Portable at only 1.9 kg, suitable for both bench and field use
Technical Specifications
| Oscilloscope | Details |
|---|---|
| Bandwidth | 100 MHz |
| Sample Rate | 1 GSa/s (1 channel), 500 MSa/s (2 channels) |
| Memory Depth | 8 Mpts (1 channel), 4 Mpts (2 channels) |
| Channels | 2 |
| Vertical Resolution | 8-bit |
| Horizontal Scale | 2 ns/div – 100 s/div |
| Vertical Sensitivity | 2 mV/div – 10 V/div |
| Rise Time | 3.5 ns |
| Decoding & Trigger | I2C, SPI, UART/RS232, CAN |
| Math Functions | +, –, ×, ÷, FFT |
| Maximum Input Voltage | 300 VRMS (CAT II 300V) |
| Function Generator | Details |
|---|---|
| Frequency Range | 25 MHz |
| Channels | 1 |
| Sample Rate | 200 MSa/s |
| Waveforms | Sine, Square, Ramp, Exponential, Noise, DC, Arbitrary |
| General | Details |
|---|---|
| Display | 7-inch TFT (800 × 480) |
| Interfaces | USB Host, USB Device |
| Weight | 1.9 kg |

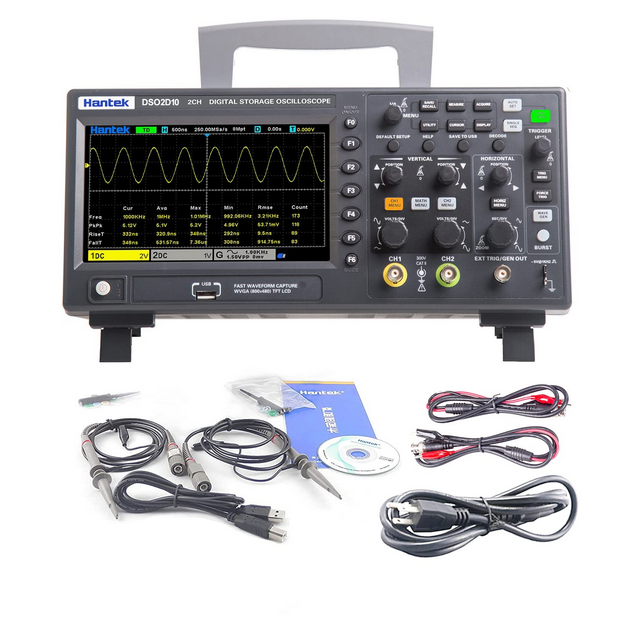

Standard Accessories
USB cable
Power cord
Probe
BNC to alligator clip cables (2pcs)
Applications
The Hantek DSO2D10 Digital Oscilloscope is designed for a broad spectrum of use cases where accurate signal analysis is essential:
Electronics R&D – circuit design, debugging, and testing
Embedded Systems – serial bus decoding for I2C, SPI, UART, and CAN applications
Educational Labs – cost-effective yet powerful solution for learning and teaching electronics
Repair & Maintenance – troubleshooting signals in consumer electronics, automotive systems, and industrial devices
Hobbyist & Maker Projects – compact, affordable, and feature-rich tool for DIY electronics work
