VICTOR VC63B Digital Vibrometer

VICTOR VC63B Digital Vibrometer in Sri Lanka

Portable Split-Type Vibration Meter for Rotating Machinery Diagnostics

The VICTOR VC63B Digital Vibrometer is a highly reliable, split-type measurement tool engineered for precision industrial diagnostics. By separating the digital display from the acceleration sensor, it allows maintenance professionals in Sri Lanka to safely and accurately measure vibration in hard-to-reach or constrained industrial spaces.

Explore our complete lineup of Vibration Meters – advanced specifications, features, and diagnostic tools in Sri Lanka!

Equipped with a high-strength magnetic sensor, this digital vibrometer securely attaches to vertical and horizontal cross-sections of machinery to collect stable data. It is primarily used to measure the peak-to-peak displacement, RMS velocity, and peak acceleration of heavy rotating equipment, ensuring early detection of mechanical unbalance.

Technical Specifications

Acceleration (O-P): 0.1~199.9m/s² | Frequency: 10Hz~1000Hz | Accuracy: ≤±10%

Velocity (RMS): 0.1~199.9mm/s | Frequency: 10Hz~500Hz | Accuracy: ≤±10%

Displacement (P-P): 1~1999μm | Frequency: 10Hz~200Hz | Accuracy: ≤±10%

Amplitude Linearity Error: ≤±5% for values >20μm (Displacement) and >2.0mm/s (Velocity)

Key Features

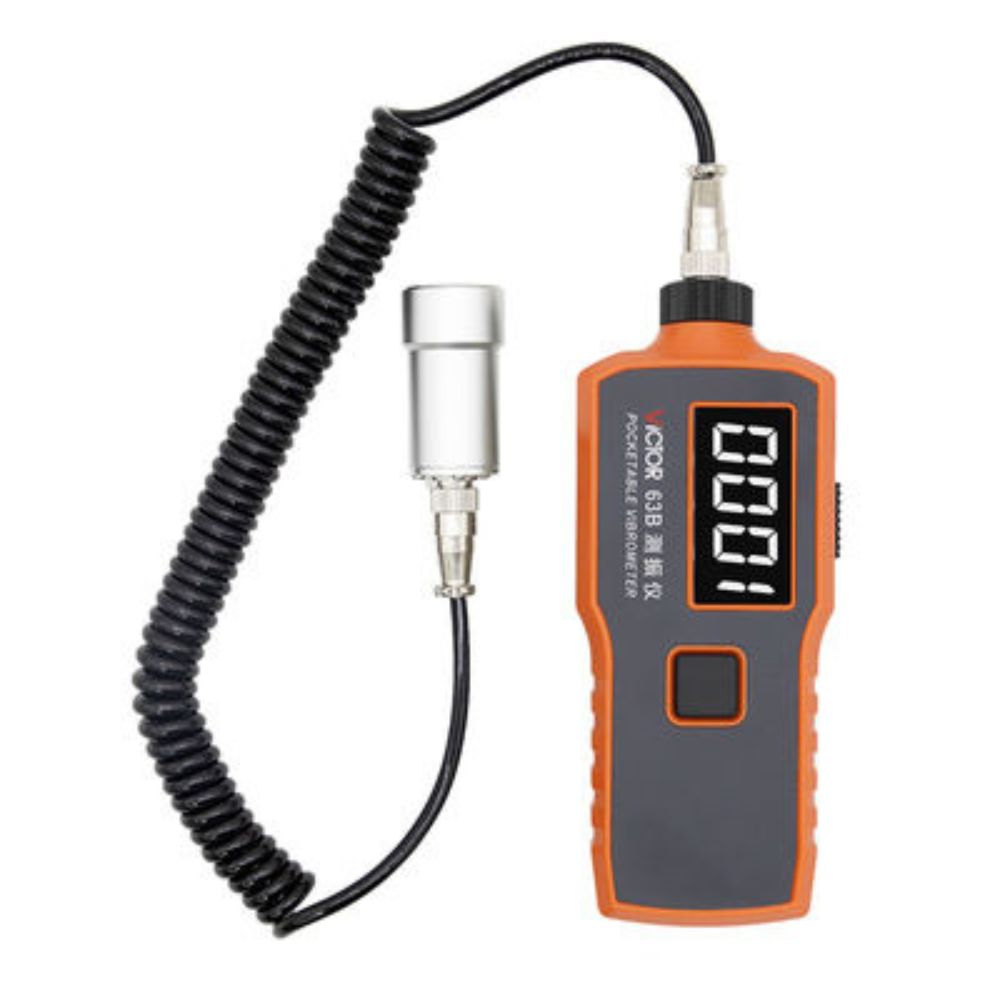

Split-Type Design: Separate display unit and sensor for flexible multi-angle measurements

Magnetic Sensor: High-strength magnetic probe attachment for secure, accurate signal collection

Data Hold: Latches the measured vibration value for 1 minute after releasing the test key for easy reading

Display: 3 1/2 digit liquid crystal display (LCD) with low voltage indication

Power Efficiency: 9V (6F22) battery powered with a 1-minute auto-shutdown function to conserve battery life

Build: Lightweight (230g) and compact (185×68×30mm) casing for daily field use

Applications

Fault diagnosis and preventative maintenance in power generation facilities

Vibration tracking for heavy motors, turbines, and industrial rotating machinery

Preventative maintenance in petroleum, chemical processing, and manufacturing plants

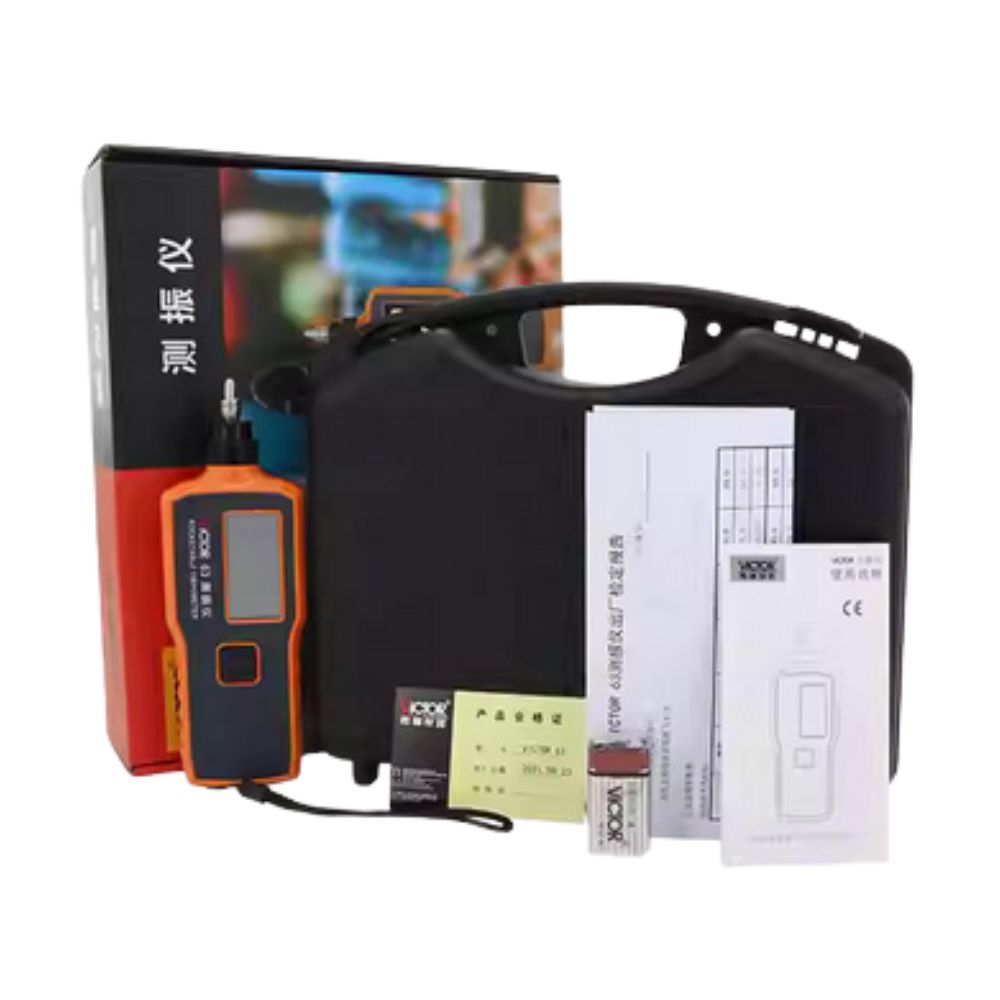

Package Includes

1 x VICTOR VC63B Digital Vibrometer main unit

Acceleration transducer probe with magnetic attachment

Connecting signal cable

9V battery

English user manual

If you prefer a highly compact, integrated handheld tool for quick inspection routes, the UNI-T UT311A Vibration Tester offers a streamlined single-unit alternative.
