UNI-T UTi720E Thermal Imaging Camera – 256x192 Resolution

UNI-T UTi720E Thermal Imaging Camera in Sri Lanka

Wide-Range Infrared Imager for Electrical and Industrial Diagnostics

The UNI-T UTi720E Thermal Imaging Camera delivers 256×192 thermal resolution with a wide -20°C to 550°C measurement range, making it a dependable choice for electrical panel inspections, mechanical fault-finding, and building diagnostics. It is designed to help technicians and maintenance engineers in Sri Lanka spot overheating connections, insulation defects, and moisture intrusion before they cause failures.

Discover our complete selection of Thermal Imaging Cameras – specifications, features, and infrared inspection tools in Sri Lanka!

Featuring a large 3.5-inch IPS display, built-in Wi-Fi with mobile app support, and a detachable 5,200mAh battery pack, this instrument streamlines inspection routes and helps prevent unexpected equipment downtime during preventive maintenance.

Technical Specifications

Thermal Resolution: 256×192 (49,152 pixels) | IFOV: 3.8mrad | Focal length: 3.2mm

Temperature Range: -20°C to 150°C (low scale), 0°C to 550°C (high scale, manual selection)

Accuracy: ±2°C or ±2% (whichever is greater), from -10°C to 550°C at 25°C ambient

Sensitivity (NETD): <50mK @25°C | Frame rate: <25Hz

Sensor Type: Uncooled vanadium oxide (VOx) microbolometer | Spectral band: 8–14μm

Display: 3.5-inch IPS screen, 640×480 display resolution, HFOV 56°

Key Features

Visible-Light Camera: Built-in 2MP visible camera for thermal, visible, fusion, and picture-in-picture imaging modes

Color Palettes: 7 selectable palettes — white hot, red hot, iron red, black hot, high rainbow, lava, and rainbow

Measurement Tools: Up to 6 simultaneous measurement points, lines, rectangles, and circles with 6 isotherm modes

Alarms: High/low temperature alarm with LED indicator and on-screen alert

Connectivity: USB Type-C, Wi-Fi hotspot, microSD storage (up to 32GB), PC analysis software, and mobile app

Battery: Detachable 5,200mAh battery pack, 3+ hours runtime, under 4-hour recharge

Build: IP54-rated housing, 2-metre drop-tested, digital 2x/4x zoom

Applications

Electrical panel and switchgear inspection for overheating connections

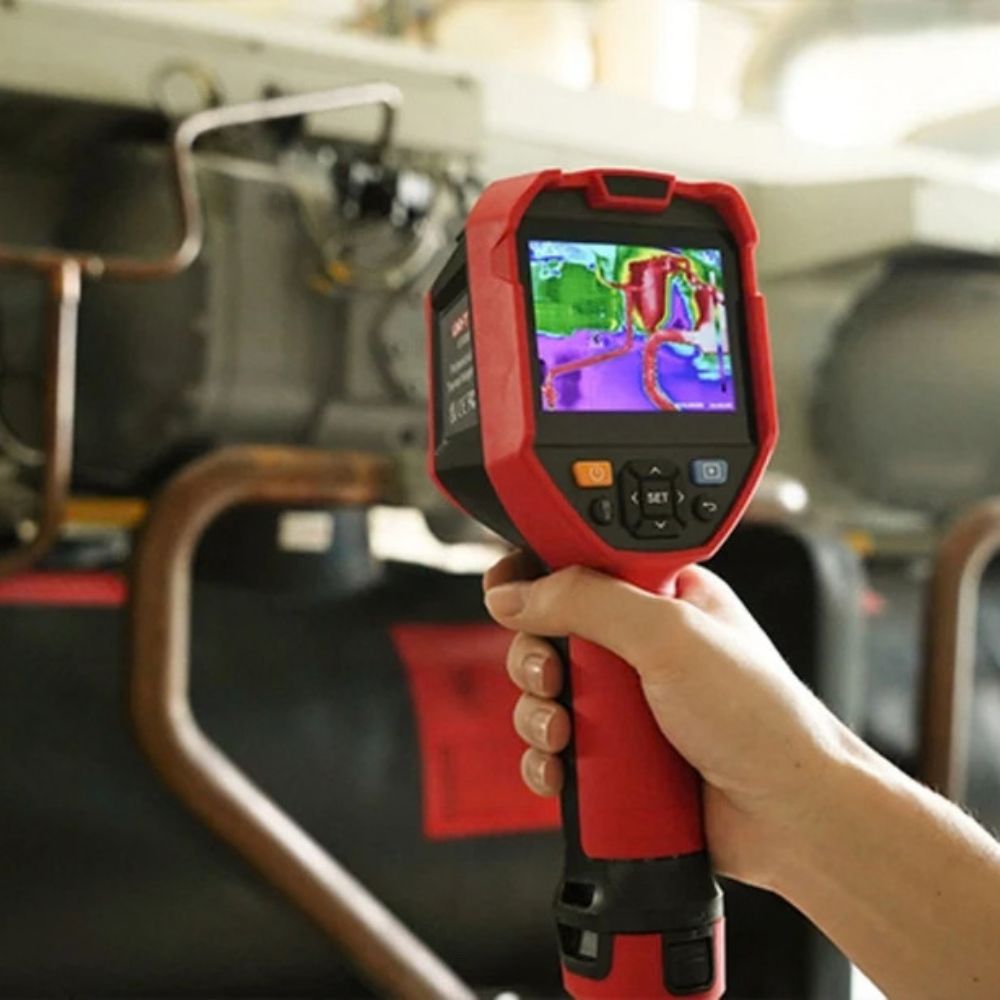

Mechanical fault-finding on motors, bearings, and rotating equipment

Building diagnostics for insulation gaps, roof leaks, and moisture intrusion

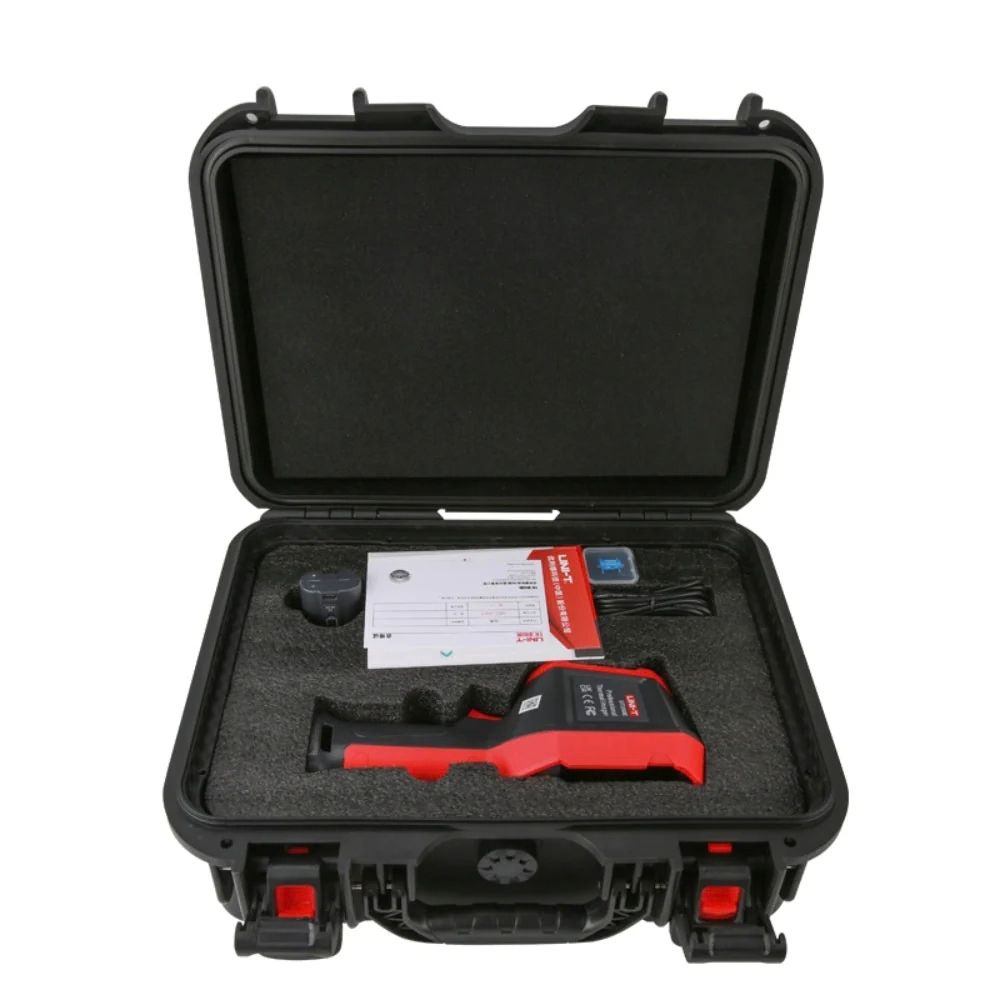

Package Includes

1 x UNI-T UTi720E Thermal Imaging Camera main unit

Detachable 5,200mAh battery pack

USB Type-C charging cable

Rugged carrying case

English user manual

Downloads

📄 Download UNI-T UTi720E Data Sheet
📄 Download UNI-T UTi720E User Manual
