UNI-T UTi120S Thermal Imaging Camera

UNI-T UTi120S Thermal Imager

Compact Handheld Infrared Camera

The UNI-T UTi120S is a compact and versatile handheld infrared thermal imager designed for reliable temperature measurement and fault detection across industrial, electrical, and building applications. Featuring a 2.4-inch TFT LCD screen, intuitive controls, and a high-performance 120×90 infrared sensor, the UTi120S delivers accurate real-time diagnostics for professionals and technicians.

Its lightweight design, long battery life, and rugged IP54 protection make it suitable for both fieldwork and workshop environments. Looking for more options? Explore our full range of thermal cameras in Sri Lanka to compare models and specifications.

Key Features

Measures a wide temperature range from -20°C to 400°C, covering diverse maintenance applications

Features a 120 × 90 IR pixel sensor with <60mK sensitivity for clear thermal detection

Offers real-time tracking of center point, high, and low temperatures for quick anomaly detection

Includes seven color palettes (e.g., Iron Red, Rainbow, White Hot) for flexible image analysis

Provides a fast response time of <500ms for quick and accurate fault identification

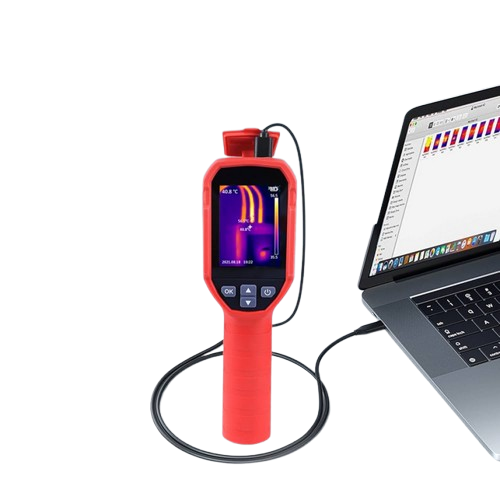

Equipped with a Type-C USB port and PC analysis software for exporting and evaluating thermal images

Features a rugged IP54 rating for dust and splash resistance, ensuring reliability in tough conditions

Delivers over 9 hours of continuous usage with a fast-charging rechargeable battery

Technical Specifications

Infrared Resolution

120 × 90 pixels (10,800)

Temperature Range

-20°C to 400°C

Thermal Sensitivity (NETD)

<60mK

Frame Rate

<25Hz

Display

2.4-inch TFT LCD (320 × 240)

Emissivity

Adjustable from 0.01 to 0.99

Data Storage

16GB TF card

Data Communication

Type-C USB for PC software connection

Battery Life

>9 hours of continuous use

Charging Time

<2.5 hours

Protection Rating

IP54

Dimensions

197 × 72 × 60 mm

Applications

Detects overheating wires, fuses, and circuit faults in electrical maintenance

Identifies heat leaks, insulation issues, and air duct problems in HVAC & building inspection

Tracks machine performance and prevents overheating in industrial equipment monitoring

Pinpoints engine, exhaust, and mechanical issues for automotive diagnostics

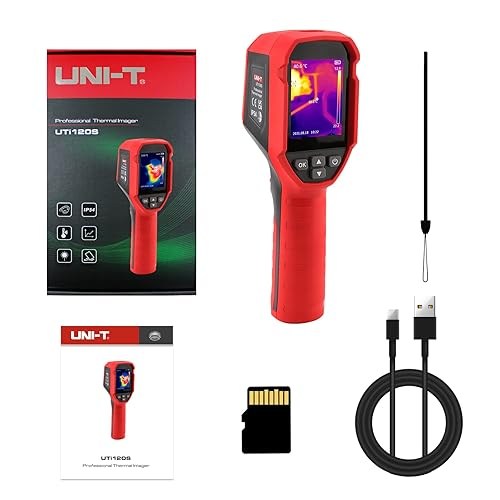

Package Includes

1 x UNI-T UTi120S Infrared Thermal Imager

1 x Type-C USB Cable

1 x 16GB TF Card

1 x User Manual

Downloads

📄 Download UNI-T UTi120S User Manual
