UNI-T UTG932E 30MHz Dual-Channel Function/Arbitrary Waveform Generator

UNI-T UTG932E 30MHz Function/Arbitrary Waveform Generator in Sri Lanka

Dual-Channel DDS Signal Source for Labs and Repair Benches

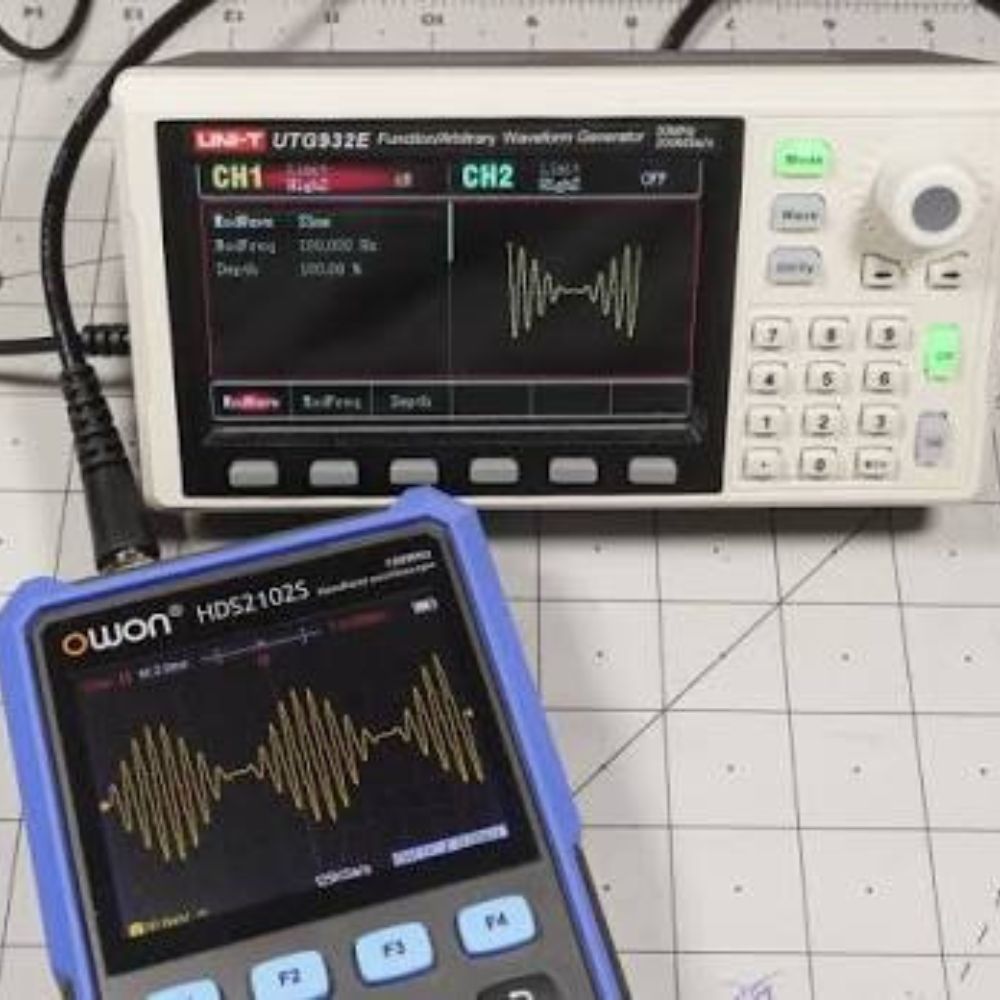

The UNI-T UTG932E is a dual-channel DDS function/arbitrary waveform generator with a 30MHz sine output, a 200MSa/s sampling rate, and 14-bit vertical resolution. It gives electronics engineers, technicians, and students in Sri Lanka stable, low-distortion test signals for circuit design, sensor simulation, and equipment servicing.

Browse our full range of Waveform Generators – function and arbitrary models for electronics testing in Sri Lanka.

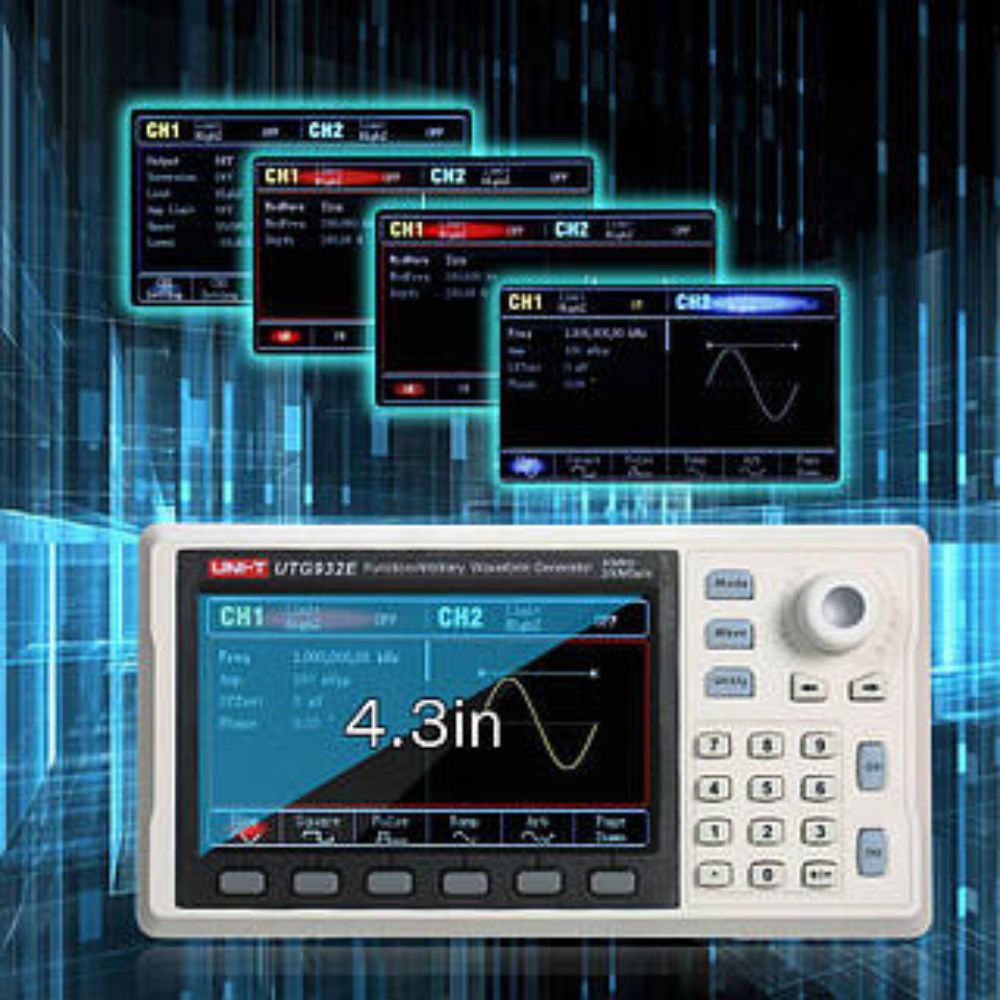

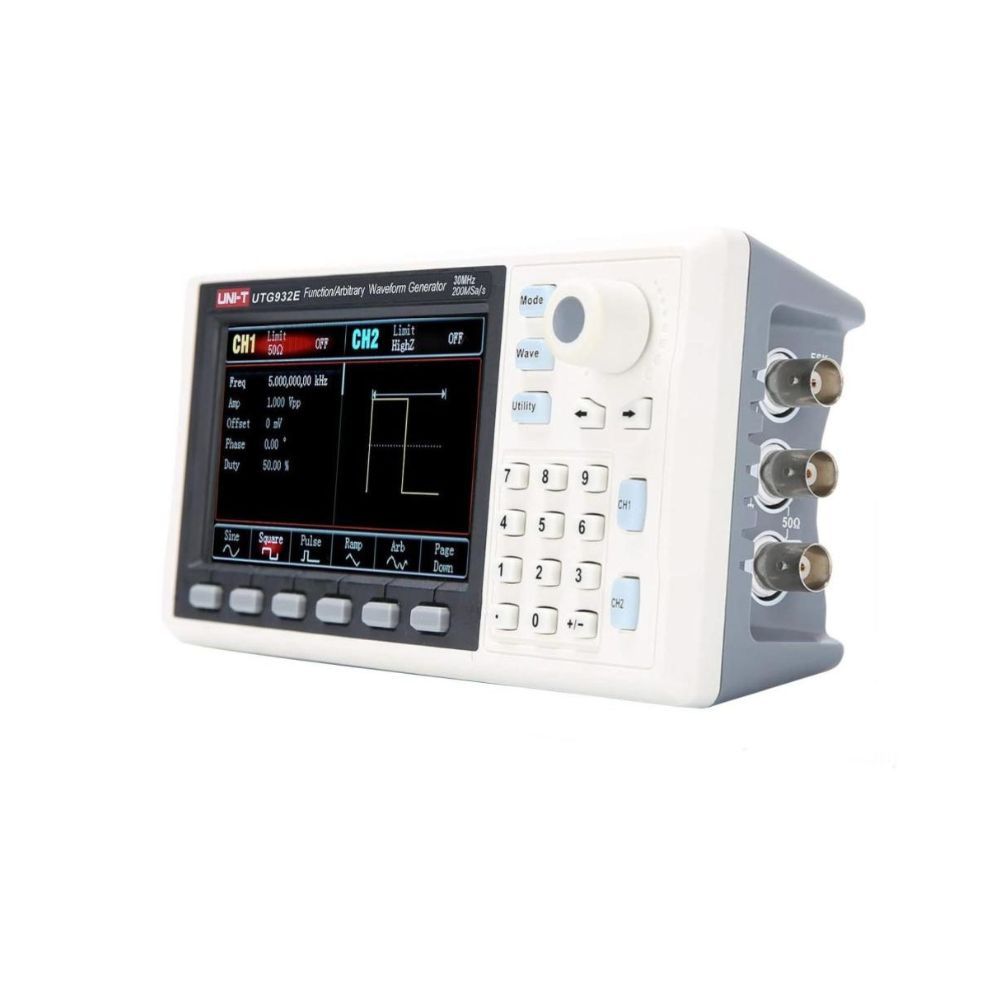

A 4.3-inch TFT colour display shows both channels at once, and AM, FM, PM, FSK, and linear/log sweep are built in. A TTL-compatible sync output that doubles as a frequency counter input and a USB device port make it a practical all-round bench source.

Technical Specifications

Channels: 2 (CH1, CH2), independent modulation per channel

Sine Wave: 1µHz~30MHz | Resolution: 1µHz

Square / Pulse Wave: 1Hz~15MHz | Square rise/fall time: 16ns (typical)

Ramp Wave: 1Hz~400kHz | Symmetry: 0%~100%

Arbitrary Wave: 1Hz~10MHz | 4kpts length | 14-bit | 24 non-volatile waveform slots | 23 built-in waveforms

Sampling Rate: 200MSa/s

Amplitude: 1mVpp~10Vpp (50Ω, up to 10MHz) | DC offset adjustable

Modulation: AM, FM, PM, FSK (internal; FSK also external) | Sweep: linear or logarithmic, 1ms~500s

Frequency Counter: 100mHz~100MHz, TTL-compatible input (frequency, period, duty)

Sync Output: TTL-compatible, 1Hz~2MHz

Display: 4.3" TFT LCD, 480×272

Power: 5V DC, 2A adapter (100–240V AC input)

Size / Weight: 172 × 90 × 68mm | 0.33kg

Key Features

Waveforms: Sine, square, pulse, ramp, noise, DC, and arbitrary waves

Dual Channel: Two outputs with channel inversion, phase sync, and amplitude-limit protection for your load

Interface: Multi-function knob, numeric keypad, and built-in context help

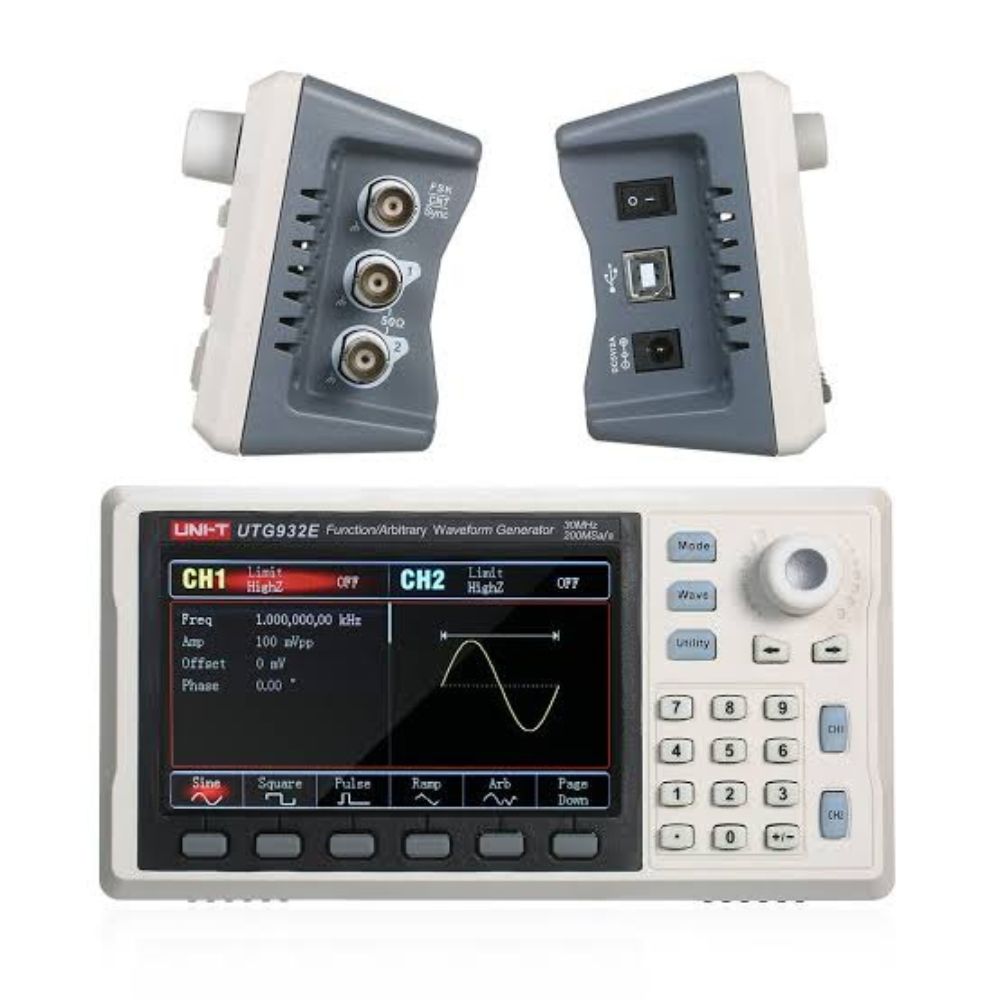

Connectivity: USB device port for PC control software and firmware upgrades

Warranty: Manufacturer's 3-year warranty (accessories excluded)

Applications

Audio, analogue and power electronics design and troubleshooting

Sensor and control-loop simulation using arbitrary waveforms

Filter, amplifier, and receiver testing with sweep and modulation

Teaching labs and electronics training workshops

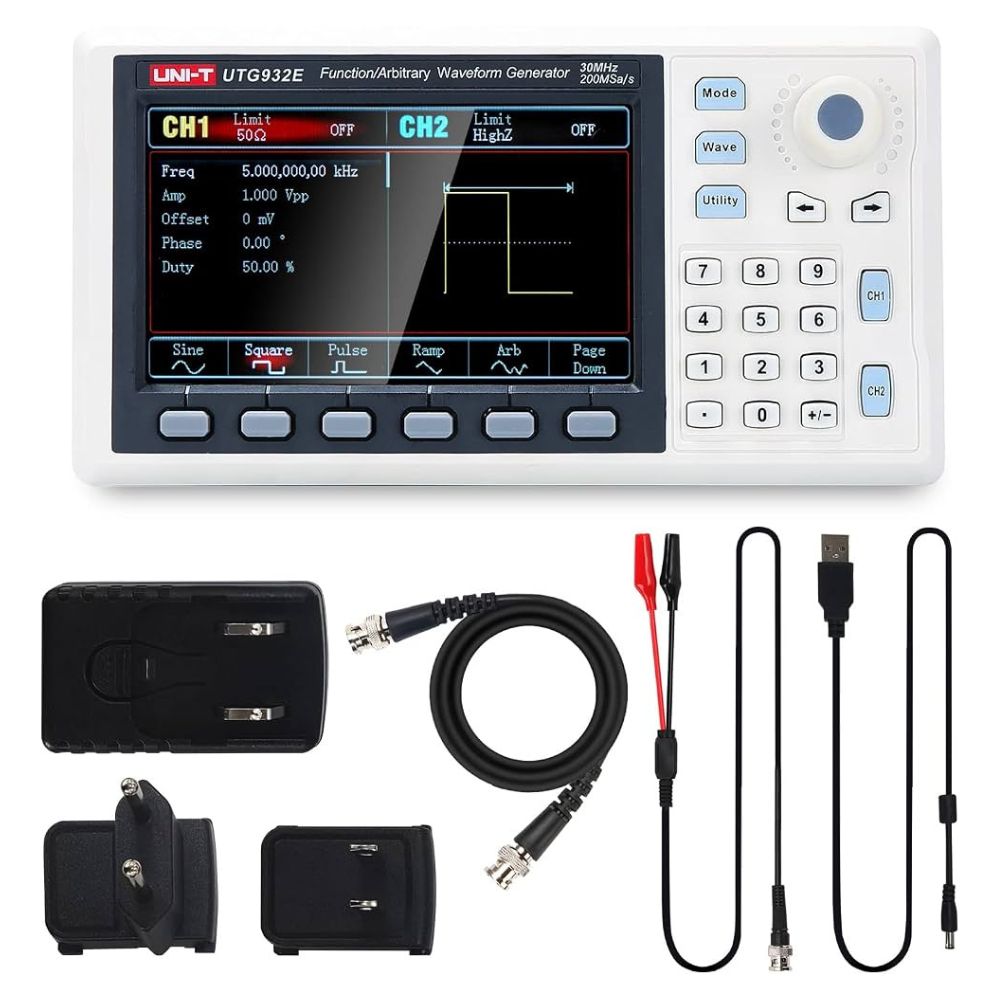

Package Includes

1 x UNI-T UTG932E Waveform Generator main unit

Power adapter with power cord

BNC cable (1m)

BNC-to-alligator clip cable

User manual

Downloads

📄 Download UNI-T UTG932E Data Sheet
📄 Download UNI-T UTG932E User Manual
