UNI-T UTG2062X 60MHz Dual-Channel Function/Arbitrary Waveform Generator

UNI-T UTG2062X 60MHz Function/Arbitrary Waveform Generator in Sri Lanka

Touchscreen Dual-Channel Signal Source with LAN and SCPI Control

The UNI-T UTG2062X is a dual-channel function/arbitrary waveform generator with a 60MHz sine output, a 625MSa/s sample rate, and 16-bit vertical resolution. It gives engineers, R&D teams, and university labs in Sri Lanka a low-distortion source with a 4.3-inch capacitive touchscreen and LAN, USB, and SCPI remote control for automated testing.

Square and pulse waves reach 30MHz, with pulse edges adjustable from 5ns and pulse widths as short as 8ns. Fifteen modulation types, point-by-point arbitrary waveforms up to 64Mpts, and channel tracking, copy and stacking functions let one instrument handle design, verification, and automated test setups.

Technical Specifications

Channels: 2 (CH1, CH2) with equivalent performance

Sine Wave: 1µHz~60MHz | Resolution: 1µHz | THD: <0.07% (DC~20kHz, 1Vpp)

Square / Pulse Wave: 1µHz~30MHz | Square rise/fall time: <5ns (typical) | Pulse width: 8ns minimum | Edge time: 5ns~10s

Ramp Wave: 1µHz~5MHz | Symmetry: 0%~100%

Arbitrary Wave: 1µHz~50MHz (DDS, 8kpts) | Point-by-point: 8pts~32Mpts (64Mpts single channel) | 16-bit | 200 built-in waves

Other Waveforms: Noise, DC, Harmonic (orders 2~16), PRBS (up to 50Mbps), Expression, Multi Pulse

Sample Rate: 625MSa/s (1.25GSa/s with 2× interpolation)

Amplitude: 1mVpp~10Vpp (50Ω, ≤20MHz); 1mVpp~5Vpp (50Ω, ≤60MHz) | High-Z: 2mVpp~20Vpp (≤20MHz); 2mVpp~10Vpp (≤60MHz)

Amplitude Flatness: ±0.2dB (≤60MHz, typical)

Modulation: AM, FM, PM, DSB-AM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, QAM, SUM, PWM | Sweep: linear, log, step | Burst: N-cycle, gated, infinite

Frequency Counter: 100mHz~200MHz, 7-digit, TTL-compatible

Reference: 10MHz internal (±0.5ppm initial) | External 10MHz reference input

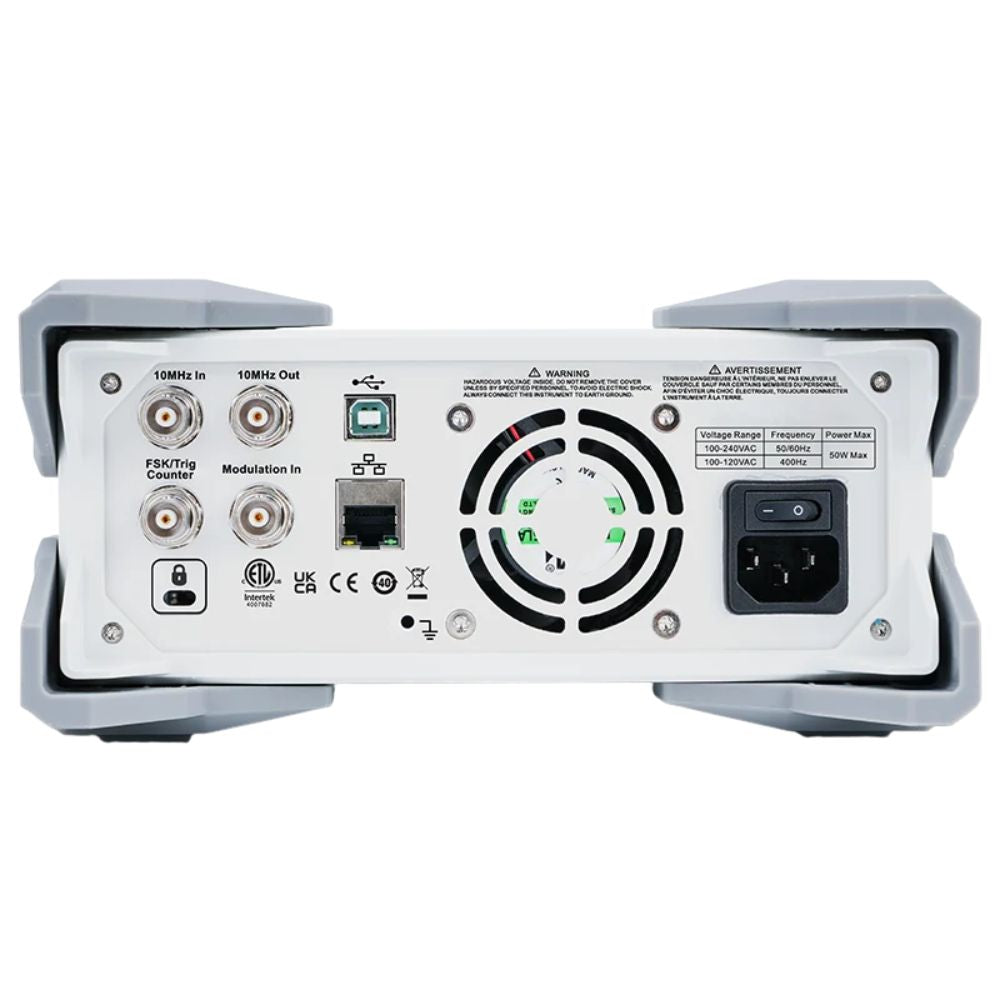

Interfaces: USB Host, USB Device, LAN | SCPI commands | Sync, trigger, and external modulation connectors

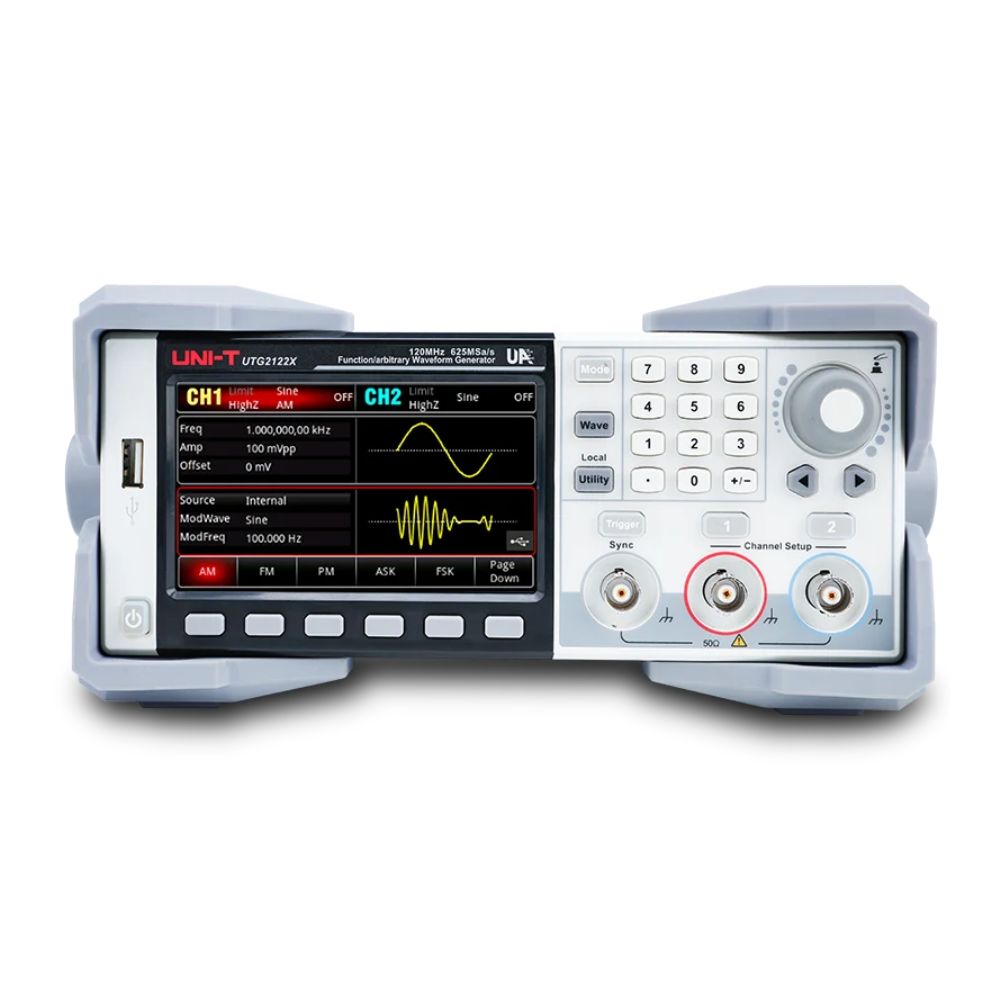

Display: 4.3" TFT capacitive touchscreen, WVGA 480×272

Power: 100~240V AC, 50/60Hz | Consumption: <50W

Size / Weight: 215 × 103 × 316mm (W×H×L) | 2.5kg

Key Features

Touch Control: Capacitive touchscreen speeds up parameter setting and waveform selection

Dual-Channel Tools: Channel copy, parameter following and tracking, and stacking for two-tone or multi-tone signals

Pulse Capability: Fine edge-time and pulse-width control with a 100ps minimum step

Remote Control: USB and LAN control with SCPI and PC software for automated test and waveform editing

Applications

Automated test systems using LAN and SCPI control

Pulse timing, edge-response, and digital interface testing

Communication experiments with ASK, FSK, PSK, QPSK, and QAM

Two-tone and multi-tone signal generation using SUM and stacking

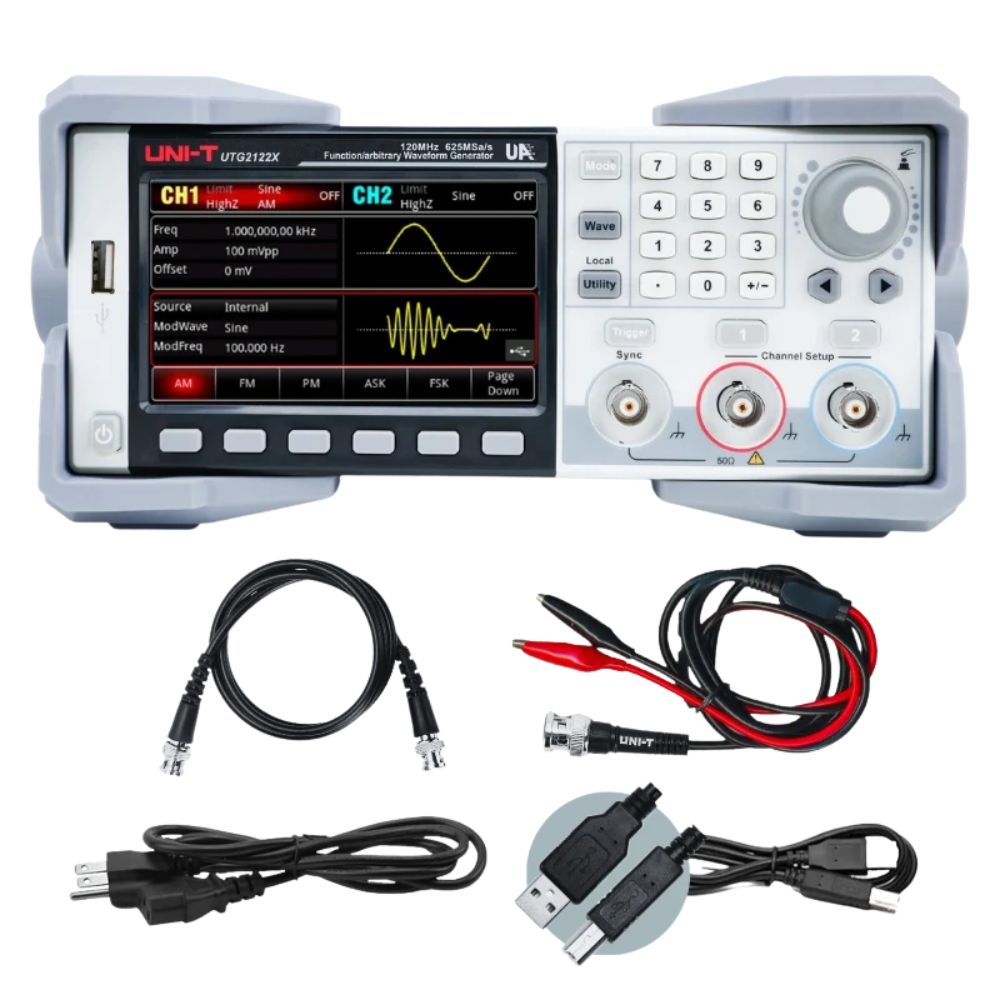

Package Includes

1 x UNI-T UTG2062X Waveform Generator main unit

Power cord

USB cable (UT-D14)

BNC-to-BNC cable (UT-L45)

BNC-to-red/black alligator clip cable (UT-L02A)

User manual
