UNI-T UTG1022X 20MHz Dual-Channel Function/Arbitrary Waveform Generator

UNI-T UTG1022X 20MHz Function/Arbitrary Waveform Generator in Sri Lanka

16-Bit Dual-Channel Signal Source for Design, Repair and Education

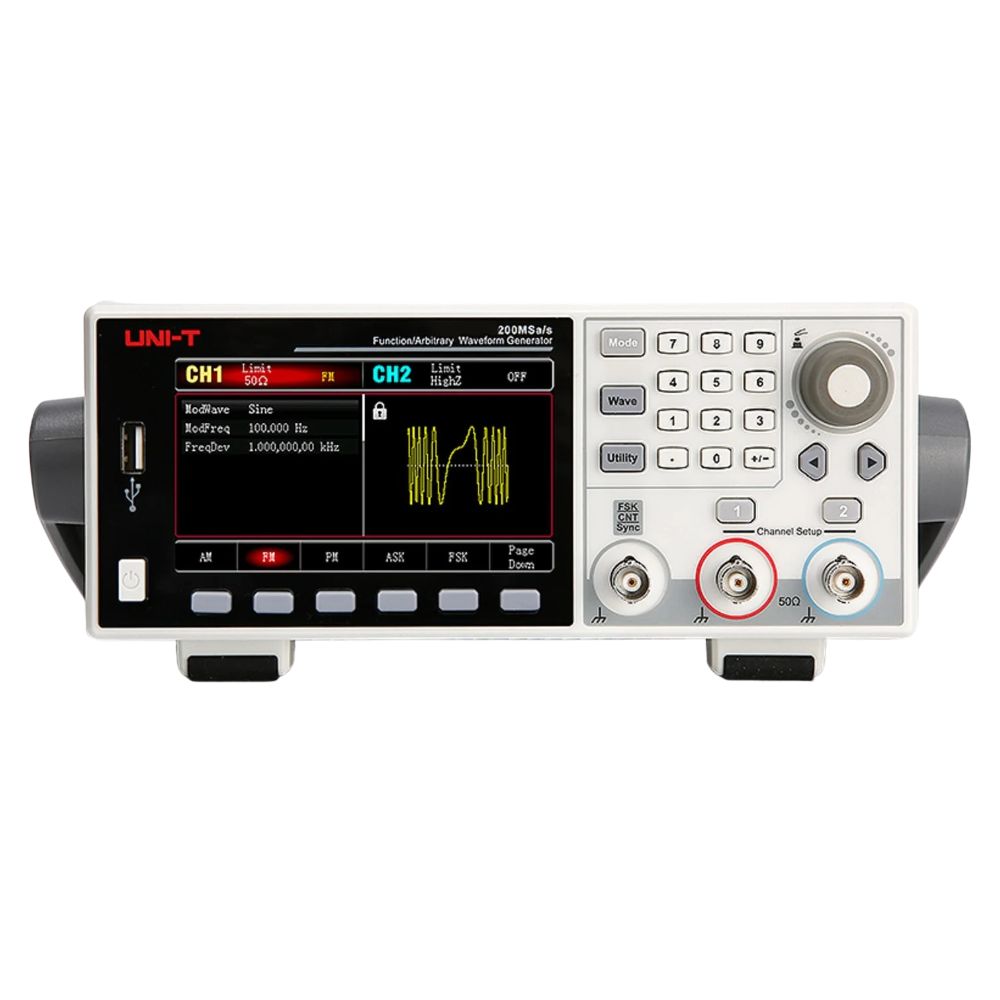

The UNI-T UTG1022X is a dual-channel function/arbitrary waveform generator with a 20MHz sine output, a 200MSa/s sampling rate, and 16-bit vertical resolution. It gives electronics engineers, technicians, and lecturers in Sri Lanka a low-distortion source with up to 20Vpp output for testing amplifiers, sensors, filters, and control circuits.

Explore our full range of Waveform Generators – function and arbitrary models for electronics testing in Sri Lanka.

Beyond the standard waveforms, it offers 200 built-in arbitrary waves, an arbitrary waveform editor, and seven modulation types including PWM, ASK, and PSK. Burst and pulse-string modes, a hardware frequency meter, and both USB host and USB device ports make it a flexible all-round bench instrument.

Technical Specifications

Channels: 2 (CH1, CH2) with identical function

Sine Wave: 1µHz~20MHz | Resolution: 1µHz | THD: <0.2% (DC~20kHz, 1Vpp)

Square / Pulse Wave: 1µHz~10MHz | Square rise/fall time: <16ns | Minimum pulse width: 22ns

Ramp Wave: 1µHz~400kHz | Symmetry: 0%~100%

Arbitrary Wave: 1µHz~5MHz | 4kpts length | 16-bit | 200 built-in waves | 200 non-volatile storage

Sampling Rate: 200MSa/s

Amplitude: 1mVpp~10Vpp (50Ω) | 2mVpp~20Vpp (High-Z) | DC offset: ±5V (50Ω), ±10V (High-Z)

Modulation: AM, FM, PM, ASK, FSK, PSK, PWM | Sweep: linear or logarithmic, 1ms~500s

Burst: N-cycle, gated, infinite | Internal or external trigger | 1~50,000 cycles

Frequency Meter: 100mHz~200MHz, TTL-compatible, 7-digit

Interfaces: USB host, USB device

Display: 4.3" TFT LCD, WVGA 480×272

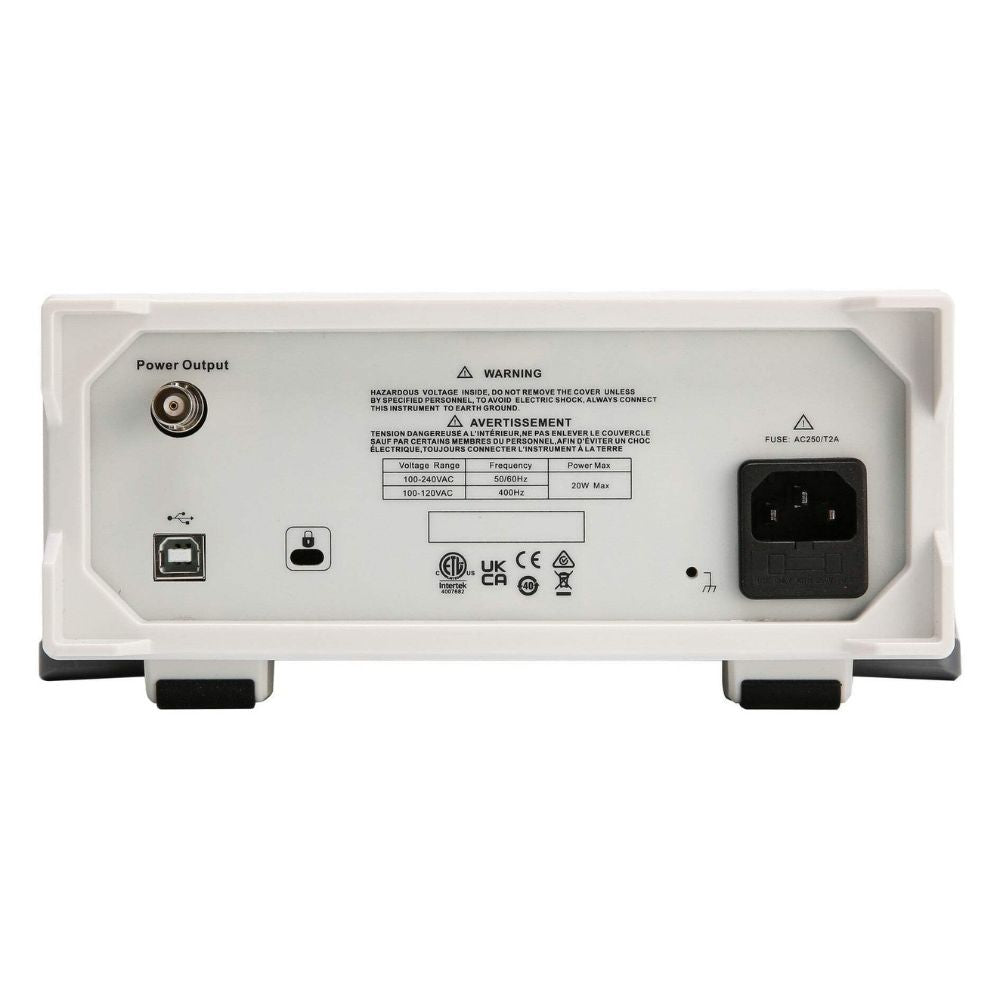

Power: 100~240V AC, 50/60Hz | Consumption: <20W

Size / Weight: 215 × 103 × 316mm (W×H×L) | 2.2kg

Key Features

High Output Level: Full 20Vpp dual-channel amplitude (High-Z) is guaranteed at 10MHz

Signal Purity: Harmonics and spurious signals below -50dBc across the full band, with low-jitter square output

Waveform Editor: Create custom waves by drawing them or by inserting standard waveforms

Protection: Overvoltage protection, and the output switches off automatically on overload

Applications

Amplifier, filter, and sensor-interface testing

Motor drive, PWM, and control-circuit experiments

Digital communication teaching with ASK, FSK, and PSK

Reproducing custom signals with arbitrary waveforms

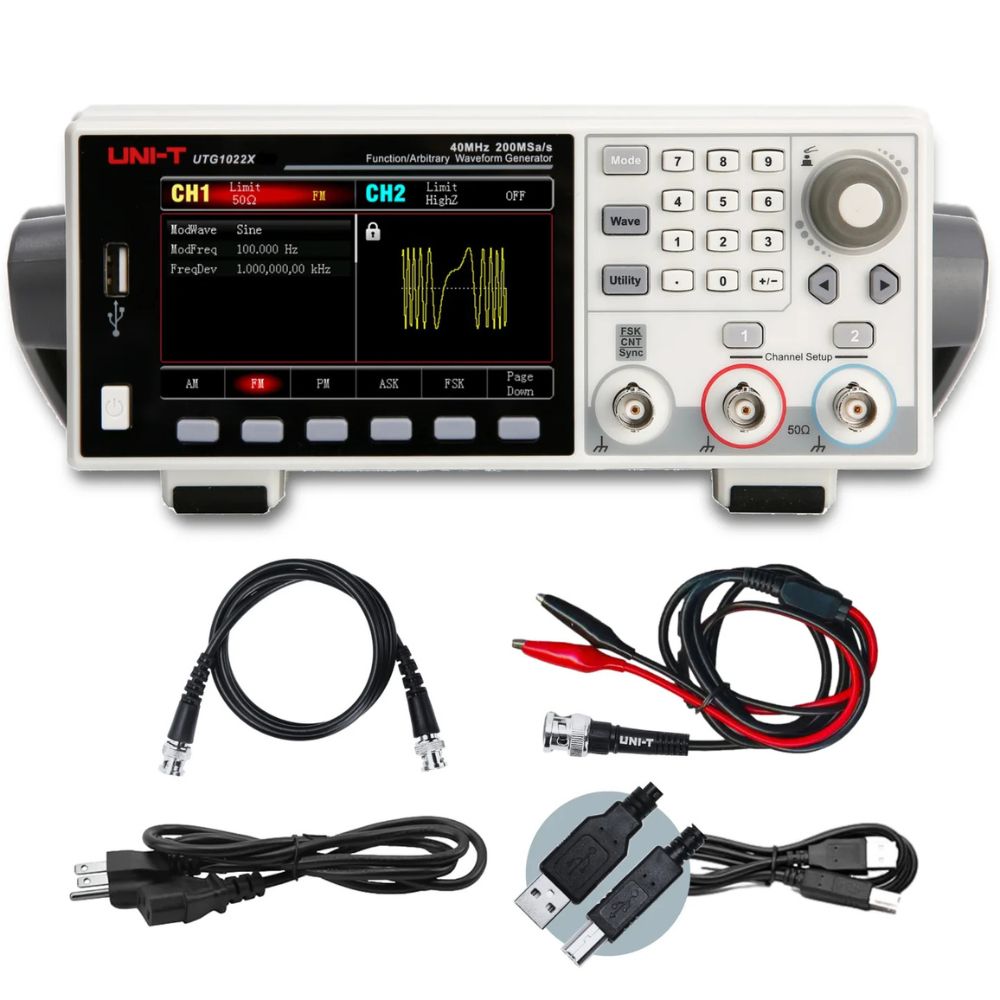

Package Includes

1 x UNI-T UTG1022X Waveform Generator main unit

Power cord

USB cable (UT-D14)

BNC-to-BNC cable (UT-L45)

BNC-to-red/black alligator clip cable (UT-L02A)

User manual
