UNI-T UT892 2000V High Voltage AC/DC Digital Multimeter

UNI-T UT892 2000V AC/DC High Voltage Digital Multimeter in Sri Lanka

Professional 2000V High Voltage Measurement with True RMS and VFC Mode

The UNI-T UT892 2000V AC/DC High Voltage Digital Multimeter is a professional electrical testing instrument designed for technicians, electricians, maintenance engineers, motor-service specialists, and industrial users who need to measure high AC and DC voltages safely and accurately.

With dedicated high-voltage measurement capability up to 2000V AC and 2000V DC, a 6000-count digital display, True RMS measurement, and full-range overload protection, the UT892 is suitable for demanding electrical troubleshooting and maintenance applications in Sri Lanka.

Explore our complete range of Digital Multimeters – professional electrical testing meters and measurement instruments in Sri Lanka!

The meter also includes VFC mode for variable-frequency voltage measurements, non-contact voltage detection, LIVE wire identification, maximum/minimum recording, data hold, resistance, capacitance, frequency, diode, and continuity testing. Its removable rubber holster can hold the test probes and support convenient one-handed operation.

Technical Specifications

DC Voltage: 6.000V / 60.00V / 600.0V / 1000V / 2000V | Accuracy: ±(0.5%+3)

AC Voltage: 6.000V / 60.00V / 600.0V / 1000V / 2000V | Accuracy: ±(1.0%+3)

Variable Frequency Voltage (VFC): 600V | Accuracy: ±(5%)

Frequency: 10Hz~10kHz | Accuracy: ±(0.5%+2)

Resistance: 600.0Ω / 6.000kΩ / 60.00kΩ / 6.000MΩ / 60.00MΩ | Accuracy: ±(0.5%+5)

Capacitance: 60.00nF / 600.0nF~600.0μF / 6000μF / 60mF | Accuracy: ±(3.0%+10)

Display: 6000 counts

Measurement Modes: Auto range and manual range selection

Safety Rating: CAT II 1000V / CAT III 600V

Power Supply: 2 x 1.5V AA batteries

Dimensions: Approximately 187mm x 88mm x 56mm

Weight: Approximately 350g, including batteries

Key Features

2000V AC/DC Measurement: Dedicated high-voltage input capability for measuring AC and DC voltage up to 2000V.

True RMS Measurement: Provides reliable AC measurement performance for many electrical and electronic loads.

VFC Mode: Supports variable-frequency voltage measurements up to 600V for motor drives, inverters, and other variable-frequency equipment.

NCV Detection: Detects the presence of AC voltage without direct contact with an exposed conductor.

LIVE Test: Helps identify a live wire using a single test lead.

6000-Count Display: Provides clear resolution for detailed electrical measurements.

MAX/MIN Recording: Captures maximum and minimum measured values during testing.

Data Hold: Freezes the displayed reading for easier recording in difficult-to-reach locations.

Multiple Measurement Functions: Measures voltage, resistance, capacitance, frequency, diode function, and continuity.

Overload Protection: Full-range overload protection helps protect the instrument during incorrect or excessive inputs.

Backlit Display: Improves visibility in dim electrical panels and service environments.

Auto Power-Off: Automatically switches off after approximately 15 minutes of inactivity to help conserve battery power.

Removable Rubber Holster: Provides protection and includes space for holding the test probes during one-handed operation.

Applications

High-voltage AC and DC testing in industrial electrical systems

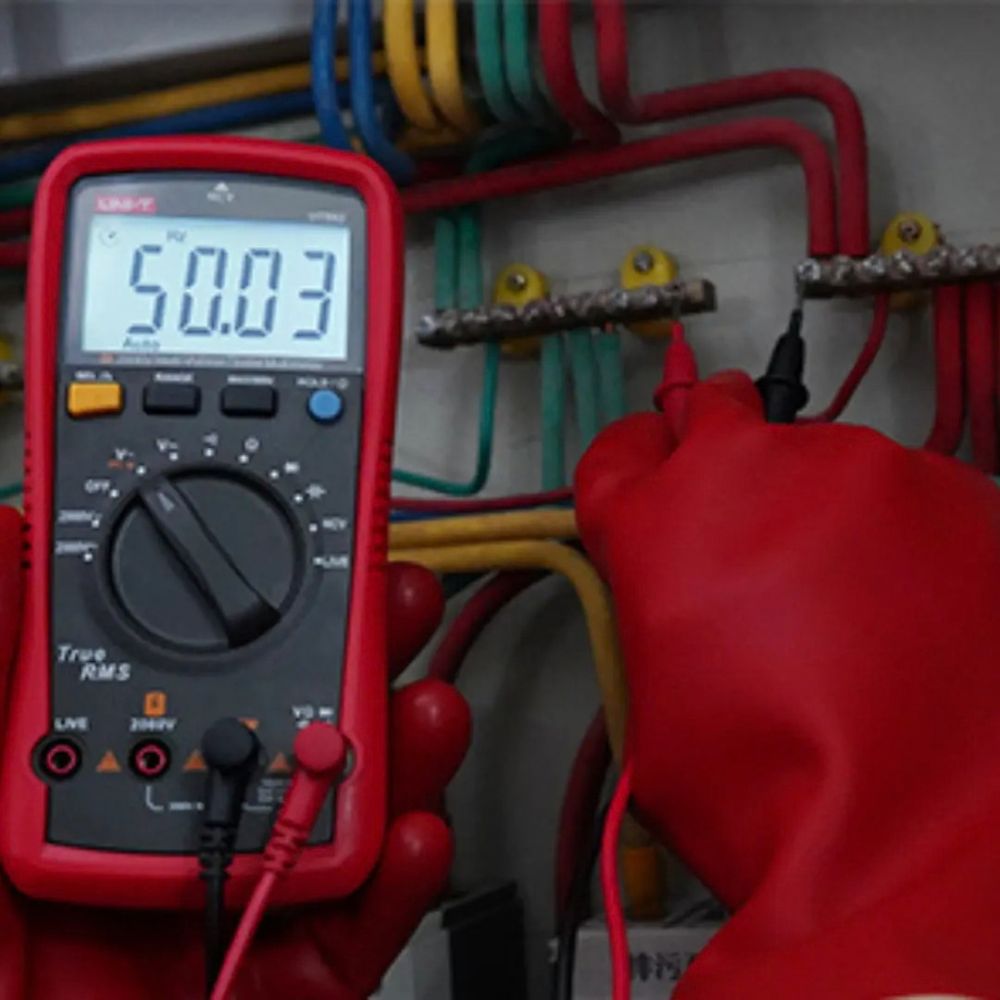

Electrical panel, switchboard, and distribution equipment inspection

Testing motor drives, inverters, and variable-frequency equipment using VFC mode

Electrical maintenance and troubleshooting in factories and workshops

Automotive, machinery, and control-system voltage testing

Power supply, converter, and industrial equipment diagnostics

General electrician, technician, and engineering service work

Important Safety Information

The UNI-T UT892 is designed for high-voltage measurement, but users must follow the operating instructions and all applicable electrical safety procedures. Always select the correct input terminal and function before connecting the test leads. Do not exceed the specified voltage rating of the selected input terminal, test leads, or connected accessories.

The meter's stated safety rating is CAT II 1000V / CAT III 600V. The 2000V measurement function does not mean that every input terminal, accessory, electrical environment, or installation category is rated for 2000V. Use only suitable, correctly rated test leads and accessories, and do not use a standard high-voltage multimeter probe unless its attenuation ratio, input impedance, insulation, and voltage rating are compatible with the meter.

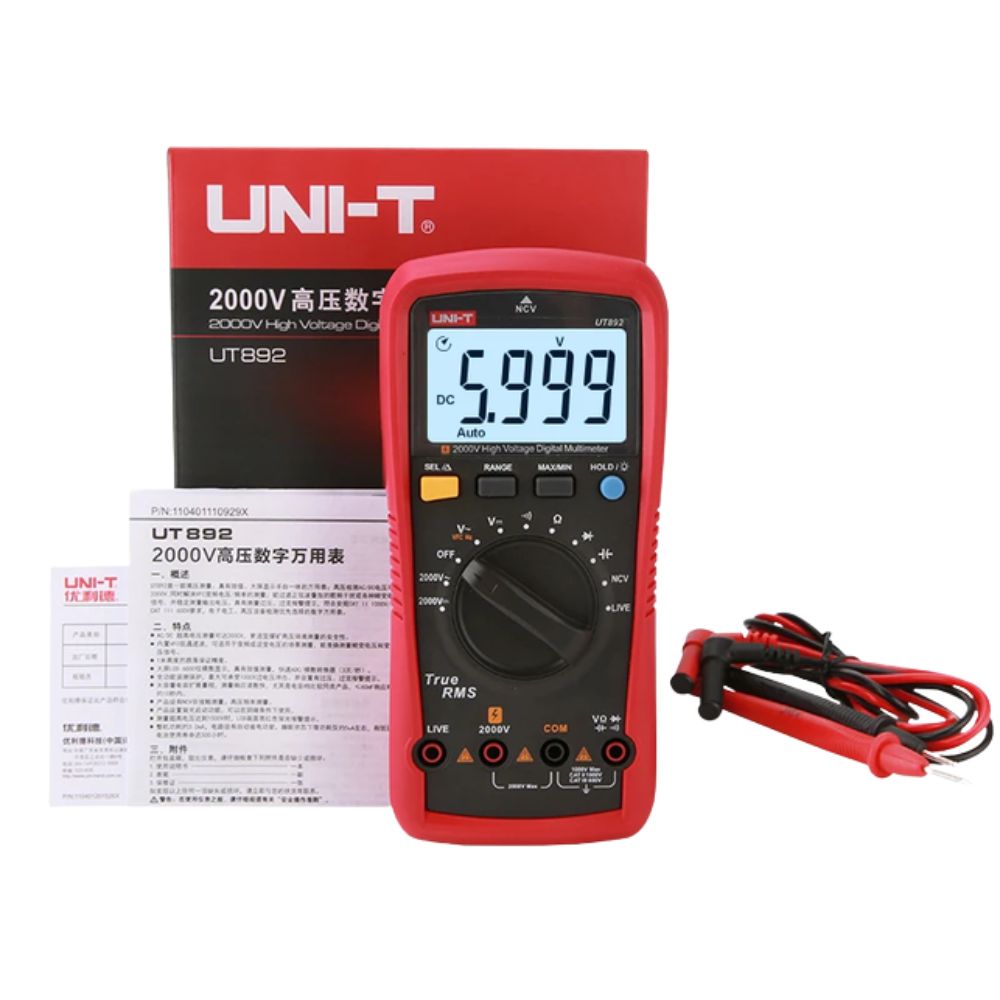

Package Includes

1 x UNI-T UT892 2000V AC/DC High Voltage Digital Multimeter

Test leads

2 x 1.5V AA batteries, subject to supplier packaging

Removable protective rubber holster

English user manual

Downloads

📄 Download UNI-T UT892 Data Sheet
📄 Download UNI-T UT892 User Manual
