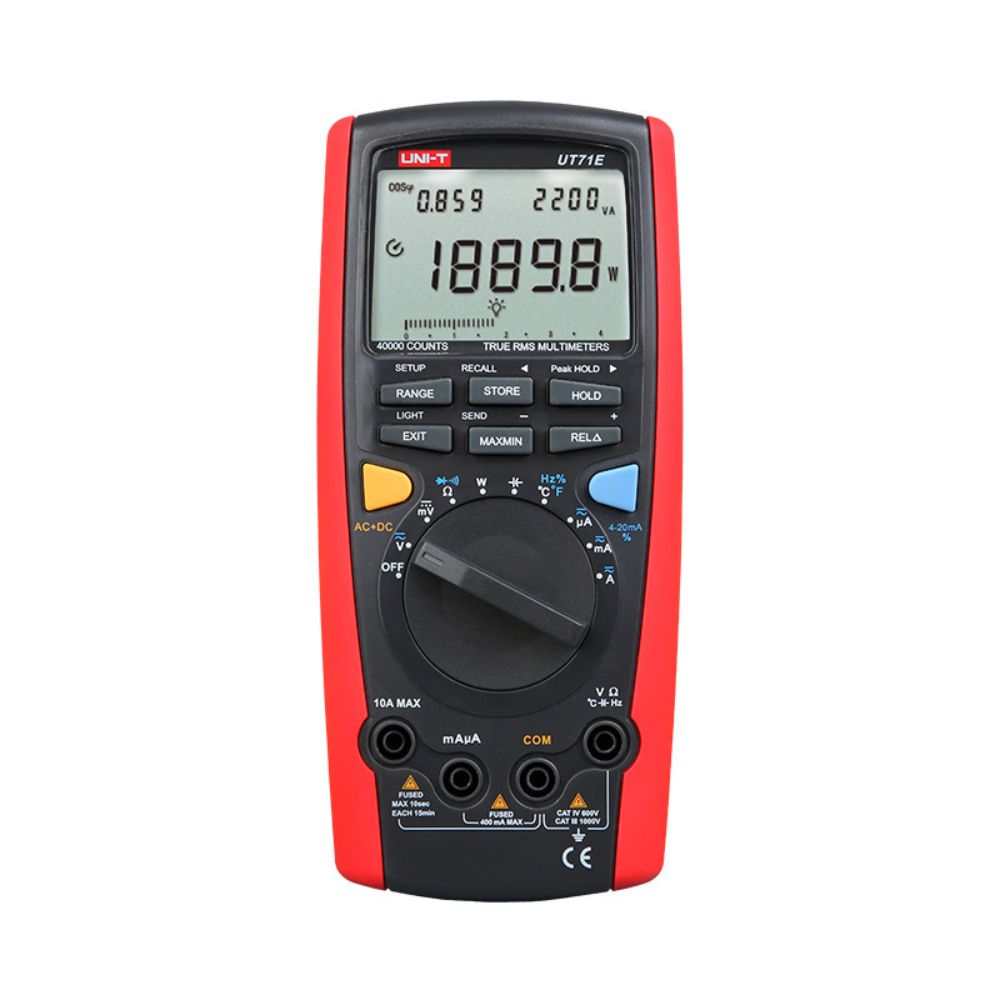

UNI-T UT71E True RMS Intelligent Data Logging Digital Multimeter

UNI-T UT71E True RMS Intelligent Data Logging Digital Multimeter in Sri Lanka

40000-Count Precision Multimeter with Bluetooth & PC Logging

The UNI-T UT71E True RMS Intelligent Data Logging Digital Multimeter delivers laboratory-grade accuracy with 40000-count resolution, ±0.025% DCV precision, and 400MHz frequency measurement for professional electronics testing and production quality control. Featuring Bluetooth connectivity via iDMM app, USB PC data logging, upper/lower limit pass-fail testing, and intelligent features like misplug alarm, it's the ultimate tool for mass production screening, R&D labs, and precision field service across Sri Lanka's electronics and automation sectors.

Looking for more options? Explore our full range of professional multimeter models to compare specifications and prices.

With CAT II 1000V safety rating, dual display (73mm LCD with backlight), peak/data hold, analog bar graph, and support for UT71 series accessories, the UT71E excels at solving complex problems in factory automation, electronic engineering, and distribution equipment. USB interface with PC software enables seamless data export while Bluetooth offers wireless smartphone monitoring via iDMM app – perfect for Sri Lankan technicians needing both precision and productivity.

Key Features

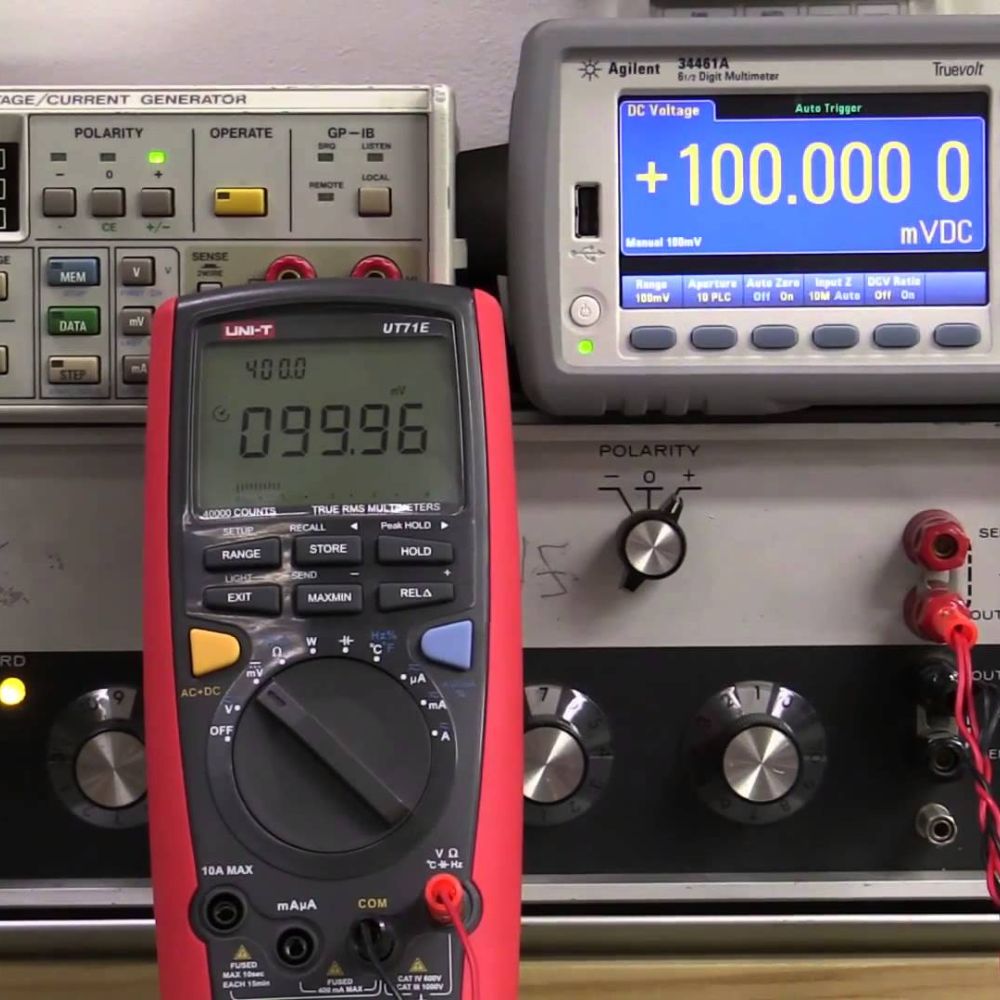

40000-count high resolution with ±0.025% DCV accuracy

True RMS AC measurements up to 1000V, 45Hz~100kHz response

Bluetooth + USB data logging with iDMM smartphone app

Upper/lower limit testing for mass production screening

400MHz frequency measurement with duty cycle

Intelligent misplug alarm and safety protection

Peak/MAX/MIN/REL modes with data hold and analog bar graph

20mF capacitance and -40°C~1000°C temperature

Auto/manual range with LCD backlight and auto power-off

PC software + USB cable for professional data analysis

Technical Specifications

Model

UNI-T UT71E

DC Voltage

1000V ±(0.025%+5)

AC Voltage

1000V ±(0.4%+30), 45Hz~100kHz

DC Current

10A ±(0.1%+15)

AC Current

10A ±(0.7%+15)

Resistance

40MΩ ±(0.3%+8)

Capacitance

40mF ±(1%+20)

Frequency

40Hz~400MHz ±(0.01%+8)

Temperature

-40°C~1000°C ±(1%+30)

Display Count

40000 counts

Safety Rating

CAT II 1000V, CE/UKCA certified

Interfaces

USB + Bluetooth (with UT-D07A adaptor)

Power

9V battery (6F22), power adaptor included

Display

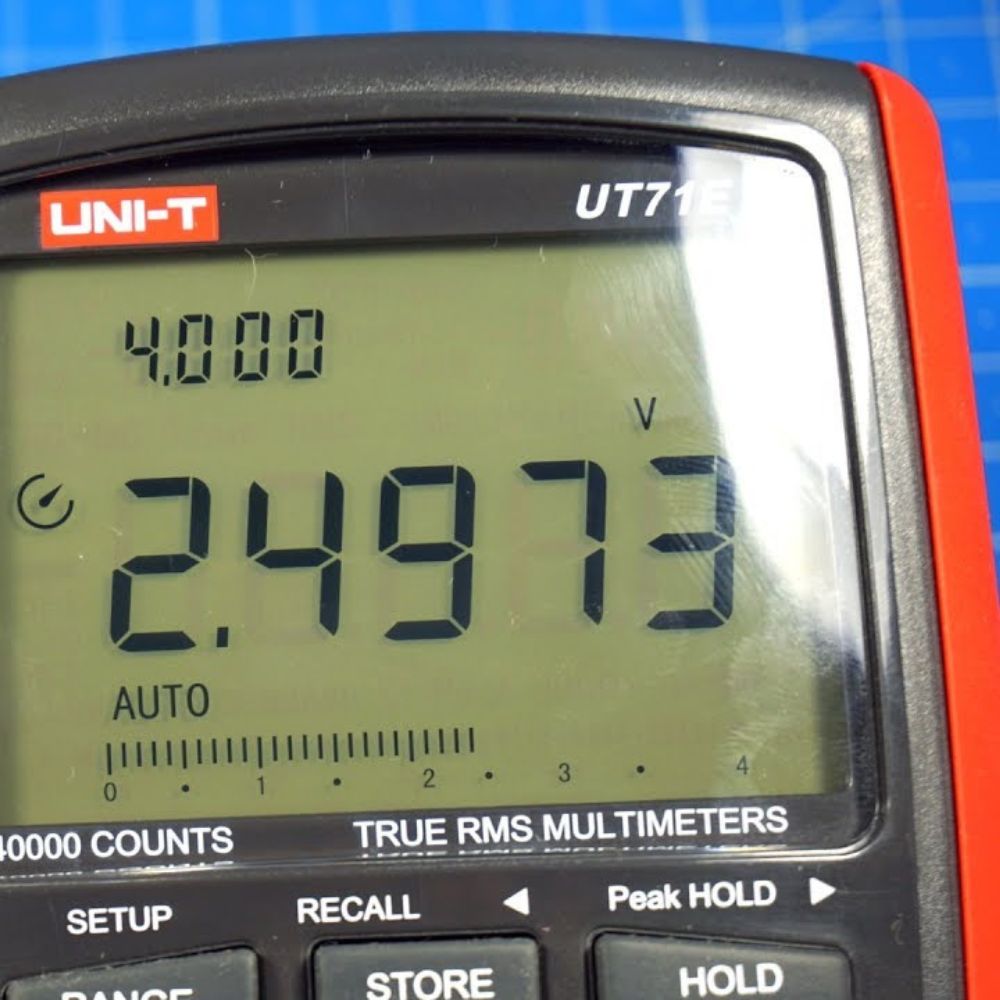

73mm x 50mm LCD with backlight

Dimensions

200 × 93 × 40 mm

Weight

384g

Applications

Electronics mass production quality screening and pass-fail testing

Factory automation equipment troubleshooting

R&D labs precision voltage/current analysis

Electronic engineering frequency and duty cycle measurement

Field service with wireless data logging capability

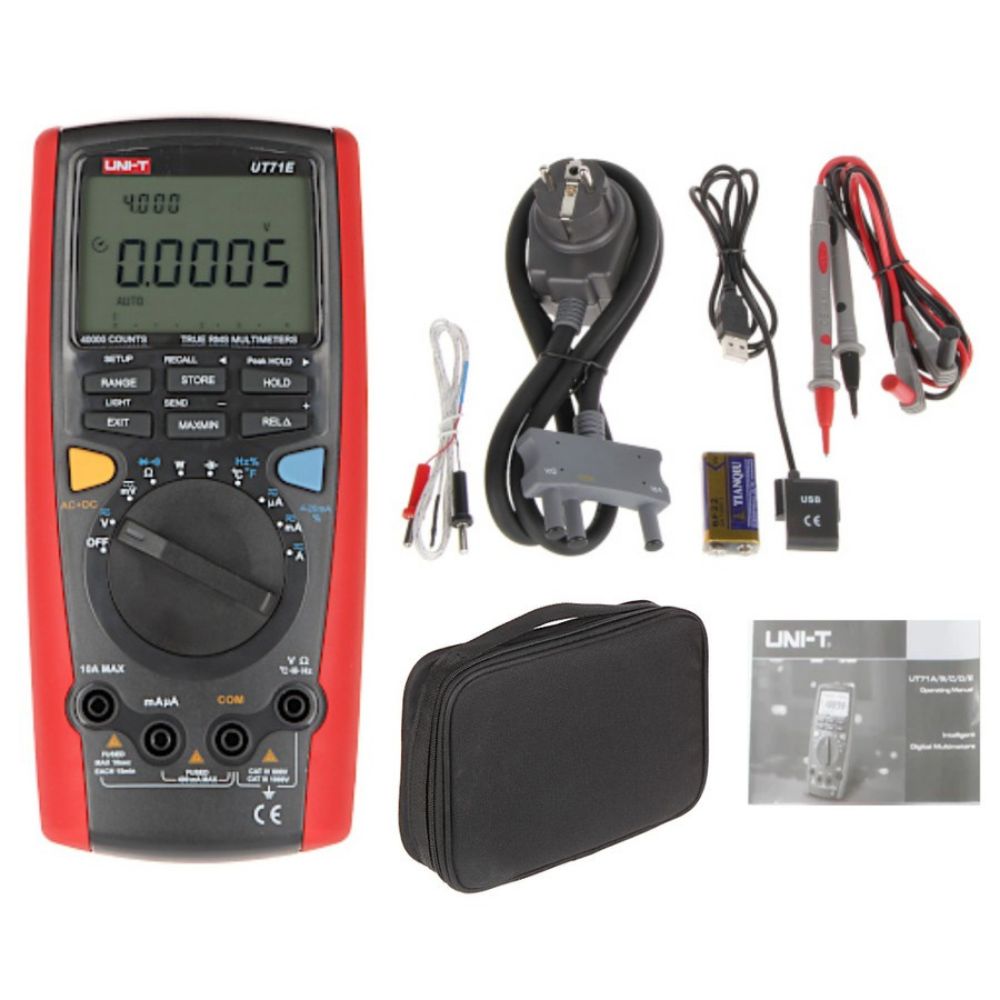

Package Includes

1 x UNI-T UT71E True RMS Intelligent Digital Multimeter

1 x Test Leads

1 x Test Clips

1 x USB Interface Cable

1 x PC Software CD

1 x Point Contact Temperature Probe

1 x Power Adaptor

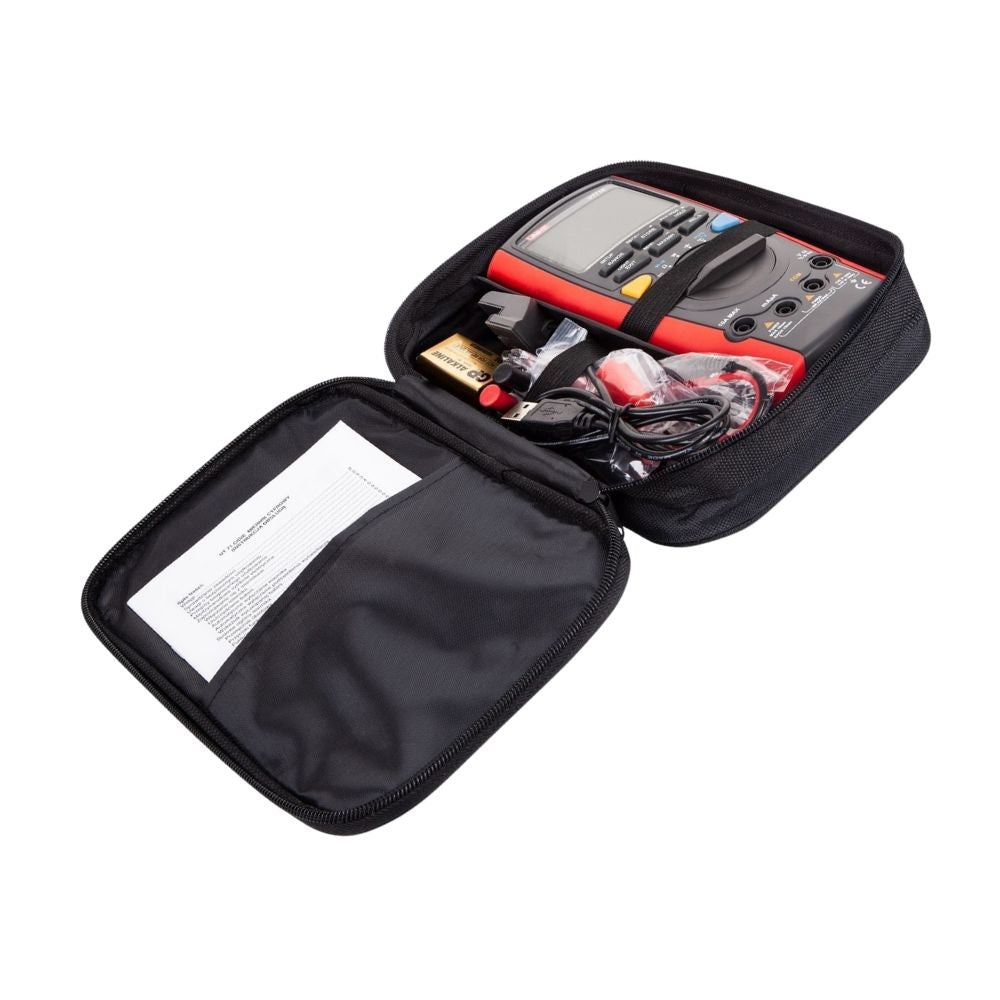

1 x Carrying Bag

1 x 9V Battery (6F22)

Downloads

📄 Download UNI-T UT71E Data Sheet
📄 Download UNI-T UT71E User Manual
