UNI-T UT701 Single Function Temperature Process Calibrator

UNI-T UT701 Single Function Temperature Process Calibrator in Sri Lanka

Portable Thermocouple & RTD Temperature Calibrator

The UNI-T UT701 Single Function Temperature Process Calibrator delivers 0.05% accuracy for sourcing thermocouples (10 types: J/K/T/E/R/S/B/N/WRe325/WRe526), RTDs (Pt10/Pt100/Cu50/Cu100), DC voltage, and resistance – perfect for calibrating industrial thermometers, sensors, and HVAC systems in Sri Lanka manufacturing.

Looking for unbeatable deals? Discover our UNI-T Temperature Process Calibrator Prices – specs, features & best rates in Sri Lanka!

With ramp/step outputs (manual/auto 25%/100%), automatic cold junction compensation, 6-digit LCD backlight, and setup storage/recall, it's essential for field service and lab precision testing across Sri Lanka's industrial sectors.

Key Features

Accuracy: 0.05% + 3 digits (DC mV), 0.05% + 2 digits (resistance), thermocouple ±0.7°C (J-type), RTD ±(0.05% + 0.6°C) (Pt100)

Outputs: 10 thermocouples (J/K/T/E/R/S/B/N/WRe325/WRe526), 4 RTDs (Pt10/Pt100/Cu50/Cu100), DC voltage (100mV/1000mV), resistance (500Ω/5000Ω)

Functions: Ramp/step (25%/100%, manual/auto), auto cold junction compensation, setup storage/recall

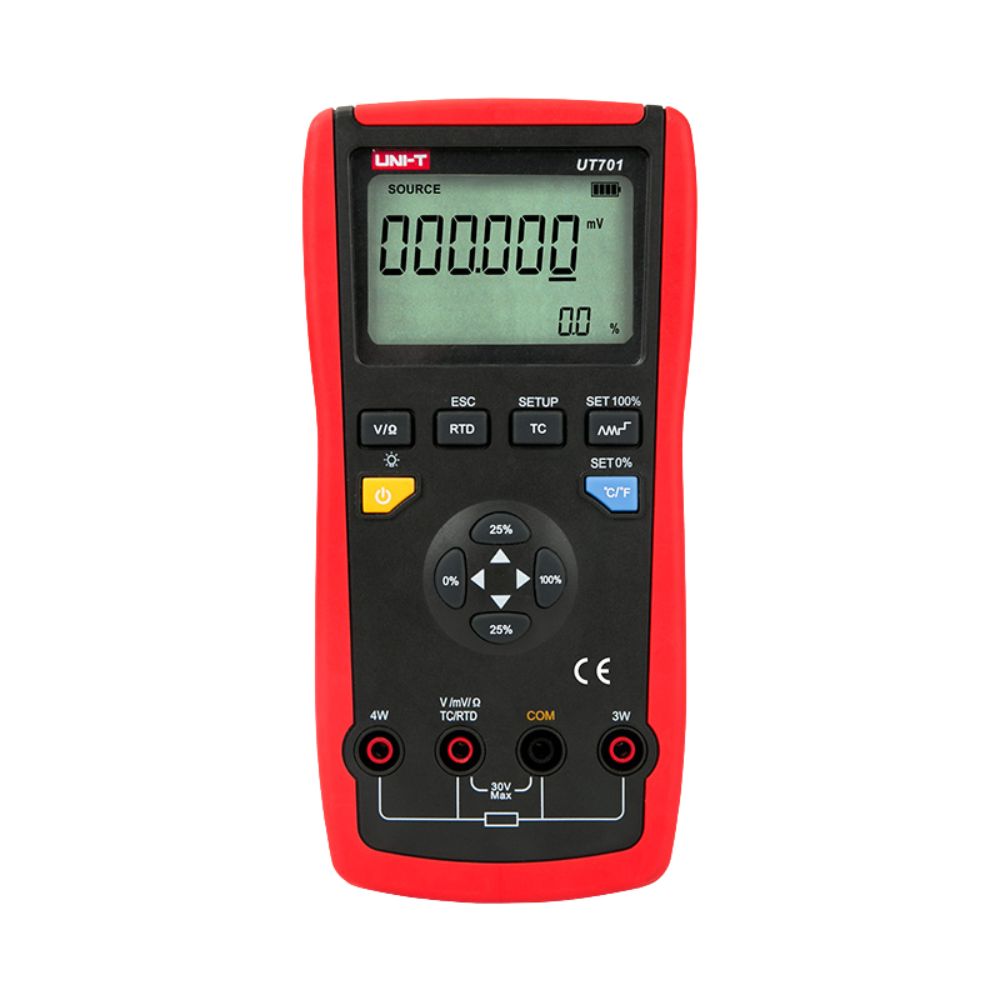

Display: 6-digit LCD (63×40mm) with backlight

Power: 9V battery (6F22), auto power-off

Build: Bi-color case, 1m drop-proof, 96×193×47mm, 410g

Applications

Food/pharma processing sensor calibration

Power plant thermometer verification

HVAC systems and electronics assembly testing

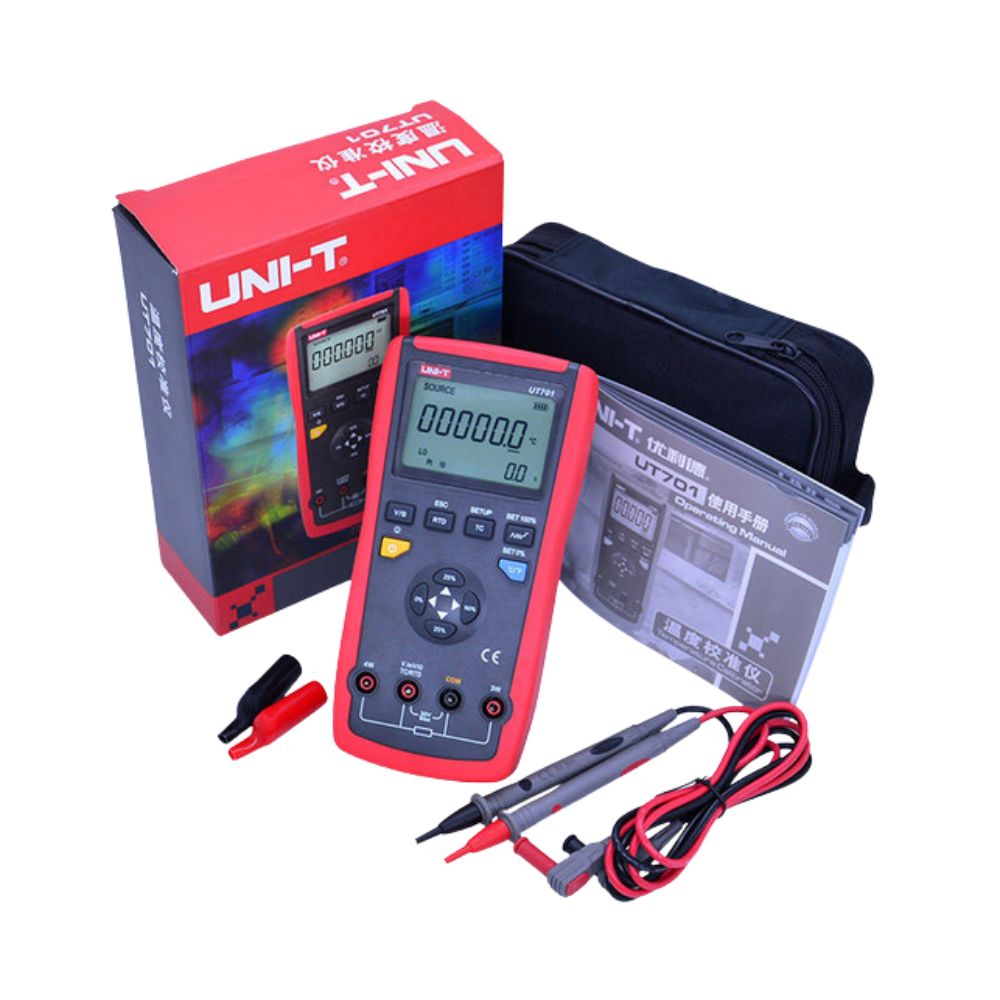

Package Includes

1 x UNI-T UT701 Calibrator main unit

Test leads & thermocouple adapters

9V battery (installed)

Rugged carrying case

English user manual

Downloads

📄 Download UNI-T UT701 Data Sheet
📄 Download UNI-T UT701 User Manual
