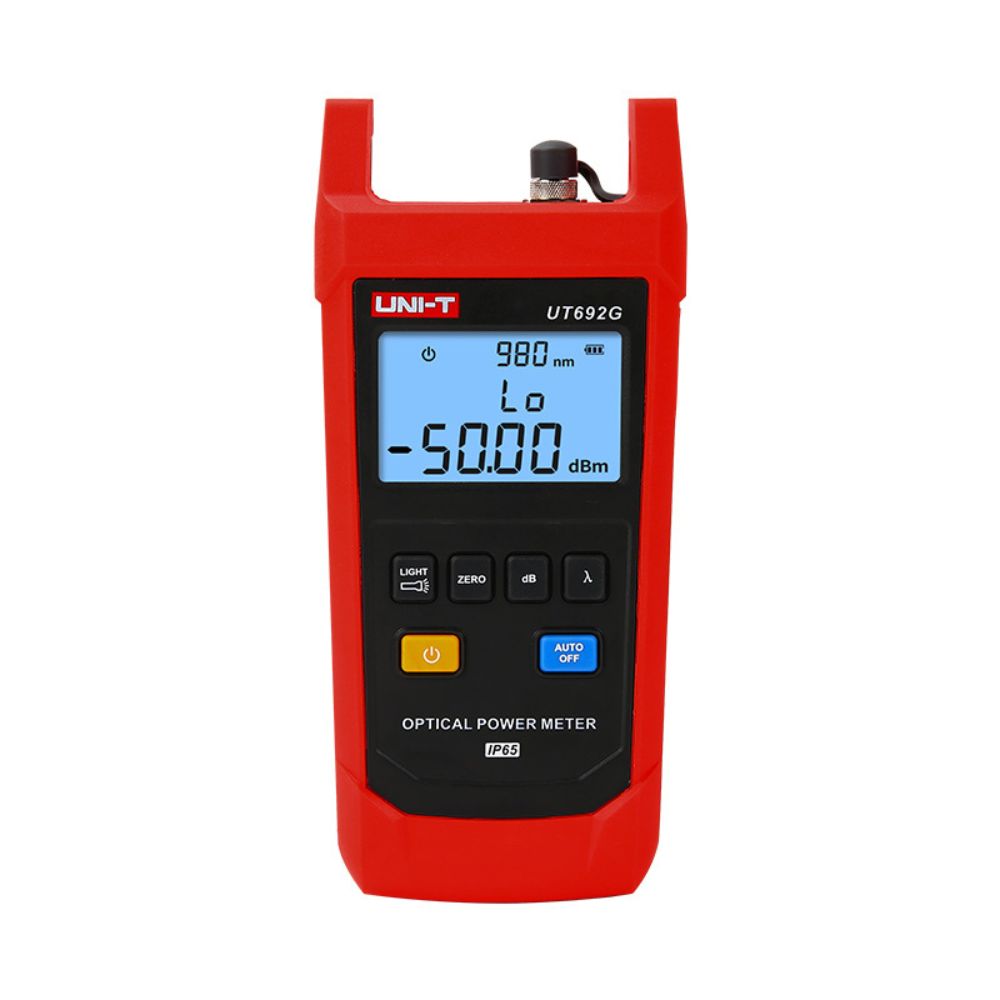

UNI-T UT692G High-Range Optical Power Meter

UNI-T UT692G High-Range Optical Power Meter in Sri Lanka

Reliable High-Power Signal Measuring Instrument for Fiber Networks

The UNI-T UT692G Optical Power Meter is engineered for measuring absolute optical power and relative loss through lengths of fiber optic wires. Designed specifically for high-power applications ranging from -50 to +26dBm, it is the ideal portable solution for testing robust optical systems and ensuring signal integrity in Sri Lanka.

Looking for all-in-one diagnostic tools? Discover our Fiber Optic Testers Catalog – specs, features & best rates in Sri Lanka!

Features a rugged IP65-rated housing that survives 2m drops, comprehensive wavelength coverage (800-1700nm), user calibration capabilities, built-in flashlight, wavelength storage/recall, and a high-contrast backlit display for dark server rooms.

Key Features

Accuracy: ±5% measurement uncertainty utilizing a reliable InGaAs detector

High Range: Ultra-wide optical power measurement capability from -50dBm up to +26dBm

Wavelengths: Supports 8 standard wavelengths (850, 980, 1300, 1310, 1490, 1550, 1625, 1650nm)

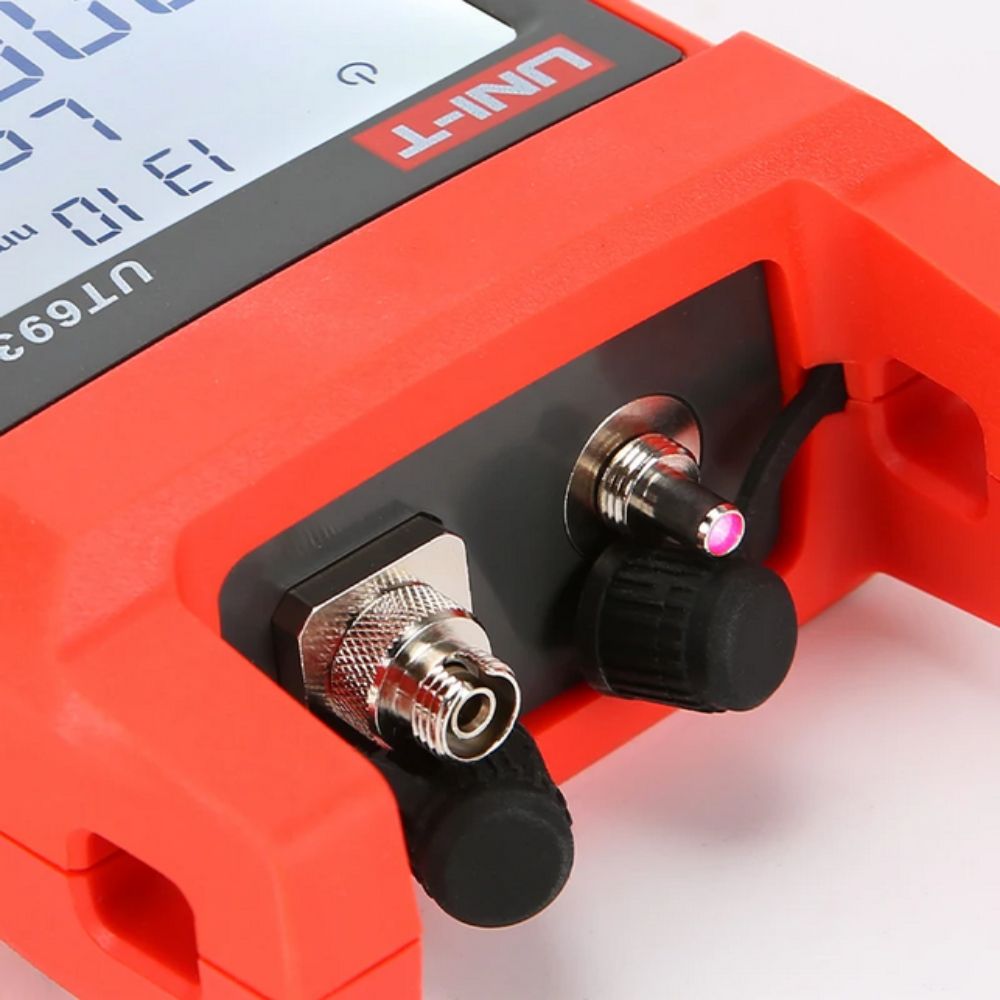

Connectors: Universal FC/SC/ST connector compatibility (FC as standard)

Durability: IP65 rating against water and dust intrusion, certified for 2-meter drop resistance

Display/Build: Clear backlit display with 0.01dBm resolution, auto power-off (10 min), and integrated flashlight

Applications

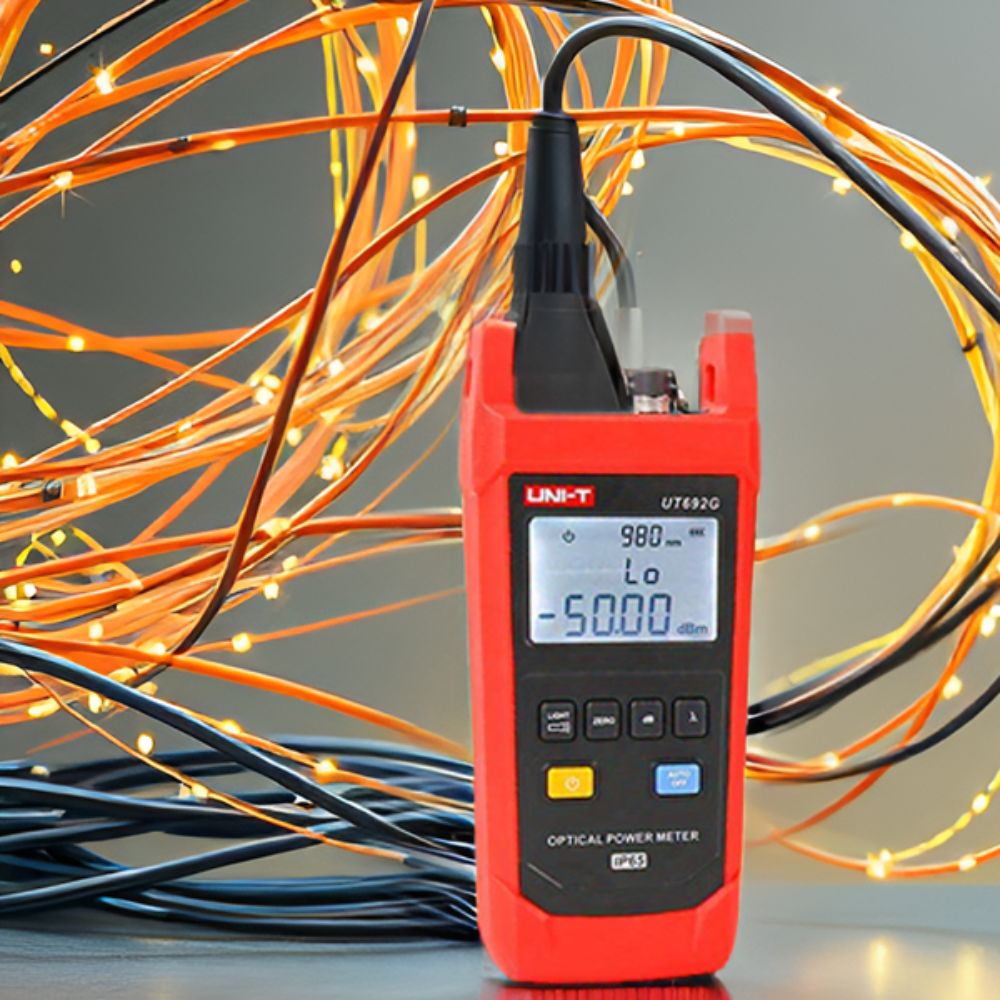

High-power optical transmitter testing and evaluation

Fiber optic communication system installation

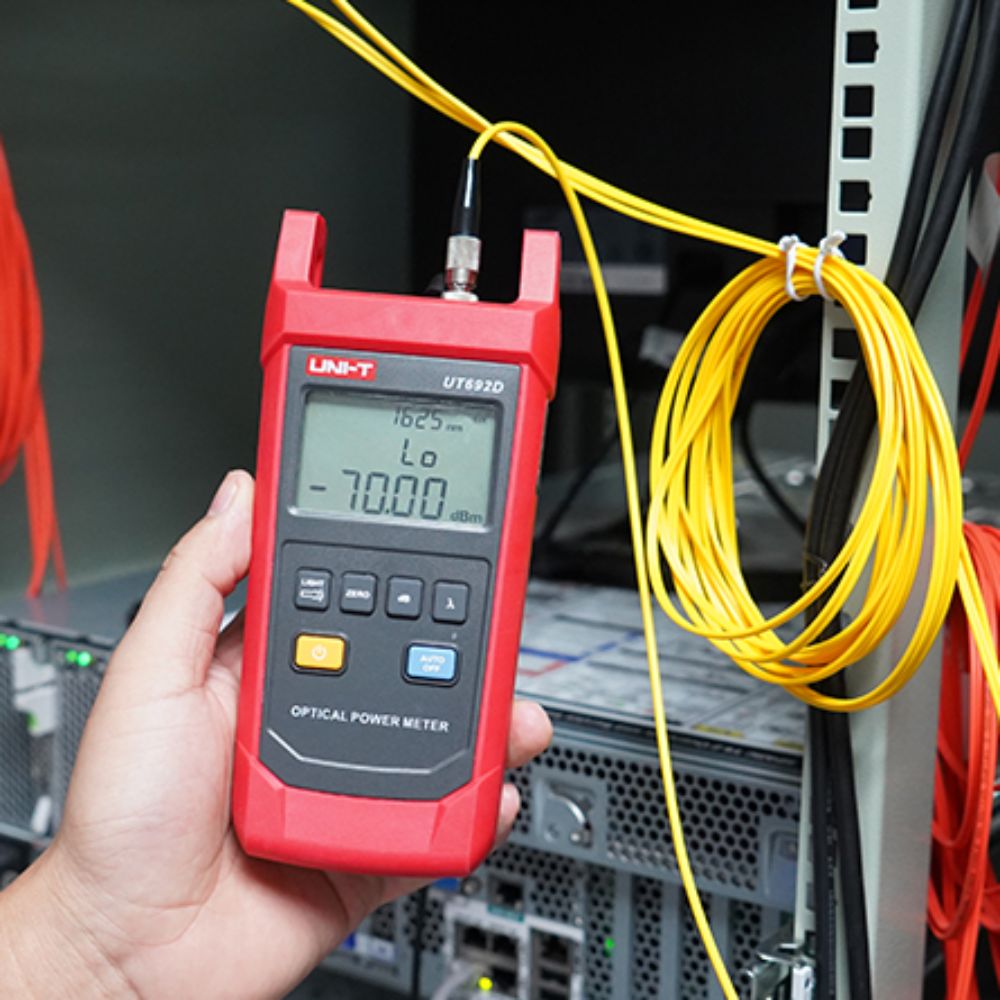

Data center optical link troubleshooting

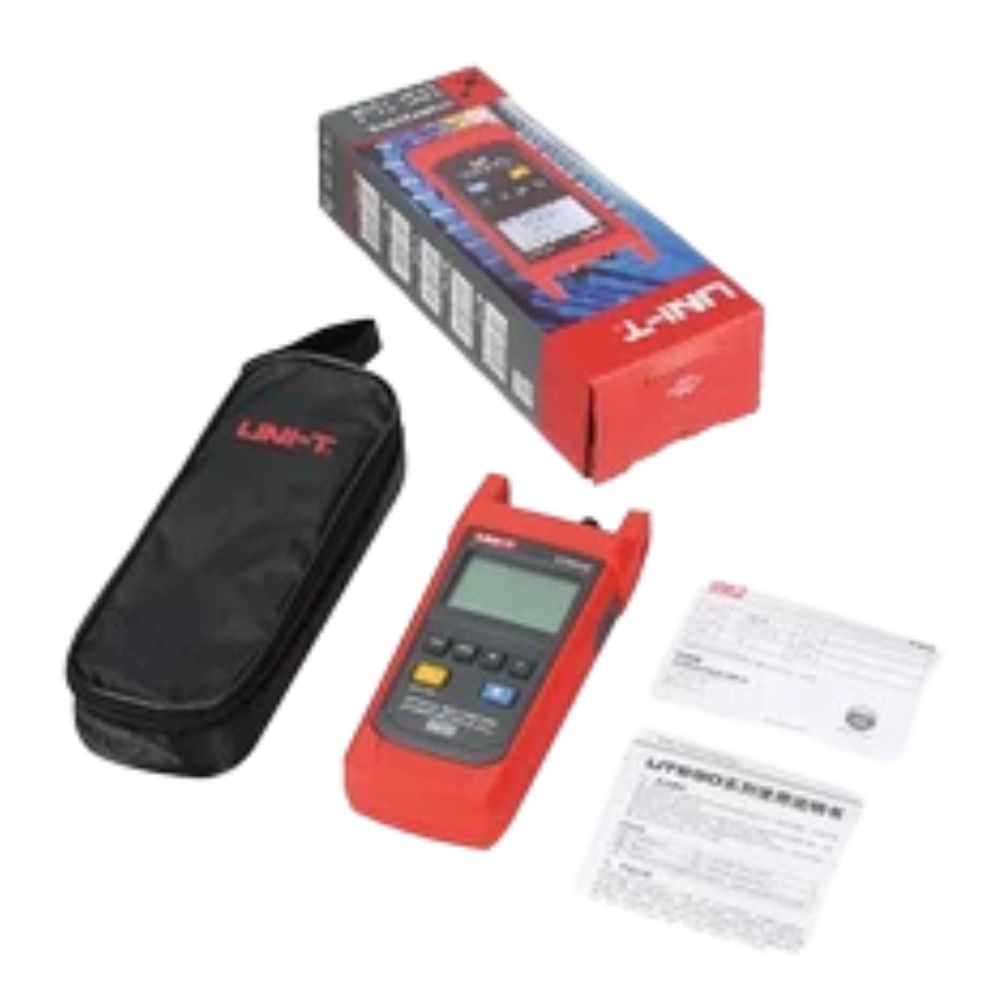

Package Includes

1 x UNI-T UT692G Optical Power Meter

Carrying pouch and user manual

Standard AA batteries

Downloads

📄 Download UNI-T UT692G Data Sheet
📄 Download UNI-T UT692G User Manual
