UNI-T UT620C+ Digital Micro Ohm Meter – DC Low Resistance Tester

UNI-T UT620C+ Micro Ohm Meter in Sri Lanka

Portable Digital Micro Ohmmeter for DC Low Resistance Testing

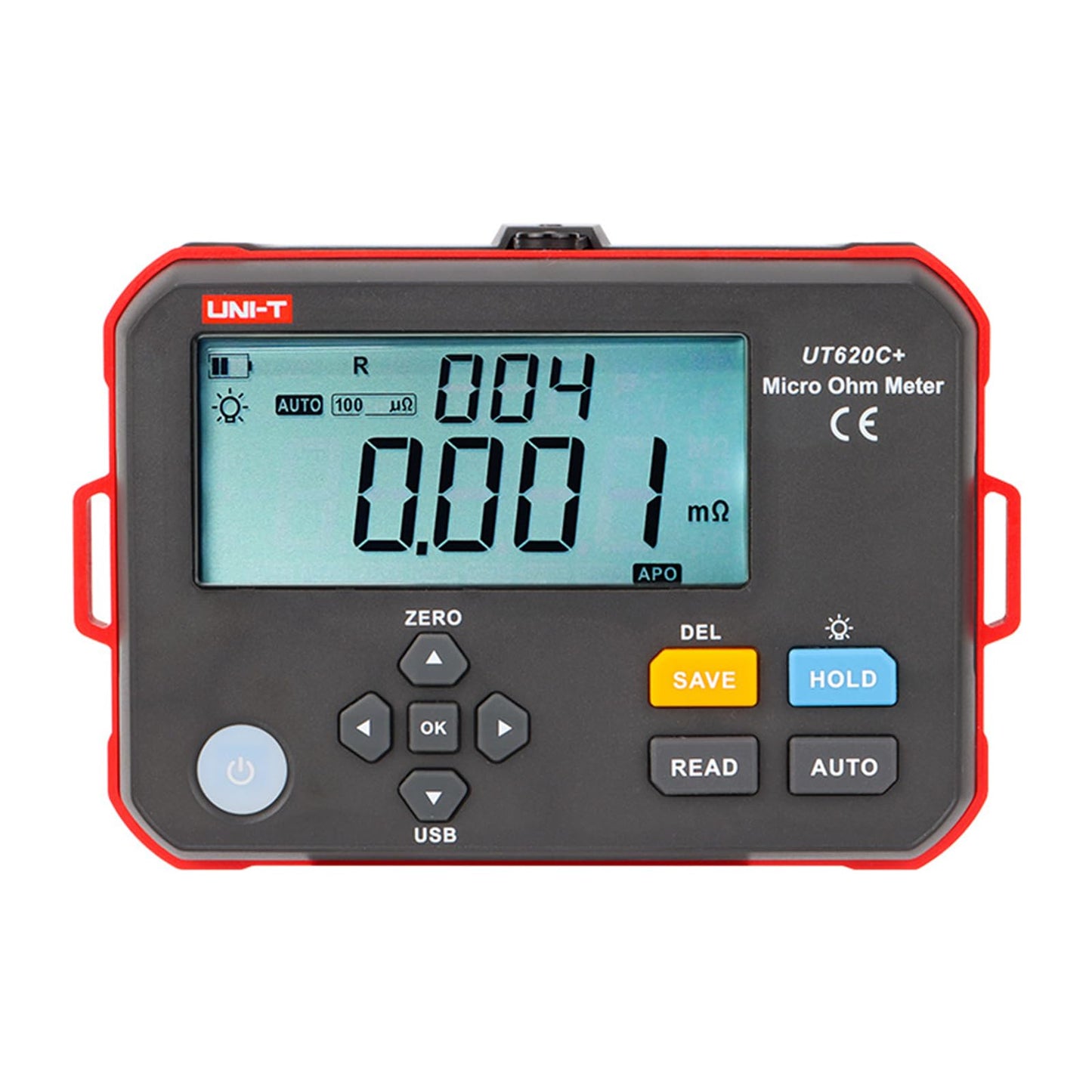

The UNI-T UT620C+ Micro Ohm Meter is a portable four-wire DC low resistance tester designed for accurate resistance measurement from micro-ohm to kilohm levels. It is suitable for testing wires, switches, connectors, contactors, fuses, coils, transformer windings, metal rivets and other low-resistance electrical connections.

With 1µΩ-level micro-ohm measurement, automatic ranging and a maximum test current of 1A, the UT620C+ helps technicians perform reliable contact-resistance and winding-resistance checks. Its 500-record data storage and USB Type-C interface support convenient measurement review, record keeping and data export through compatible PC software.

Technical Specifications

Overall Resistance Range: 0.001mΩ–300.0kΩ

Minimum Resolution: 1µΩ

Measurement Method: Four-wire resistance measurement

Low Resistance Range: 0.001mΩ–100.00mΩ | Test Current: 1A

Milliohm Range: 100.1mΩ–1000.00mΩ | Test Current: 100mA

Resistance Range: 1.001Ω–10.000Ω | Test Current: 10mA

Resistance Range: 10.01Ω–100.00Ω | Test Current: 1mA

Resistance Range: 100.1Ω–1000.0Ω | Test Current: 100µA

Kilohm Range: 1.001kΩ–10.000kΩ | Test Current: 10µA

Kilohm Range: 10.01kΩ–100.00kΩ | Test Current: 3µA

Upper Resistance Range: 100.1kΩ–300.0kΩ | Test Current: 3µA

Maximum Test Current: ≤1A

Open-Circuit Voltage: ≤4.2V

Input Protection: ≤36V AC/DC

Measurement Speed: Approximately 2 readings per second

Measurement Power Consumption: ≤8W

Data Storage: 500 measurement records

Display: Segment LCD with backlight

Connectivity: USB Type-C

Power Supply: DC 3.7V, 3200mAh rechargeable lithium battery

Dimensions: 161 × 117 × 68mm

Weight: 480g including battery

Protection Rating: IP54

Colour: Black and red

Key Features

Micro-Ohm Measurement: 1µΩ-level resolution for detailed low-resistance testing

Four-Wire Testing: Four-wire method with test leads and alligator clips for improved low-resistance measurement

Automatic Ranging: Auto-range operation across multiple resistance ranges

Data Storage: Stores up to 500 measurement records

PC Software Support: Read, save and export historical testing data for maintenance documentation

USB Connectivity: USB Type-C interface for compatible PC connection

Backlit Display: Large segment LCD for improved readability in low-light work areas

Rechargeable Battery: 3200mAh lithium battery with low-battery indication

Auto Power-Off: Powers off after 15 minutes without operation

Portable Build: Compact, lightweight housing with IP54 protection for field and workshop use

Applications

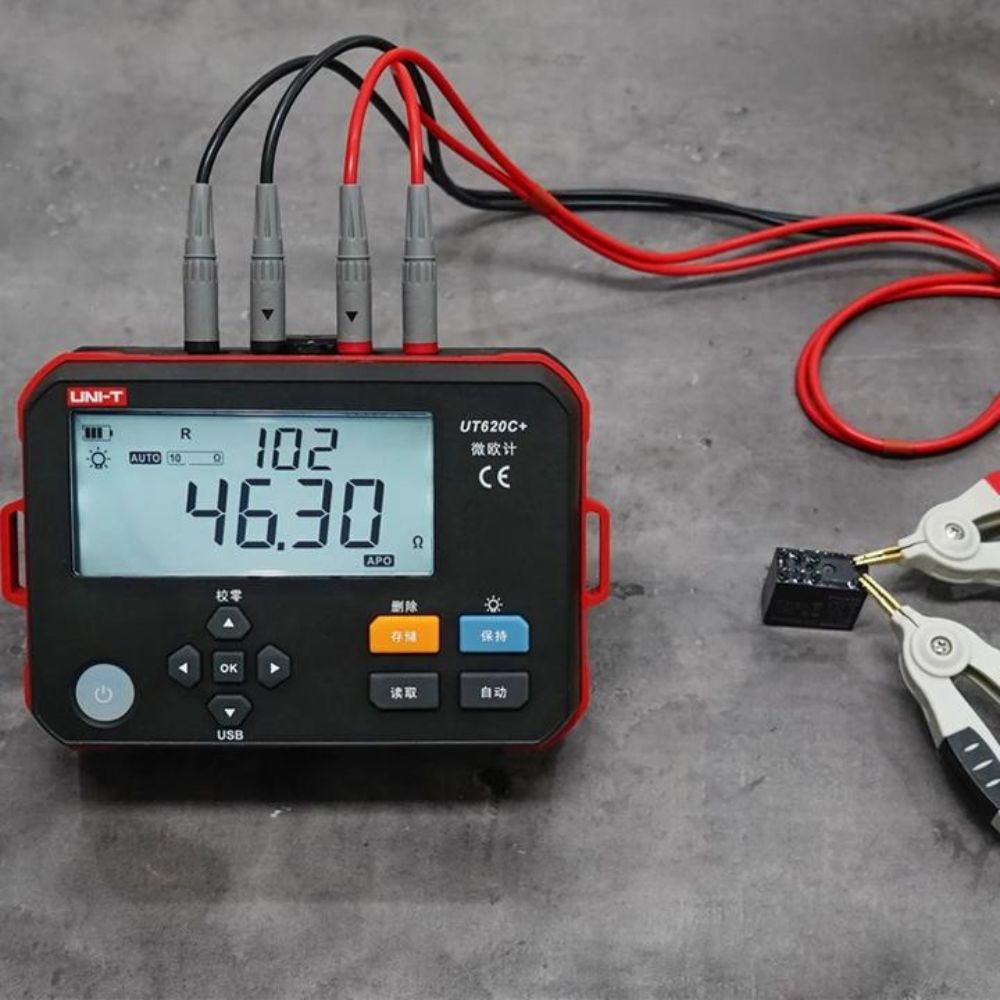

Resistance testing of wires, connectors and electrical joints

Contact resistance checks on switches, contactors and fuses

Resistance measurement of coils and transformer windings

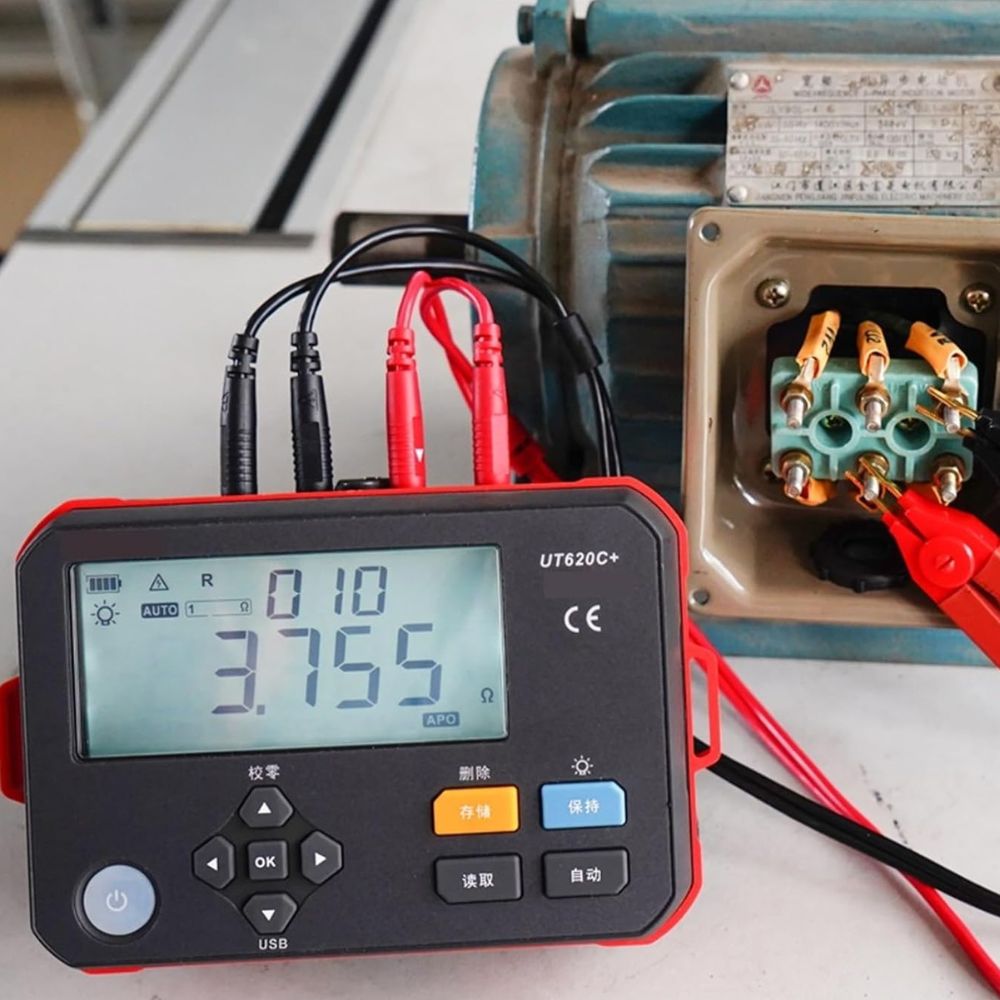

Winding and welding resistance testing on large motors and stators

Electrical maintenance for hybrid and electric vehicle equipment

Testing in telecommunications, power distribution, petrochemical and industrial grounding systems

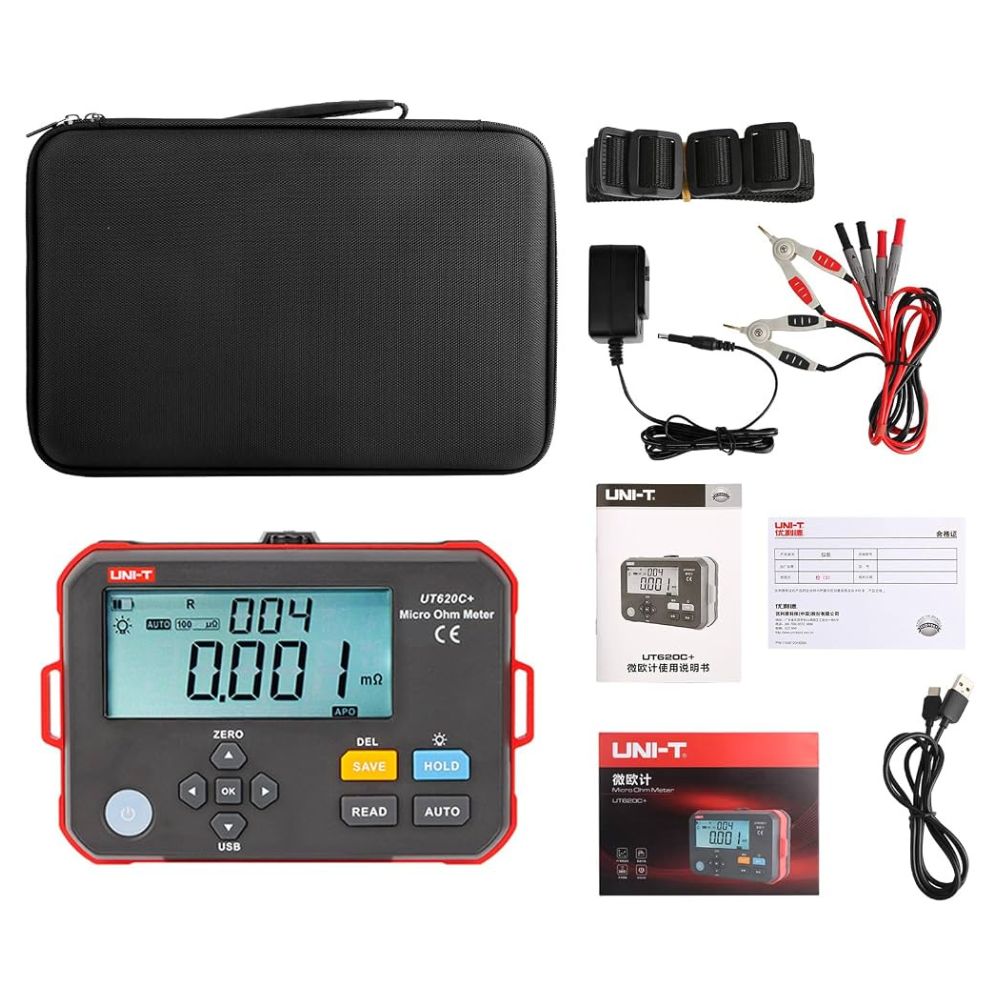

Package Includes

1 x UNI-T UT620C+ Micro Ohm Meter main unit

Four-wire test leads with alligator clips

Rechargeable 3.7V 3200mAh lithium battery

Downloads

📄 Download UNI-T UT620C+ Data Sheet
