UNI-T UT61E+ True RMS Digital Multimeter | 22000-Count Professional Precision DMM

High-Resolution Electrical Diagnostics for Industrial Maintenance, R&D and Advanced Field Service in Sri Lanka

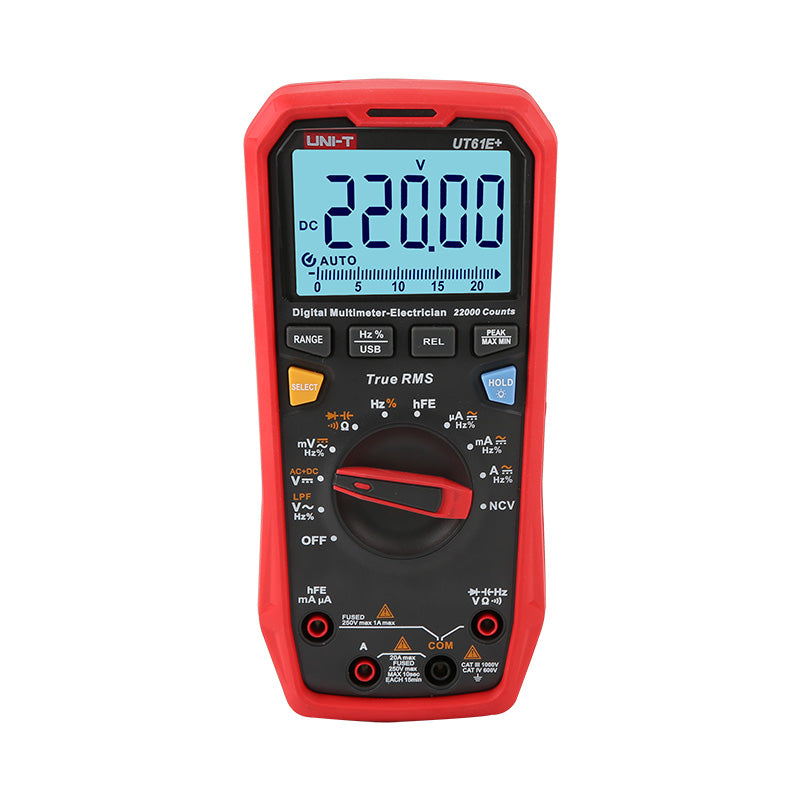

The UNI-T UT61E+ is a professional-grade True RMS digital multimeter featuring unmatched 22000-count resolution and 220mF capacitance testing capability for precision electrical diagnostics in industrial maintenance, electronics R&D and advanced field service applications. With 1000V AC/DC voltage, 20A AC/DC current, 220MΩ resistance, 10kHz bandwidth AC measurements, USB data logging and CAT IV 600V safety rating, this meter delivers laboratory accuracy for Sri Lankan factories, power plants and engineering workshops from Colombo to Trincomalee.

The UT61E+ offers True RMS accuracy across 45Hz-10kHz bandwidth, peak hold capture, LoZ low-impedance AC voltage measurement, AC+DC True RMS detection, 46-segment analog bar graph and audible/visual NCV detection with input protection. Its RS232/USB interface enables PC data logging for trend analysis and compliance reporting, while the multi-purpose socket supports transistor hFE testing. Designed for professionals requiring maximum precision and safety in high-energy industrial environments across Sri Lanka's manufacturing and power sectors.

Key Features of UNI-T UT61E+ Multimeter

22000-Count High Resolution: Superior 0.05%+5 DCV accuracy and 220MΩ resistance range reveal subtle measurement variations invisible to 6000-count meters.
220mF Large Capacitance Testing: Complete electrolytic capacitor bank analysis for UPS systems, motor start circuits and power supply filter networks.

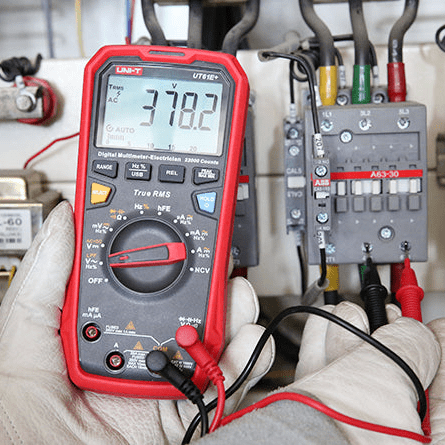

Professional True RMS AC Analysis: 10kHz bandwidth, LoZ mode, AC+DC True RMS and LPF filtering for accurate inverter, VFD and UPS waveform measurements.
Peak Hold & Advanced Functions: Capture inrush currents, MAX/MIN/REL modes, 1ms peak response and 46-segment analog bar for transient analysis.
USB Data Logging Interface: RS232/USB connectivity with PC software enables automated data recording, trend analysis and compliance reporting.

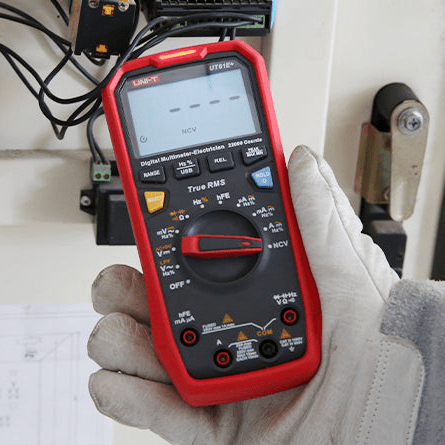

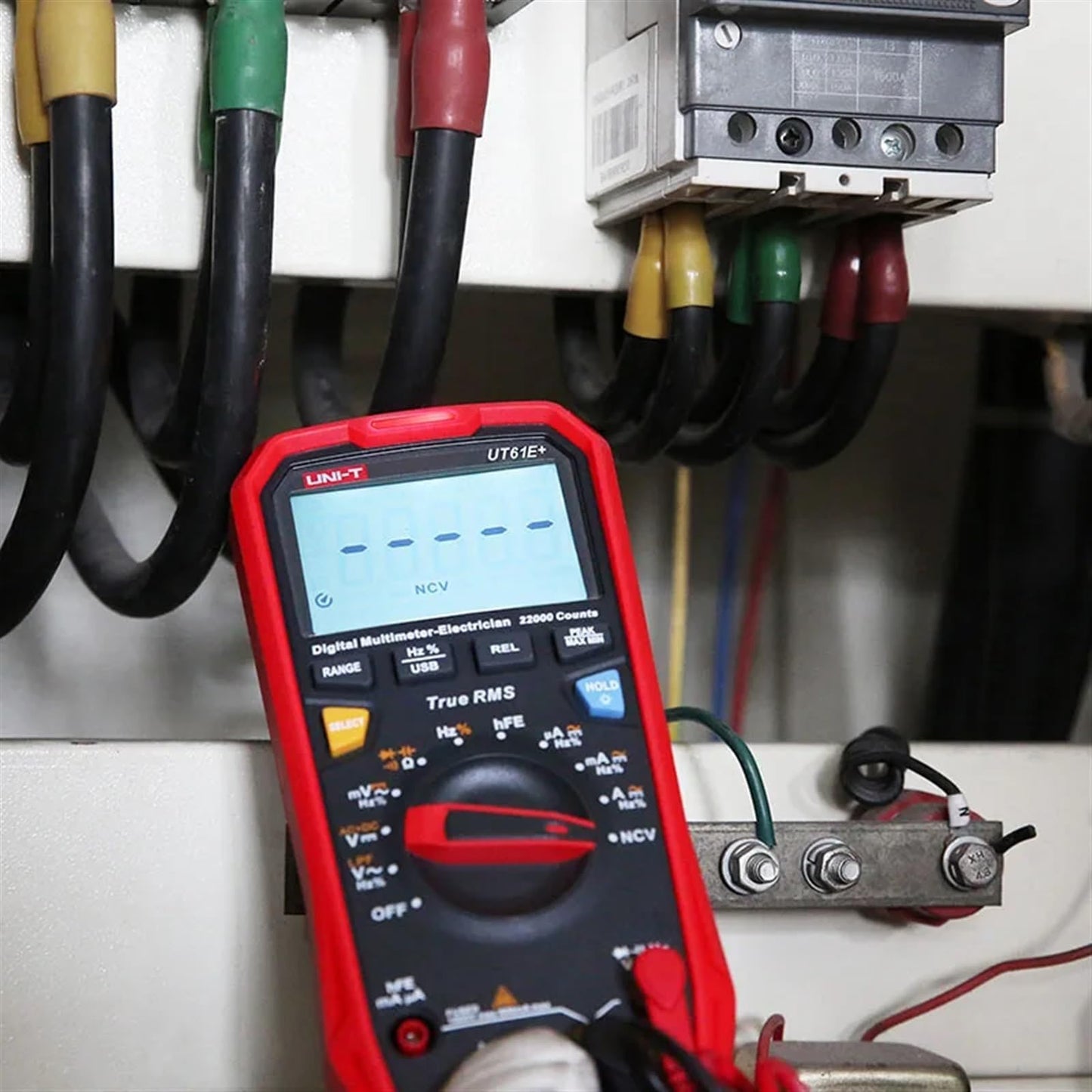

Industrial CAT IV 600V Safety: Double insulation, audible alarms, NCV detection and rugged 350g housing for harsh industrial environments.

Common Applications of UT61E+ in Sri Lanka

Factory Automation & PLC Diagnostics: High-resolution measurements of VFD outputs, servo drive currents, sensor signals and control circuit verification.
Power Quality Analysis: AC+DC True RMS, LoZ measurements and harmonic analysis for UPS systems, generators and grid-connected inverters.
Industrial Motor & Drive Maintenance: Precise current/voltage balance testing, winding resistance and large capacitor bank evaluation in manufacturing plants.
R&D and Calibration Laboratories: 22000-count resolution and USB logging for precision instrumentation, prototype testing and calibration verification.

Technical Specifications of UNI-T UT61E+

DC Voltage: 220mV~1000V ±(0.05%+5), 22000-count resolution
AC Voltage (True RMS): 220mV~1000V ±(0.8%+10), 45Hz~10kHz bandwidth
AC/DC Current: 20A ±(0.8%+10) AC / ±(0.5%+10) DC
Resistance: 220Ω~220MΩ ±(0.5%+10)
Capacitance: 22nF~220mF ±(3%+5)
Frequency/Duty Cycle: 10Hz~220MHz ±(0.01%+5), 0.1%~99.9% duty
Display & Interface: 22000-count LCD (65x43mm), USB/RS232, 46-segment bar graph, 350g | CAT IV 600V

Frequently Asked Questions about UT61E+ Multimeter

Why choose 22000-count over 6000-count meters?: 4x higher resolution reveals 0.005% variations critical for precision industrial diagnostics and calibration work.
Does 220mF capacitance handle power circuits?: Yes – tests large motor start capacitors, UPS filter banks and industrial power supply electrolytic capacitors.
Is USB logging useful for compliance?: Essential – automated timestamped data capture satisfies ISO quality systems and preventive maintenance records.
