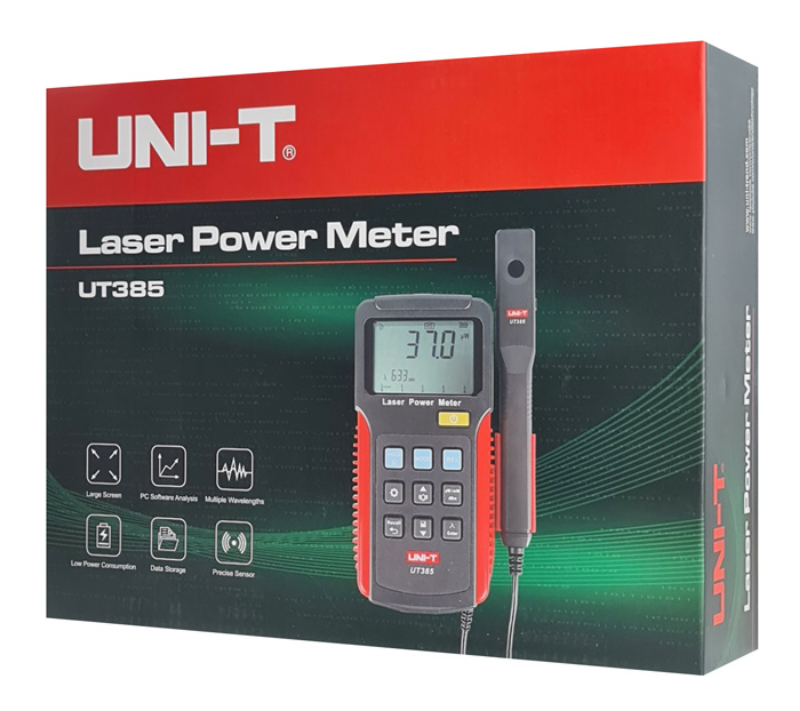

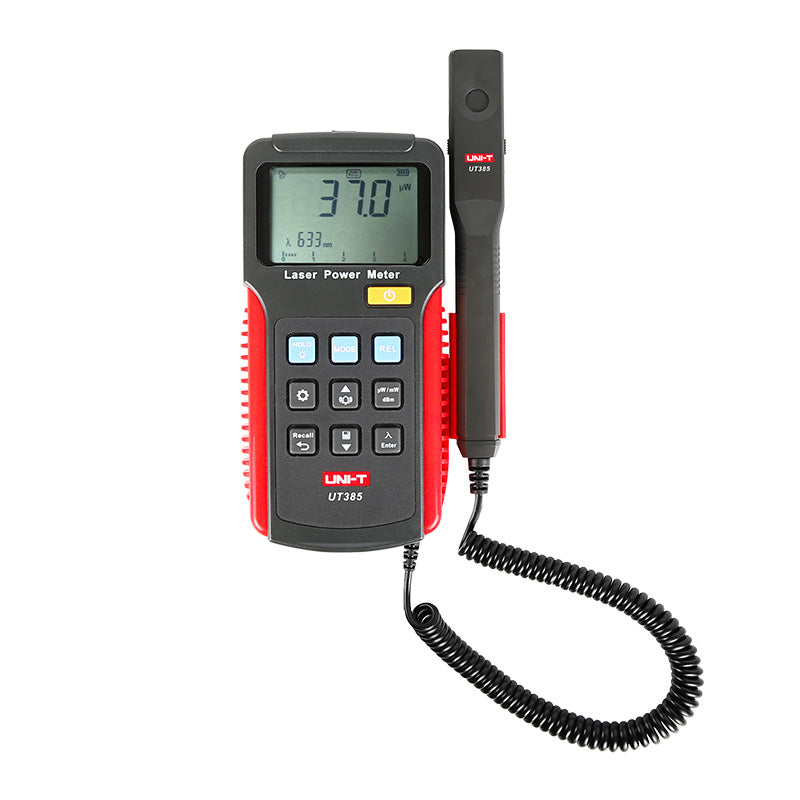

UNI-T UT385 Laser Power Meter Data Logger

UNI-T UT385 Laser Power Meter Data Logger

Professional Laser Energy Measurement with Data Logging

The UNI-T UT385 Laser Power Meter Data Logger is designed to measure the energy output of laser beams for testing and laser system applications. Using a precise detection sensor, it determines the intensity of a laser beam’s energy output with high accuracy. Ideal for teaching, medical science, industry, and research, this device provides reliable measurements with a user-friendly design.

Key Features

Precise laser sensor for accurate measurements

LCD screen for clear readings

Data storage function for up to 199 sets

Threshold alarm function for safety monitoring

Selectable and customizable wavelengths

Low power consumption with auto power-off

Split design with retractable spring wire

Certificates: CE, RoHS

Technical Specifications

Measurement range

0uW ~ 39.99mW

Measurement accuracy

0uW ~ 10uW: ±(5%+0.3), 10uW ~ 39.9mW: ±5%

Laser wavelength range

400nm ~ 1100nm

Preset wavelength options

520nm, 633nm, 650nm, 780nm

LCD display

4-digit, with backlight

Sampling rate

0.5s

Data storage

199 sets

Battery level indication

Yes

Auto power off

Yes

Operating temperature

0 ~ 40°C

Operating humidity

≤80%RH (no condensation)

Storage temperature

-10°C ~ 50°C

Power

9V battery (6F22)

Display size

57mm x 37mm

Product net weight

319g

Product size

198mm x 104mm x 35mm

Applications

Application in teaching for academic demonstrations and experiments

Calibration of laser-based devices in medical science

Testing of laser equipment for industrial applications

Precise laser measurement for research & development

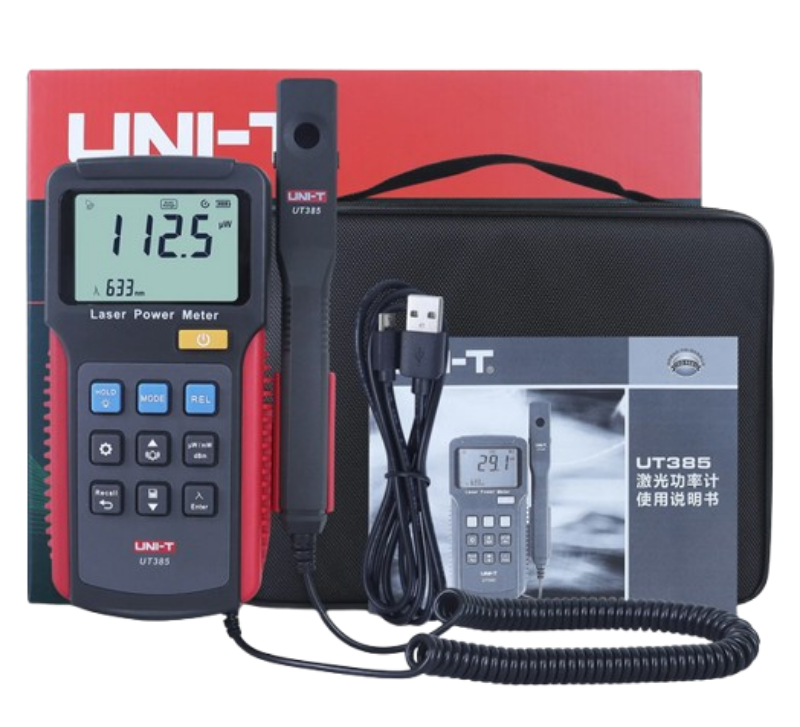

Package Includes

UT385 Laser Power Meter

9V Battery

USB Cable

Documents Download Guide

English Manual

Downloads

📄 Download UNI-T UT385 Data Sheet
