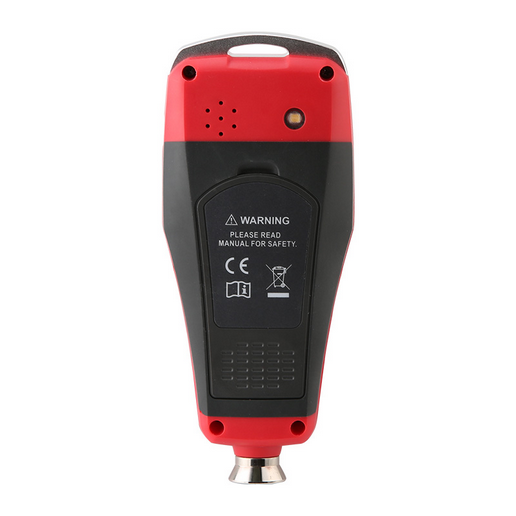

UNI-T UT343E Coating Thickness Gauge

UNI-T UT343E Coating Thickness Gauge in Sri Lanka

High-Performance Coating Measurement with Bluetooth

The UNI-T UT343E Coating Thickness Gauge is a high-performance measuring instrument designed to evaluate coating thickness on both ferrous and non-ferrous substrates. With a measuring range of up to 2000 µm, it supports advanced data analysis via Bluetooth mobile app and PC software, making it ideal for modern industrial applications.

Looking for more options? Explore our full range of coating thickness gauges in Sri Lanka to compare models, specifications, and prices.

This device is equipped with intelligent features such as voice broadcast, a durable probe, multiple measurement modes, and a dedicated automobile mode. Its robust build and advanced connectivity make it indispensable for manufacturing, metal processing, chemical industry, and quality assurance, ensuring precision and efficiency.

Key Features

Meets CE and UKCA standards for certified compliance

Measures an extended range from 0 to 2000 µm with high accuracy of ±(2%H+2 µm)

Supports real-time data transfer and analysis via Bluetooth mobile app and PC software

Measures conductive coatings such as chromium, zinc, and tin

Features a durable probe for long-lasting, consistent measurements

Includes voice broadcast for audible feedback during hands-free operation

Offers a dedicated automobile mode for streamlined vehicle paint inspections

Provides multiple measurement modes, including single, continuous, and statistical (Max/Min/Avg)

Equipped with a 2-inch auto-rotatable color TFT LCD for clear visibility

Stores up to 3300 sets of measurement data for comprehensive record-keeping

Technical Specifications

Model

UT343E

Measuring Range

0–2000 µm

Accuracy

±(2%H+2 µm)

Resolution

0.1 µm (0–99.9 µm); 1 µm (100–2000 µm)

Substrate Type

Ferrous / Non-ferrous (Auto/Manual Identification)

Measurement Methods

Single / Continuous

Measurement Modes

Max / Min / Avg

Display

2.0-inch color TFT LCD (auto-rotatable)

Connectivity

Bluetooth App, USB (PC software)

Data Storage

3300 groups

Special Features

Voice Broadcast, LED Alarm, Flashlight

Power Supply

3.7V 1300mAh rechargeable Lithium battery

Auto Power Off

Yes, after 5 minutes

Certifications

CE, UKCA

Dimensions

152 × 65 × 35 mm

Weight

150 g

Applications

Ensures quality in the automotive industry for advanced coating inspection and corrosion protection

Monitors paint and protective layer consistency in aerospace and marine sectors

Provides reliable quality control for metal fabrication & processing, including plating and galvanization

Offers quick, reliable measurements with Bluetooth data logging for commodity inspection and compliance

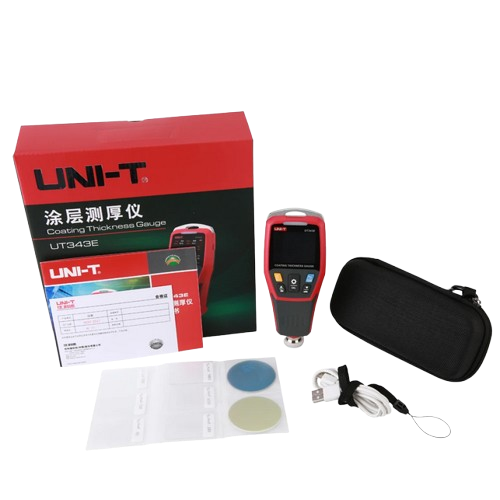

Package Includes

1 x UNI-T UT343E Coating Thickness Gauge

1 x USB Cable

1 x Ferrous Substrate

1 x Non-ferrous Substrate

1 x Set of Standard Coating Thickness Sheets (6 pcs)

1 x Hand Strap

1 x Carrying Bag

1 x User Manual

Downloads

📄 Download UNI-T UT343E Data Sheet
📄 Download UNI-T UT343E User Manual
