UNI-T UT343D Coating Thickness Gauge

UNI-T UT343D Coating Thickness Gauge in Sri Lanka

Precision Gauge with Quick Test Mode

The UNI-T UT343D Coating Thickness Gauge is a precision instrument engineered for measuring coating thickness on both ferrous and non-ferrous substrates. Its quick test mode utilizes a 3-color LED indicator and an audio alarm, allowing users to instantly verify if a coating meets preset thresholds, which significantly improves workflow efficiency in production and inspection environments.

Looking for more options? Explore our full range of coating thickness gauges in Sri Lanka to compare models, specifications, and prices.

Equipped with an auto-rotatable TFT display and USB connectivity for the included PC analysis software, the UT343D provides advanced capabilities for detailed reporting and data management. With a measurement range of up to 1250 µm and high accuracy, it stands as a reliable tool for quality inspection in the automotive, aerospace, and metal processing industries.

Key Features

Features a Quick Test Mode with a 3-color LED and audio alarms for instant pass/fail evaluation

Measures a wide range from 0 to 1250 µm with high accuracy of ±(3%H+1) µm

Includes PC analysis software for data transfer, reporting, and analysis via USB

Supports both single and continuous measurement methods

Offers statistical modes including Max, Min, and Avg for comprehensive analysis

Saves up to 500 data groups for enhanced traceability and record-keeping

Features a 2.0-inch auto-rotatable TFT LCD for clear viewing at any angle

Allows for easy unit conversion between micrometers (µm) and mils

Designed for power efficiency with an auto power-off function and low battery indicator

Technical Specifications

Model

UT343D

Measuring Range

0–1250 µm

Accuracy

±(3%H+1) µm

Resolution

0.1 µm (0–99.9 µm); 1 µm (100–1250 µm)

Substrate Type

Ferrous / Non-ferrous

Measurement Methods

Single / Continuous

Measurement Modes

Max / Min / Avg / Quick Test

Display

2.0-inch TFT LCD (320 × 240 px), auto-rotatable

Connectivity

USB (for PC software)

Data Storage

500 groups

Alarms

3-color LED and audio buzzer

Power Supply

2 × 1.5V AA batteries

Auto Power Off

Yes, after 5 minutes

Certifications

CE, UKCA

Dimensions

153.5 × 64.5 × 41 mm

Weight

Approx. 175 g

Applications

Perfect for the automotive industry for verifying paint thickness and preventing corrosion

Used in aerospace and marine sectors to ensure coating uniformity and protective layer integrity

Essential for quality inspection in metal fabrication & processing, including galvanization and plating

Ideal for commodity inspection, providing fast and reliable testing with clear pass/fail alerts

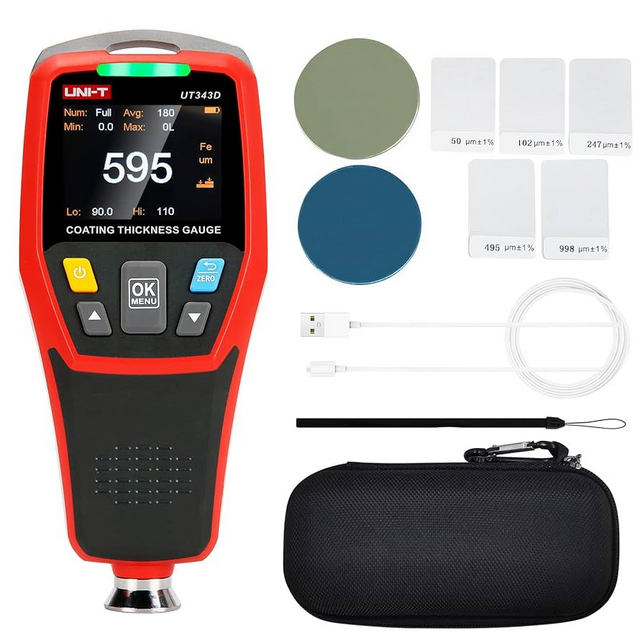

Package Includes

1 x UNI-T UT343D Coating Thickness Gauge

1 x Micro USB Cable

1 x Ferrous Substrate

1 x Non-ferrous Substrate

1 x Set of Standard Coating Films

2 x 1.5V AA Batteries

1 x Cloth Carrying Bag

1 x User Manual
