UNI-T UT343A Coating Thickness Gauge

UNI-T UT343A Coating Thickness Gauge in Sri Lanka

Compact Dual-Substrate DFT Meter

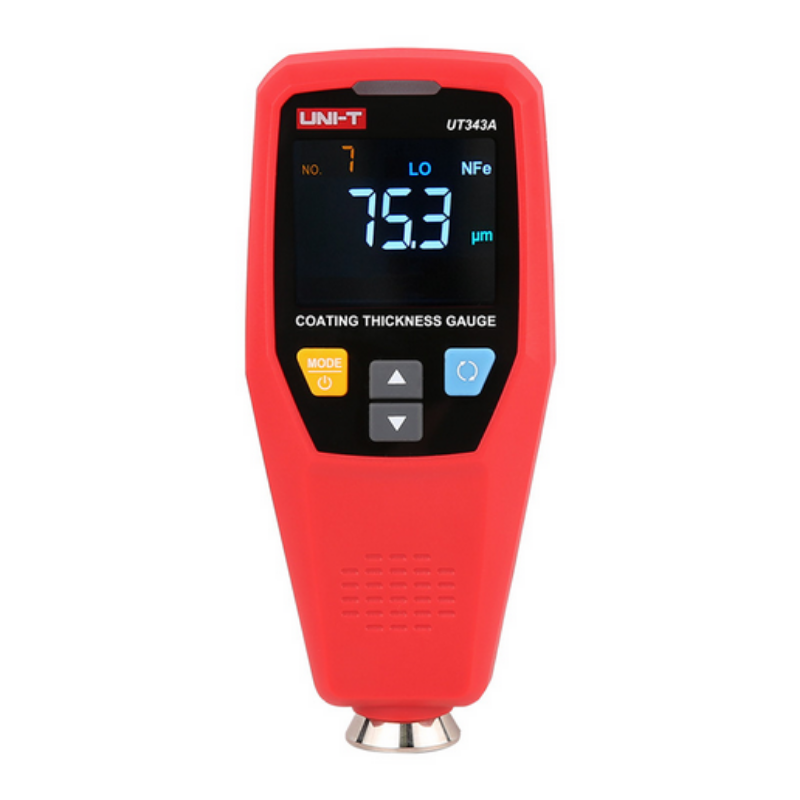

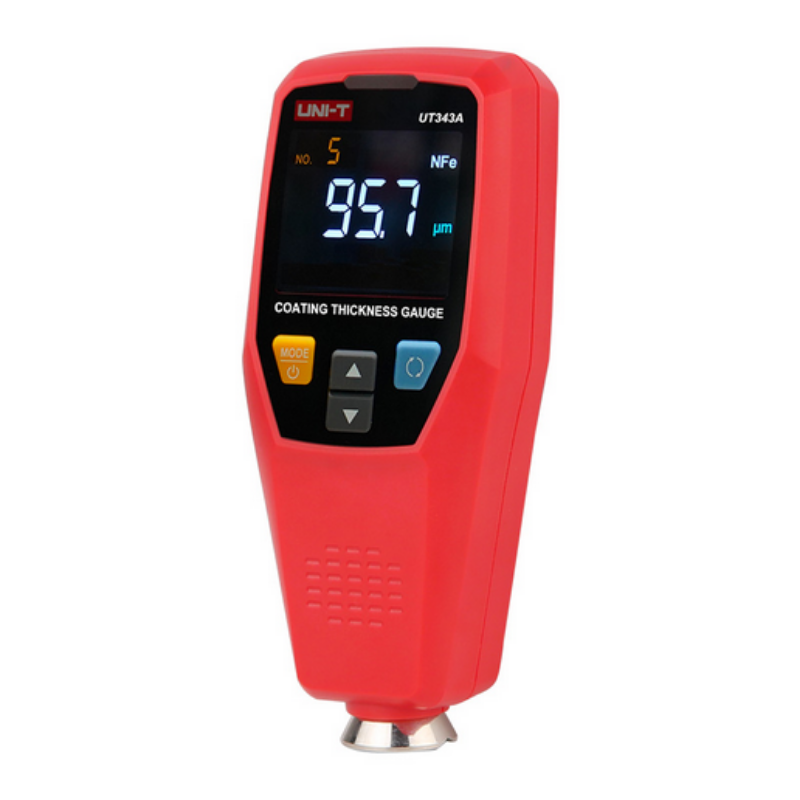

The UNI-T UT343A Coating Thickness Gauge measures paint, plating and other coatings on ferrous and non-ferrous metal, from 0 to 1750μm. It identifies the substrate automatically and measures without damaging the surface. This suits metal-processing, painting and quality inspection work in Sri Lanka. Browse our full range of coating thickness gauges in Sri Lanka.

It combines magnetic induction and eddy current sensing in one probe. The EBTN screen rotates for easier reading from different angles. A three-colour LED shows whether a reading is within your set limits, and the gauge stores 199 groups of readings. At 111g, it is easy to carry between the workshop and the field.

Technical Specifications

Measuring Range

0~1750μm (0~68.9mil) | Shows OL between 1750 and 2000μm

Resolution

0.1μm (0~99.9μm) | 1μm (100~1750μm)

Accuracy

±(3%H+1)μm

Substrate Type

Ferrous (Fe) and non-ferrous (NFe) metals | Auto, Fe or NFe probe mode

Measurement Method

Single or continuous | MAX/MIN/AVG statistics | Refresh rate 0.5s

Minimum Substrate Thickness

0.5mm

Minimum Measuring Area | Curvature Radius

20mm diameter | 5mm convex, 50mm concave

Display

EBTN colour screen, rotatable, with μm/mil switching

Power

2 x 1.5V AAA (LR03) alkaline batteries | Auto power-off after 5 minutes

Operating | Storage Environment

0~40°C, ≤80%RH | -20~60°C, ≤75%RH

Size and Weight

117 × 53 × 37 mm | About 111 g (including batteries)

Key Features

Dual-Principle Sensor

Magnetic induction for coatings on steel and iron, eddy current for non-conductive coatings on aluminium and copper

Automatic Substrate Detection

Identifies ferrous or non-ferrous metal without manual switching

Limit Alerts

Green LED for within limits, red for below the lower limit, yellow for above the higher limit, with optional buzzer

Statistics

MAX, MIN and AVG values on screen

Data Storage

Saves 199 groups of readings that you can review or delete

Multi-Point Calibration

Zero point plus 50, 100, 500, 1000 and 1500μm points

Durability

Withstands a 1 metre drop

Applications

• Paint and coating checks in metal processing and manufacturing
• Galvanised or plated steel inspection
• Coating checks on aluminium and copper parts
• Vehicle and marine component inspection
• Quality supervision and laboratory testing

Buying Guidance

The UT343A works only on metal substrates. On non-ferrous metals, the coating must be non-conductive. Calibrate on an uncoated substrate similar to your workpiece, then take 5 readings at 3 to 5 points and average them. Very small, thin or tightly curved parts may fall outside the gauge's limits.

For a larger display with quick-test LED alerts and PC data export, consider the UNI-T UT343D Coating Thickness Gauge.

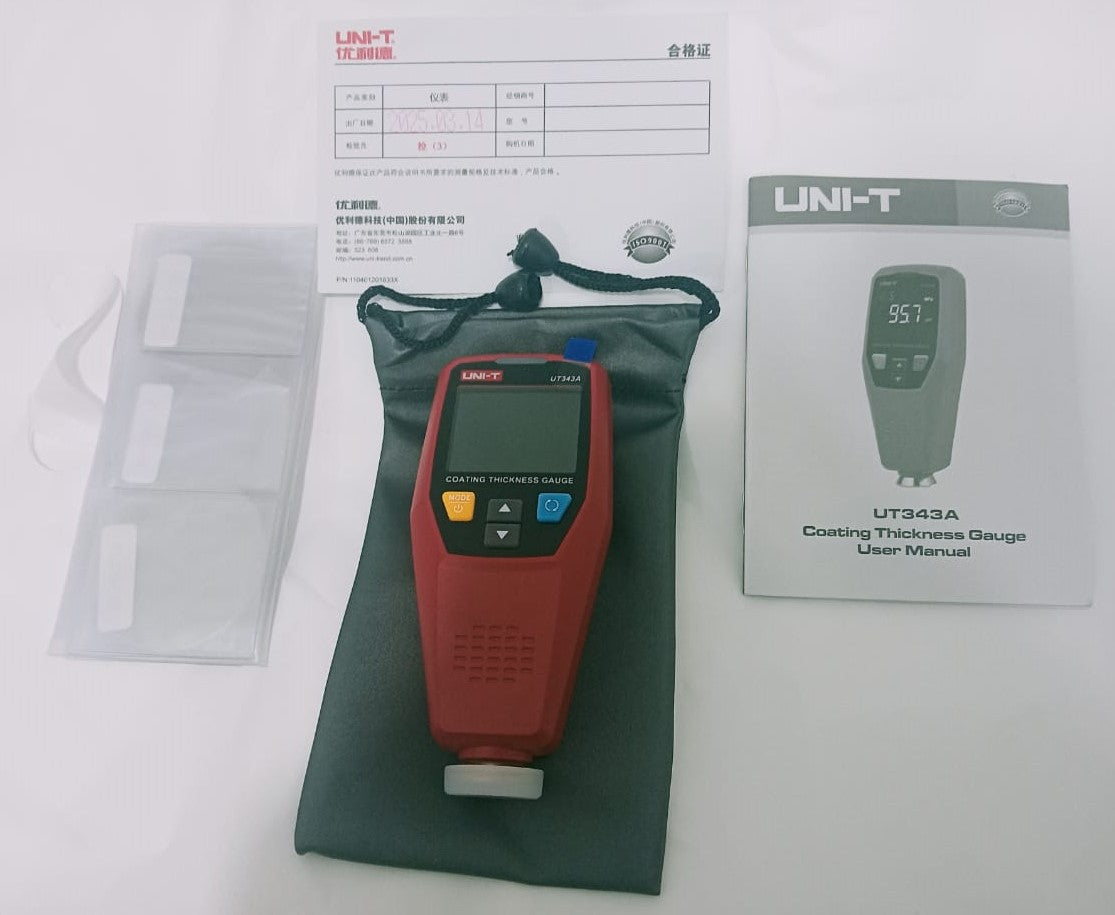

Package Includes

• 1 x UNI-T UT343A Coating Thickness Gauge main unit
• 1 x Set of standard coating thickness sheets (5 pcs)
• 1 x Ferrous substrate
• 1 x Non-ferrous substrate
• 1 x Sensor protective cover
• 2 x 1.5V AAA (LR03) batteries
• 1 x User manual
