UNI-T UT336E KIT Digital Manifold Gauge with Wireless Temperature Clamps

UNI-T UT336E KIT Digital Manifold Gauge in Sri Lanka

Digital HVAC Manifold with Wireless Temperature Clamps

The UNI-T UT336E KIT Digital Manifold Gauge is a professional HVAC and refrigeration diagnostic instrument for measuring high- and low-side refrigerant pressure, monitoring system temperatures, and supporting air-conditioning and heat-pump service work. The kit includes two UT320i wireless temperature clamps for convenient temperature measurement on refrigeration and air-conditioning pipework.

With a built-in database of more than 160 refrigerants, the UT336E can calculate evaporation temperature, condensation temperature, superheat, and subcooling according to the selected refrigerant and measured system conditions. Its 3.5-inch TFT colour display, pressure zeroing function, rechargeable battery, data recording, and mobile-app support help technicians carry out service and commissioning work more efficiently.

Technical Specifications

Pressure Measurement Range: -1.00 to +60.00 bar | -0.100 to +6.000 MPa | -14.5 to +870.2 psi | -100 to +6000 kPa | -1.02 to +61.18 kg/cm²

Pressure Resolution: 0.01 bar | 0.001 MPa | 0.1 psi | 1 kPa | 0.01 kg/cm²

Pressure Accuracy: ±0.5% FS

Temperature Measurement Range: -50 to 150°C | -58 to 302°F

Temperature Resolution: 0.1°C / 0.1°F

Temperature Accuracy: ±0.5°C from -50 to 80°C; ±1°C for other temperatures

Wireless Range: Up to 100 m in open spaces

Refrigerant Database: 162 refrigerant types listed in the user manual, with mobile-app update support

Pressure Units: bar, kPa, MPa, psi, kg/cm², cmHg, and inHg

Temperature Units: °C and °F

IP Rating: UT336E digital manifold gauge: IP54 | UT320i wireless temperature clamp: IP65

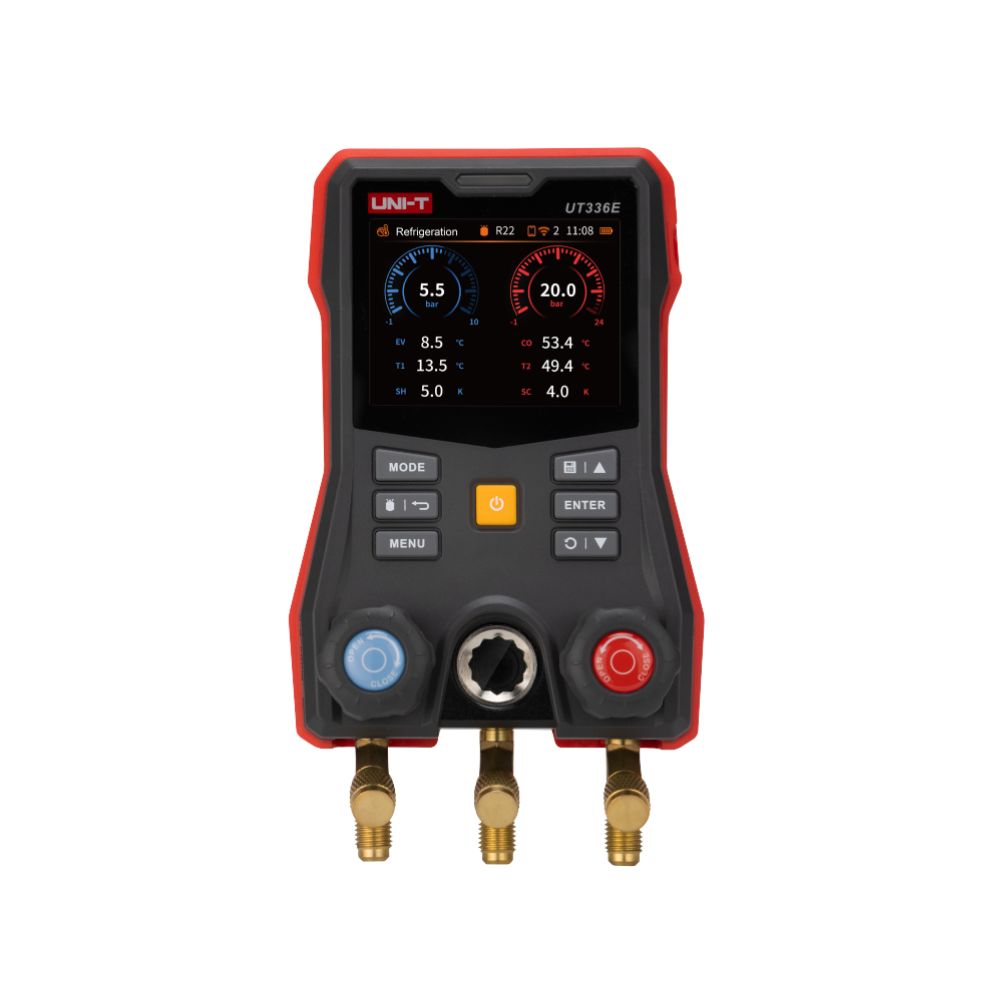

Display: 3.5-inch TFT colour screen with analogue dial display design

Data Storage: Up to 10,000 records with adjustable recording intervals

Battery: Built-in rechargeable 3.7 V, 5200 mAh lithium battery

Battery Life: More than 30 hours with 50% backlight and wireless connection disabled

Charging: 5 V / 2 A USB-C charging; approximately 4.5 hours charging time

Manifold Size: 203 × 117 × 70 mm

Manifold Weight: Approximately 836 g

Key Features

High- and Low-Side Measurement: Monitor both high-side and low-side refrigerant pressure through the digital manifold during system diagnosis and servicing.

Wireless Temperature Clamps: Includes two UT320i clamps for measuring pipe temperatures without running temperature cables across the work area.

Superheat and Subcooling: Calculates superheat and subcooling using measured temperatures and the selected refrigerant properties.

Multiple Test Modes: Supports Refrigeration, Evacuation, Pressure Test, and Delta T modes for different HVAC and refrigeration tasks.

Refrigerant Library: Built-in database with more than 160 refrigerants, including widely used options such as R32, R134a, R290, R404A, R407C, R410A, R507A, R600a, and R744.

Mobile-App Connectivity: Connect to the compatible iENV mobile application for remote data viewing and report exporting.

Pressure Zeroing: Zero the pressure sensors before measurement to support dependable field readings.

Pressure-Holding Test: Monitor pressure changes over time and identify possible leaks during a pressure-holding procedure.

Data Recording: Store up to 10,000 measurement records for service documentation and trend review.

Rechargeable Design: Built-in lithium battery with USB-C charging for convenient professional use.

Field Protection: The UT336E manifold is rated IP54 for protection against limited dust ingress and splashing water in suitable working conditions.

Applications

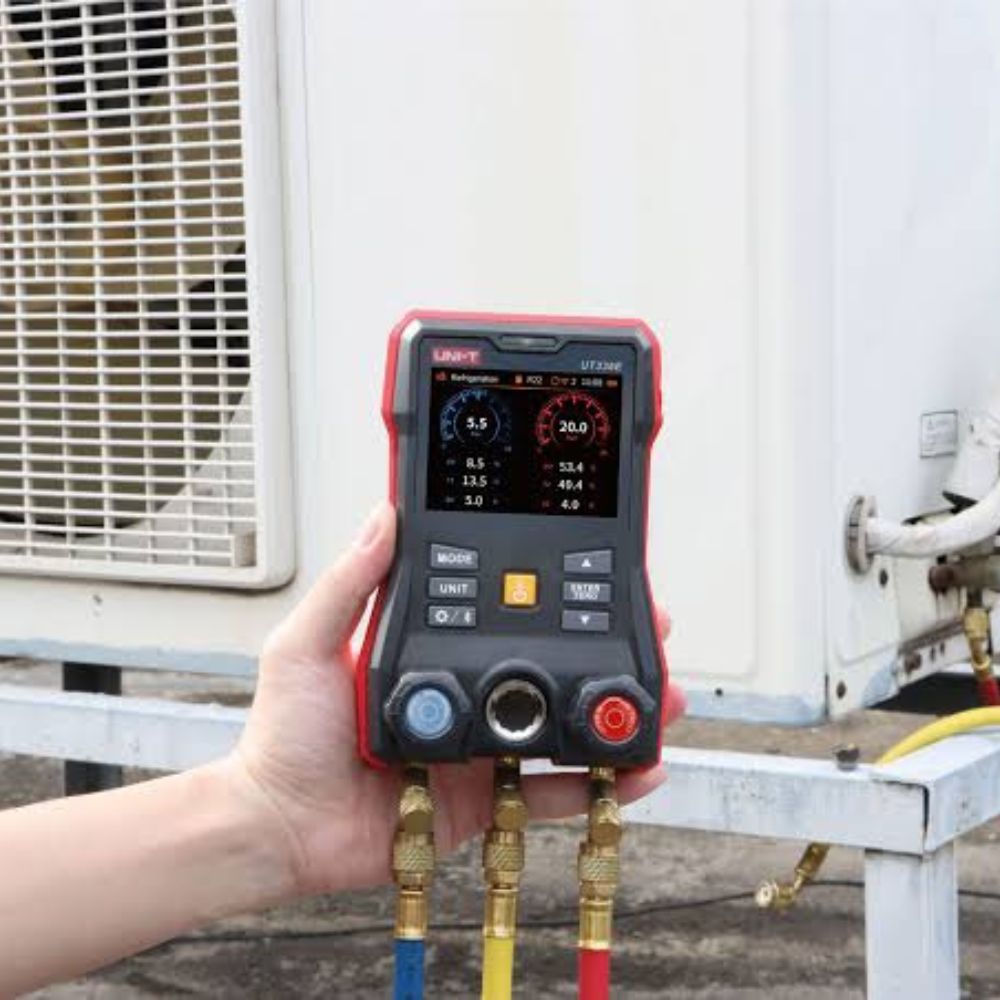

Installation, commissioning, and maintenance of residential air-conditioning systems

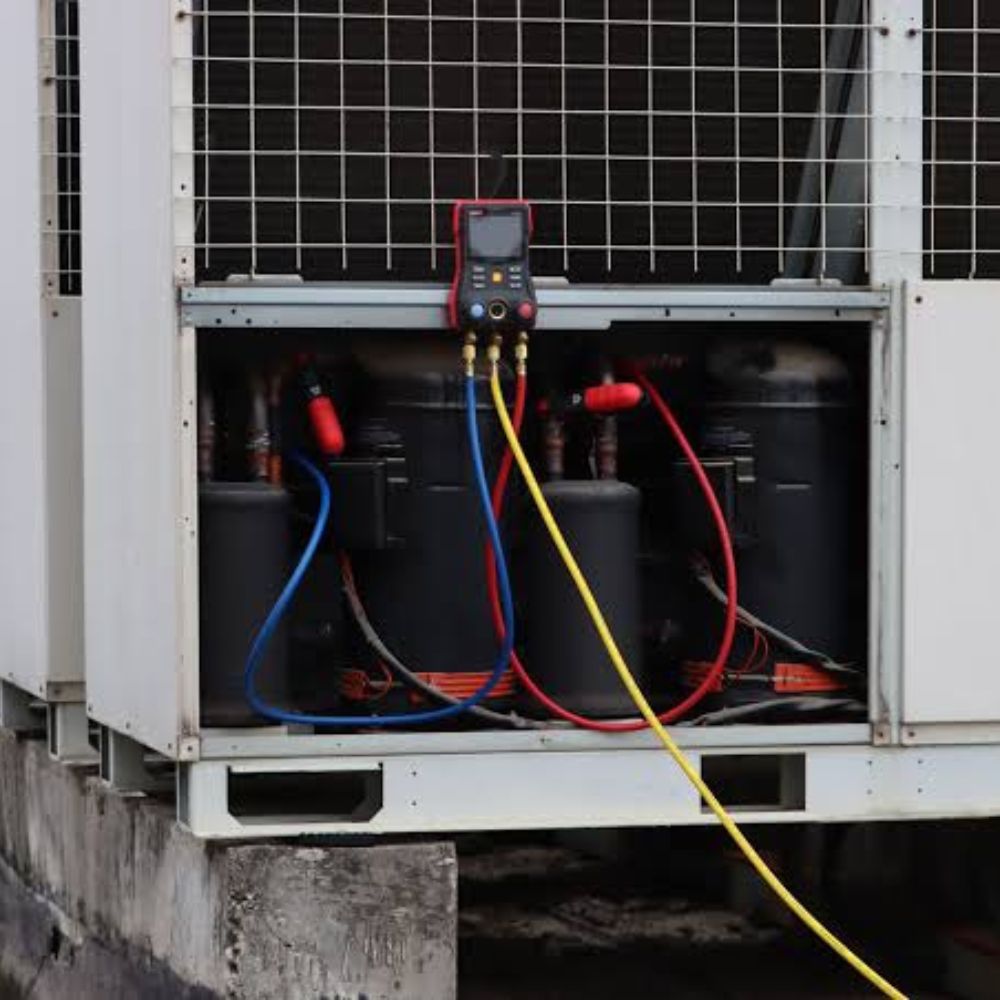

Commercial HVAC service and refrigeration troubleshooting

Heat-pump pressure and temperature diagnostics

Refrigerant charging and system performance verification

Superheat and subcooling checks

Pressure-holding and leak-indication tests

Evacuation-status monitoring before refrigerant charging

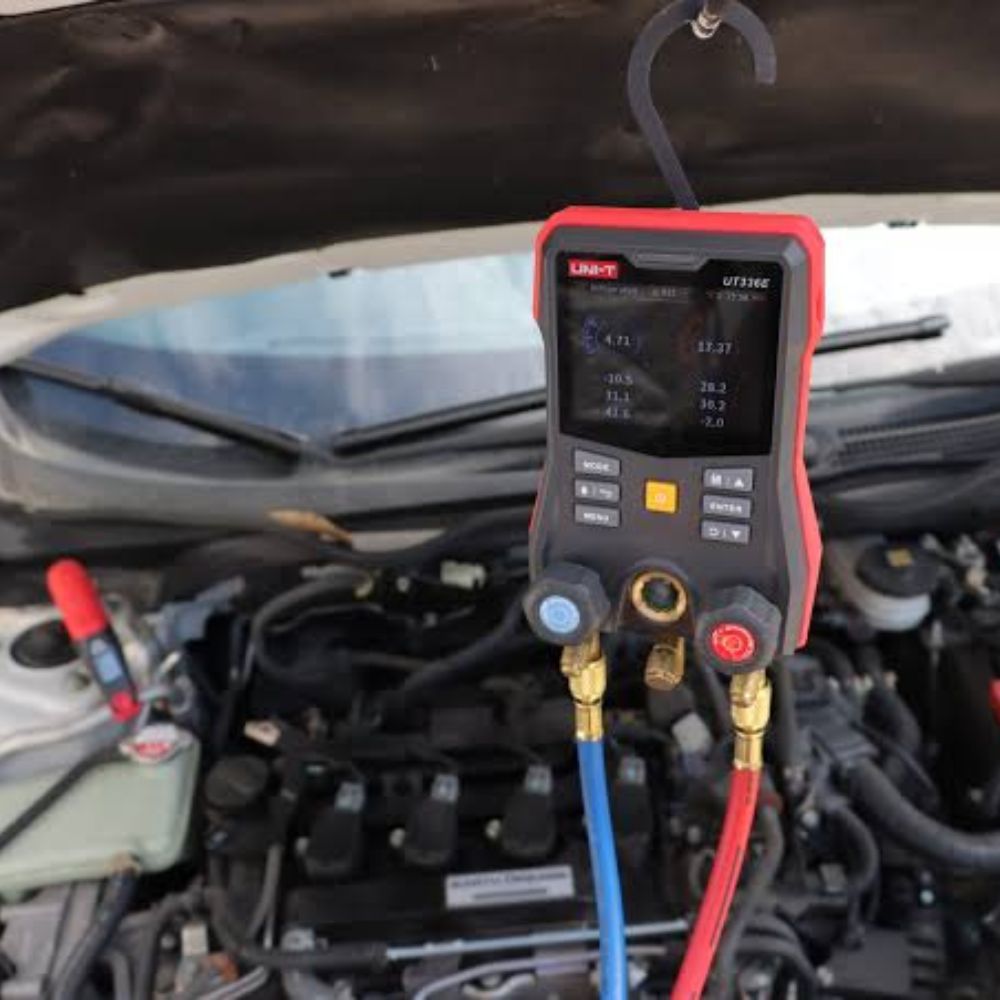

Automotive AC maintenance

Industrial refrigeration servicing

Pipeline pressure testing applications

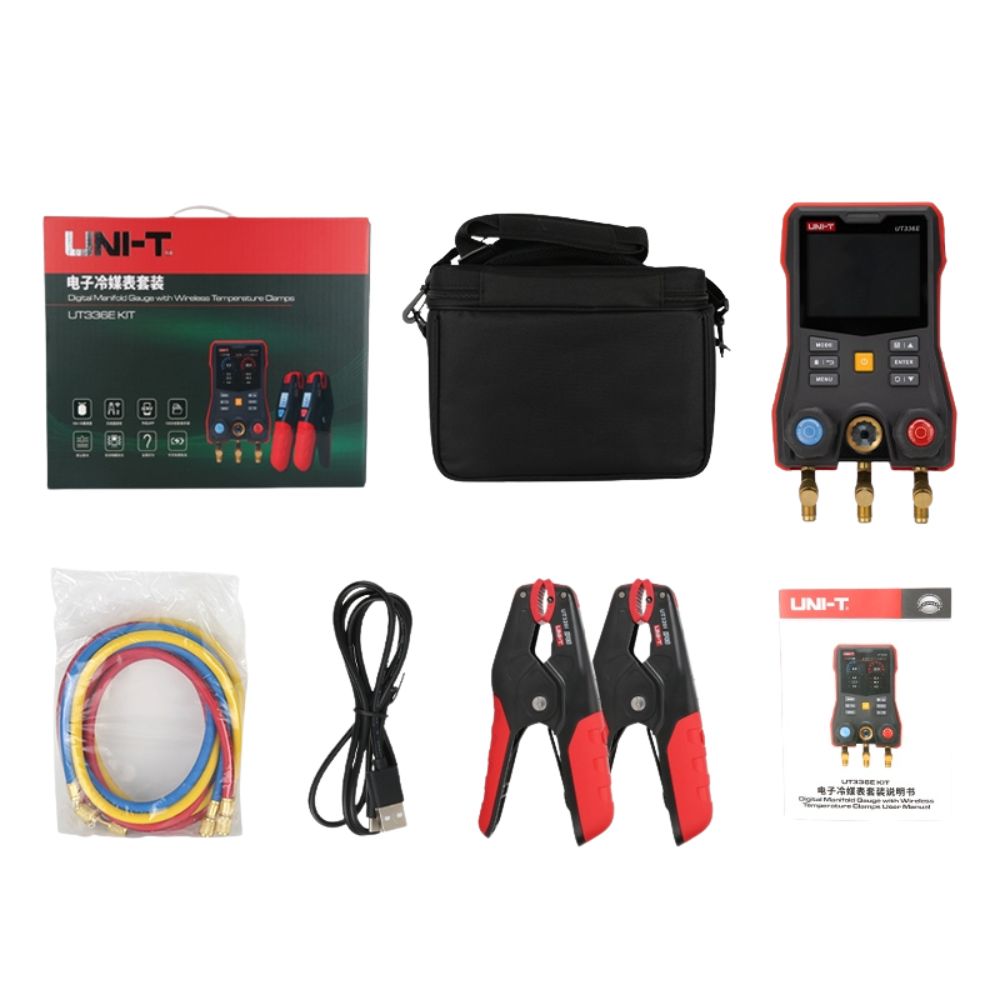

Package Includes

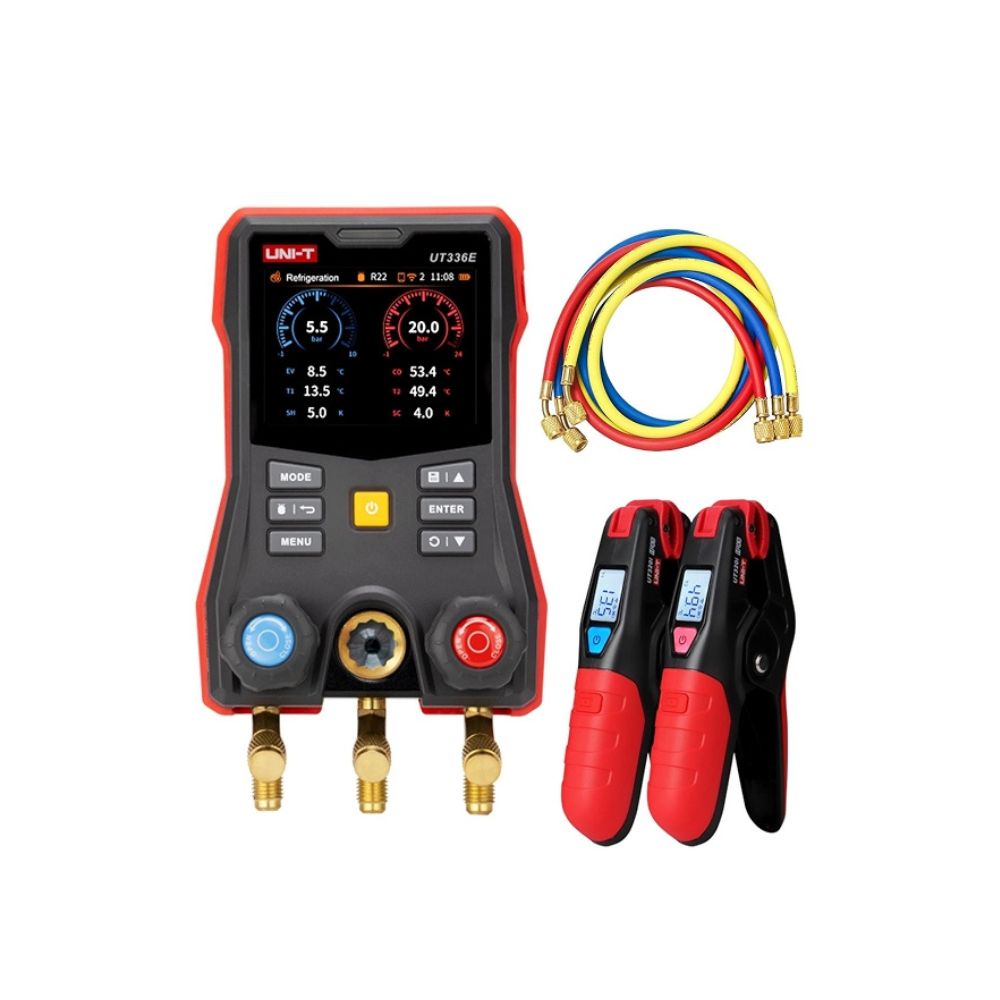

1 x UNI-T UT336E digital manifold gauge

2 x UT320i wireless temperature clamps

3 x Refrigerant hoses

1 x USB-C charging cable

1 x Tool box

1 x User manual

1 x Safety guide

1 x Common-files download guide

Important Usage Information

The UT336E is not compatible with refrigerants containing ammonia. Always inspect the manifold, hoses, valves, clamps, and housing before use. Replace damaged hoses and do not operate the instrument if the housing, valves, display, or other safety-critical components are damaged.

The evacuation mode provides approximate vacuum-status monitoring through the manifold. For accurate vacuum measurement, use a dedicated vacuum gauge such as the compatible UNI-T UT336V Wireless Vacuum Gauge. Follow the user manual and applicable refrigerant-handling procedures before connecting the instrument to a live system.
