UNI-T UT285C Three Phase Power Quality Analyzer

UNI-T UT285C Three Phase Power Quality Analyzer in Sri Lanka

Handheld Harmonics, Flicker and Power Logging Instrument

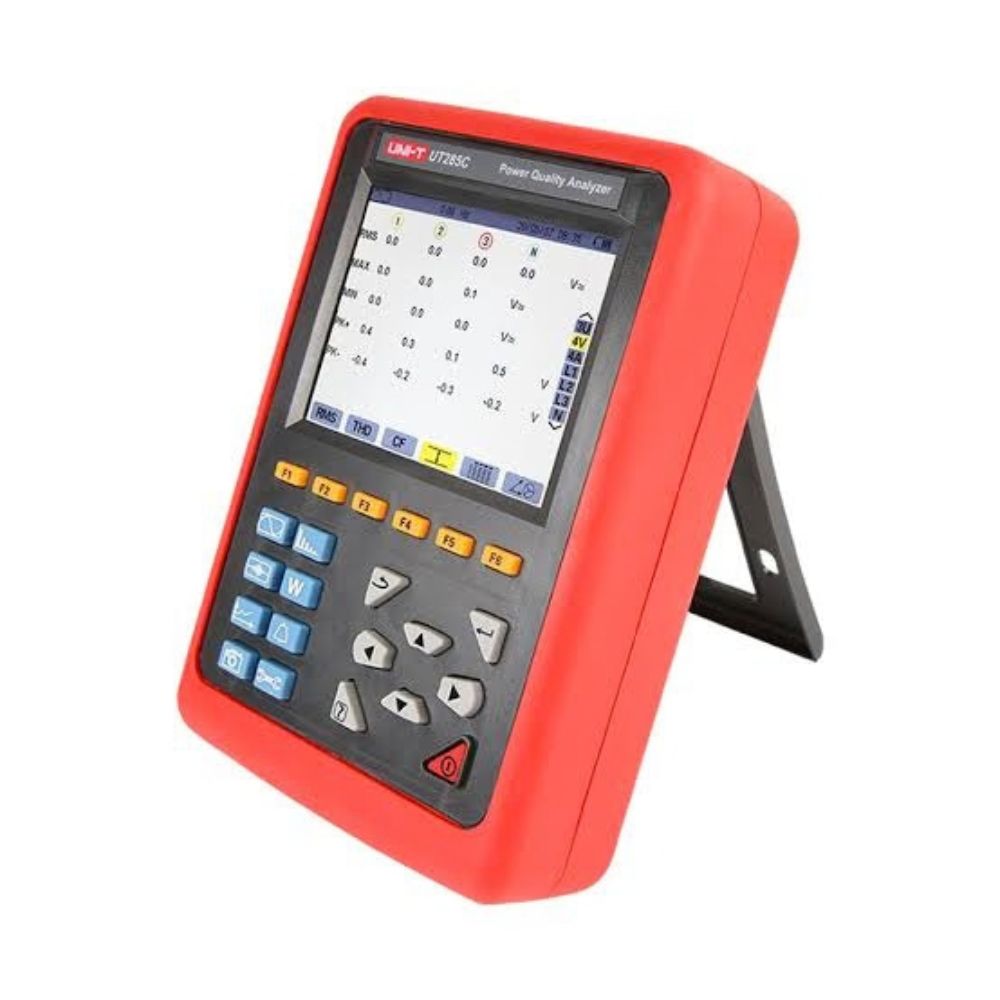

The UNI-T UT285C is a handheld three phase analyzer that displays four voltage and current waveforms in real time. It measures true RMS values, peaks, harmonics, THD, flicker, K-factor, and phase unbalance. It suits electricians and energy auditors in Sri Lanka who need to trace supply faults and check installation quality.

It records active, reactive, and apparent power per phase and in total. It also captures transient events and stores trend data on built-in memory, with USB and PC software for analysis and reporting.

Technical Specifications

Phase-to-Neutral Voltage (True RMS): 1.0V~1000V | Accuracy: ±(0.5%+5dgt)

Phase-to-Phase Voltage (True RMS): 1.0V~2000V | Accuracy: ±(0.5%+5dgt)

Current (True RMS, 068B clamp): 1.0A~1000A | Accuracy: ±(0.5%+5dgt) | Optional 008B, 040B clamps and 300F flexible sensor (up to 6000A)

Active Power: 0.000W~9999.9kW | Accuracy: ±(1%+3dgt) at Cosφ≥0.8

Harmonics: Orders 1 to 50 | Range: 0.0%~99.9% | Accuracy: ±(1%+5dgt)

Total Harmonic Distortion (THD): 0.0%~99.9%

Transformer K Factor: 1.00~99.99 | Accuracy: ±5%

Power Supply: 9.6V rechargeable lithium-ion battery

Dimensions and Weight: 240 × 170 × 68 mm | Instrument approx. 1.5kg

Key Features

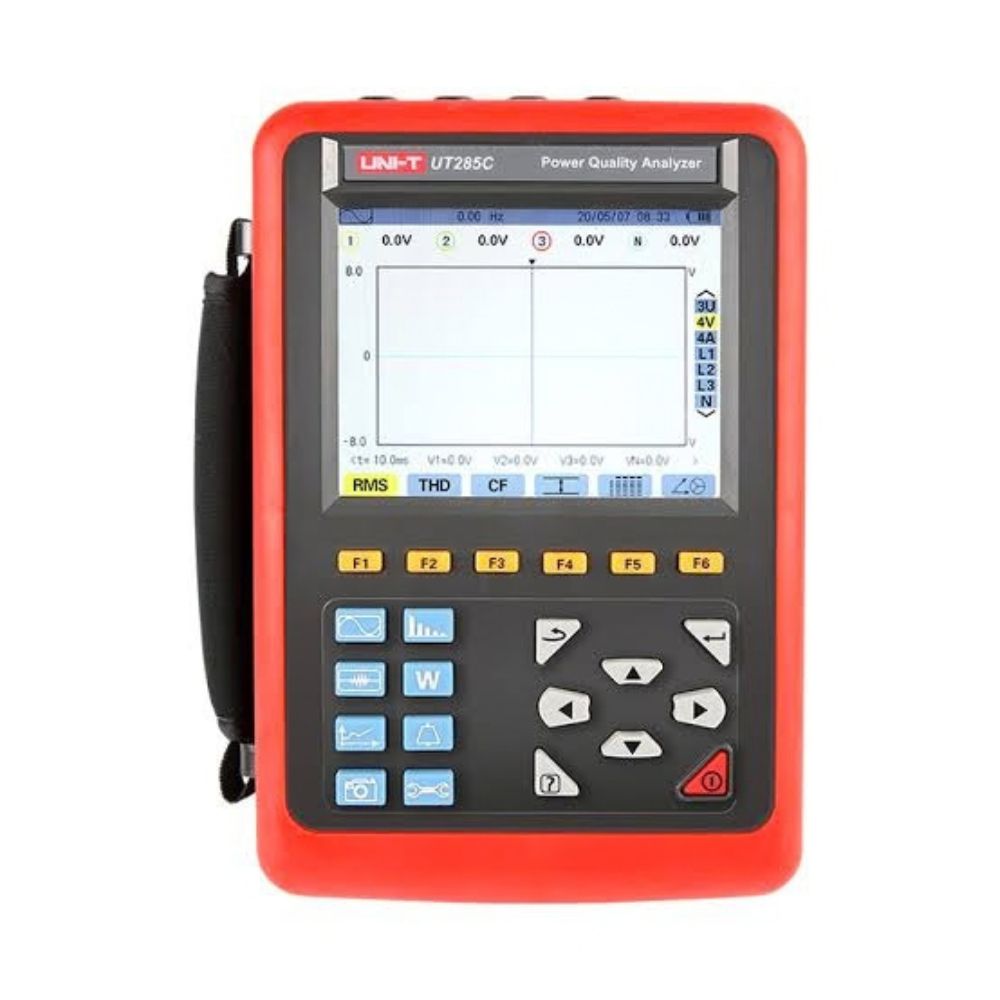

Waveform Display: Real-time display of 4 voltage and current channels

Power Analysis: Active, reactive and apparent power, PF, DPF (cosφ) and tanφ

Power Quality: THD, short-term flicker (Pst), and voltage and current unbalance

Recording: Trend recording of up to 20 parameters and transient capture (up to 150 records)

Connectivity: USB interface with PC software

Portability: Rechargeable battery for on-site testing without mains

Applications

Energy audits and power factor correction studies

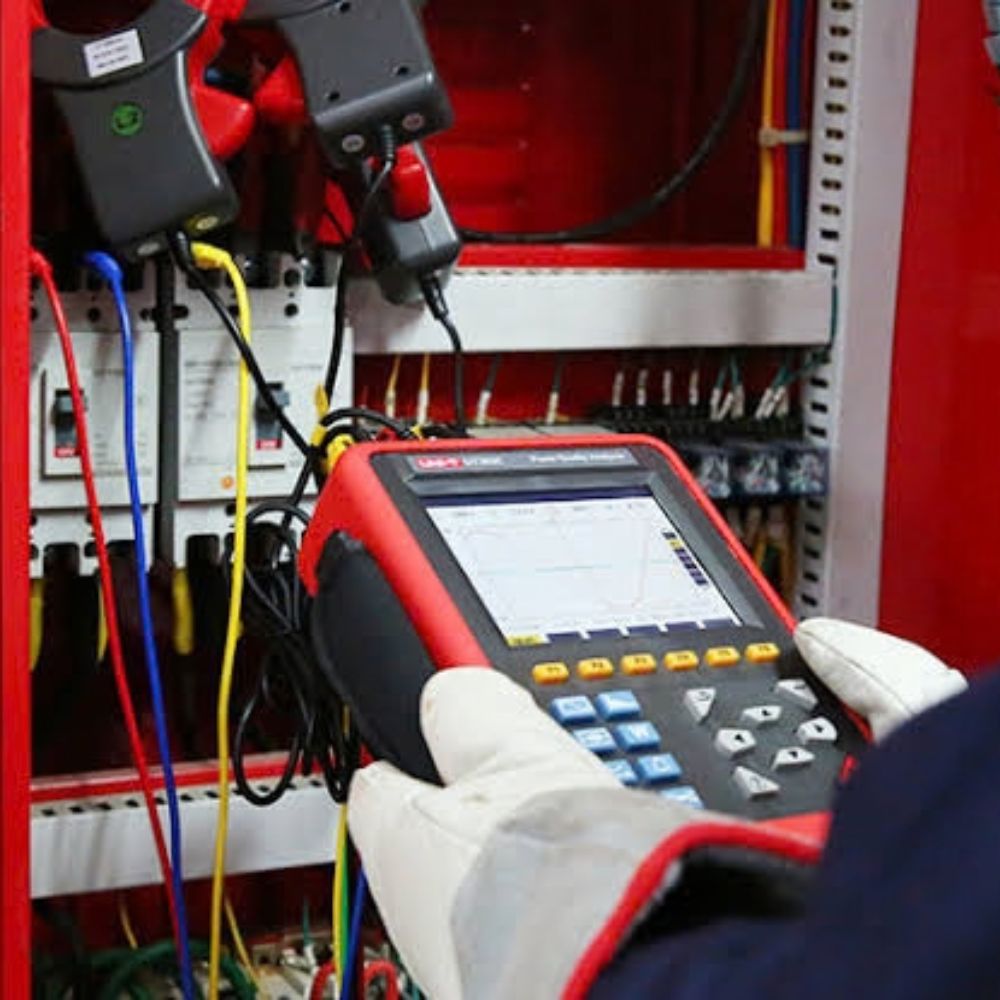

Harmonic checks on VFDs, UPS systems and LED lighting loads

Power quality inspection of solar (PV) installations

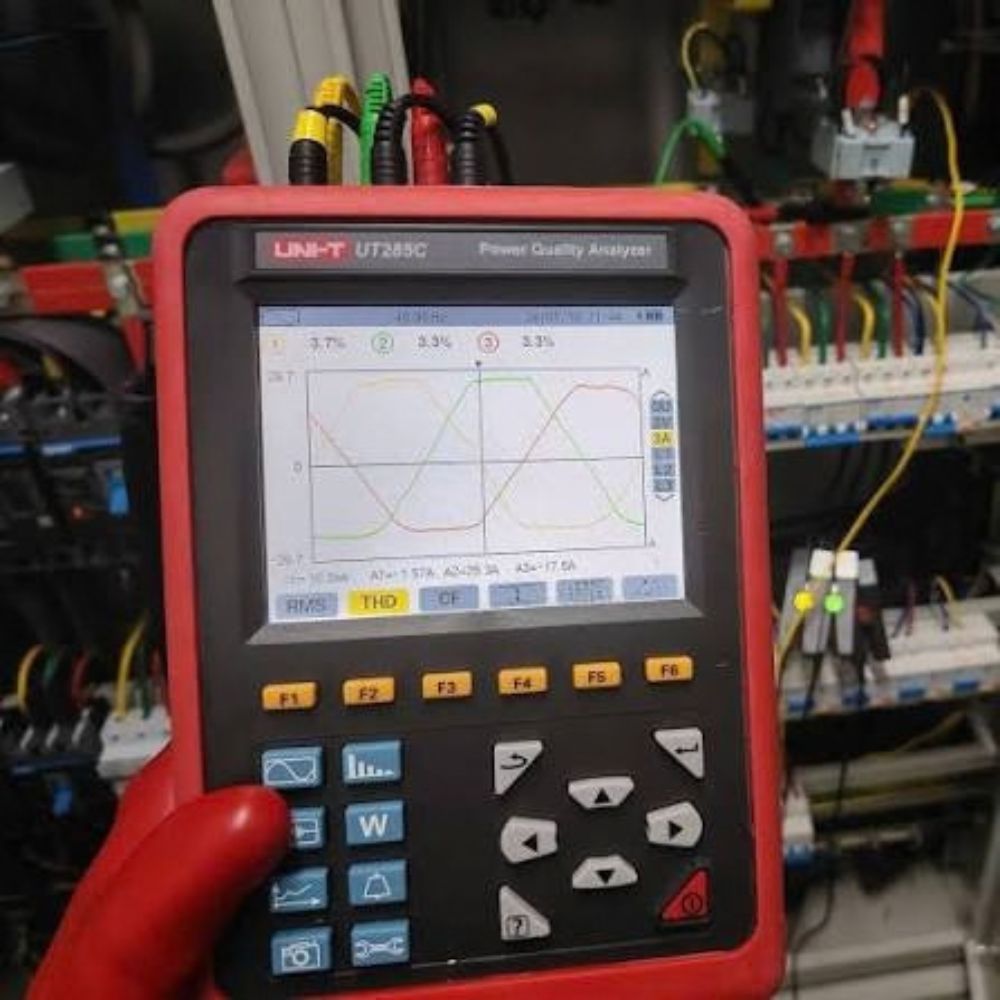

Load balancing and fault finding on distribution panels

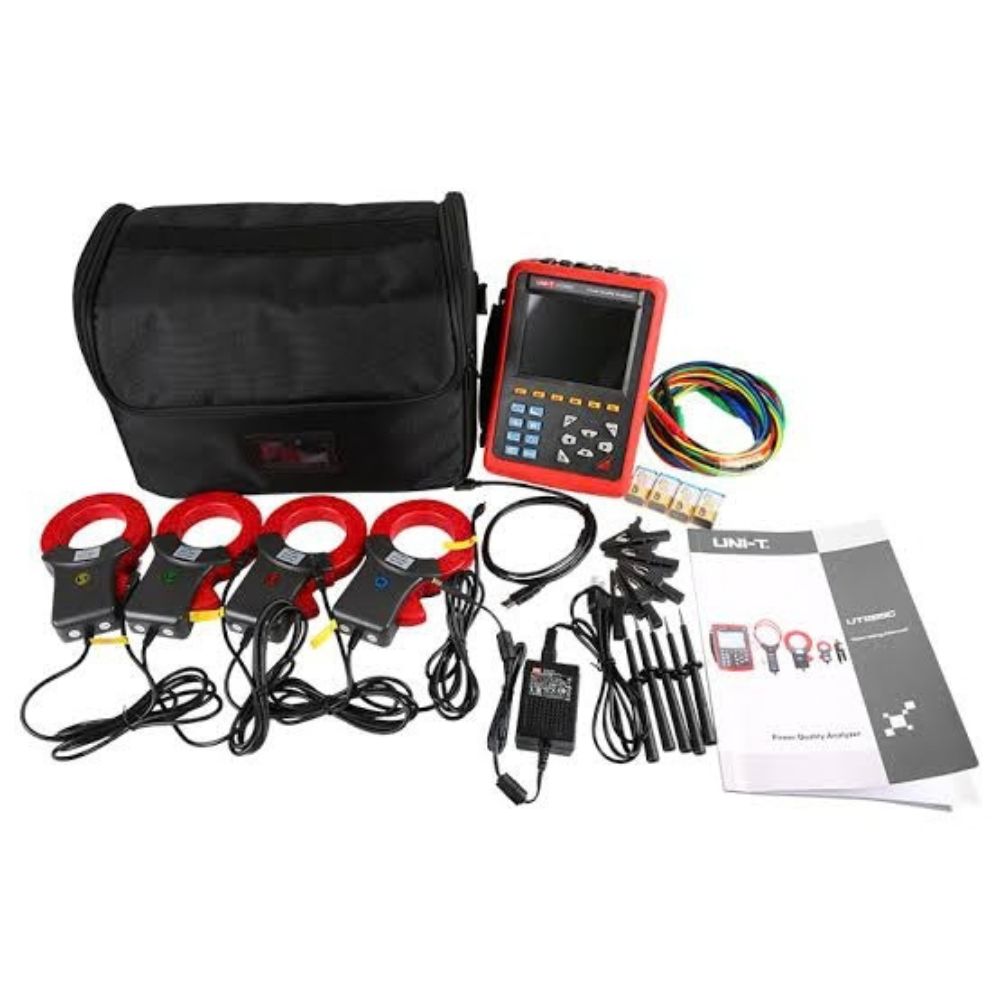

Package Includes

1 x UNI-T UT285C main unit

Current clamps (UT-068B, 1000A)

Voltage test leads

Rechargeable lithium-ion battery and charger

USB cable and PC software

Carrying case

English user manual

Downloads

📄 Download UNI-T UT285C Data Sheet
📄 Download UNI-T UT285C User Manual
