UNI-T UT219DS Digital Clamp Meter – 600A True RMS AC/DC Current, Inrush, V+A Dual Display

UNI-T UT219DS Professional Digital Clamp Meter in Sri Lanka

600A True RMS AC/DC Clamp Meter for Electricians, HVAC/R and Motor Technicians

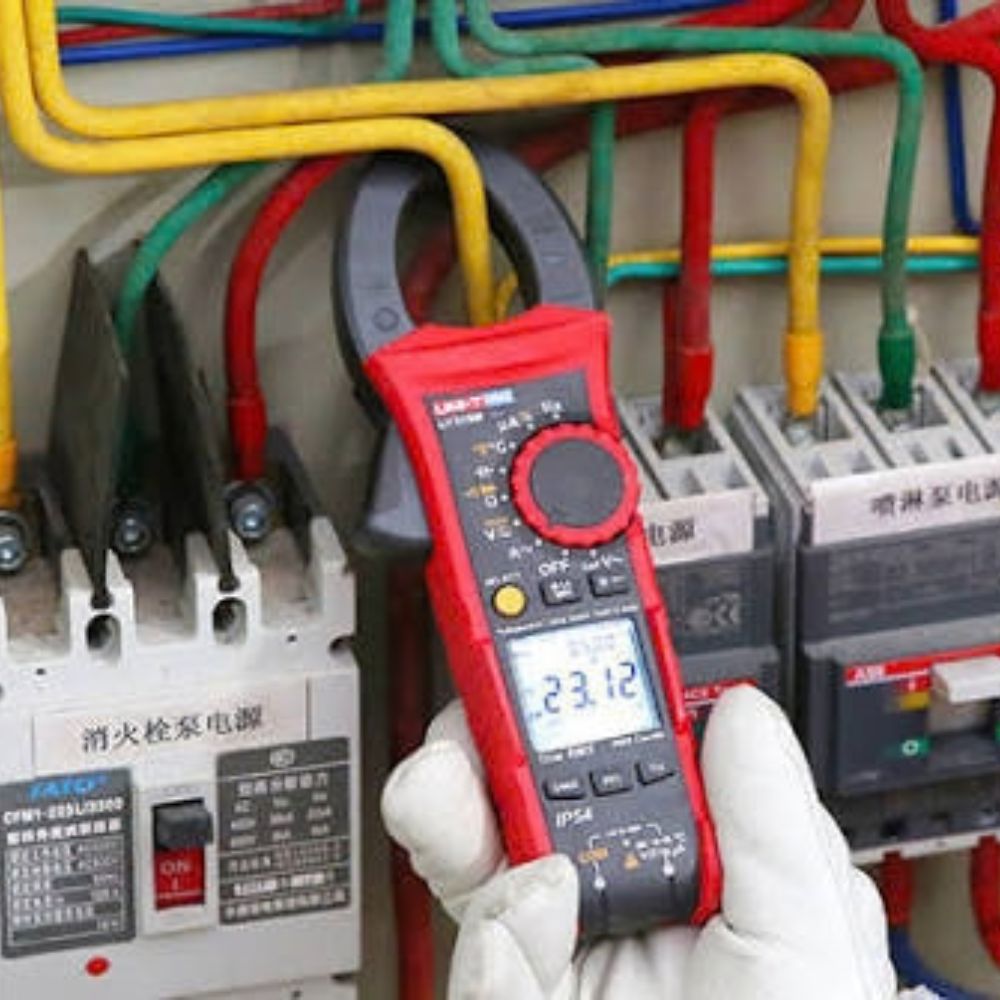

The UNI-T UT219DS Professional Digital Clamp Meter delivers industrial-grade True RMS measurement of AC and DC current up to 600A, with CAT IV 600V safety rating and IP54 ingress protection for use in harsh field environments. It is designed to help electricians, HVAC/R technicians, and motor maintenance engineers in Sri Lanka safely diagnose panels, motors, and 3-phase circuits without breaking the load connection.

Discover our complete selection of Digital Clamp Meters – specifications, features, and current testers in Sri Lanka!

Featuring simultaneous V+A dual display, inrush current capture, low-pass filter for variable-frequency drives, and built-in 3-phase motor rotation testing, this clamp meter streamlines complex electrical diagnostics that basic clamp meters cannot handle, helping prevent unexpected downtime on industrial equipment.

Technical Specifications

AC/DC Current: 60.00A / 600.0A | Accuracy: ±(1.8%+6) AC, ±(1.8%+6) DC | Frequency response: 40Hz–1kHz

Inrush Current: Up to 800A (60A range) / 800A (600A range), first 100ms True RMS capture

AC/DC Voltage: 600.0mV–1000.0V | Accuracy: ±(0.6%+3) to ±(1%+6) | CAT III 1000V, CAT IV 600V

Resistance: Up to 60.00MΩ | Capacitance: Up to 60.00mF | Frequency: 10Hz–10MHz

Temperature: -40°C to 1000°C (-40°F to 1832°F) via K-type thermocouple probe

Display: 6000-count dual-display LCD, 5 readings/second, 31-segment analog bar

Jaw Opening: 33mm | Safety Rating: CAT III 1000V, CAT IV 600V, IP54, 2m drop-proof

Key Features

V+A Dual Display: Simultaneously monitor voltage and current on-screen for faster troubleshooting

Inrush Current Measurement: Captures motor starting current and stable running current in one test

3-Phase Motor Sequence Test: Verifies correct phase rotation direction on motor installations

Low Pass Filter (LPF): Accurate readings on variable-speed drive (VSD) outputs

LoZ Low Impedance Mode: Eliminates false "ghost voltage" readings on unloaded circuits

Auto/Manual Ranging with REL and ZERO: Fast setup with relative measurement and current zeroing

Build: IP54-rated, 2-meter drop-proof housing for rugged field use

Applications

Industrial motor starting current (inrush) diagnostics

3-phase panel and motor rotation verification during commissioning

HVAC/R compressor and blower motor circuit troubleshooting

Variable frequency drive (VFD) output voltage and current checks

General electrical maintenance on AC/DC current up to 600A

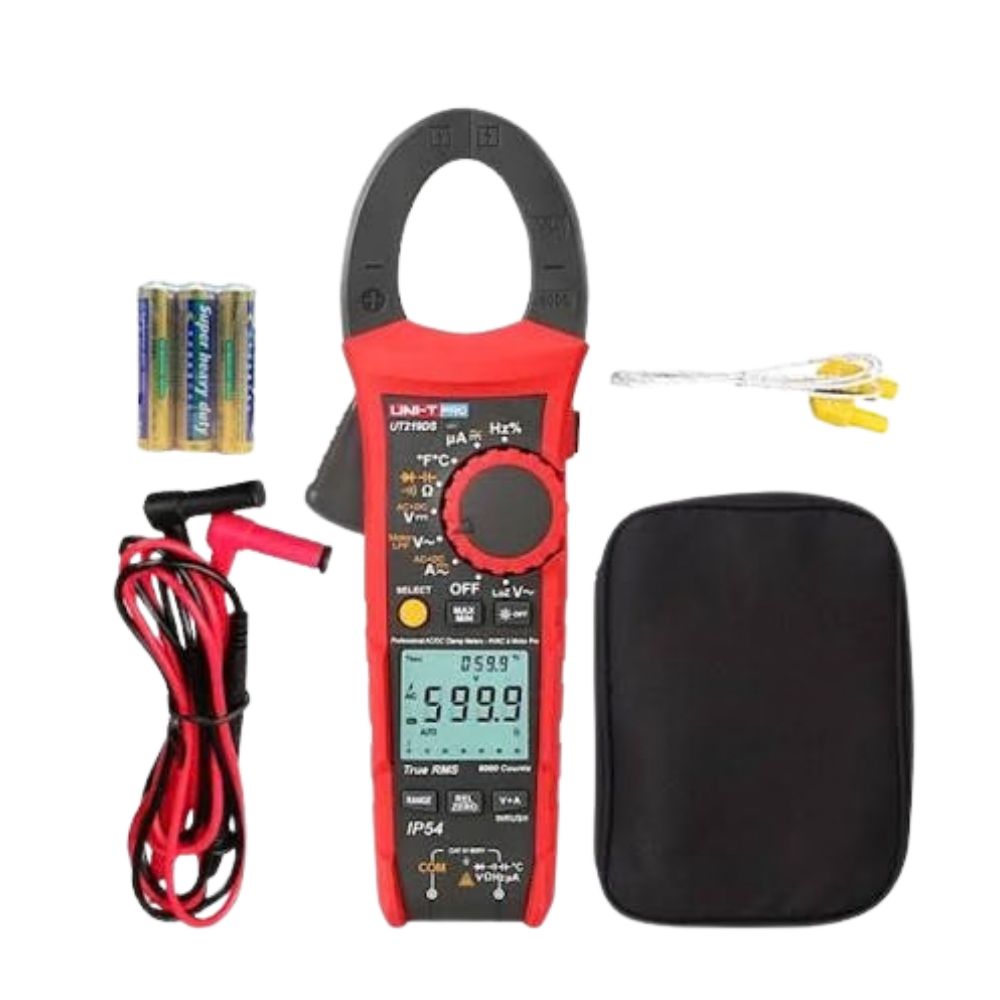

Package Includes

1 x UNI-T UT219DS Digital Clamp Meter main unit

Test lead probes (1 pair)

Point-contact K-type temperature probe

3 x 1.5V AAA batteries (installed)

Carrying bag

English user manual

Downloads

📄 Download UNI-T UT219DS Data Sheet
📄 Download UNI-T UT219DS User Manual
