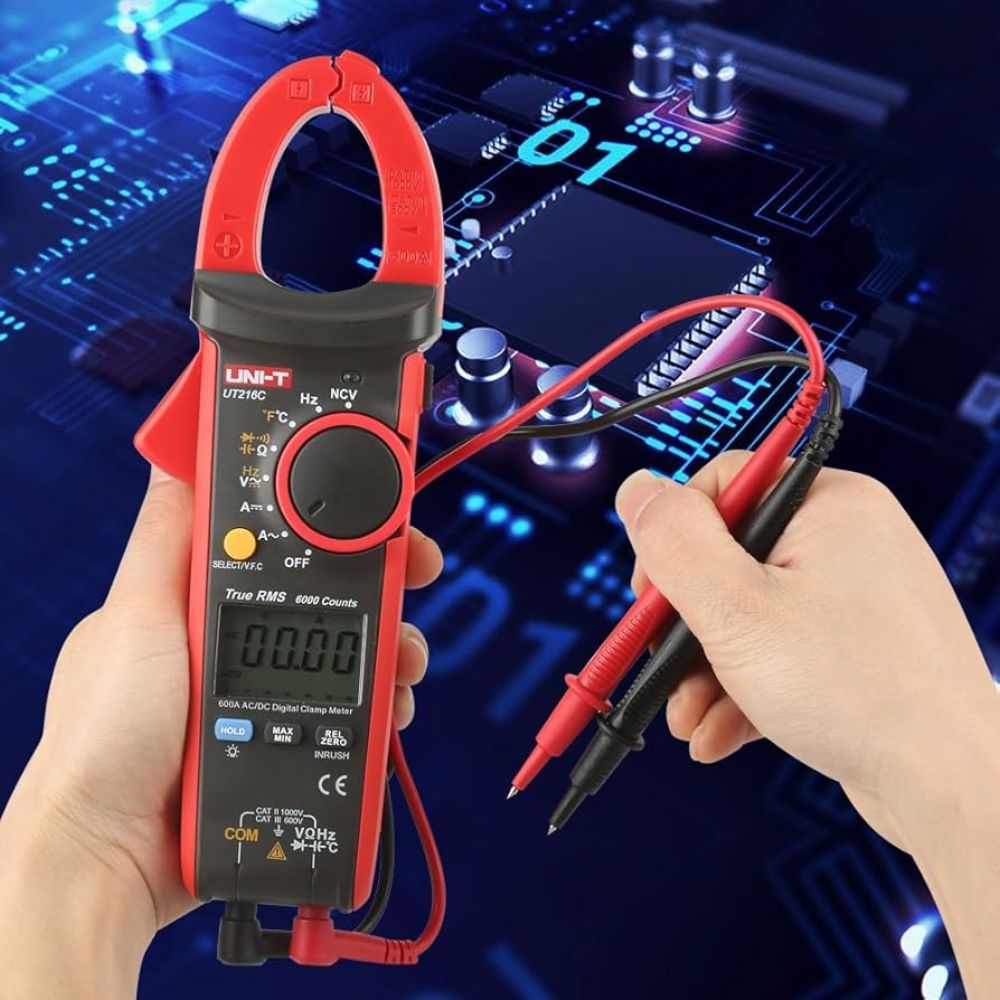

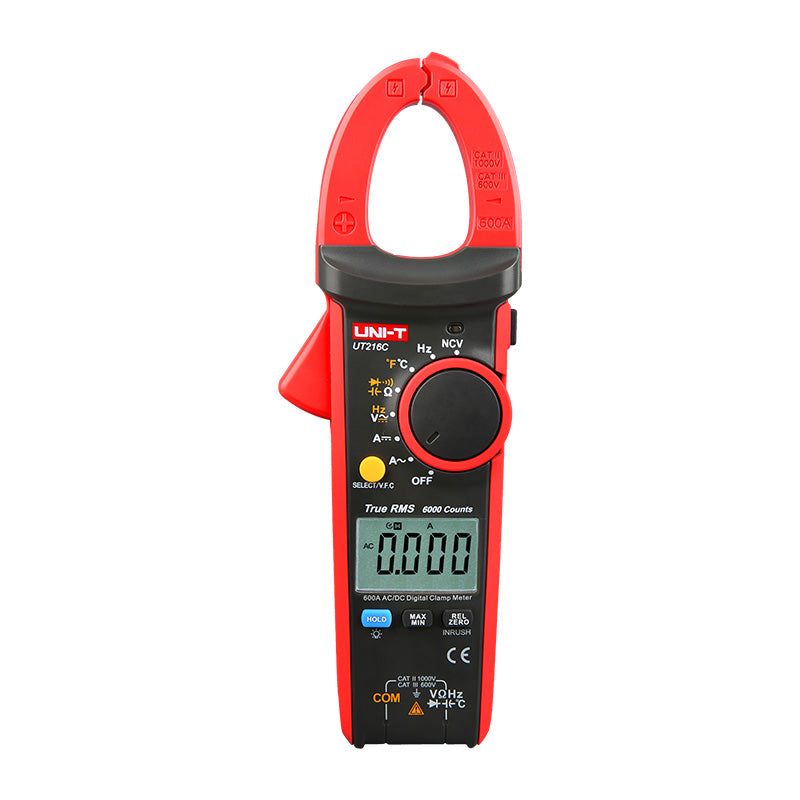

UNI-T UT216C True RMS Digital Clamp Meter – Frequency Capacitance Temperature NCV Tester

UNI-T UT216C True RMS Digital Clamp Meter | 600A Professional Industrial Multimeter

High-Precision Electrical Diagnostics for Data Centers, Factories and Solar Systems in Sri Lanka

The UNI-T UT216C is a professional-grade 600A True RMS digital clamp meter engineered for demanding industrial, commercial and IT environments requiring high-frequency current measurements up to 400Hz. With 600A AC/DC current via 30mm jaw, 1000V DC voltage, 60MΩ resistance, 60mF capacitance, 1MHz frequency and −40°C to 1000°C temperature measurement, this meter is ideal for data center technicians, factory maintenance teams and advanced solar PV professionals across Sri Lanka. Its 6000-count display and 3x/second sampling rate deliver laboratory-grade precision for critical power systems.

The UT216C features double-injection molding for superior grip and durability, plus advanced functions including NCV detection, VFC low-pass filtering for accurate inverter measurements, inrush current capture, analog bar graph, MAX/MIN/Relative modes, flashlight and auto power-off. CAT III 1000V / CAT IV 600V safety rating makes it suitable for high-energy environments from Colombo server rooms to Hambantota industrial zones. For technicians managing mission-critical electrical infrastructure, this clamp meter provides unmatched measurement capability and field reliability.

Key Features of UNI-T UT216C Clamp Meter

600A True RMS AC/DC Current

High-current clamp measurement with 40-400Hz frequency response – perfect for VFDs, UPS systems and server power supplies.

Professional 6000-Count Display

High-resolution readout with 3 readings/second sampling rate and 61-segment analog bar graph for trend analysis.

Complete Industrial Diagnostics

1000V DC, 750V AC (40-400Hz), 60MΩ resistance, 60mF capacitance, 1MHz frequency and K-type temperature measurement.

NCV + VFC Low-Pass Filter

Non-contact voltage detection plus Variable Frequency Conversion filtering for accurate readings on inverter-driven equipment.

Inrush Current & Advanced Modes

Capture motor startup surges, track MAX/MIN values and use Relative mode for precise delta measurements.

Industrial-Grade Construction

30mm jaw opening, double-injection housing (232g), CAT III 1000V / CAT IV 600V safety for harsh environments.

Common Applications of UT216C in Sri Lanka

Data Centers & IT Infrastructure

Monitor high-frequency currents (400Hz) feeding servers, UPS systems and PDUs in Colombo's commercial data centers.

Factory Automation & VFD Testing

Measure inverter outputs, motor currents and control voltages in textile mills, garment factories and processing plants.

Commercial HVAC & Chiller Systems

Diagnose compressor loads, VFD performance and refrigerant pipe temperatures in large building HVAC installations.

Solar Farms & Large PV Installations

Verify string currents, inverter AC outputs and DC bus voltages in utility-scale solar projects across dry zone regions.

Technical Specifications of UNI-T UT216C

AC Current (True RMS)

60A/600A ±(2.5%+5), 40Hz–400Hz frequency response

DC Current

60A/600A ±(2.5%+5)

AC Voltage (True RMS)

6V/60V/600V/750V ±(1.2%+5), 40-400Hz

DC Voltage

600mV/6V/60V/600V/1000V ±(0.8%+1)

Resistance

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1%+2)

Capacitance

99.99nF to 60mF ±(4.0%+5)

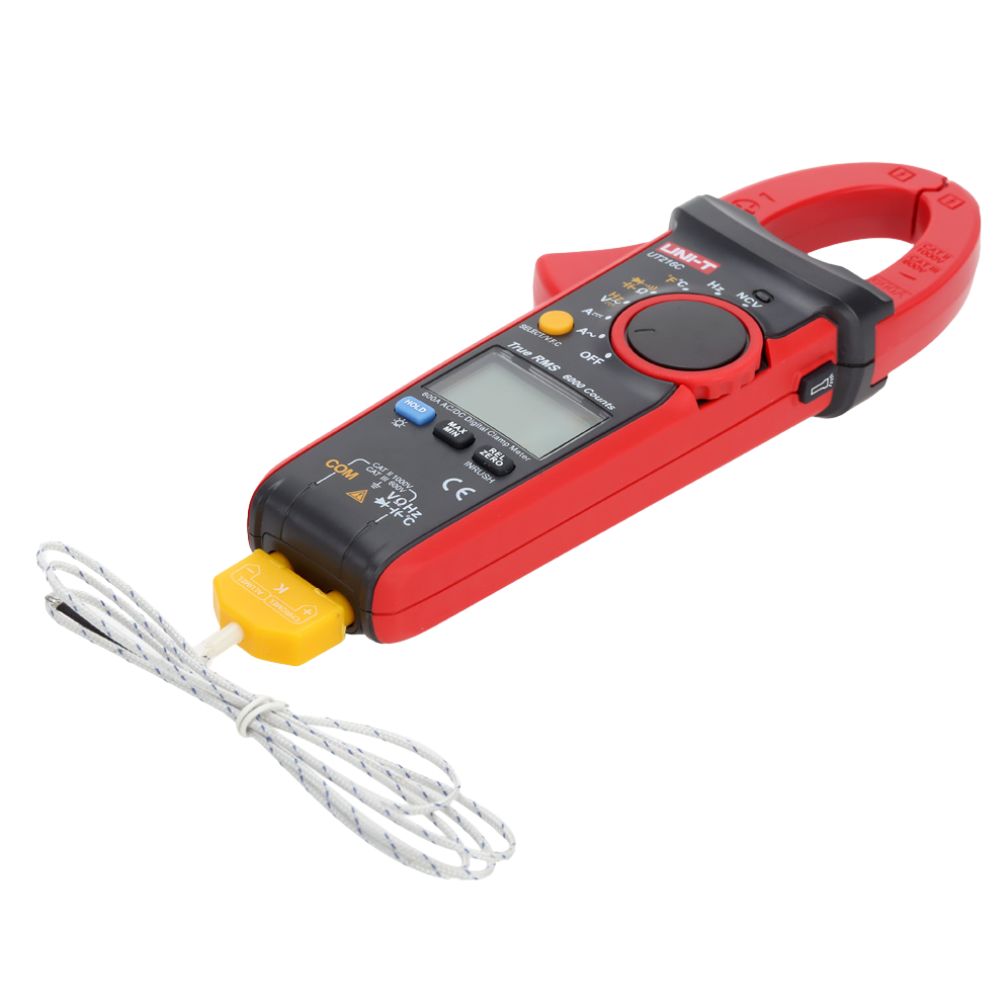

Temperature (K-type)

−40°C to 1000°C ±(2.0%+5)

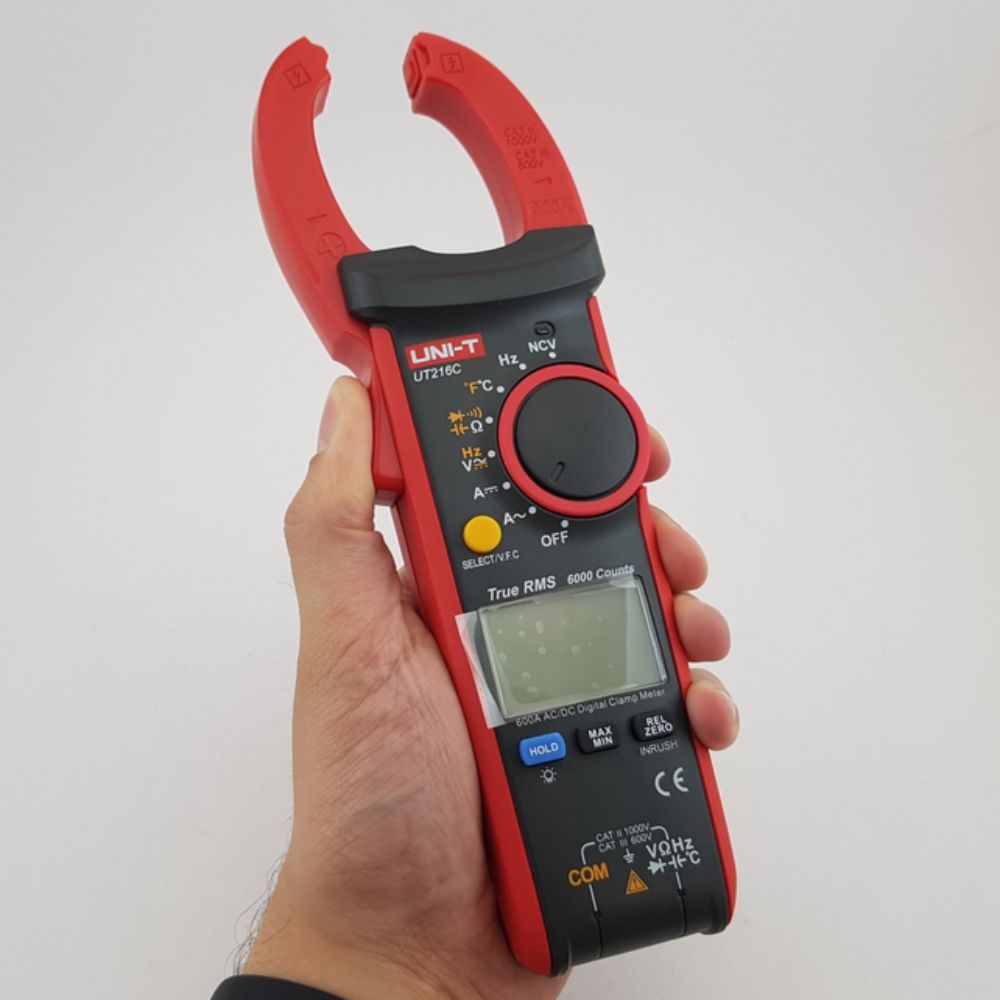

Jaw & Display

30mm opening | 6000-count LCD (38x24mm) | 232g | CAT III 1000V/CAT IV 600V

Frequently Asked Questions about UT216C Professional Clamp Meter

Can this meter handle data center high-frequency currents?

Yes – 400Hz AC current response specifically designed for server room UPS and PDU measurements.

Is VFC filtering useful for VFD measurements?

Absolutely – removes high-frequency noise from inverter outputs for accurate fundamental current readings.

What's the advantage of 6000-count display?

Provides 20% higher resolution than 4000-count meters for distinguishing small load changes in critical systems.

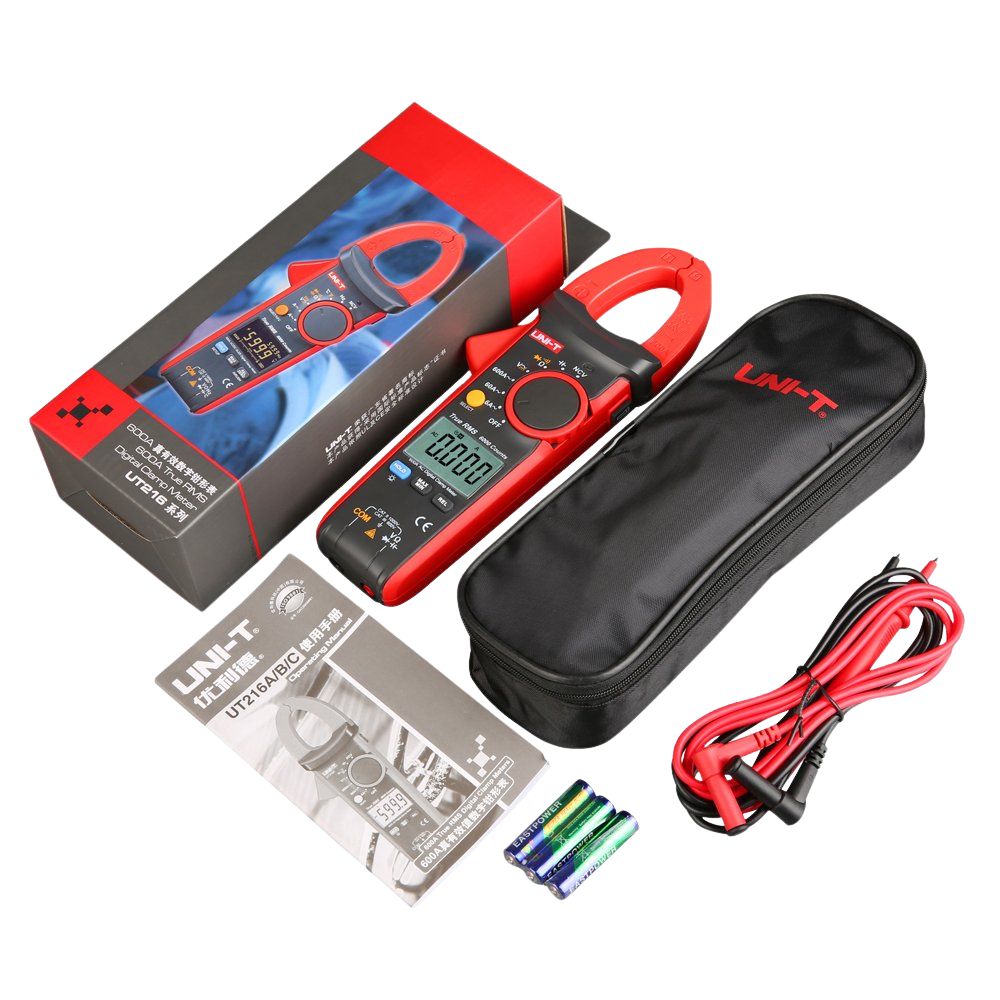

What's in the Box?

1 x UNI-T UT216C 600A True RMS Digital Clamp Meter

1 x Premium Test Lead Set

1 x K-type Point Contact Temperature Probe

3 x 1.5V AAA Batteries (installed)

1 x Heavy-Duty Carrying Bag

1 x Multilingual User Manual & Calibration Certificate
