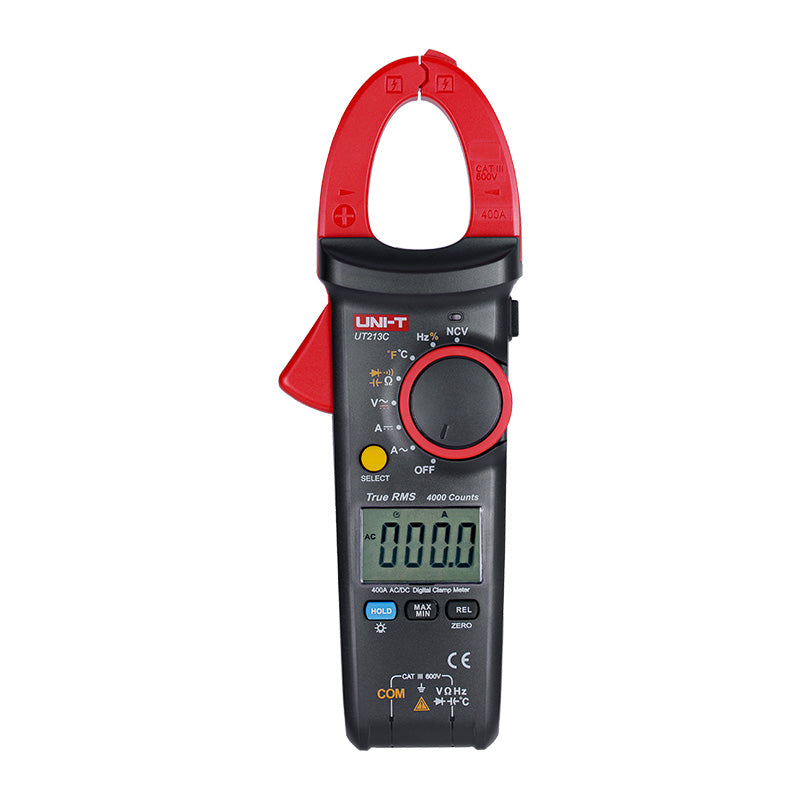

UNI-T UT213C 400A True RMS Digital Clamp Meter – Voltage Resistance Capacitance Multimeter

UNI-T UT213C 400A Digital Clamp Meter | True RMS AC/DC Professional Multimeter

Versatile 400A Clamp Meter for Electricians, HVAC Technicians and Solar Installers in Sri Lanka

The UNI-T UT213C is a robust 400A True RMS digital clamp meter designed for professional electricians, HVAC technicians and solar installers requiring reliable AC/DC measurements across residential, commercial and light industrial applications. With 400A AC/DC current via 30mm jaw, 600V AC/DC voltage, 40MΩ resistance, 40mF capacitance, 1MHz frequency and −40°C to 1000°C temperature measurement, this meter delivers comprehensive diagnostics in a single CAT III 600V rated instrument. Its 4000-count backlit display and 3 readings/second sampling rate provide clear, precise readings even in challenging field conditions.

The UT213C combines True RMS accuracy for non-linear loads with advanced features including NCV detection, MAX/MIN/Relative modes, diode testing, continuity buzzer, flashlight and auto power-off. The ergonomic 232g housing with double-injection molding ensures comfortable grip during extended service calls, while the 30mm jaw opening accommodates conductors found in typical Sri Lankan distribution boards, HVAC systems and solar installations. From troubleshooting commercial HVAC compressors in Colombo hotels to verifying PV string currents in Kandy rooftop arrays, this clamp meter offers professional performance for diverse electrical challenges.

Key Features of UNI-T UT213C Clamp Meter

400A True RMS AC/DC Current

Accurate clamp measurement for residential feeders, HVAC compressors, small motors and solar string currents with 30mm jaw capacity.

Professional 4000-Count Display

High-resolution LCD (38x24mm) with backlight and 3/s sampling rate for precise diagnostics and trend monitoring.

Complete Electrical Diagnostics

600V AC/DC voltage, 40MΩ resistance, 40mF capacitance, 1MHz frequency and K-type temperature from −40°C to 1000°C.

NCV + Advanced Measurement Modes

Non-contact voltage detection plus MAX/MIN/Relative modes for comprehensive load analysis and fault diagnosis.

Built-in Flashlight & Continuity

LED flashlight for dark panel work plus audible continuity buzzer for rapid wiring verification.

Industrial-Grade Durability

CAT III 600V safety rating, 232g weight and rugged housing designed for daily professional use across Sri Lanka.

Common Applications of UT213C in Sri Lanka

Commercial & Residential Electrical Service

Measure main feeder currents, verify branch circuit loads and diagnose distribution board imbalances in apartments and offices.

HVAC/R System Diagnostics

Check compressor start currents, fan motor loads, control circuit voltages and refrigerant pipe temperatures in split systems and chillers.

Solar PV & Inverter Installations

Verify DC string currents from panels, AC inverter outputs and battery charging circuits in residential and commercial solar systems.

Light Industrial Maintenance

Monitor small motors, pumps, conveyor systems and control panel wiring in workshops, garment factories and food processing plants.

Technical Specifications of UNI-T UT213C

AC Current (True RMS)

40A/400A ±(2.5%+5)

DC Current

40A/400A ±(2.0%+3)

AC Voltage (True RMS)

4V/40V/400V/600V ±(1.2%+5)

DC Voltage

400mV/4V/40V/400V/600V ±(0.8%+1)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+2)

Capacitance

40nF/400nF/4μF/40μF/400μF/4mF/40mF ±(4.0%+5)

Temperature (K-type)

−40°C~1000°C ±(1.0%+3) | −40°F~1832°F ±(1.0%+6)

Jaw & Display

30mm opening | 4000-count LCD (38x24mm) | 232g | CAT III 600V

Frequently Asked Questions about UT213C Clamp Meter

Does this meter handle both AC and DC current measurements?

Yes – 400A True RMS AC/DC current via clamp for complete load analysis in mixed electrical systems.

Is the temperature function suitable for HVAC pipework?

Perfect – K-type probe measures refrigerant lines, ambient conditions and motor windings from −40°C to 1000°C.

Can it fit inside crowded Sri Lankan distribution boards?

Absolutely – 30mm jaw opening accommodates MCB busbars and multiple conductors in compact DB panels.

What's in the Box?

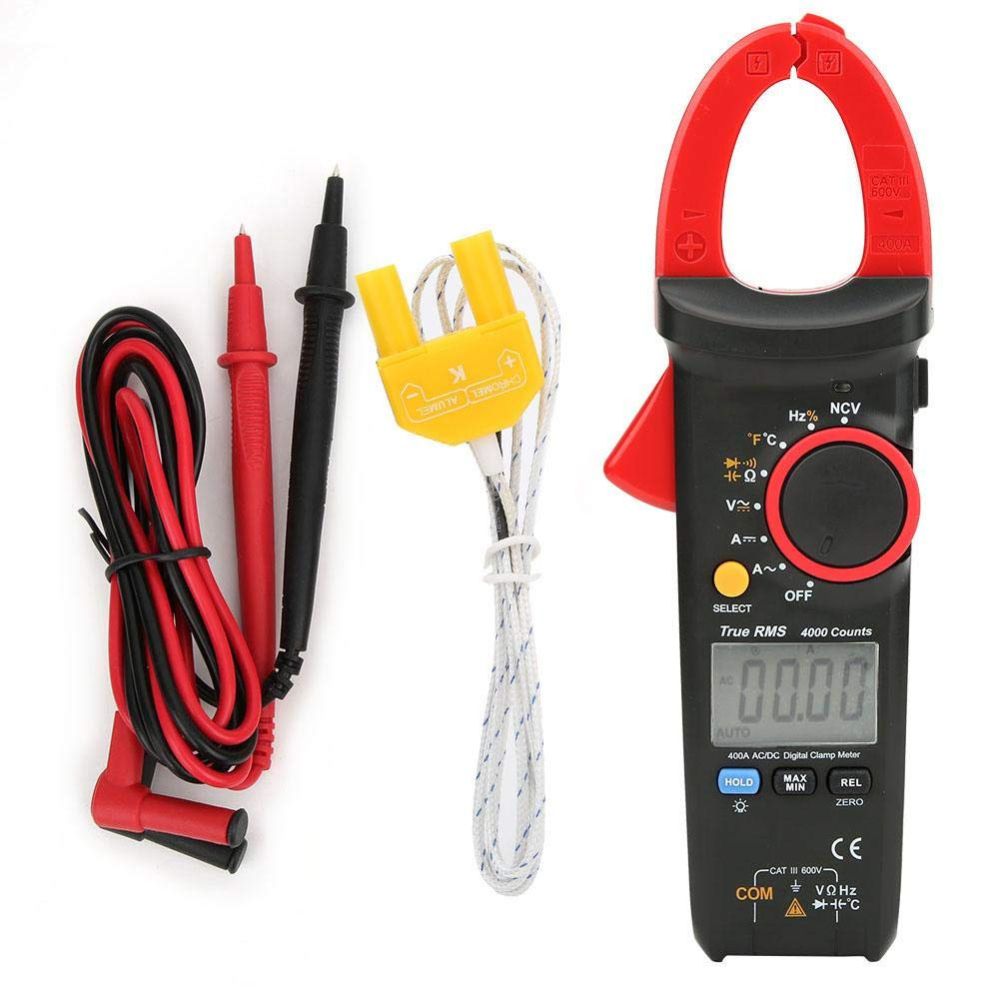

1 x UNI-T UT213C 400A True RMS Digital Clamp Meter

1 x Premium Test Lead Set

1 x K-type Point Contact Temperature Probe

3 x 1.5V AAA Batteries (installed)

1 x Heavy-Duty Carrying Bag

1 x Multilingual User Manual & Calibration Certificate
