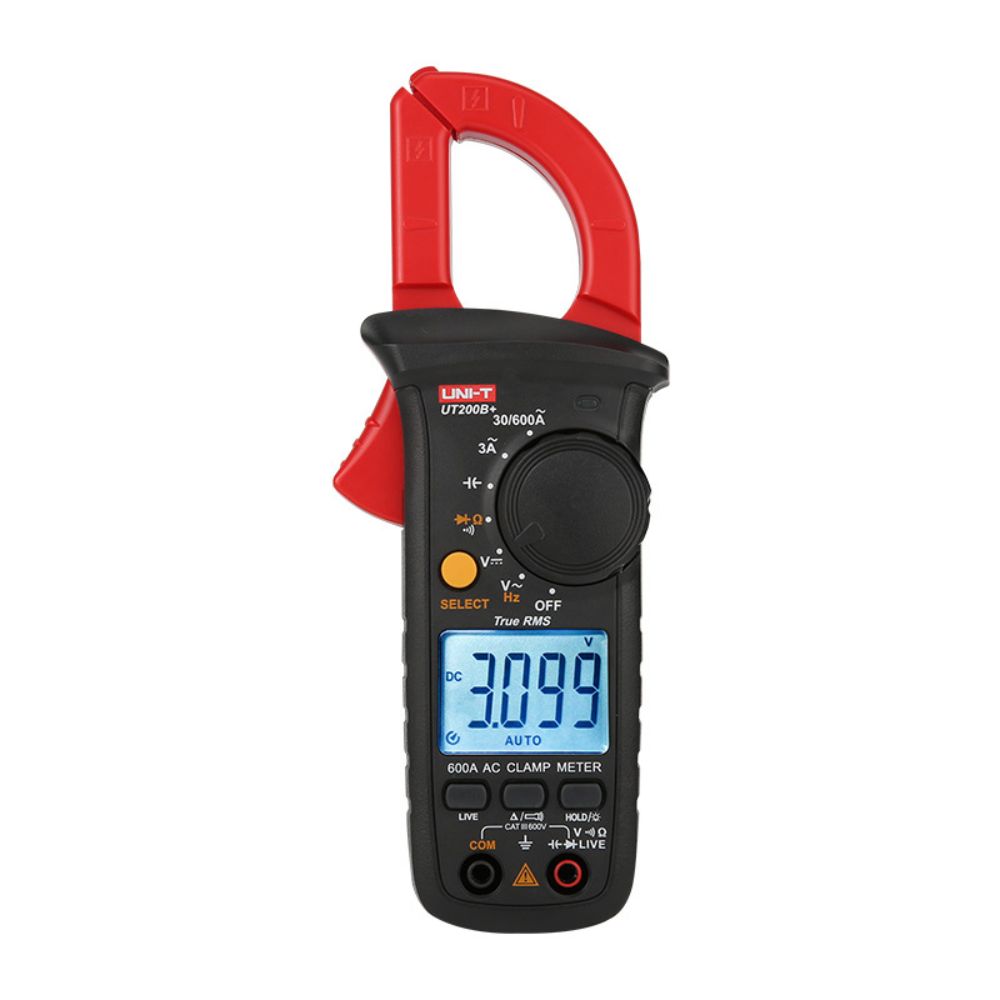

UNI-T UT200B+ Digital Clamp Meter

UNI-T UT200B+ Digital Clamp Meter | True RMS AC 600A Current Tester

Compact True RMS Clamp Meter for Electricians, HVAC & Automotive Pros in Sri Lanka

The UNI-T UT200B+ delivers professional-grade True RMS AC current measurement up to 600A with a compact design perfect for Sri Lankan electricians and technicians tackling household repairs, industrial maintenance, and field diagnostics. Built tough with CAT III 600V safety rating, 28mm jaw opening, LIVE wire detection, and flashlight, this clamp meter ensures safe, contactless testing in tight spaces like distribution panels or motor circuits. Its 3000-count backlit display and auto-ranging make voltage, resistance, capacitance, and frequency readings effortless even in low-light conditions.

Standout features include minimum 3A AC current detection for precise load analysis on small appliances or lighting circuits, combined continuity/diode testing, and high-voltage warnings to prevent accidents during live work. Ideal for electrical troubleshooting, HVAC compressor checks, automotive battery drains, and solar PV monitoring, the UT200B+ combines UNI-T reliability with affordability and local support from NanoZone.lk.

Key Features of the UNI-T UT200B+ Clamp Meter

True RMS AC 600A Measurement

Accurately measures AC current from 3A to 600A with True RMS for distorted waveforms in inverters, motors, and variable loads.

AC/DC 600V Voltage Testing

Full-range voltage detection with ±1.0% accuracy, plus high-voltage frequency up to 10kHz for safe electrical diagnostics.

Capacitance & Resistance Measurement

Tests up to 1mF capacitance and 3MΩ resistance, essential for motor start capacitors, filter checks, and circuit continuity.

LIVE Function & Flashlight

Non-contact voltage detection with audible/visual alarms, plus built-in light for dark panels or confined spaces.

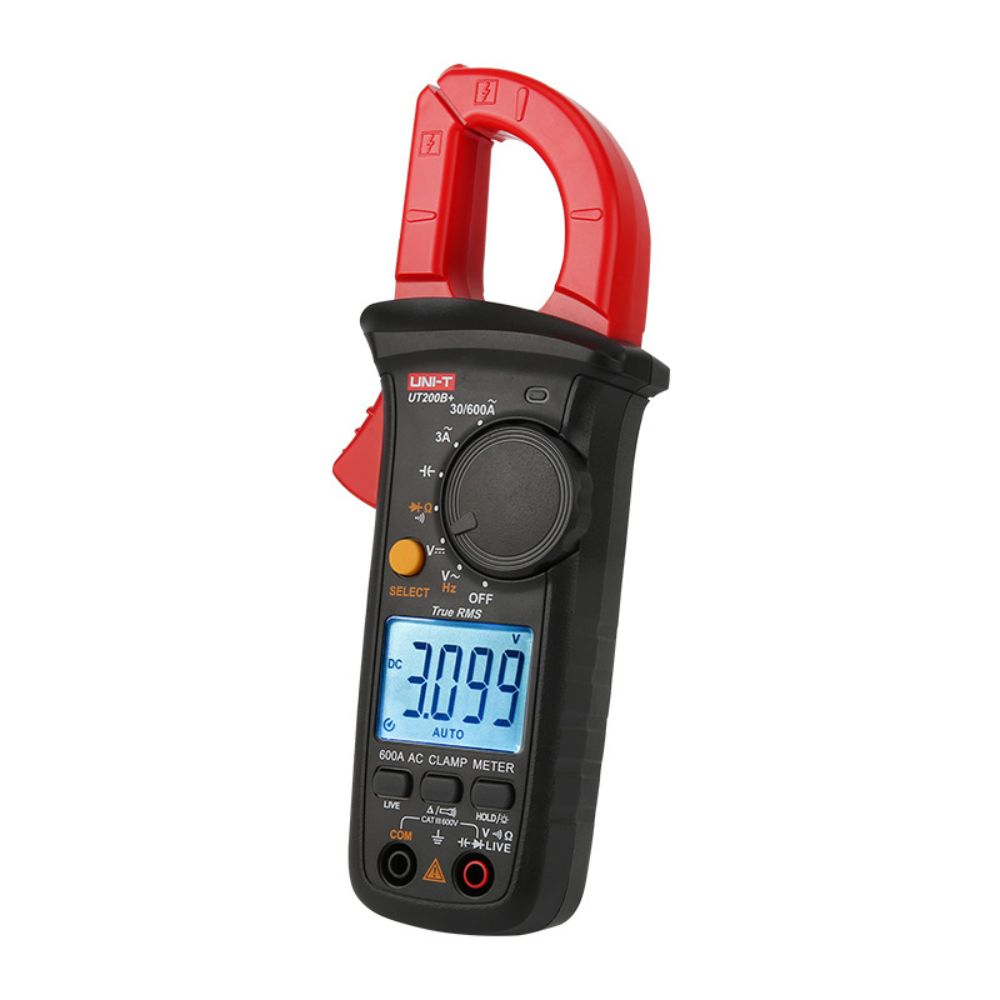

28mm Jaw & Auto-Ranging

Compact jaw fits single conductors easily; auto-range simplifies operation for pros and DIY users alike.

Backlit Display & Data Hold

Clear 3000-count LCD with backlight and hold function for reliable readings in any environment.

Common Applications of UNI-T UT200B+

Electrical Installation & Maintenance

Clamp around live wires to measure current draw on circuits, detect overloads, and verify connections without disconnection.

HVAC & Motor Diagnostics

Monitor compressor amps, fan motors, and duct systems for efficiency issues or imbalances safely from a distance.

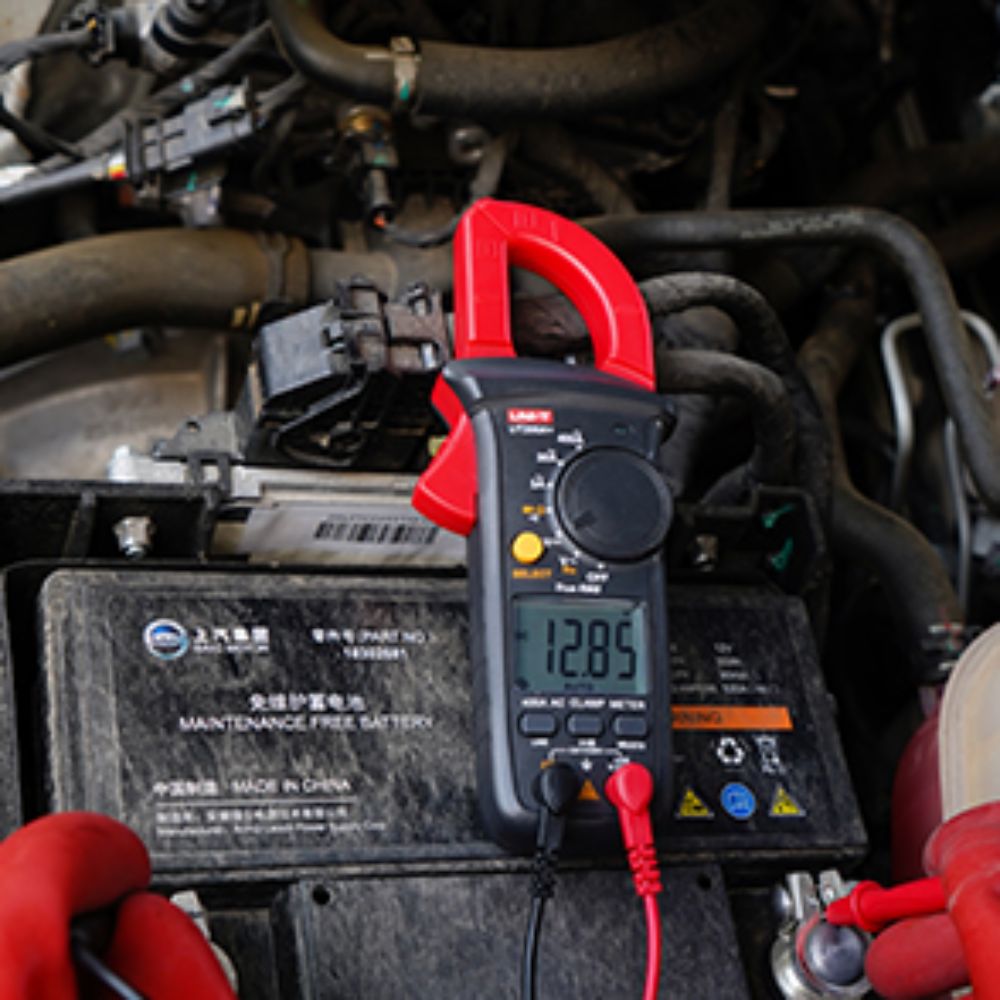

Automotive & Solar Testing

Check alternator output, battery loads, or PV panel currents with precision True RMS technology.

Technical Specifications of the UNI-T UT200B+

AC Current (ACA)

3A: ±(4%+10), 30A: ±(4%+5), 600A: ±(4%+5)

AC Voltage (ACV)

3V~600V: ±(1.2%+5)

DC Voltage (DCV)

3V~300V: ±(1.0%+5), 300V~600V: ±(1.0%+3)

Resistance

300Ω~300kΩ: ±(1.0%+5), 300kΩ~3MΩ: ±(2.0%+5)

Capacitance

30nF~300nF: ±(4%+10), 3μF~300μF: ±(4%+5), 1mF: ±(5%+10)

Frequency (Hz)

10Hz~10kHz: ±(1.0%+5)

Jaw Size & Display

28mm, 3099 counts

Safety Rating

CAT III 600V

What's in the Box?

1 x UNI-T UT200B+ Digital Clamp Meter

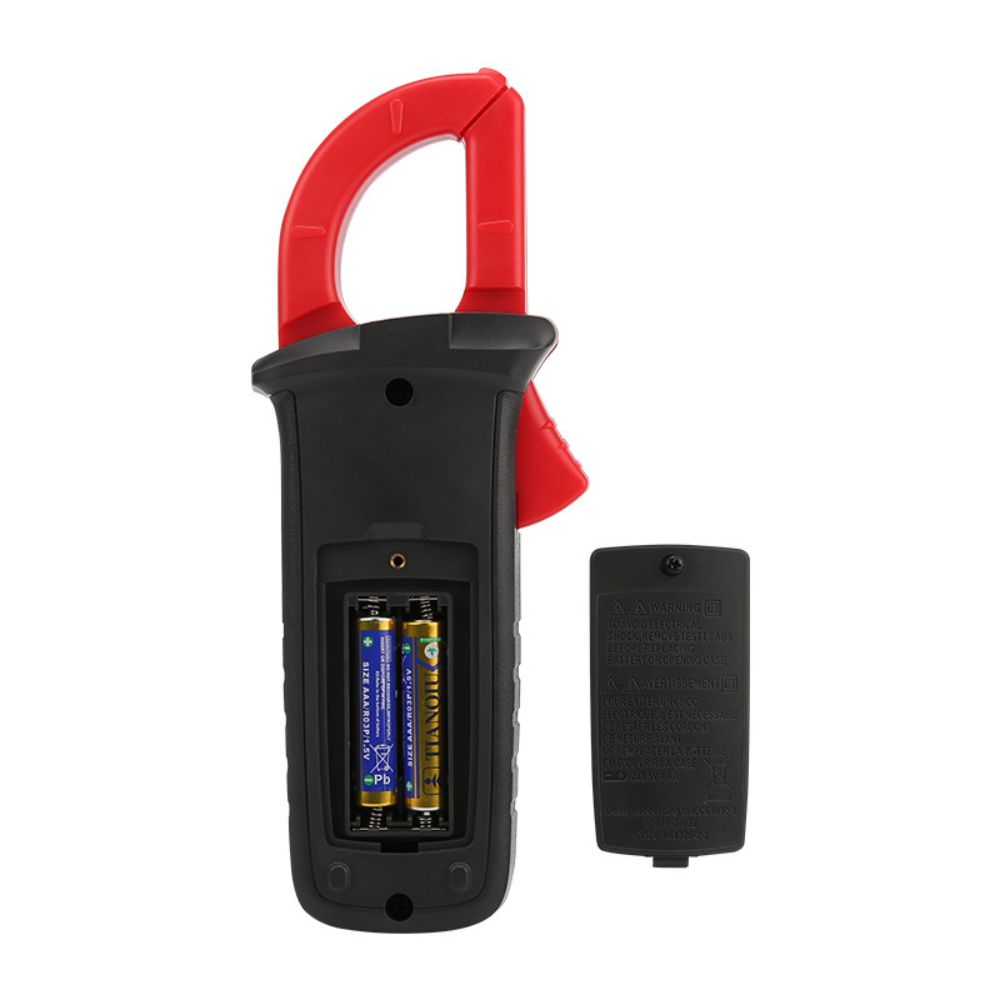

2 x 1.5V Batteries (R03)

1 x Test Leads

1 x Carrying Bag

1 x User Manual
