UNI-T UT197PV Solar Pro Rugged Professional Digital Multimeter

UNI-T UT197PV Professional Multimeter Solar Pro in Sri Lanka

Rugged IP67 True RMS Multimeter for Industrial & Solar Applications

The UNI-T UT197PV Professional Multimeter Solar Pro is an industrial-grade true RMS digital multimeter engineered for harsh environments with IP67 dust/water resistance and 5-meter drop protection. Certified for CAT IV 1000V/CAT III 1500V, it delivers precise measurements for AC/DC voltage up to 2500V DC, power analysis up to 2500kVA, and VFD output testing essential for solar PV systems, inverters, and industrial power engineering. Perfect for solar installers, HVAC technicians, and field engineers working in extreme conditions across Sri Lanka.

Looking for more options? Explore our full range of digital multimeter models to compare specifications and prices.

Featuring Bluetooth app connectivity for remote monitoring, external clamp support for 1000A AC/DC current (UT-CS07 optional), and solar-specific power measurements, the UT197PV excels in photovoltaic system testing, efficiency analysis, and safety-critical applications. With -40°C to 55°C operating range and multifunctional protection, it's built to withstand Sri Lanka's demanding tropical climate and industrial sites.

Key Features

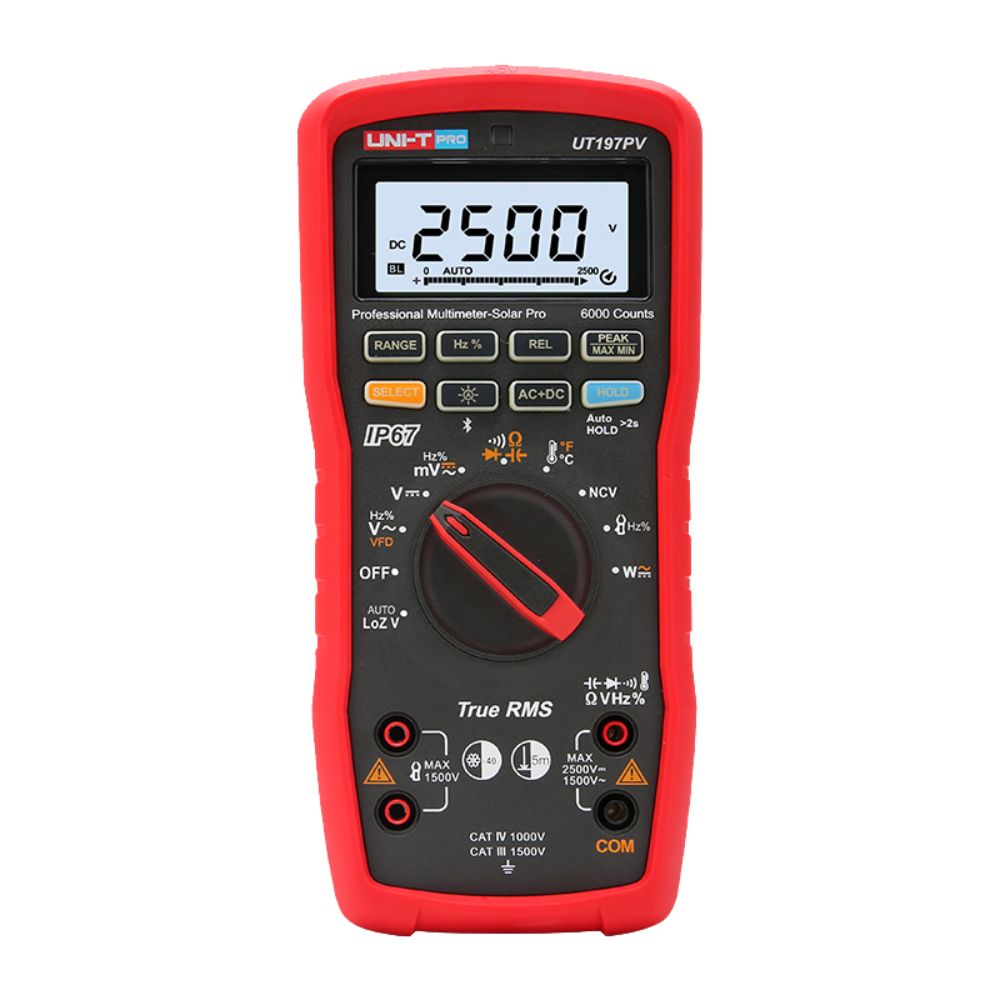

True RMS 6000-count display with 33-segment analog bar

IP67 rated - fully dustproof and waterproof protection

5-meter drop protection for rugged field use

Bluetooth app for wireless data logging and remote monitoring

Solar power measurements - Active/Reactive/Apparent power up to 2500kVA

VFD output testing for variable frequency drive systems

External clamp support - 1000A AC/DC (UT-CS07 optional)

High voltage alarms - audible/visual warnings and OL protection

-40°C to 55°C operation for extreme environments

NCV detection, REL/PEAK/MAX-MIN functions

Technical Specifications

Model

UNI-T UT197PV

DC Voltage

600mV/6V/60V/600V/2500V

AC Voltage

600mV~1500V (45Hz~1kHz)

VFD AC Voltage

600V/1500V (45~200Hz)

AC+DC Voltage

600mV~1500V

Resistance

600Ω~60MΩ

Capacitance

60nF~60mF

Frequency/Duty Cycle

99.99Hz~999.9kHz

Temperature

-40°C~1000°C

External Clamp Current

100A/1000A AC/DC (UT-CS07 optional)

Power Measurements

Active/Apparent/Reactive Power, Power Factor

Display Count

6000 counts + 33-segment bar graph

Accuracy

DCV: ±(0.2%+5), ACV: ±(0.8%+3)

Safety Rating

CAT IV 1000V / CAT III 1500V

IP Rating

IP67 dust/water resistant

Drop Protection

5 meters

Operating Temperature

-40°C ~ 55°C

Battery

3 x 1.5V AA batteries

Dimensions

220 × 104 × 67 mm

Weight

Approx. 600g

Applications

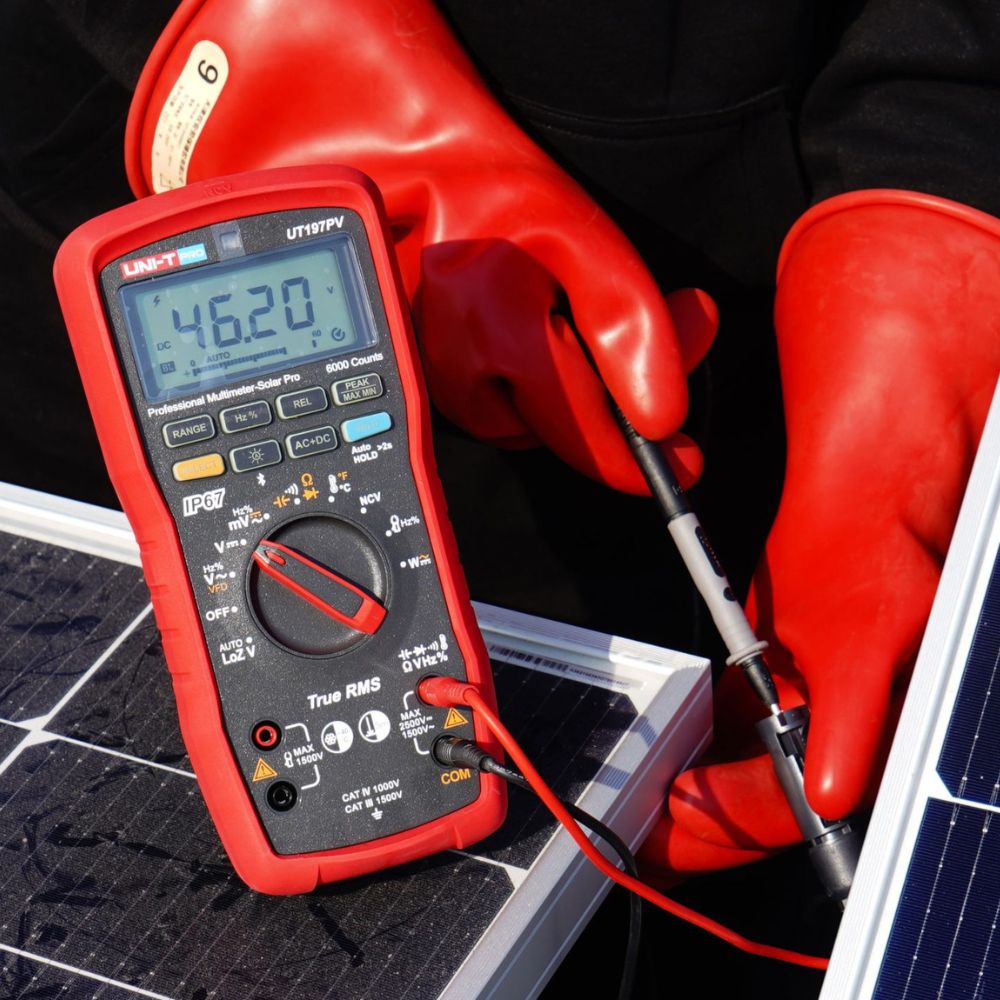

Solar PV system installation and maintenance testing

Industrial power engineering and load analysis

HVAC systems voltage/current/power measurements

VFD motor drive diagnostics and commissioning

New energy & environmental protection equipment verification

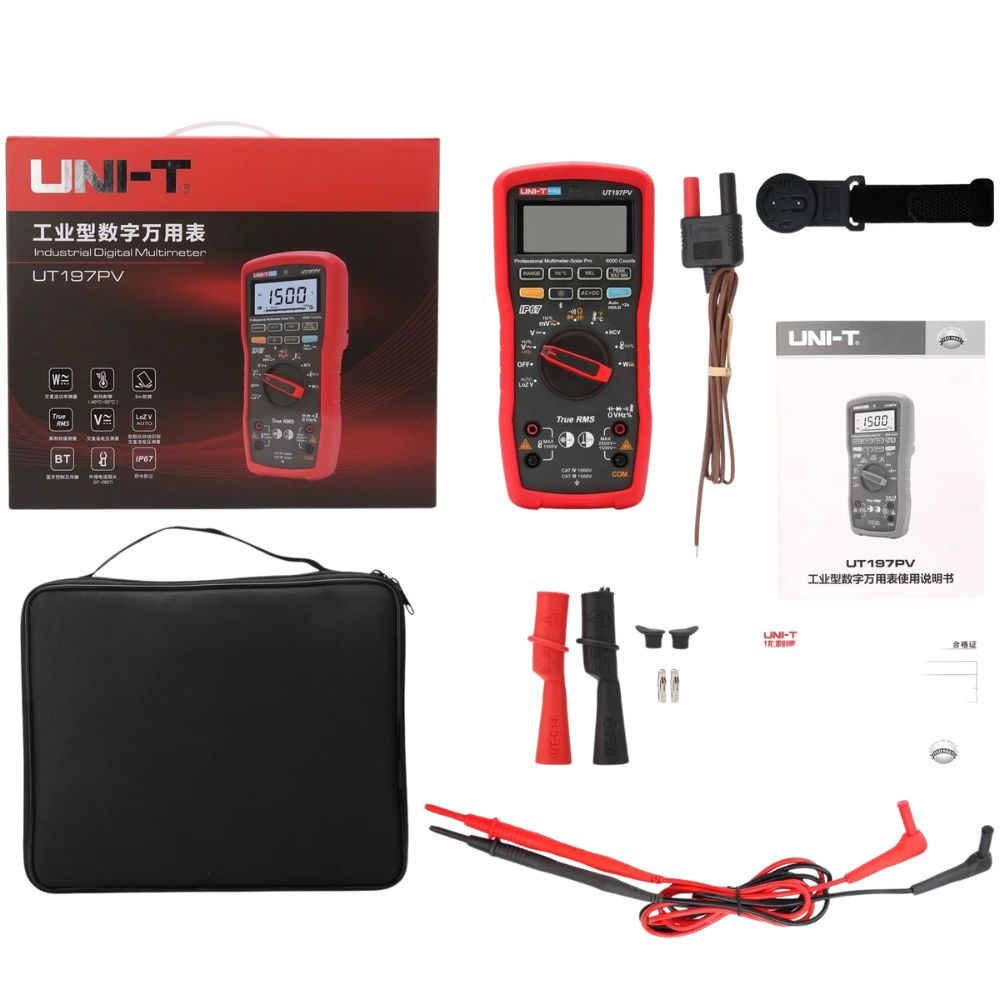

Package Includes

1 x UNI-T UT197PV Professional Multimeter

2 x Test Leads (Red/Black)

1 x Temperature Probe

3 x 1.5V AA Batteries

1 x USB Cable (for Bluetooth setup)

1 x Carrying Case

1 x User Manual (Multi-language)

Downloads

📄 Download UNI-T UT197PV Data Sheet
📄 Download UNI-T UT197PV User Manual
