UNI-T UT181A True RMS Datalogging Multimeter with Bluetooth

UNI-T UT181A True RMS Datalogging Multimeter in Sri Lanka

Industrial-Grade Multimeter with Color Display and 20,000-Point Data Logging

The UNI-T UT181A True RMS Datalogging Multimeter is built for engineers and technicians who need more than a quick reading — it captures, stores, and trends measurement data over time. With a 1000V CAT III / 600V CAT IV safety rating, 10A current input, and a bright 3.5-inch color TFT display, it is designed for power distribution work, industrial equipment diagnostics, and extended monitoring tasks across Sri Lanka's electrical, HVAC, and manufacturing sectors.

Discover our complete selection of Digital Multimeters – true RMS, auto-ranging and CAT-rated meters in Sri Lanka!

Featuring onboard datalogging for up to 20,000 measurement points, trend-diagram plotting, dual temperature measurement, and dual connectivity via USB and Bluetooth, the UT181A lets technicians walk away from a test point and review long-term voltage or current behaviour later on a PC or mobile device. Its IP65-rated, double-molded housing is built to survive dusty panels, damp plant rooms, and everyday drops on site.

Technical Specifications

DC Voltage: 60mV / 600mV / 6V / 60V / 600V / 1000V | Accuracy: ±(0.025%+5)

AC Voltage (True RMS): 60mV / 600mV / 6V / 60V / 600V / 1000V | Accuracy: ±(0.3%+30)

DC Current: 600µA / 6000µA / 60mA / 600mA / 10A | Accuracy: ±(0.08%+10)

AC Current (True RMS): 600µA / 6000µA / 60mA / 600mA / 10A | Accuracy: ±(0.6%+20)

Resistance: 600Ω ~ 60MΩ | Accuracy: ±(0.05%+2)

Capacitance: 6nF ~ 60mF | Accuracy: ±(2%+5)

Frequency: 10Hz ~ 60MHz | Accuracy: ±(0.01%+5)

Temperature: −40°C ~ 1000°C | Accuracy: ±(1%+30)

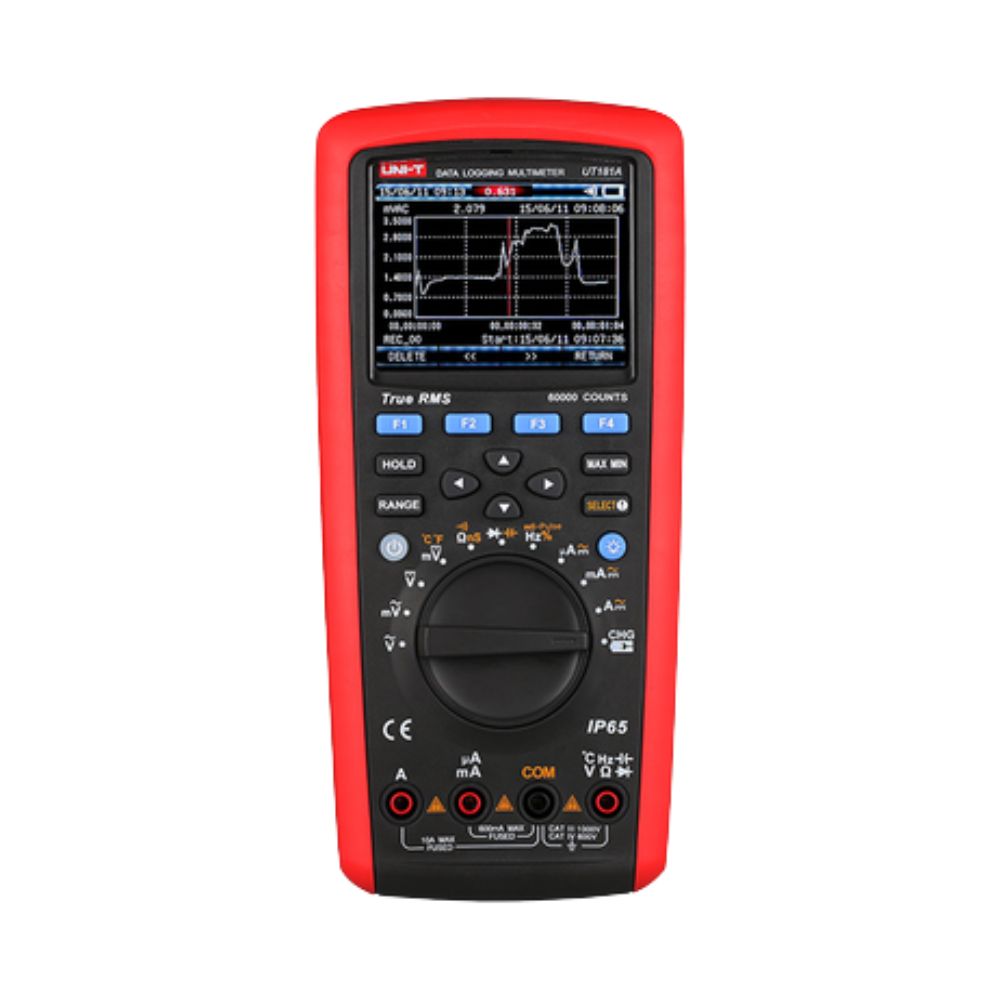

Display: 3.5-inch 64K-color TFT LCD, 60,000-count, 4⅚ digit resolution

Overvoltage Category: CAT IV 600V / CAT III 1000V

Key Features

Datalogging & Trend Capture: Records up to 20,000 measurement points with on-screen trend-diagram plotting for long-term monitoring

True RMS: Accurate AC voltage and current readings on non-linear and distorted waveforms

Dual Connectivity: USB (UT-D09) cable and Bluetooth (UT-D07A) for PC and mobile data transfer

Dual Temperature Measurement: Monitors two temperature points simultaneously for comparative diagnostics

MAX/MIN/AVG, Peak Detection & Relative Measurement: Captures signal fluctuation and isolates transient events

Conductance, Diode & Continuity Testing: nS conductance range for leakage and low-current circuit checks

Non-Contact Voltage (NCV) Detection: Quick live-circuit checks without probe contact

Build: IP65-rated, double-molded, shock-resistant housing for harsh industrial environments

Power: Rechargeable 2000mAh Li-ion battery for extended field use without disposable batteries

Applications

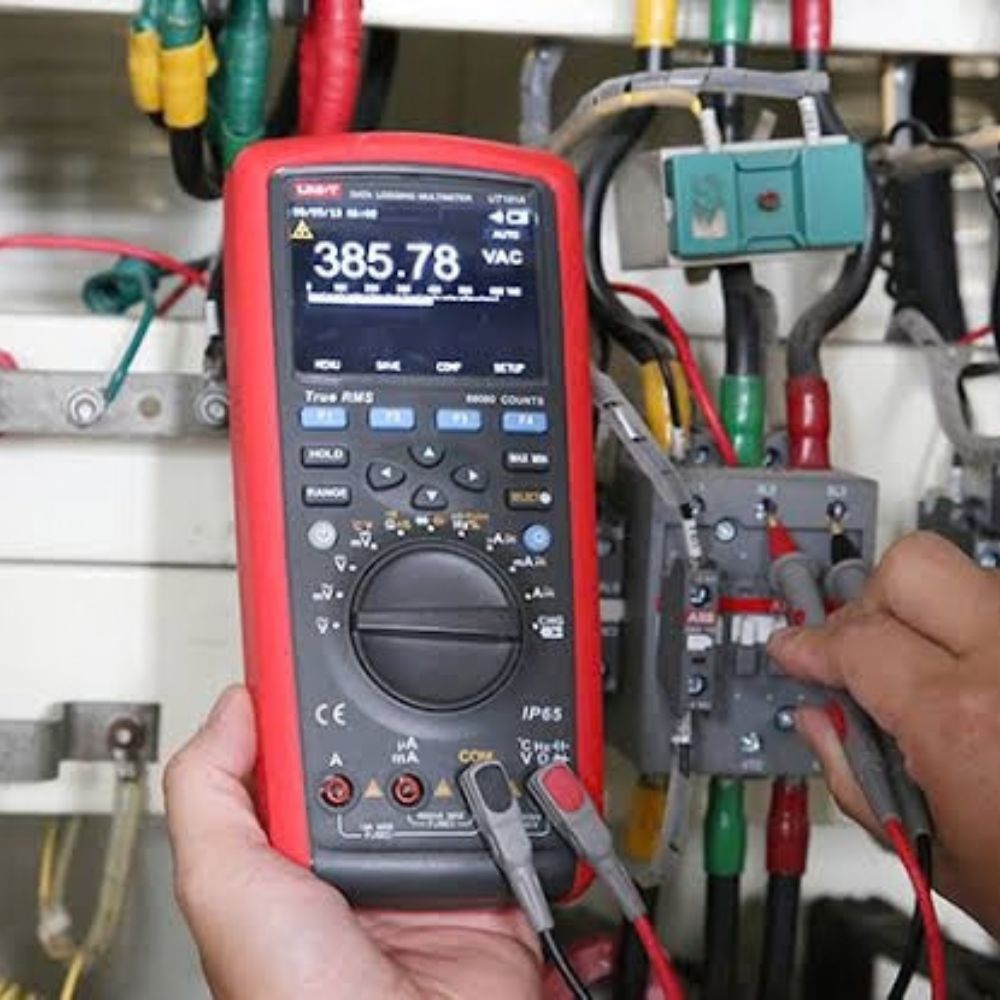

Long-term voltage and current trend monitoring on industrial power distribution systems

Equipment commissioning and load analysis in manufacturing plants

HVAC and process equipment diagnostics requiring dual temperature comparison

Power quality investigation on sites where intermittent faults need unattended logging

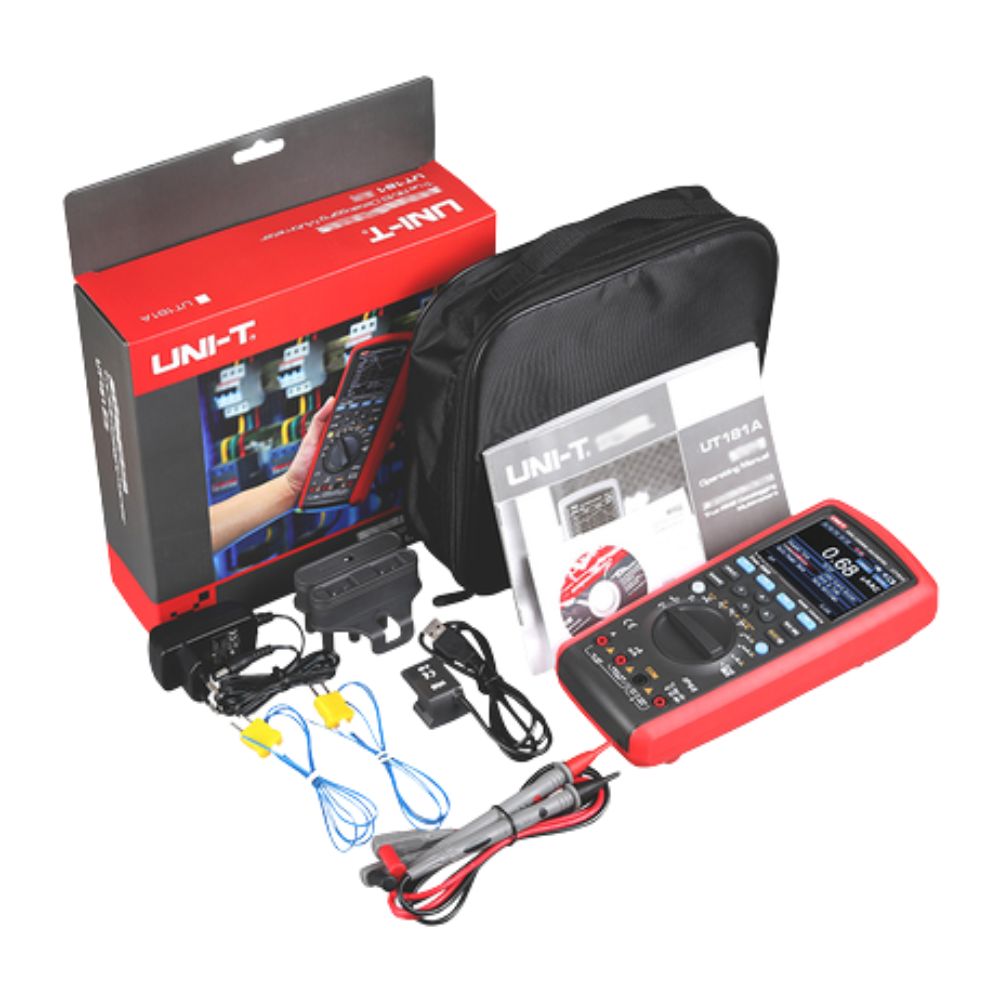

Package Includes

1 x UNI-T UT181A True RMS Datalogging Multimeter

Test probes (1 pair)

USB cable (UT-D09)

2000mAh Li-ion rechargeable battery (installed)

Carrying case

English user manual

Downloads

📄 Download UNI-T UT181A Data Sheet
📄 Download UNI-T UT181A User Manual
