UNI-T UT161E Digital Multimeter

Name: UNI-T UT161E Digital Multimeter
Brand: UNI-T
Price: 48950.0 LKR
Availability: InStock

Rs 48,950.00 LKR

Sale Sold out

Tax included. Shipping calculated at checkout.

Get a Quote via WhatsApp

HOT LINE 077-8620567 NANO ZONE TRADING

UNI-T UT161E Digital Multimeter | 1000V True RMS Industrial DMM

CAT IV Safety-Rated Multimeter for Electricians, Industrial & Electronics Pros in Sri Lanka

The UNI-T UT161E is a professional-grade True RMS digital multimeter engineered for technicians who need both high accuracy and high safety in one rugged instrument. With a 22,000-count display, CAT III 1000V / CAT IV 600V safety rating, and robust input protection, this meter is built for serious electrical work on distribution boards, three-phase systems, and industrial control panels in Sri Lanka.

Positioned as the top model in the UT161 series, the UT161E combines precision DC accuracy of up to ±0.05% with a wide measurement range up to 1000V AC/DC and 20A current, making it equally at home on mains power, electronics benches, and field service jobs. Features like LoZ AC voltage to eliminate ghost voltages, NCV (non-contact voltage), and a fast analog bar graph make it a powerful upgrade over entry-level multimeters.

Key Features of the UNI-T UT161E Digital Multimeter

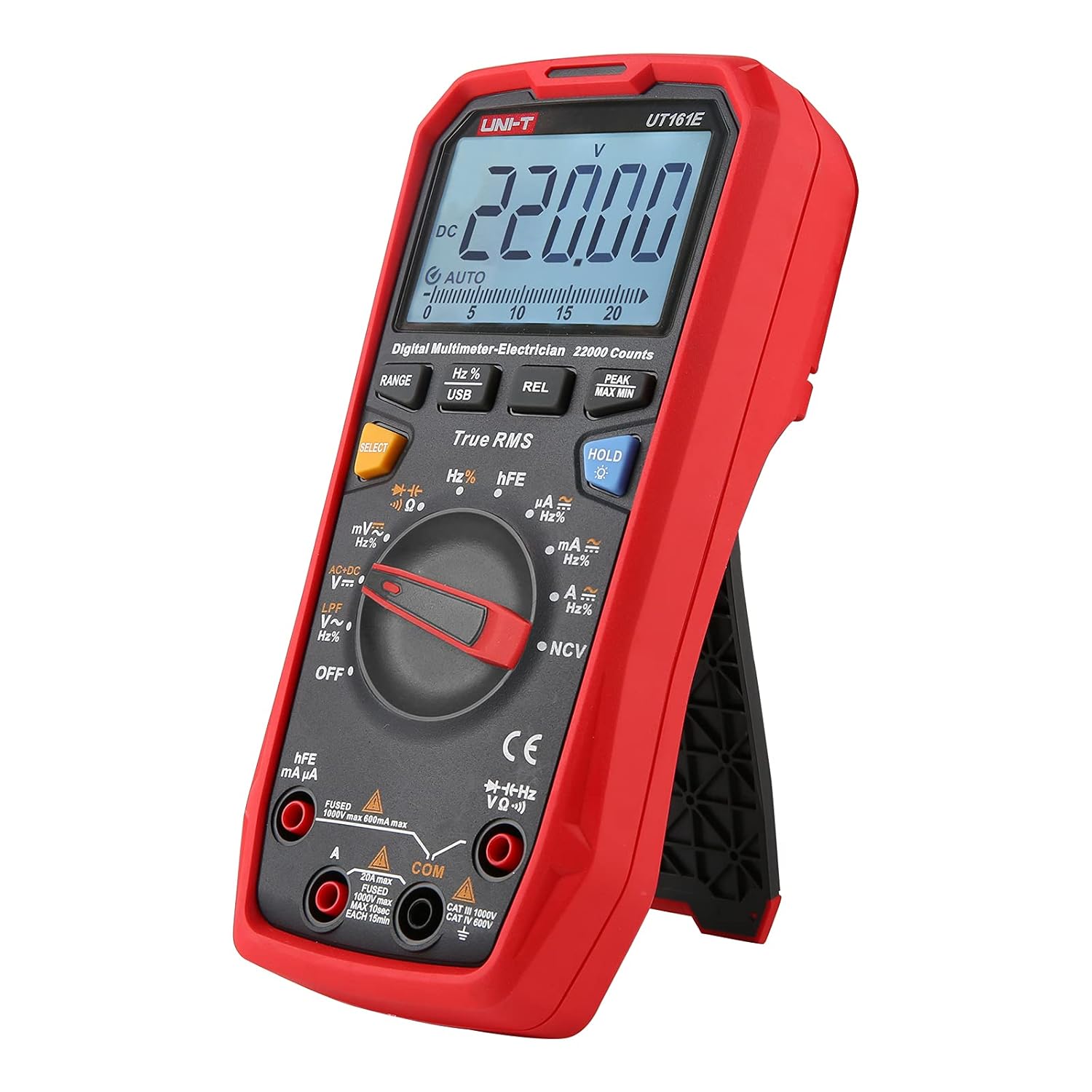

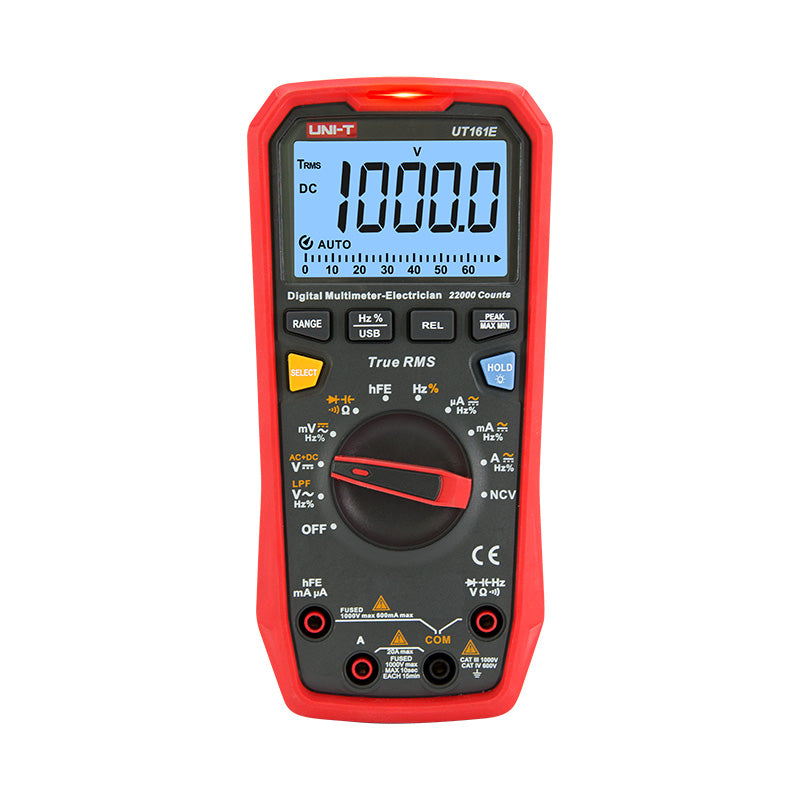

22,000-Count True RMS Display: High-resolution 22,000-count backlit LCD with an analog bar graph provides precise readings and fast visual response when monitoring fluctuating signals.
CAT III 1000V / CAT IV 600V Safety: Designed for demanding environments with CAT III 1000V and CAT IV 600V ratings, intelligent anti-burn protection, and high-energy input protection for safe use on distribution circuits and service entrances.
Wide Measurement Ranges: Measures AC/DC voltage up to 1000V, AC/DC current up to 20A, resistance up to 220MΩ, capacitance up to 220mF, frequency up to 220MHz, duty cycle, and temperature from -40°C to 1000°C with the included probe.
Advanced Measurement Functions: Includes True RMS, AC+DC measurement, LPF (low-pass filter) ACV for VFD outputs, LoZ ACV to avoid ghost readings, NCV with sound/light alarm, continuity and diode test, and transistor hFE test for complete diagnostic coverage.

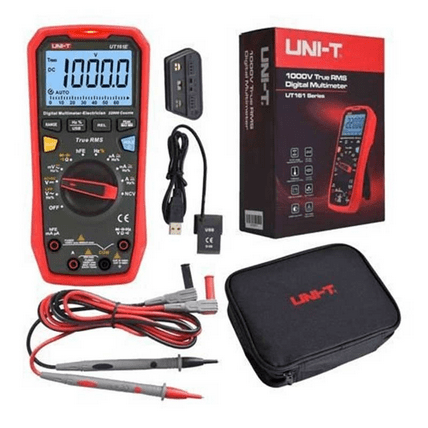

Data Logging & PC Connectivity: Equipped with a USB communication port, the UT161E allows you to log and transfer measurement data to a PC for analysis, reporting, and long-term monitoring via the supplied cable and software.
User-Friendly Design: Features auto and manual ranging, Max/Min/Relative modes, Peak Hold, backlight, audible/visual high-voltage alarms, and auto power-off, all in a compact, lightweight housing that is easy to carry on site.

Common Applications of UNI-T UT161E

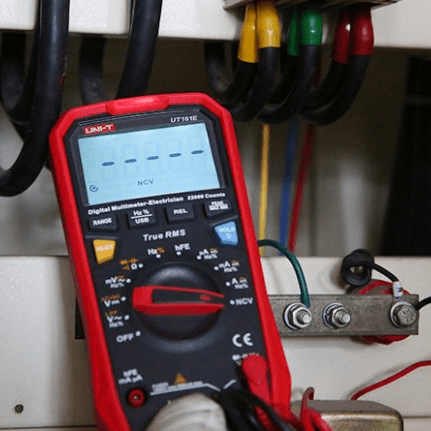

Electrical Installation & Panel Work: Ideal for electricians working on distribution boards, MCCs, UPS systems, and three-phase circuits, where CAT IV safety, LoZ voltage mode, and True RMS accuracy are critical for reliable measurements.

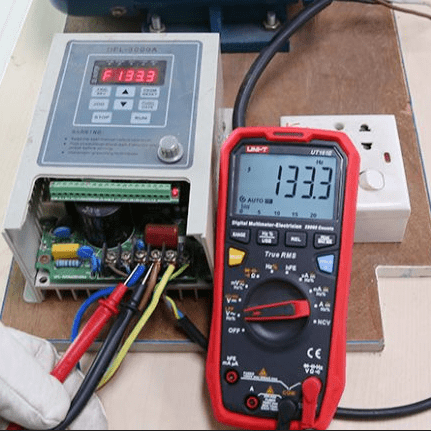

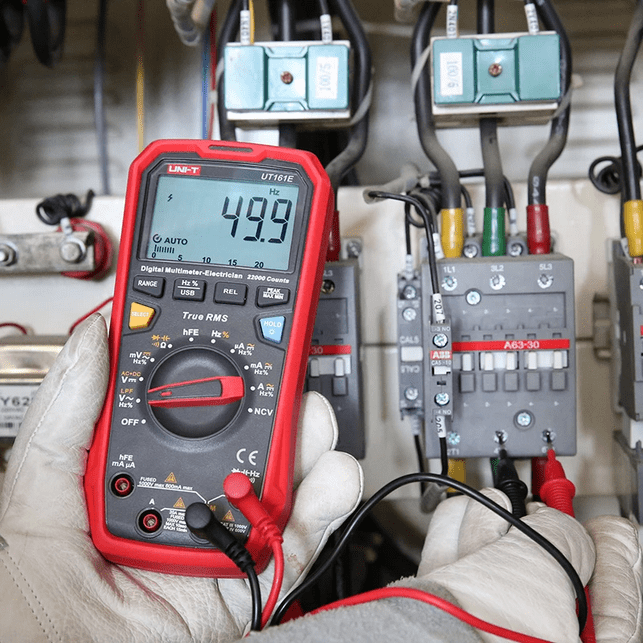

Industrial Maintenance & Field Service: Use the UT161E for troubleshooting motors, VFDs, control panels, sensors, and power supplies in factories and process plants, leveraging LPF ACV and wide bandwidth for complex waveforms.
Electronics & Lab Measurements: Its 22,000-count resolution and high DC voltage accuracy make it well suited for electronics repair, R&D benches, calibration checks, and precision PSU testing where stable, fine-resolution readings are essential.
