UNI-T UT123D Digital Multimeter – NCV Auto Range AC/DC Voltage Current Resistance

UNI-T UT123D Smart Digital Multimeter | Auto Smart Mode NCV Tester

Compact Auto-Ranging Multimeter for Home DIY, Electrical Service and Maintenance in Sri Lanka

The UNI-T UT123D is an intelligent smart digital multimeter featuring automatic function detection and one-button operation, perfect for electricians, home DIY users and maintenance technicians across Sri Lanka. With True RMS AC/DC voltage up to 600V, 10A AC/DC current, 40MΩ resistance, 4000μF capacitance, NCV non-contact voltage detection and continuity testing, this pocket-sized 130g meter eliminates manual range selection and function switching. Its EBTN backlit display and built-in flashlight make it ideal for working inside dark distribution boards and meter cabinets.

The UT123D automatically identifies AC/DC voltage, resistance, diode and continuity without mode changes, while manual button access provides capacitance, current and frequency measurement. Smart NCV detection with color-coded LED indicators (green=weak, red=strong electric field) and acousto-optic alarms enhance safety during initial circuit assessment. CAT III 600V safety rating, auto power-off and low battery indication ensure reliable performance for household troubleshooting, appliance repair and basic commercial electrical work throughout Colombo, Gampaha and beyond.

Key Features of UNI-T UT123D Smart Multimeter

Smart Auto Detection Mode

Automatically identifies and measures AC/DC voltage, resistance, diode and continuity – no manual function switching required.

True RMS AC Measurements

Accurate readings on distorted waveforms from LED lighting, inverters, UPS systems and switching power supplies.

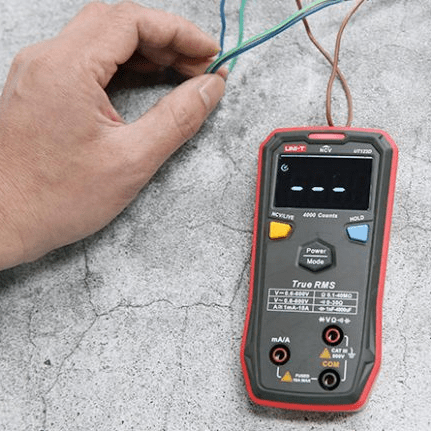

NCV Non-Contact Voltage Detection

Color-coded LED display (green=weak field, red=strong field) plus audible alarms for safe live wire identification.

EBTN Backlit Display + Flashlight

High-contrast screen with backlight and built-in flashlight for clear readings in dark DB boards and meter enclosures.

Complete Electrical Testing

600V AC/DC voltage, 10A AC/DC current, 40MΩ resistance, 4000μF capacitance, continuity buzzer and diode test.

Pocket-Sized Professional Design

130g weight, 130x65x28mm size with CAT III 600V safety rating – perfect for tool pouches and daily service calls.

Common Applications of UT123D in Sri Lanka

Household Electrical Troubleshooting

Quick voltage checks, continuity testing and live wire detection in home wiring, sockets and lighting circuits.

Appliance and Equipment Repair

Verify power supply voltages, test motor windings, check heater elements and diagnose control circuit faults.

Basic Commercial Maintenance

Socket outlet testing, lighting circuit verification and simple load measurements in shops, offices and restaurants.

DIY and Educational Use

Perfect first multimeter for electronics students, hobbyists and vocational training programs across Sri Lanka.

Technical Specifications of UNI-T UT123D

DC Voltage

600V ±(0.5%+3)

AC Voltage (True RMS)

600V ±(0.8%+3)

DC Current

10A ±(1.0%+3)

AC Current (True RMS)

10A ±(1.2%+3)

Resistance

40MΩ ±(0.8%+2)

Capacitance

4000μF ±(4.0%+5)

Display & Size

4000/6000-count EBTN LCD (44x26mm) | 130g | CAT III 600V

Frequently Asked Questions about UT123D Smart Multimeter

How does Smart Mode work?

Automatically detects measurement type (voltage/resistance/continuity) and selects optimal range – just touch probes to circuit.

Is NCV safe for live Sri Lankan wiring?

Yes – detects 230V AC through insulation with green/red LED coding and audible alarms for safe initial assessment.

Can it measure appliance motor currents?

Perfect – 10A AC/DC range handles washing machine motors, air conditioner compressors and small pump loads.

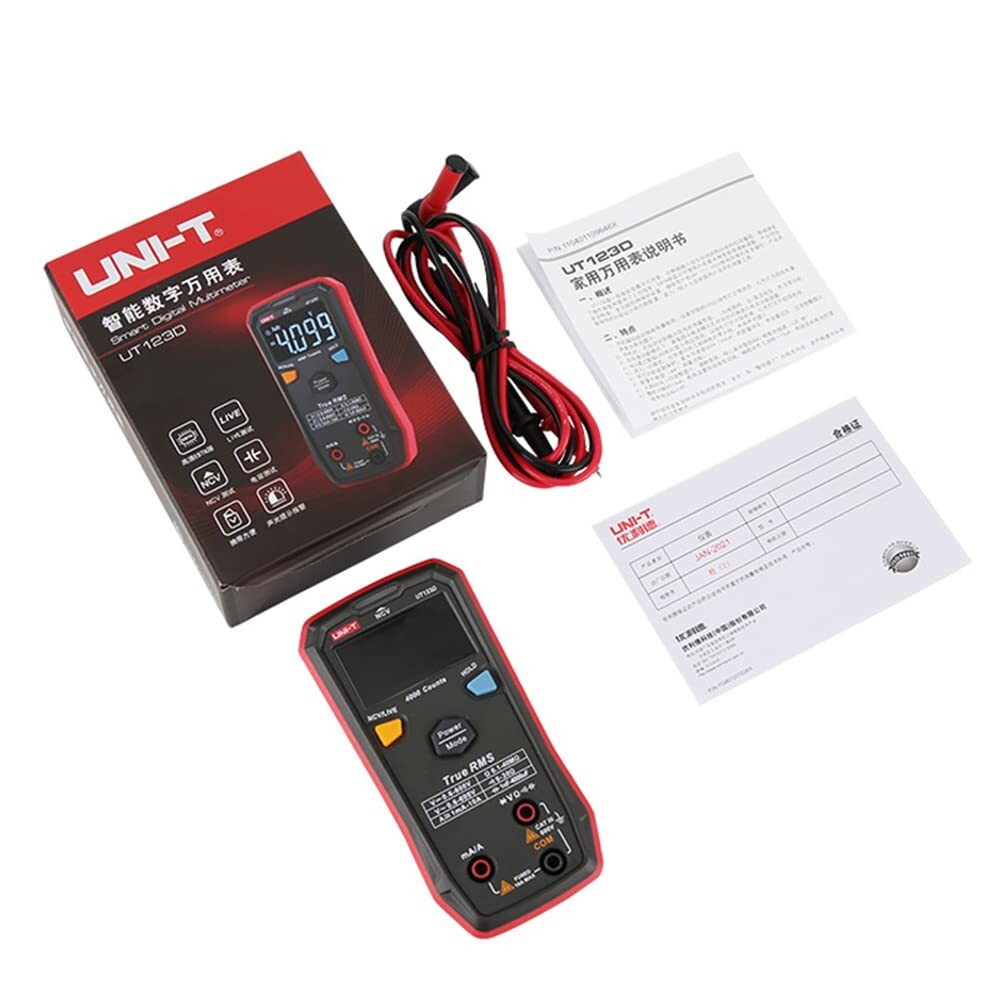

What's in the Box?

1 x UNI-T UT123D Smart Digital Multimeter

1 x Test Lead Set

2 x 1.5V AAA Batteries (installed)

1 x Protective Carrying Pouch

1 x Multilingual User Manual

Downloads

📄 Download UNI-T UT123D Data Sheet
📄 Download UNI-T UT123D User Manual
