UNI-T UT117C 10A 600V True RMS Digital Multimeter with Bluetooth

UNI-T UT117C True RMS Digital Multimeter in Sri Lanka

60,000-Count Bluetooth Multimeter with 10A/600V Measurement Range

The UNI-T UT117C True RMS Digital Multimeter delivers high-precision AC/DC voltage, current, resistance, capacitance, and frequency measurement in a compact, drop-tested body built for daily electrical work. With a 60,000-count display, 10A current input, and 600V CAT III safety rating, it is engineered for electronic technicians and electricians across Sri Lanka who need fast, dependable readings on live circuits, panels, and automotive systems.

Discover our complete selection of Digital Multimeters – true RMS, auto-ranging and CAT-rated meters in Sri Lanka!

Featuring Bluetooth 5.0 connectivity with the free iDMM2.0 app, Auto-V LoZ ghost-voltage elimination, a built-in low-pass filter (LPF) for accurate VSD/inverter readings, and non-contact voltage (NCV) detection, the UT117C streamlines everyday diagnostic routines while keeping technicians safer around live circuits. Its 2-metre drop-tested housing and Bussmann fuse protection make it a dependable daily-carry meter for both field and workshop use.

Technical Specifications

AC/DC Voltage: 600.00mV / 6.0000V / 60.000V / 600.00V, up to 600V | Accuracy: ±(1%+3) DC, ±(1%+30) AC

AC/DC Current: 6.0000A / 10.000A (20A transient, 10s max) | Accuracy: ±(0.5%+10) DC, ±(1.5%+30) AC

Resistance: 600.00Ω ~ 40.000MΩ | Accuracy: ±(0.5%+10) to ±(3%+5)

Capacitance: 1000nF ~ 10000µF | Accuracy: ±(1.9%+5) to ±(2.5%+5)

Frequency: 99.99Hz ~ 50.00kHz | Accuracy: ±(0.01%+3)

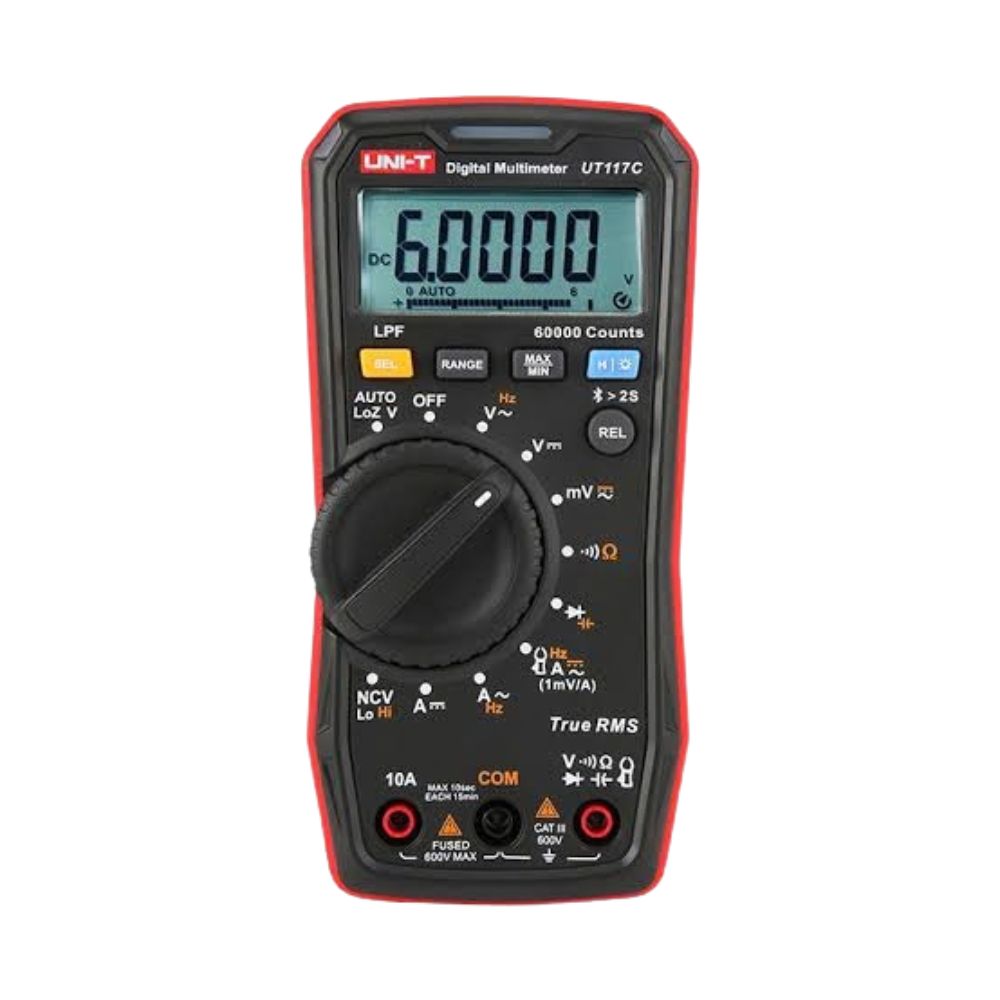

Display: 60,000-count, True RMS, 33-segment analog bar graph

Overvoltage Category: CAT III 600V

Key Features

True RMS: Accurate measurement of non-linear AC loads on AC voltage and AC current ranges

Bluetooth 5.0 & App: Wireless data logging, report generation, and chart export via the iDMM2.0 app (iOS 10+/Android 5+)

Auto-V LoZ: Automatically selects AC/DC voltage and uses low input impedance to eliminate ghost-voltage misreads

Low Pass Filter (LPF): Filters high-frequency noise for accurate readings on variable-speed drives and inverters

Non-Contact Voltage (NCV) Detection: Switchable Lo/Hi sensitivity for quick live-circuit checks without probe contact

External Current Clamp Support: Accepts current probes at a 1mV/A ratio for AC/DC current measurement beyond 10A

MAX/MIN/Average, REL & Data Hold: Captures signal fluctuation and freezes readings for hard-to-reach measurement points

Continuity, Diode & Capacitance Testing: Audible and visual alarms for fast pass/fail checks

Display: White LCD backlight for visibility in low-light panels and enclosures

Power: 1.5V AAA x 3 with auto power-off after 15 minutes

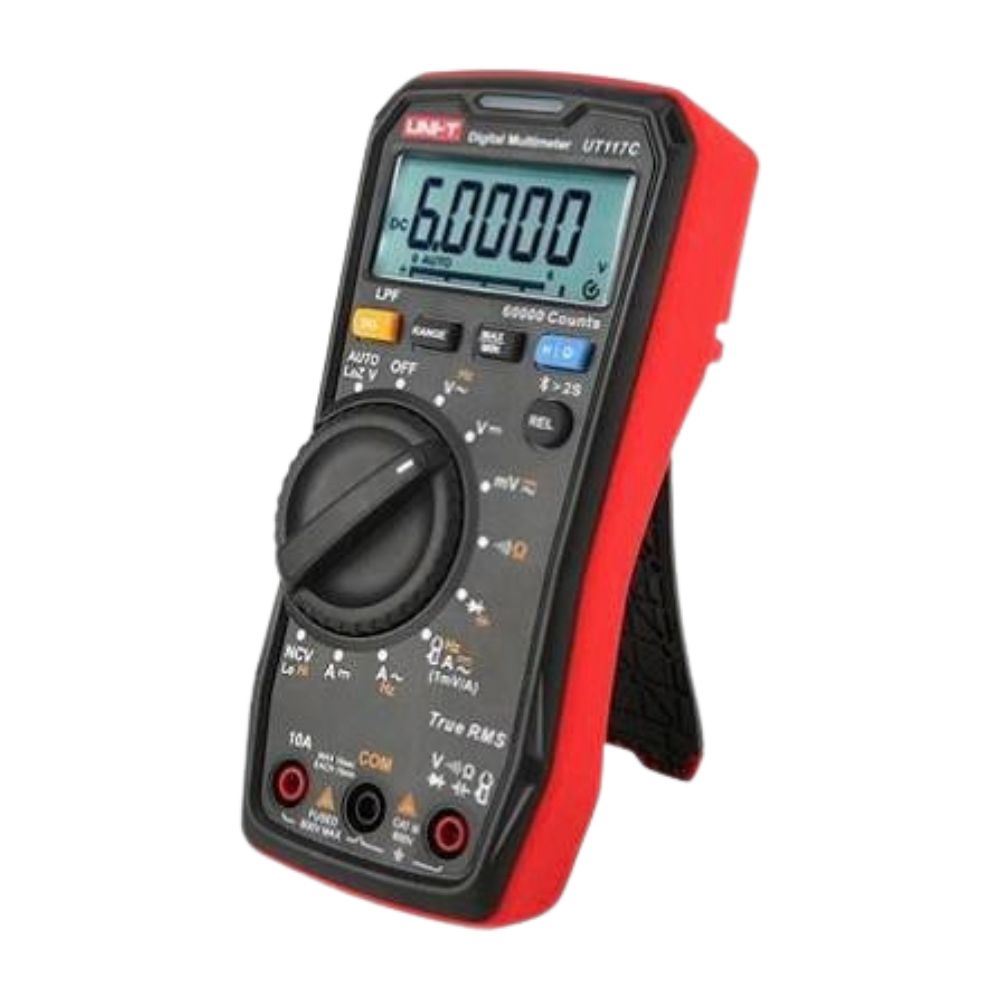

Build: 2-metre drop-tested housing, Bussmann 11A/1000V fuse protection, ergonomic one-handed design

Applications

Electrical fault-finding and voltage checks on domestic and commercial wiring

Automotive circuit diagnostics, battery, and charging system testing

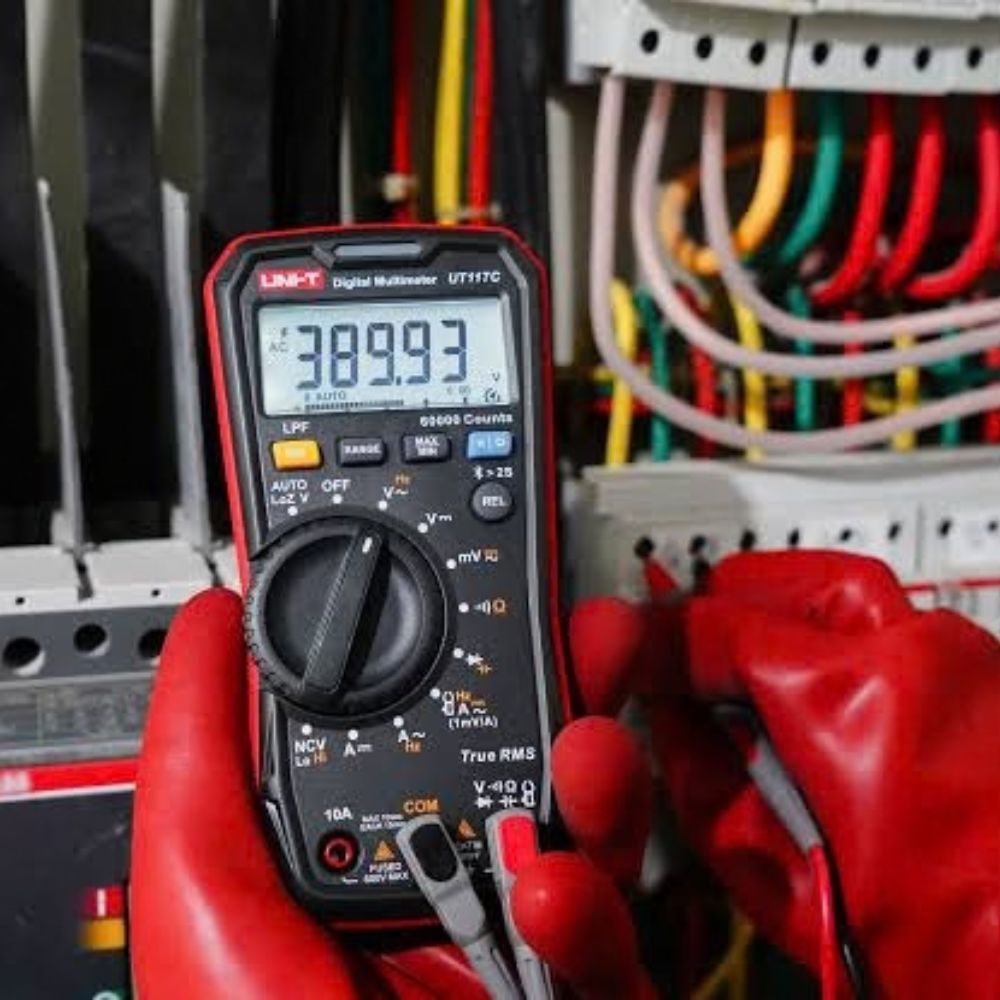

Panel and control-cabinet troubleshooting for maintenance electricians

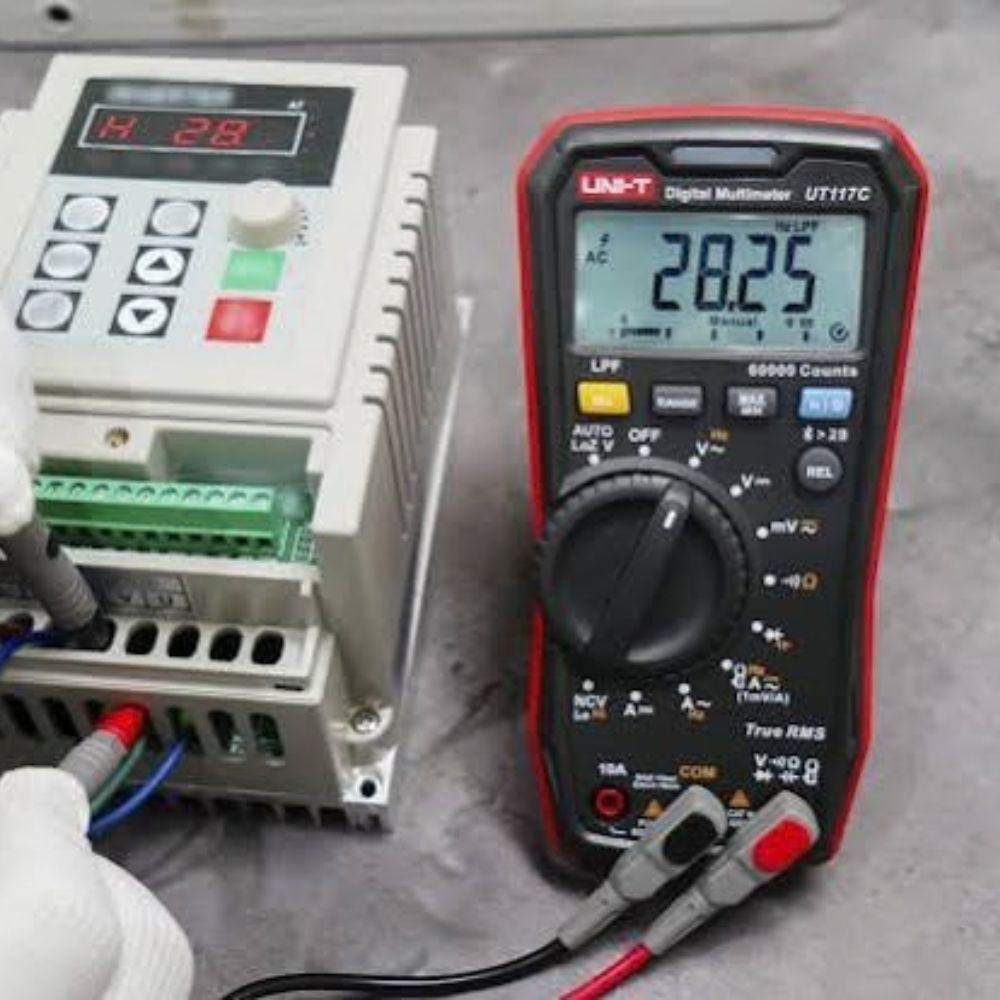

Variable-speed drive (VSD) and inverter output measurement using LPF mode

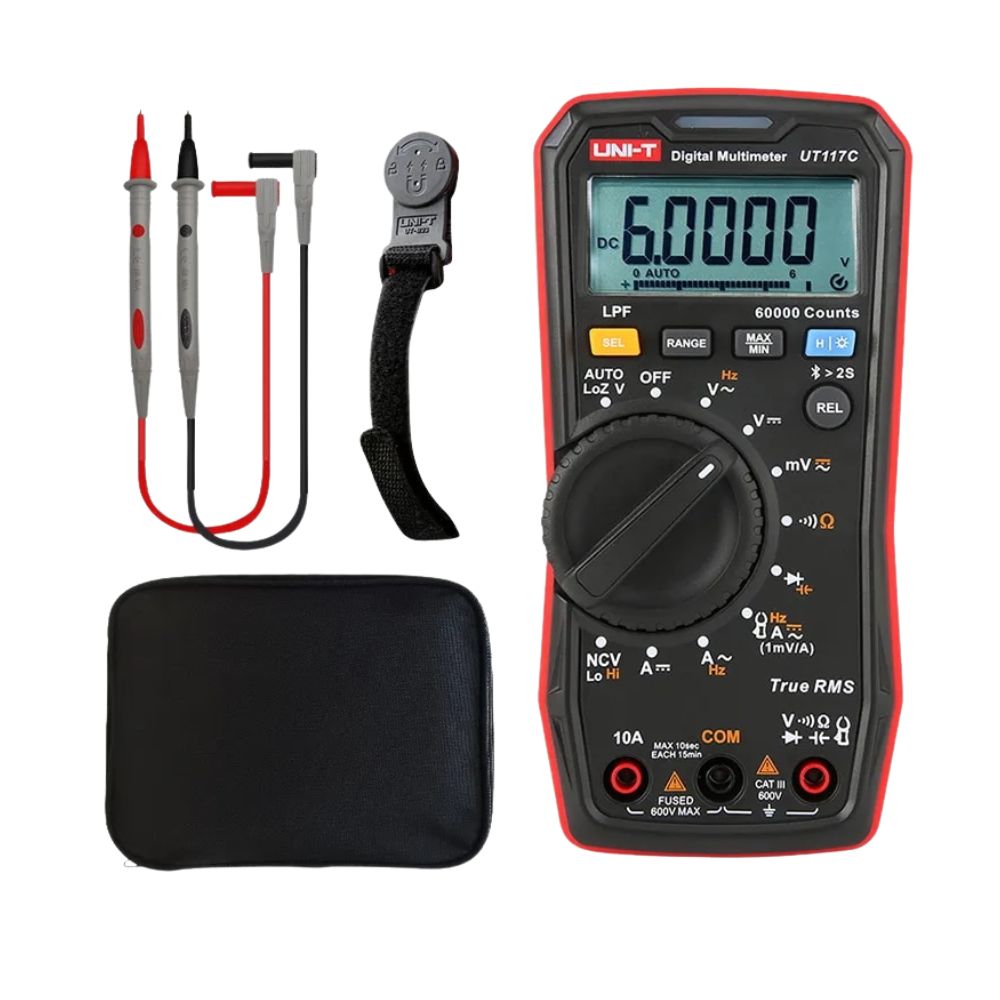

Package Includes

1 x UNI-T UT117C True RMS Digital Multimeter

Test probes (1 pair)

1.5V AAA batteries x 3 (installed)

Magnetic hanging strap

English user manual

Downloads

📄 Download UNI-T UT117C Data Sheet
📄 Download UNI-T UT117C User Manual
