UNI-T UDP6720 60V Single-Channel Switching DC Power Supply

UNI-T UDP6720 60V Single-Channel Switching DC Power Supply in Sri Lanka

High-Power Programmable Switching DC Power Supply for Industrial Testing

The UNI-T UDP6720 60V Single-Channel Switching DC Power Supply delivers robust high-power output for power electronics development, production testing, and industrial automation applications. With programmable 0-60V DC output and substantial current capability, it's perfect for motor controller testing, power supply validation, battery simulation, and component stress testing used across Sri Lanka's manufacturing plants, test laboratories, and engineering facilities.

For the best prices, check our DC Power Supply Price Comparison – see specs, features & deals across Sri Lanka!

Featuring a large color TFT display, precision digital programming, comprehensive protection systems (OVP/OCP/OTP), and industrial interfaces (USB/LAN/RS232), the UDP6700 provides stable high-power switching output with excellent dynamic response. Its automation capabilities and rack-mount design make it ideal for ATE systems, production burn-in stations, and integrated test environments.

Key Features

High-Power Output: 0-60V DC with substantial current delivery

Efficient Switching: High power density with thermal management

Precision Programming: Digital voltage/current control with fine steps

Color TFT Display: Multi-parameter monitoring and graphical interface

Industrial Connectivity: USB/LAN/RS232 for automated test systems

Advanced Protection: OVP/OCP/OTP/OPP with fault diagnostics

Fast Transient Response: Excellent performance under dynamic loads

List Sequence Mode: Multi-step programming for complex tests

Remote Sensing: Accurate regulation at load terminals

Rack-Mount Ready: 1U design for system integration

Technical Specifications

Model

UNI-T UDP6720 60V Single-Channel Switching DC Power Supply

Output Channels

1 programmable high-power output

Output Voltage Range

0–60V DC (precise programming resolution)

Output Current Range

0–5A (high-current capability)

Regulation Type

High-performance switching DC regulation

Display

4.3-inch color TFT LCD with detailed status

Load Regulation

≤0.02% + 5mV across full operating range

Protection Features

OVP, OCP, OTP, OPP, over-temperature shutdown

Interfaces

USB Device/Host, LAN (Ethernet), RS232, trigger I/O

Operating Modes

CV/CC, list programming, external trigger

Operating Conditions

0°C to 40°C; continuous industrial operation

Dimensions / Weight

1U rackmount chassis; industrial-grade build

Industrial & Manufacturing Applications

Motor Drive Testing: BLDC, stepper, servo motor controllers

Power Supply Validation: SMPS development and production testing

Battery Simulation: EV battery pack emulation and testing

Component Burn-in: High-volume reliability stress screening

Automated Test Equipment: ATE system integration and production

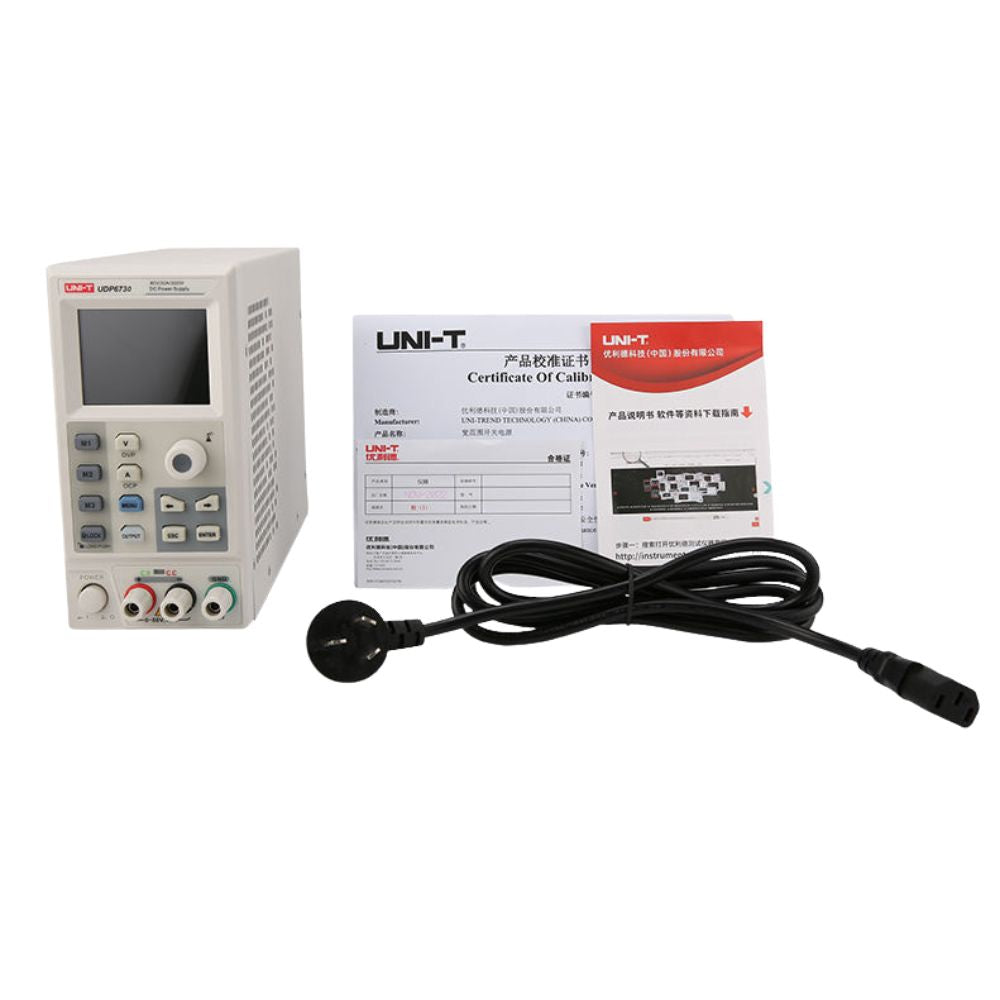

Package Includes

1 x UNI-T UDP6720 60V Single-Channel Switching DC Power Supply

1 x AC Power Cord

1 x High-Current Heavy-Duty Test Leads

1 x USB Communication Cable

1 x LAN Cable (CAT5e)

1 x RS232 Cable

1 x Rackmount Ears Kit

1 x Quick Start Guide

User Manual

Downloads

📄 Download UNI-T UDP6720 Data Sheet
📄 Download UNI-T UDP6720 User Manual
