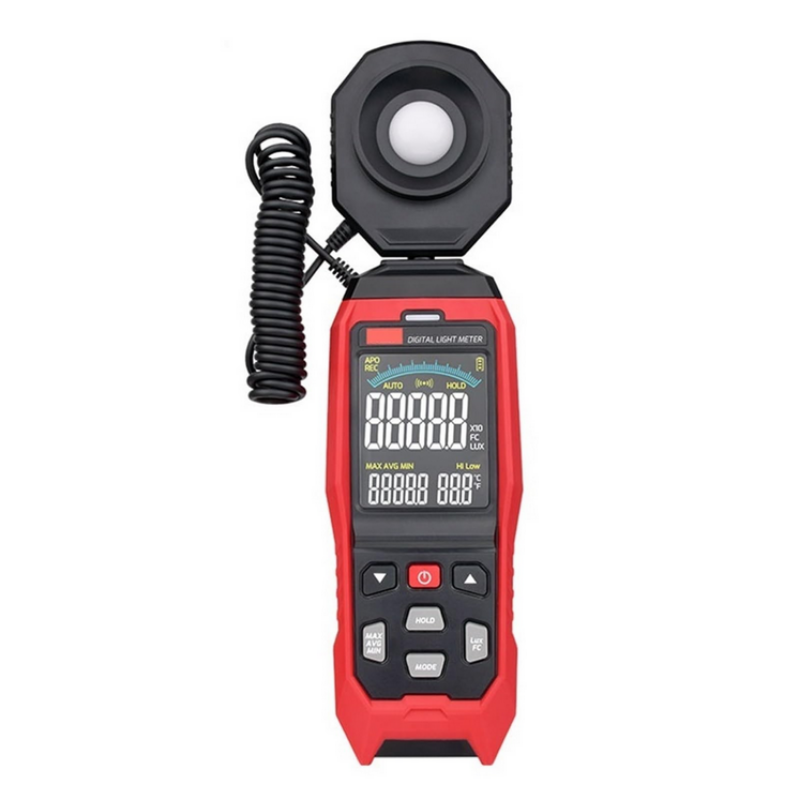

TASI TA632B Lux Meter Data Logger
TASI TA632B Lux Meter Data Logger
HOT LINE - 077 862 0567
Couldn't load pickup availability
Lux Meter Data Logger in Sri Lanka
Professional Light Measurement with Real-Time Data Logging
The TASI TA632B Data Logging Lux Meter is a high-precision illuminance measuring instrument designed for accurate monitoring of light intensity across industrial, commercial, and research applications. With a broad measuring range up to 200,000 lux, selectable ranges, and advanced data logging features, the TA632B is ideal for evaluating lighting effects in engineering projects such as squares, gymnasiums, halls, laboratories, and quality inspection environments.
Equipped with a detachable photometric probe, advanced digital light filters, and a VA color LCD display, this instrument provides highly reliable readings with Max/Min/Avg measurement modes, sound & light alarms, and real-time monitoring via USB PC connectivity. The TA632B is engineered to deliver professional-grade accuracy in both field and laboratory conditions.
With versatile applications in occupational safety, environmental monitoring, LED testing, and lighting quality verification, this data logger is an essential tool for professionals seeking accurate, durable, and easy-to-use light measurement solutions.
Key Features
- Certified Compliance
- CE, RoHS
- Wide Measurement Range
- Up to 200,000 lux (0.1~199,999 lux / 0.01~19,999 Fc)
- Display
- Large VA color LCD with 99,999 max reading

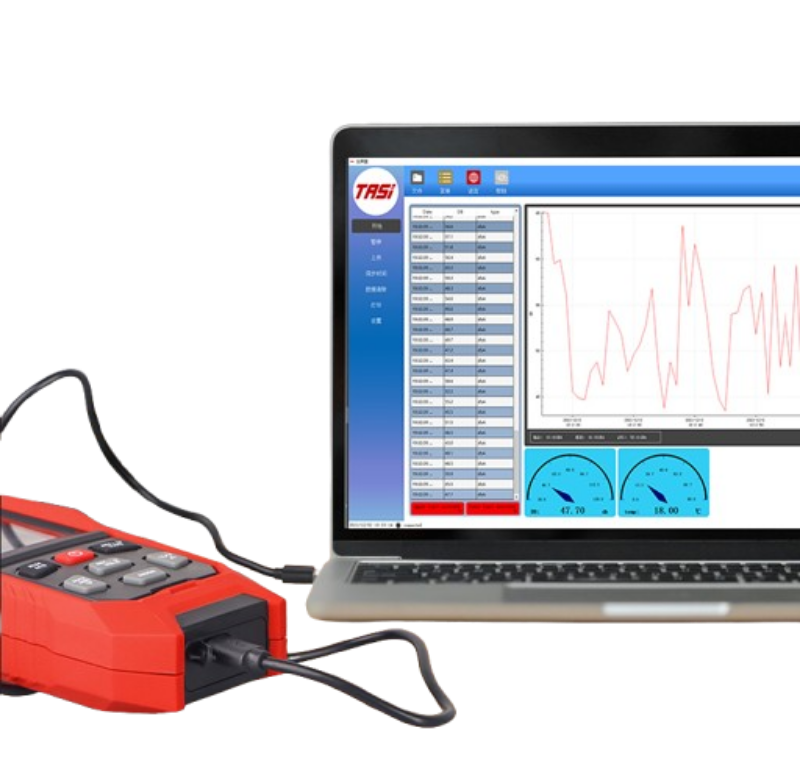

- Data Logging
- Real-time monitoring via USB connection
- Units
- LUX / FC selectable
- Accuracy
- ±(4% rdg+10dgt) incandescent / ±(6% rdg+5dgt) other visible light
- LED Measurement
- Supports multiple LED light sources (white, red, yellow, green, blue, purple)
- Statistical Modes
- Max / Min / Avg measurement

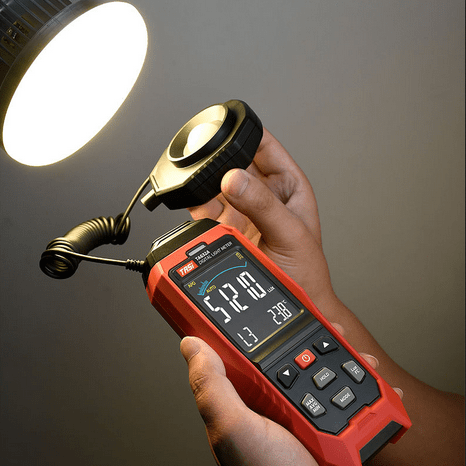

- Probe
- Detachable, 360° rotatable, extendable up to 1.5m
- Alarms
- Sound & light upper/lower limit alerts
- Sampling Rate
- 8 times/s
- Ambient Temperature Measurement
- 0–60℃, ±2℃
- Power Options
- 3 × AA batteries or USB 5V
- Auto Power Off
- 15 min (manual cancel available)
Technical Specifications
- Range
- 0.1–199,999 lux / 0.01–19,999 Fc
- Selectable Ranges
- 99.9 / 999.9 / 9,999 / 99,999 / 200,000 lux
- Resolution
- 0.1 lux / 0.1 Fc (<1000), 1 lux / 1 Fc (≥1000)
- Accuracy
- ±(4% rdg+10dgt) incandescent, ±(6% rdg+5dgt) other light
- Cosine Deviation
- 30° ±2%, 60° ±6%, 80° ±25%
- Spectrum Response
- 400–700 nm
- Repeatability
- ±2%
- Incident Angle
- 120°
- Sensor
- Digital light probes & filters
- Sampling Time
- 8 times/s
- Display
- VA color LCD, 99,999 max
- Screen Size
- 53 × 44 mm
- PC Connection
- USB (real-time logging)
- Operating Temp & Humidity
- -10℃~50℃, ≤80% RH
- Storage Temp & Humidity
- -10℃~50℃, ≤70% RH (battery removed)

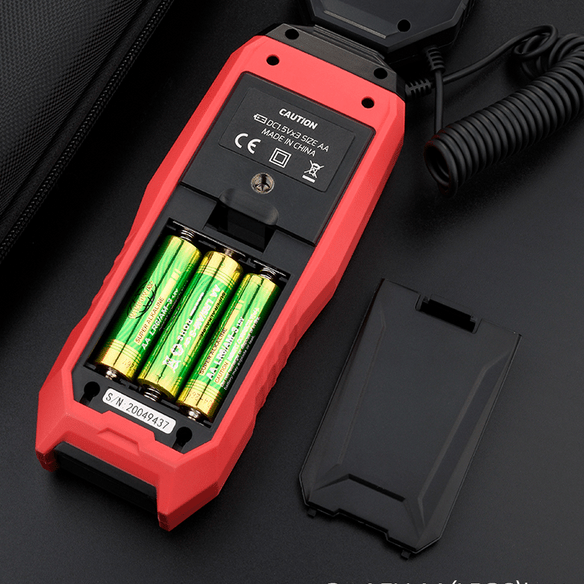

- Power Supply
- 3 × 1.5V AA batteries / USB
- Auto Power Off
- Approx. 15 min (manual cancel)
- Dimensions
- 256 × 67 × 35 mm
- Weight
- Approx. 250 g
Applications
- Engineering Projects
- Squares, stadiums, halls, lighting design evaluation
- Industrial & R&D
- Laboratories, inspection, quality testing
- Lighting Verification
- LED light source analysis and calibration
- Environmental Monitoring
- Indoor & outdoor light intensity studies
- Education & Research
- Universities, training centers, testing facilities

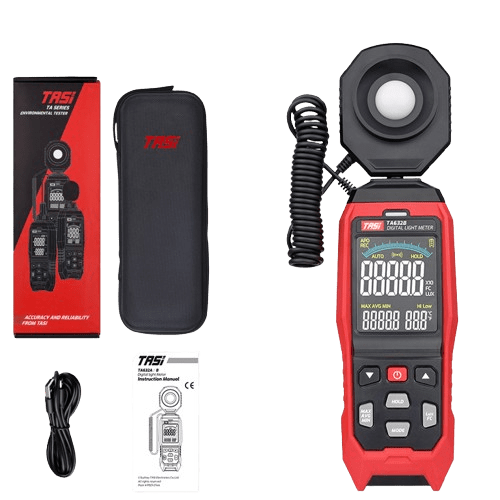

Package Includes
- TA632B Lux Meter
- USB Cable
- User Manual
- Carrying Case
- Product Box
